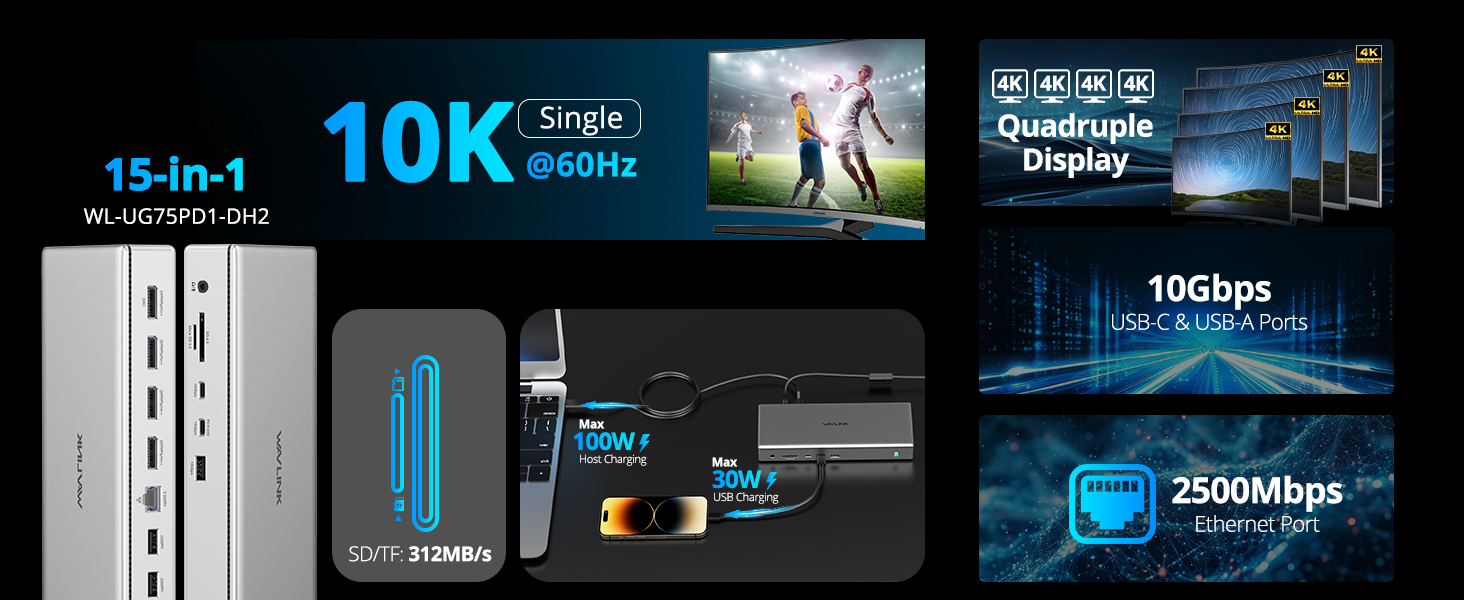

WAVLINK's Premium USB C 10K@60Hz Quad Displays Docking Station-Bring You Endless Possibilities Through a Single USB Port
UG75PD1-DH2 is the first blockbuster product released by WAVLINK team, this docking station is a powerful 15 in 1 tool that can expand your work-from-home laptop's capabilities, reduce wire clutter, and leave your chargers behind! With the UG75PD1-DH2, youre not just adding screens, youre also getting a whole host of extra ports. Starting with the innovative display array, you can add up to single 10K at 60Hz dual 8K displays at 60Hz or four 4K displays at 60Hz in the configuration of dual HDMI and duan DP to USB4 / Thunderbolt 3/4/5 hosts.

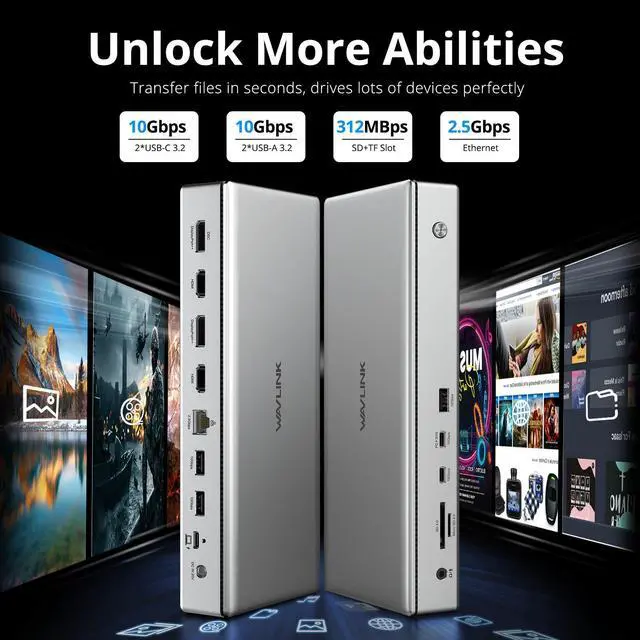

Blazing Fast Data Transfer
The docking station features five high-speed USB 3.2 ports, including two USB-C and three USB-A, all supporting transfer speeds up to 10Gbps.

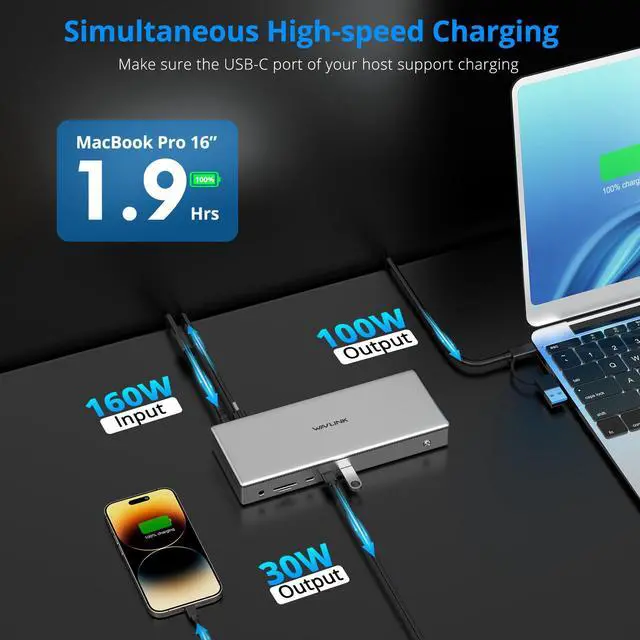

A bonus feature: one of the USB-C ports offers 30W downstream charging, making it easy to power your mobile devices while working.
2.5X Faster Than Gigabit:
This LAN port offers stunning and stable wired network connection to new Type-C/Thunderbolt laptops that are lack of RJ45 network port, backwards compatible with 10/100/1000Mbps.
SD Card Reader Slot
You can conveniently browse videos or photos instantly on your PCs/laptops and transfer large files in seconds with highest speed up to 312MB/s. (The SD card is not included).
2-In-1 Audio & Mic
Connect a microphone, headphones or mini stereo to this audio out & mic in port when accessing audio files or needing to speak, which can make listening, talking or recording a breeze.
Security Lock Hole
Supports the connection of Kensington lock, which secures the devices and important data from theft to keep your properties/data safe. (Kensington lock is not included).
Rotation & Clamshell Mode
On Windows, screen rotation and clamshell mode are both available. On Mac, screen rotation and clamshell mode are only available on macOS 12. x above.
Better Heat Dissipation
Ventilation hollow design on both left and right sides helps to level up heat dissipation for a heavy duty purpose all day. Good to extend the lifespan of the dock.
Compatible Systems
-Windows 11/10
-Mac OS 11. x-13. x or later
-Chrome OS
-Ubuntu

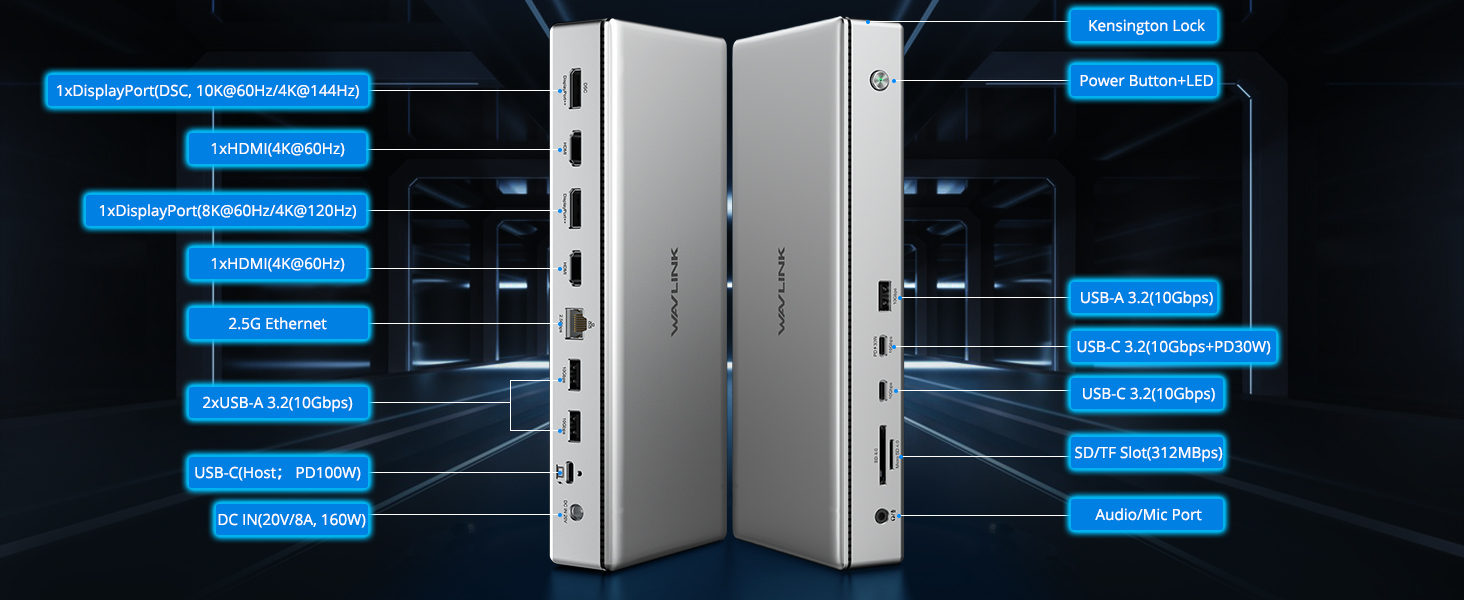

Specification
Model: WL-UG75PD1-DH2
Color: Silver
Material Type: ABS
2*DisplayPort&2*HDMI: up to 10K (10240x2880) @60Hz
1x Ethernet: up to 2.5 Gbps
3x USB-A 3.2: up to 10 Gbps
1x USB-C 3.2: up to 10Gbps
1x USB-C 3.2: up to 10Gbps+PD30W
1x SD 4.0: up to 312MBps
1x 3.5 mm 4-Pole Audio & Mic Jack
1x USB-C (Host, PD100W)
1x DC IN (20V/8A, 160W)
Multiple Display Resolution

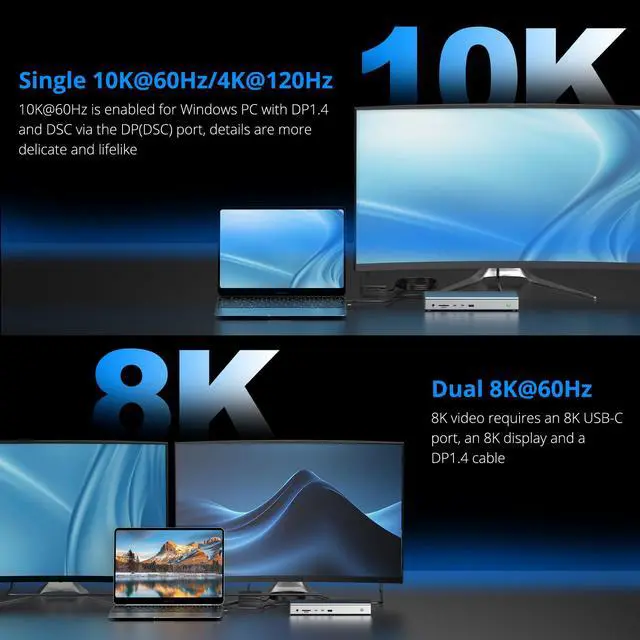

Single Display(Max. Resolution)
DP 1 (DSC): 10K (10240x2880) @60Hz
Dual Display(Max. Resolution)
DP 1+DP 2: 2 *8K(7680/8192x4320)@60Hz
DP 1+HDMI 1/ 2: 8 K(7680/8192x4320)@60Hz+4K (3840x2160) @60Hz
DP 2+HDMI 1/ 2: 8 K (7680x4320) @60Hz+4K (3840x2160) @60Hz
Triple Display(Max. Resolution)
DP 1+DP 2+HDMI 1/ 2: 1 *8K(7680/8192x4320)@60Hz+1*4K (3840x2160) @120Hz+1*4K (3840x2160) @60Hz
DP 1+HDMI1+HDMI 2: 1 *8K(7680/8192x4320)@60Hz+2*4K (3840x2160) @60Hz
DP 2+HDMI1+HDMI 2: 1 *8K(7680/8192x4320)@60Hz+2*4K (3840x2160) @60Hz

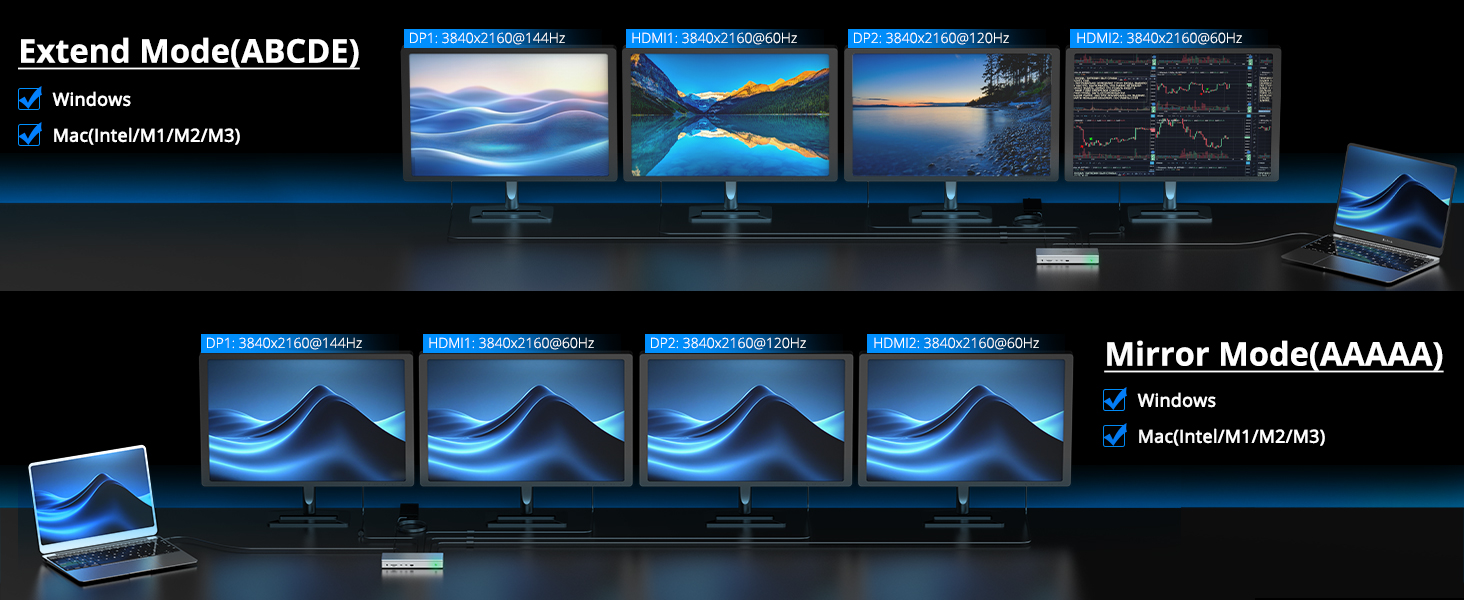

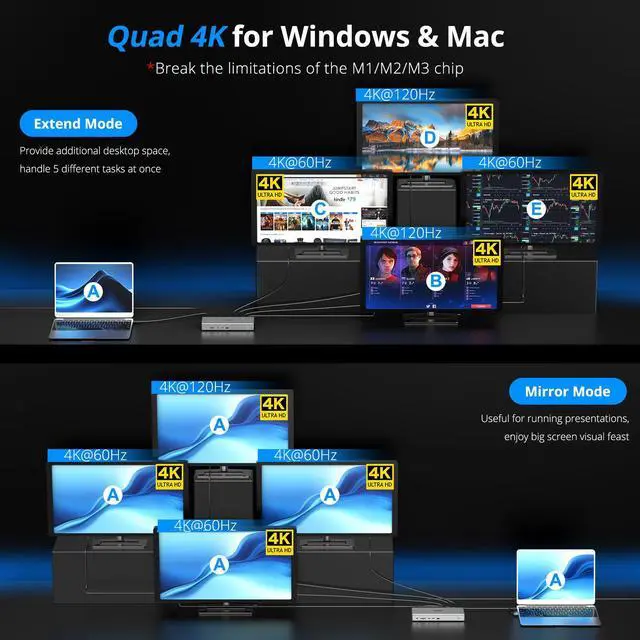

Quadruple Display(Max. Resolution)
DP 1+HDMI 1+DP 2+HDMI 2: 1 *4K (3840x2160) @144Hz+1*4K (3840x2160) @120Hz+2*4K (3840x2160) @60Hz
Warm Tips:
The dock is self-powered and needs to be connected to the power adapter to work normally.
This dock works with Thunderbolt 4/5 laptops with maximum 10Gbps data transfer rate, cannot reach 40Gbps.
Please confirm that the type-c port of your laptop supports charging, or the docking station's host charging function may not work.
Driver required for this product, does not support plug and play. Please follow the instructions to download the latest DisplayLink driver from the official website before use.
Does not support HDCP, will not playback encrypted or copy-protected content from Netflix, Hulu, iTunes, Amazon Prime, etc.

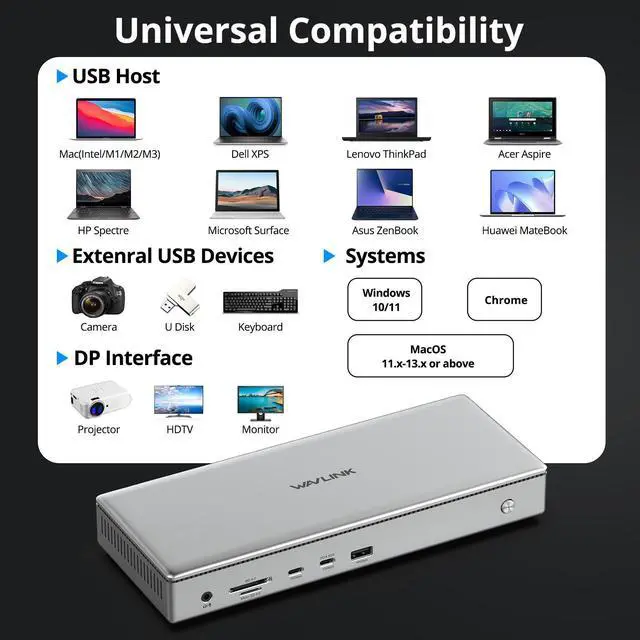

USB Host Compatible Devices (Not Full List):
To get the better performance, we suggest the CPU and GPU of the laptop should meet the requirement below:
CPU: Intel 11th/12th generation CPU or cpu of higher spec.
GPU: Iris xe or gpu of higher spec like Discrete graphics card from NVIDIA.
Apple: MacBook Pro (Intel and M1/M2/M3) 2024/2023 / 2022 / 2021 / 2020 / 2019 / 2018 / 2017 / 2016, MacBook Air 2022 / 2021 /2020 / 2019 / 2018 and more
HP: HP Spectre x2/x360, Elitebook Folio G1, Elitebook 830 G7/840 G6/840 G7/840 G8/845 G7/850 G7/850 G8, ZBook firefly 14 g8 /ZBook 15 G3/ZBook 15 g2/ZBook firefly 15 G7/ZBook 17 g6, Probook 450 G5/6/7, Probook 445 G7, Chromebook 14, envy x360/16-h0003TX/X360 15-ew0012TX, omen 8 pro
Lenovo: Lenovo Yoga 720-13IKB/730/900-13ISK/910/920/930/940-14IIL/14c 2022 (intel) /pro 14s 2022; 3rd generation Thinkpad Yoga/Thinkpad l13 yoga gen 2; Yoga15 Thinkpad Ultrabook Pro; ThinkPad E590/P72/T14 Gen 1/T14s Gen 3 (intel) /T14s Gen2 (intel) /T14 Gen2 (intel) /p52s/e590/T470/X1 Carbon (2019 model) /P15v 2022; Flex 14 IML (81XG) / Flex 5; Legion Y530/15aACH6H/Y7000P 2022/Y9000P 2022; Lenovo C930/ T480s/ X390/ 81N8, nano x1; ideapad pro 14/air 14/air 14 plus, Thinkbook plus 17
Dell: Dell XPS 12 2-in-1 9250, XPS 13 2 in 1 9310, XPS 13 (9305, 9311, 9350, 9360, 9370, 9380), XPS 13 Plus, XPS 15 (7590, 9510, 9500, 9550, 9560, 9575), XPS 16, XPS 17 (9710), Dell Precision 3560/3561/5510/5560/5760/5570/7560/7760, Dell Latitude (7490, 7420, 7400, E7370, 5570, 5420, 5410, 5400, 5320, 5520, 5501, 3390, 3520), Dell Inspiron 17 7706, Inspiron 13/14/14 plus/16/16 plus, Dell G16
Google: Google Slate (2019), Chromebook C340-15, SanDisk Cruise Glide, Razer Blade 2017 (gtx 1060), Pixel book go 2019/2020
Microsoft: Surface Book 2/Surface Go&Go 2&Go 3/Surface Laptop 3/Surface Laptop 4/Surface Laptop Studio/Surface Pro 7/Surface Pro 7+/Surface Pro 8
ASUS: ASUS Chromebook Flip, ZenBook3, ASUS ZenBook Pro, Asus ZenBook Flip, ASUS Transformer 3 Pro T303UA.
Acer: Acer swift 3/swift 7, Acer Chromebook
Samsung: Samsung Chromebook Pro, Chromebook Plus, Notebook 9 13", Galaxy Book 12", Galaxy Book 10.6, Galaxy Book 2 Pro 360
Huawei: Huawei MateBook X Pro, MateBook X, Huawei MateBook E

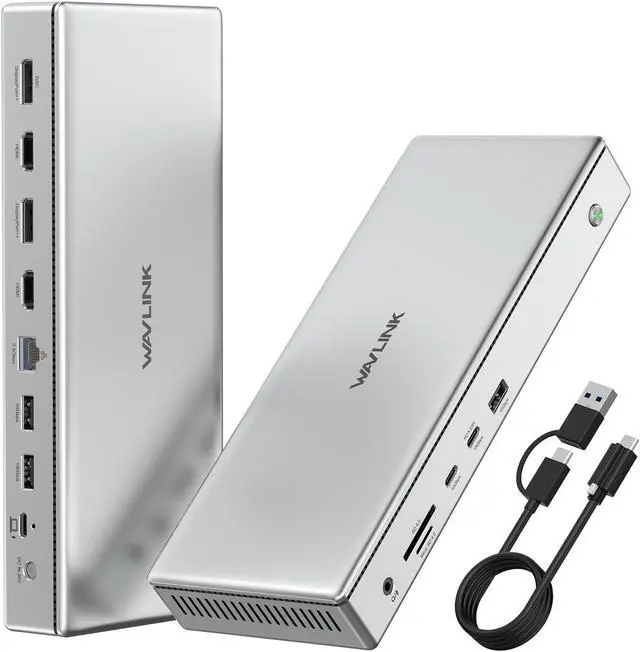

Package Includes
1 x Universal Quad Display Docking Station
1 x USB-C 100cm Cable
1 x DC20V 8A Power Adapter
1 x AC Power Cable
1 x Cable Holder
1 x Quick Start Guide
