Wavlink Technology
This wifi range extender is designed to extend the coverage and improve the signal strength of an existing wireless network to eliminate dead zones, help you get fast and stable Wi-Fi signal at every corner of your home.

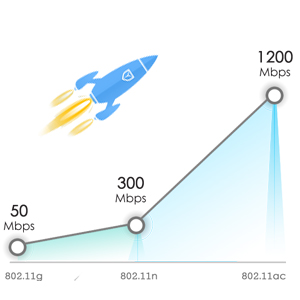

Built-in 802.11ac Wi-Fi standard, it offers total data transfer speeds achieving up to 1200Mbps, 900(5GHz) + 300(2.4GHz)Mbps, ideal for HD streaming & gaming.

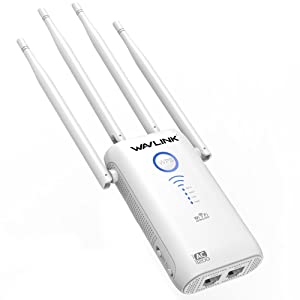

- 4 external high-performance antennas with unique omnidirectional patented design boost your wireless coverage and reliability.
- Expand Any Wi-Fi to at Least 1000sq.ft.

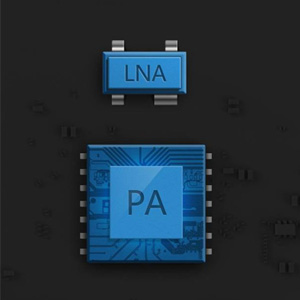

Independent built-in high power amplifiers greatly improve the ability of signal receiving and dispatching. With up to 5x transmission power, you can enjoy a stronger signal in a boosted coverage, and keep your mobile devices connecting to the router all the time.
Beamforming Technology improves your coverage by directing bandwidth to your devices as you move around your home. This makes all of your connections more efficient and stable.

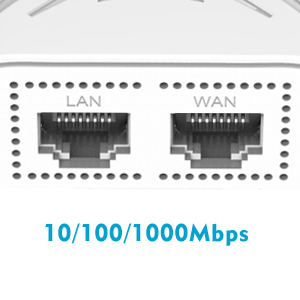

This Gigabit Ethernet ports provide data transfer speeds 10x faster than of an Ethernet port. It allows you to connect Gaming console, Blu-ray player, Smart TV, streaming player and more
It’s virtually compatible with any Wi-Fi router. The setup will be completed once you press WPS button.
Precision-designed for maximum heat dissipation, with cooling holes from every angle, it enhances stability during working process and extends lifespan.
Router ModeConnect to any modem to Work as an independent routerRepeater ModeBoost your existing network without cableAP ModeConnect to any wired LAN to create a personal Wi-Fi hotspot
- Specification:
- Ports: 1 x 1Gbps LAN, 1 x 1Gbps WAN/LAN
- Button: 1 x Reset, 1 x WPS, 1 x Mode Switch, 1 x Power ON/OFF

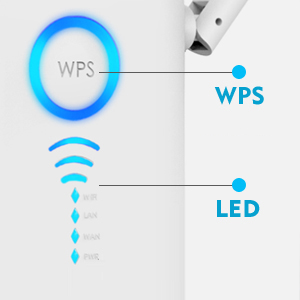

- LED: 1 x LAN, 1 x WAN/LAN, 1 x Power , 1 x WPS, 3 x WiFi/Signal
- Chipset: MT7620A+MT7612E+RTL8211F*2
- Flash: 64Mb SDRAM: 512Mb
- Power Supply: Internal DC5V / 2A

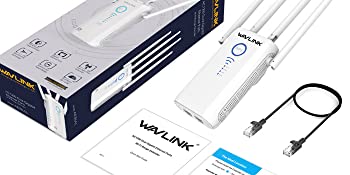

1 x WiFi Range Extender1 x RJ-45 Networking Cable1 x Quick Installation
- WIRELESS:
- Wireless Standards: IEEE 802.11b/g/n/a/ac
- Frequency Band: 2.4GHz, 5GHz
- Transmit Power: 20DBm MAX
- Wireless Security: 4 x 5dBi Detachable Omni Directiona
- Step 1: switch the mode to repeater position(the button is at left side)
- Step 2: plug the extender into socket, power on, the LED indicator lights on
- Step 3: please use pin to insert the small hole(at the right side of product), to push the reset button, if all the LED indicator lights on (Turn blue) mean rest is successful
- Step 4: connect the wifi on your phone or PC which is named: Wireless-N or Wireless-AC
- Step 5: Launch the browser, enter 192.168.10.1 in the address bar then input the original password: admin on the login page
- Step 6: in [System Setup] window, set a login password and click [Next]
- Step 7: Click wizard, then input correctly, click the below [Select a Wi-Fi] ? input [Wi-Fi Password ] : your home router(Wi-Fi) password
Pros: Suggestion: Set up manually. Take about 5 - 10 minutes to setup. Long Range Network Detection.
Overall Review: ugly look, but work
