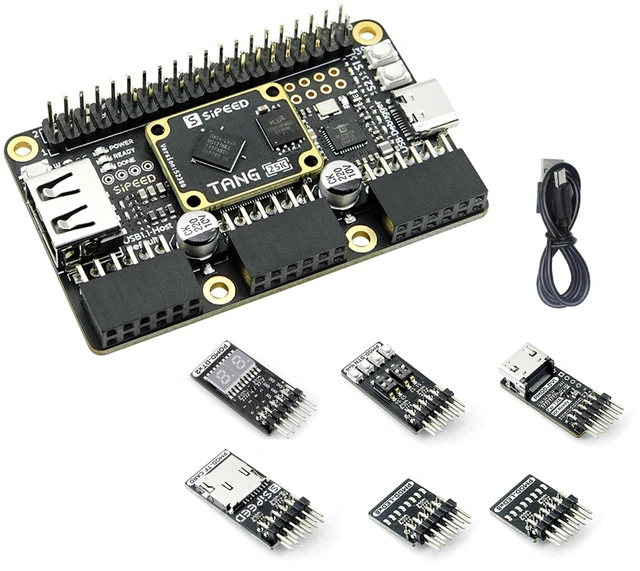

Main image of Sipeed Tang Primer 25K GW5A FPGA Development Board, 64Mbits Linux RISCV Single Board Computer, with MIPI 2.5Gbps Ethernet PMOD Port for FPGA Education, Support SDRAM HDMI Camera Module (PMOD Bundle)

Alt view image 2 of 7 - Sipeed Tang Primer 25K GW5A FPGA Development Board, 64Mbits Linux RISCV Single Board Computer, with MIPI 2.5Gbps Ethernet PMOD Port for FPGA Education, Support SDRAM HDMI Camera Module (PMOD Bundle)

Alt view image 3 of 7 - Sipeed Tang Primer 25K GW5A FPGA Development Board, 64Mbits Linux RISCV Single Board Computer, with MIPI 2.5Gbps Ethernet PMOD Port for FPGA Education, Support SDRAM HDMI Camera Module (PMOD Bundle)

Alt view image 4 of 7 - Sipeed Tang Primer 25K GW5A FPGA Development Board, 64Mbits Linux RISCV Single Board Computer, with MIPI 2.5Gbps Ethernet PMOD Port for FPGA Education, Support SDRAM HDMI Camera Module (PMOD Bundle)

Alt view image 5 of 7 - Sipeed Tang Primer 25K GW5A FPGA Development Board, 64Mbits Linux RISCV Single Board Computer, with MIPI 2.5Gbps Ethernet PMOD Port for FPGA Education, Support SDRAM HDMI Camera Module (PMOD Bundle)

Alt view image 6 of 7 - Sipeed Tang Primer 25K GW5A FPGA Development Board, 64Mbits Linux RISCV Single Board Computer, with MIPI 2.5Gbps Ethernet PMOD Port for FPGA Education, Support SDRAM HDMI Camera Module (PMOD Bundle)

Alt view image 7 of 7 - Sipeed Tang Primer 25K GW5A FPGA Development Board, 64Mbits Linux RISCV Single Board Computer, with MIPI 2.5Gbps Ethernet PMOD Port for FPGA Education, Support SDRAM HDMI Camera Module (PMOD Bundle)

Shop All ViewSonic Products | Visit Artbloont Store

Sipeed Tang Primer 25K GW5A FPGA Development Board, 64Mbits Linux RISCV Single Board Computer, with MIPI 2.5Gbps Ethernet PMOD Port for FPGA Education, Support SDRAM HDMI Camera Module (PMOD Bundle)

Be the first to review this product...

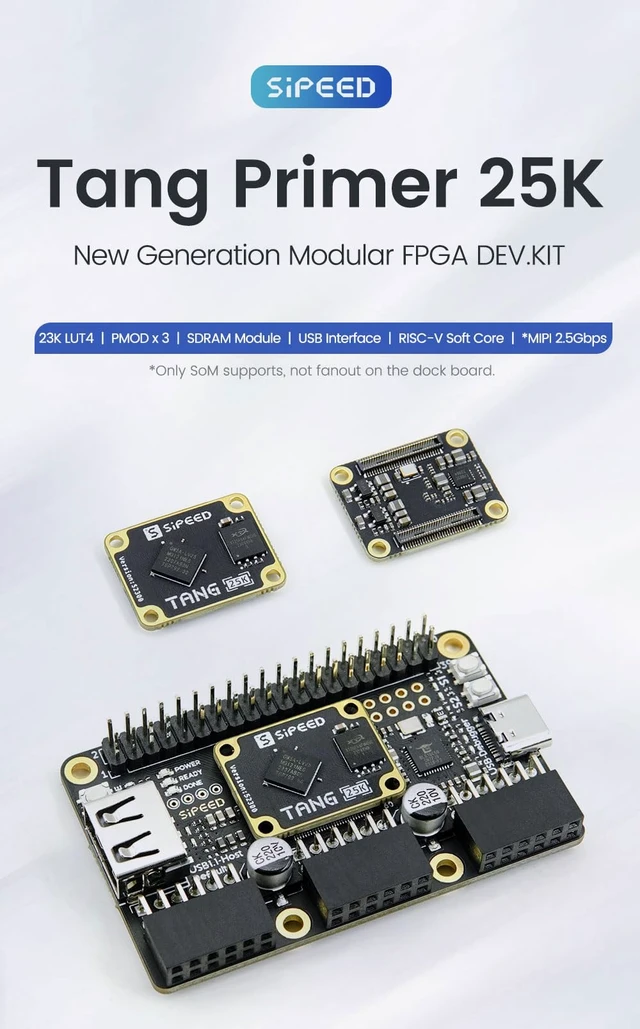

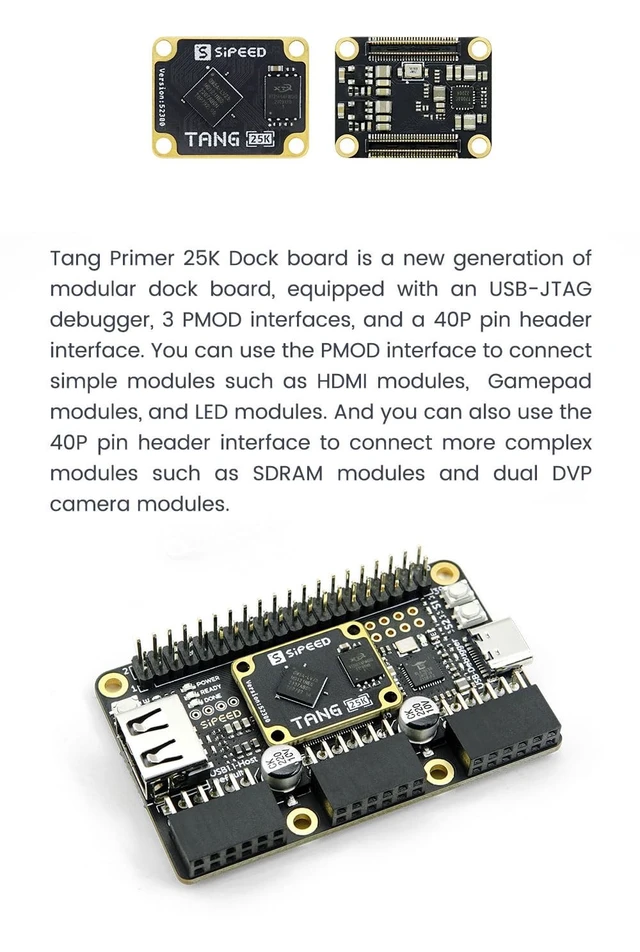

[FPGA RISCV CPU] Tang Primer 25K Dock single board computer is a new generation of modular development board with onboard RISC-V soft core, 23K LUT4 FPGA GW5A RISCV CPU, supports MIPI 2.5Gbps Ethernet, and is equipped with a USB-JTAG debugger , 3x PMOD interface, 1x USB interface and 1x 40P pin header interface to facilitate FPGA programming.

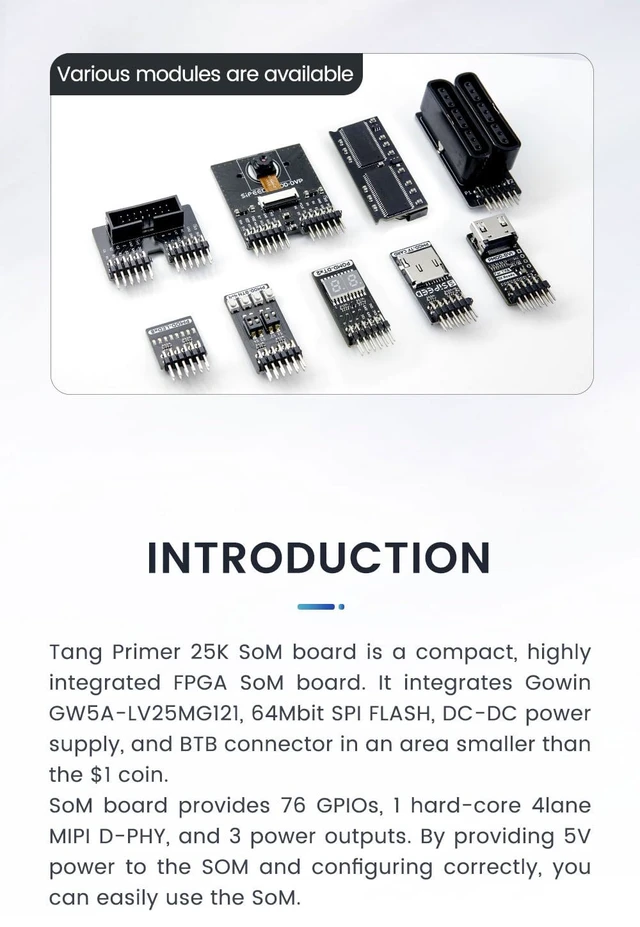

[PMOD Interface Module] The Tang Primer 25K Dock single board computer supports using the PMOD interface to connect simple modules such as HDMI modules, game controller modules and LED modules. It can also use the 40 PIN GPIO interface to connect SDRAM modules, dual DVP camera modules and other more complex functions. module.
[Small Size, High integration] Tang Primer 25K Dock single board computer is a small, highly integrated FPGA development board. It only needs to provide a 5V power supply to the core board and correctly set the configuration pins. It can be applied to any space with limited space. scene.
[Rich Peripheral Pins] Tang Primer 25K Dock development board integrates Gowin GW5A-LV25MG121, 64Mbit SPl FLASH, DC-DC power supply and BTB connector. Its core board leads to 76 GPIOs and 1 hard core 4lane MIPI line and 3 power outputs for users to use.

Overview

Specs

Reviews

Any questions? Our AI mode will help you find out quickly.

Try me now

-Specification-

CPU: GW5A-LV25MG121 FPGA SoC

Flash: 64Mbits NOR Flash

Debugger: on-board high-speed debugger, support JTAG + UART, using the USB-C port burning

USB-A: one, can be used as a USB1.1 Host to connect the gamepad and other HID devices

IO pin: a 2x20Pin 2.54 pin Support SDRAM module

General IO:75

MIPI IO: 4lane Data

PMOD: 3 pcs

Pushbuttons: 2 pcs

Size: 64x40mm

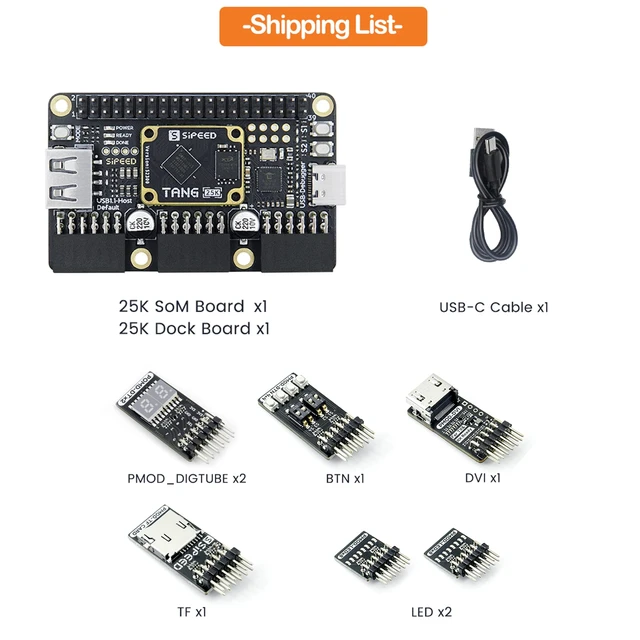

-Package Content-

Shown as picture Combo x1

-Technical Support-

Github Link:"github.com/sipeed/TangPrimer-25K-example"
Card Location Map: "file:///C:/Users/Lenovo/Downloads/Tang_Primer_25K_Dock_60033_ibom.html"
Please click "WayPonDEV" and ask a question.
Please leave the message "wpd#youyeetoo&com (#--->@,&--->.)" or skype: monica_9122.

Model
Brand	WayPonDEV
Model	Tang Primer 25K Dock RISCV FPGA SBC
Part Number	Tang Primer 25K
