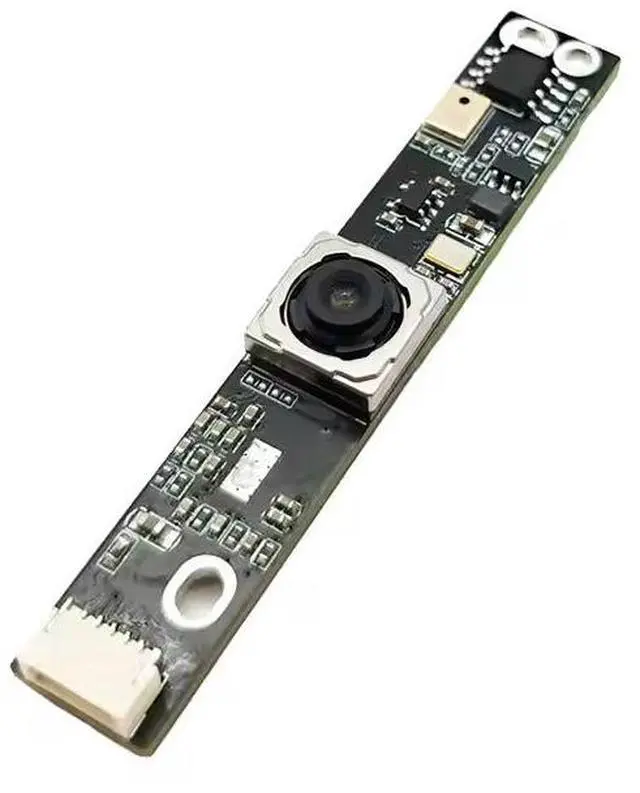

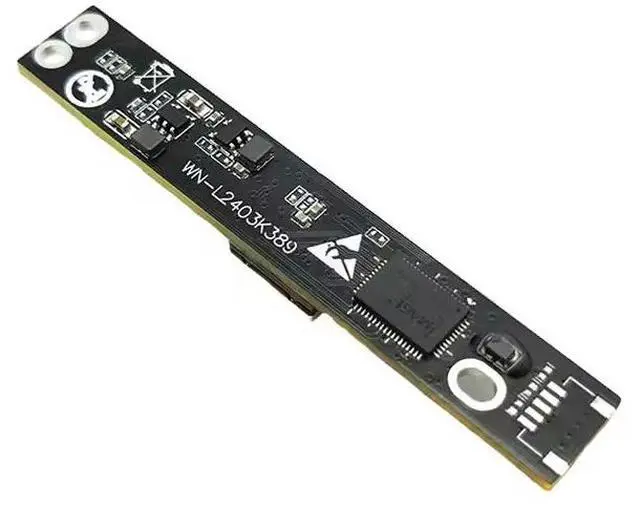

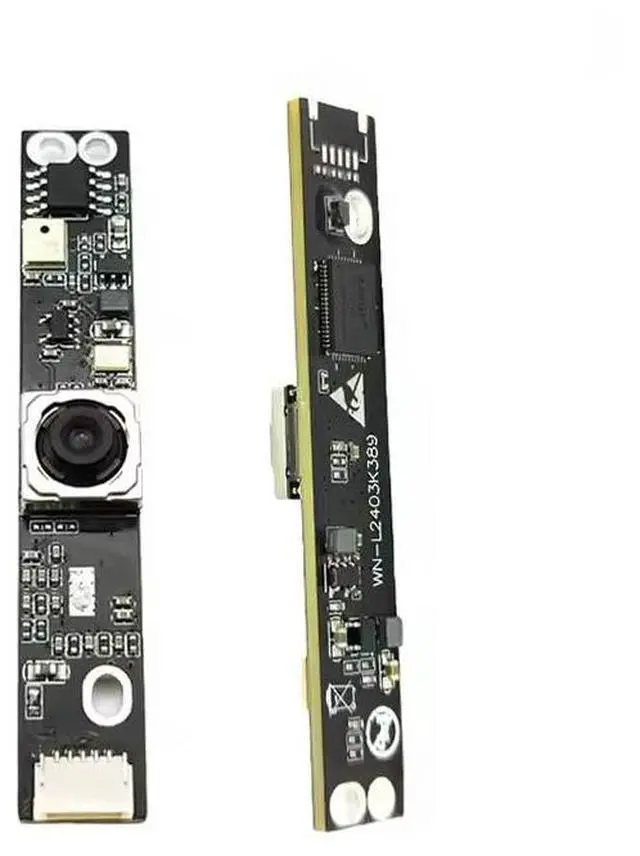

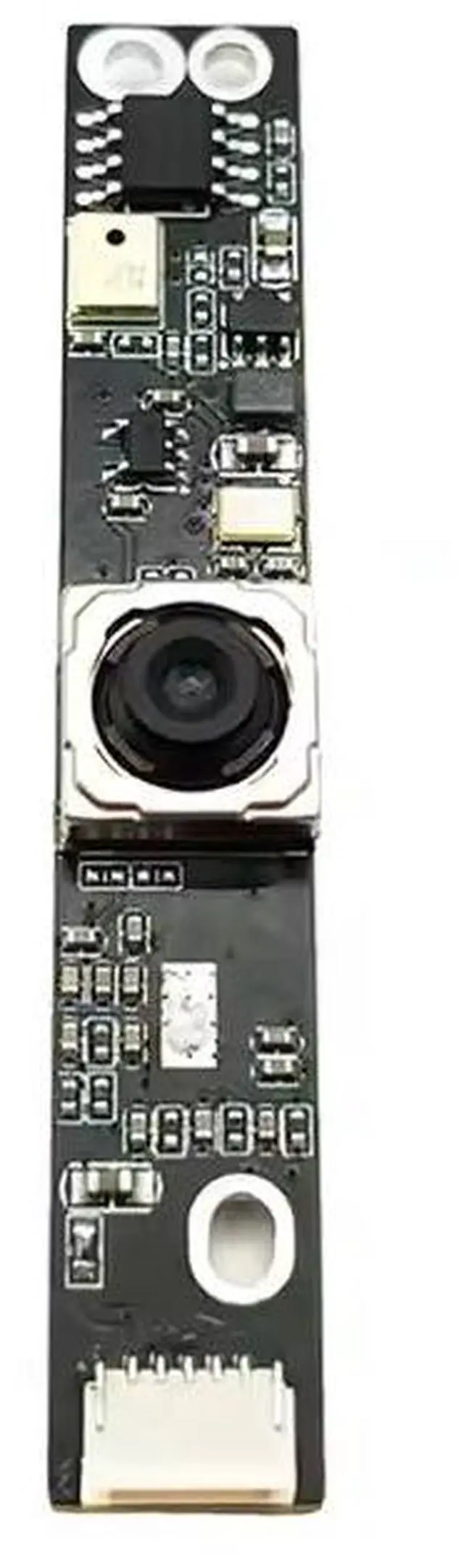

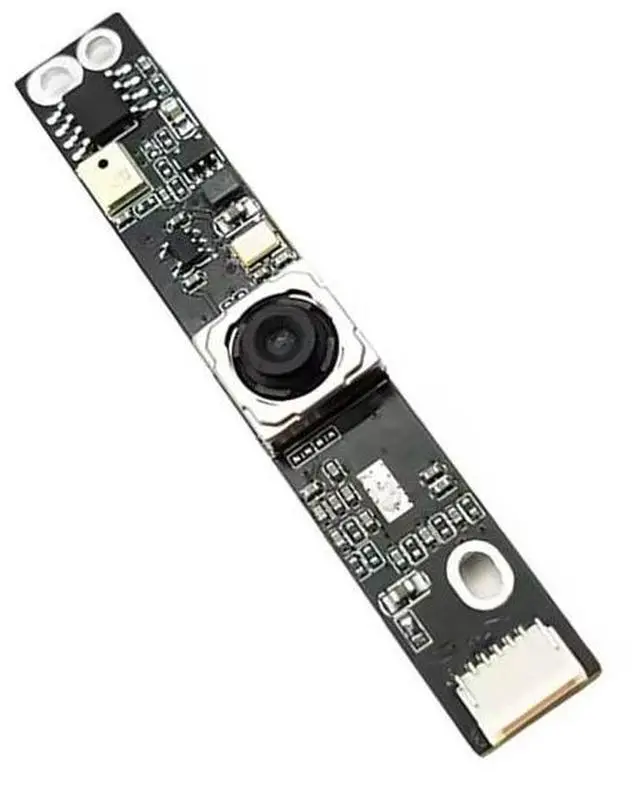

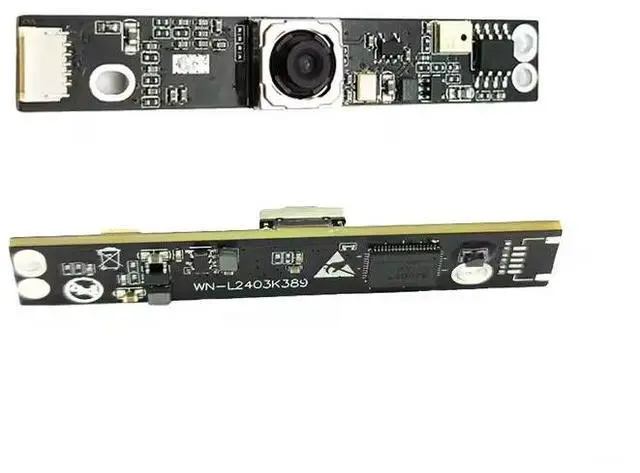

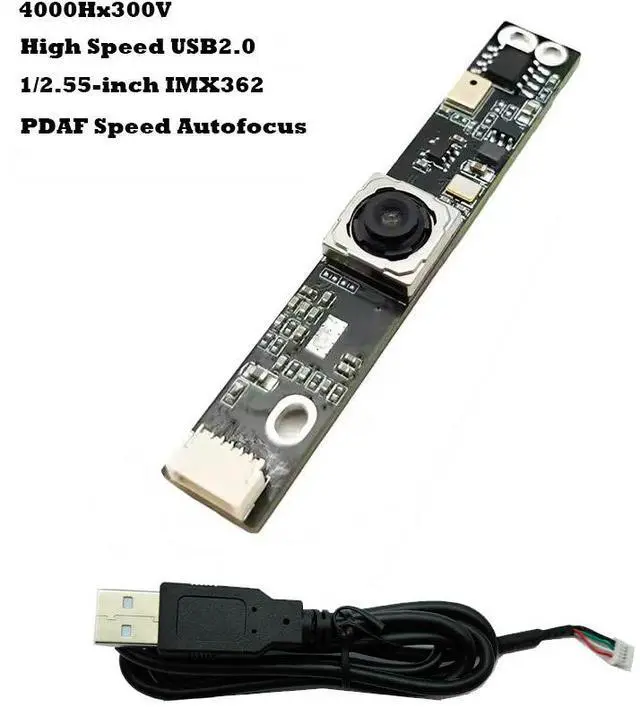

4K 12MP HD IMX362 PDAF Speed USB2.0 Camera Module Autofocus With Digital Microphone UVC-compliant, Plug and Play for Laptop
- 1.IMX362 PDAF Speed USB2.0 Camera Module
- 2.UVC-compliant, Plug and Play for Laptop
- 3.1/2.55-inch IMX362 CMOS
- 4.MJPEG, YUY2
- 5. Autofocus 81.6°
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Module Size:62*10mm
Image Sensor:1/2.55-inch CMOS Sensor
Max. Resolution:4000Hx3000V
Pixel Size:1.4*1.4m
Output Format:MJPEG, YUY2
Field of View:81.6°
Focus Mode:PDAF Speed Autofocus
Shutter Mode:Electronic Rolling Shutter
Output & Power Supply:High Speed USB2.0
Interface:5PIN 1.0mm Connector (SM05B-SRSS-TB)
Lens:EFL: 4.25mm, F/No: 1.8±5%, 6P+IR 650nm
Working Voltage:DC 5V
Working Current:270mA
Working Temperature:-20°C ~ 60°C
Storage Temperature:-20°C ~ 85°C
Humidity:80 ~85%
MJPEG
4000*3000@15FPS
3840*2160@30FPS
2592*1944@30FPS
2048*1536@30FPS
1600*1200@30FPS
1920*1080@30FPS
1280*720@30FPS
640*480@30FPS
YUY
2160*1200@5FPS
1920*080@5FPS
1280*720@10FPS
640*480@30FPS
