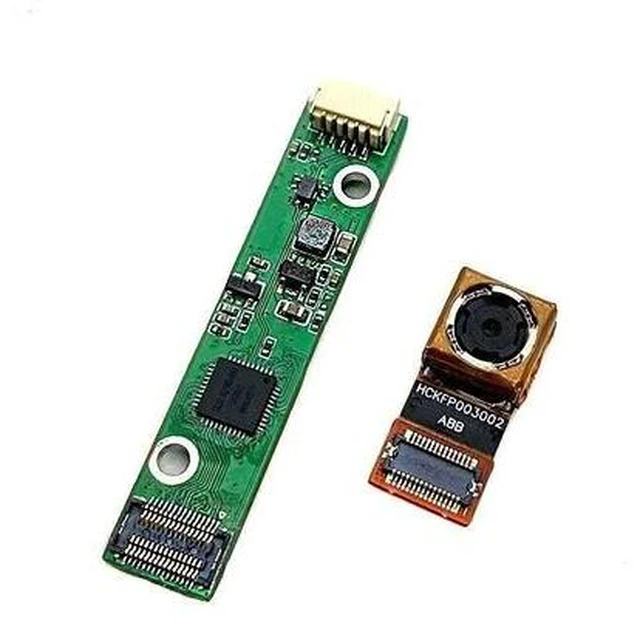

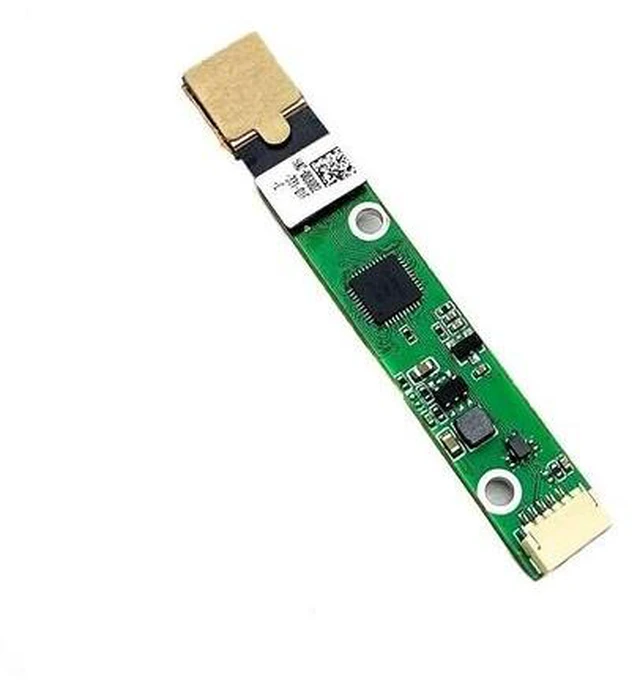

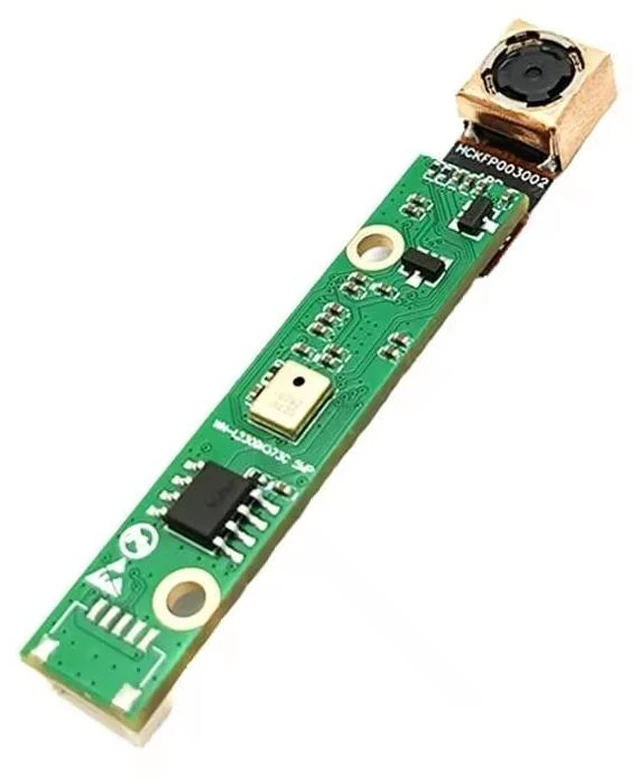

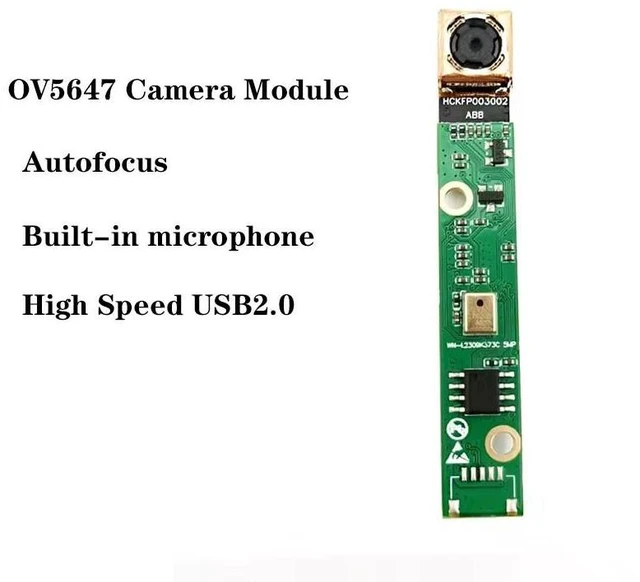

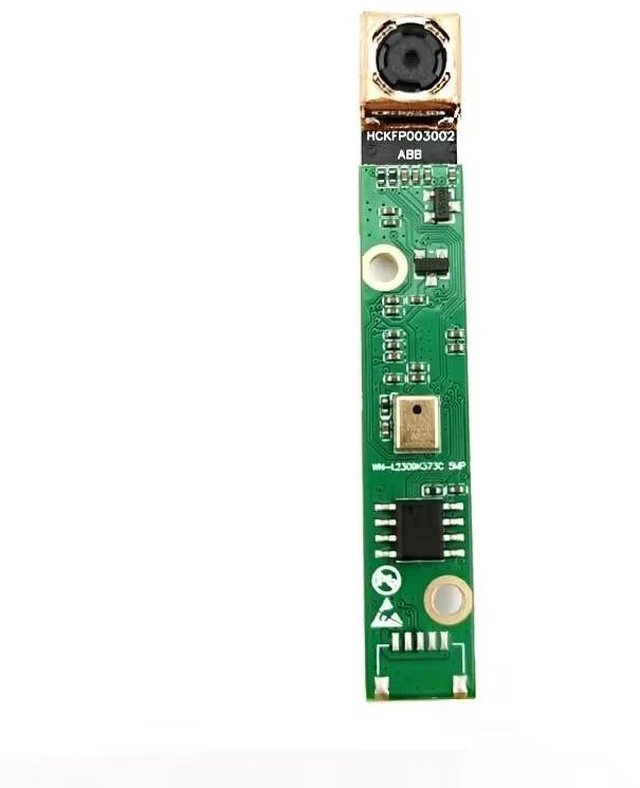

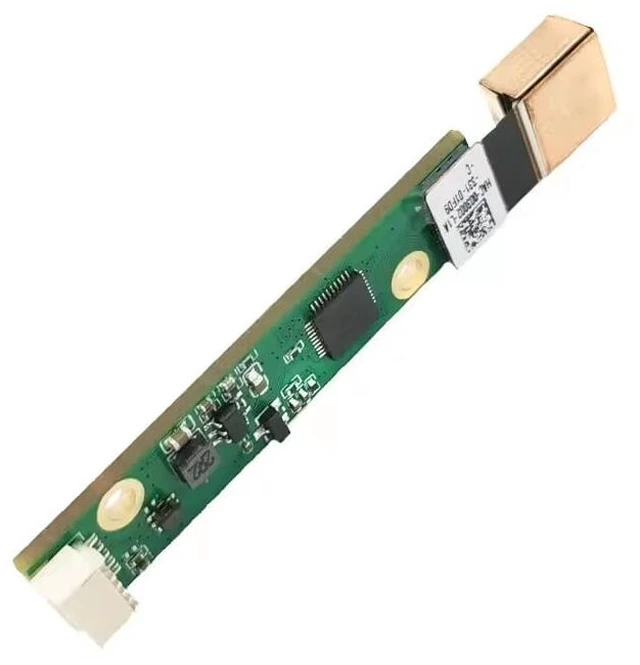

    1/4.0-inch OV5647 CMOS 5MP HD USB Camera Module 2592x1944 Autofocus 68° motherboard + lens splice board UVC-compliant, Plug and Play

    Be the first to review this product...
    • MJPEG, YUY2
    • 1/4.0-inch OV5647 CMOS
    • 2592x1944
    • Autofocus 68°
    • motherboard + lens splice board UVC-compliant, Plug and Play
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI mode will help you find out quickly.

    Try me now

    Module Size58.1*9mm
    Image Sensor1/4.0-inch OV5647 CMOS Sensor
    Max. Resolution2592 H x 1944 V
    Pixel Size1.4*1.4µm
    Output FormatMJPEG, YUY2
    Field of View68°
    Audio InputDigital Microphone
    LensEFL: 3.6mm, F/No. 2.4, 4P+IR 650nm
    Focus ModeAutofocus or Fixed Focus
    Shutter ModeElectronic Rolling Shutter
    Scanning Speed0.1s
    Output & Power SupplyHigh Speed USB2.0
    Interface5PIN 1.0mm Connector
    Controllable ParametersBrightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure
    Supported OSUVC-compliant, Plug and Play for Windows, Android, Linux, Mac OS, etc.
    Model
    Brand Weinandianzi
    Model WN-2309K373C
    Details
    Type Other
    Quantity 1
    Size 13x9x9cm
    Specifications USB Camera Module 2592x1944 Autofocus 68° motherboard + lens splice board UVC-compliant, Plug and Play
    Features
    Compatibility 1/4.0-inch OV5647 CMOS
    Features 1/4.0-inch OV5647 CMOS 5MP HD USB Camera Module 2592x1944 Autofocus 68° motherboard + lens splice board UVC-compliant, Plug and Play
