    2MP 30fps 1/5.0-inch GC02M2 CMOS USB Camera Module Fixed Focus 65° 1600Hx1200V MJPEG, YUY2 USB Webcam UVC-compliant, Plug and Play

    Be the first to review this product...
    • High Speed USB2.0 2MP USB2.0 Camera Module
    • 1/5-Inch CMOS Sensor
    • Camera with UVC for computer, laptop, PC, Raspberry Pi, Jetson Nano, etc.
    • Applications: this board camera can be installed in most machines for animal photography, dash cam, baby camera, surveillance 3D printer, etc.
    • 2MP USB2.0 Camera Module
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

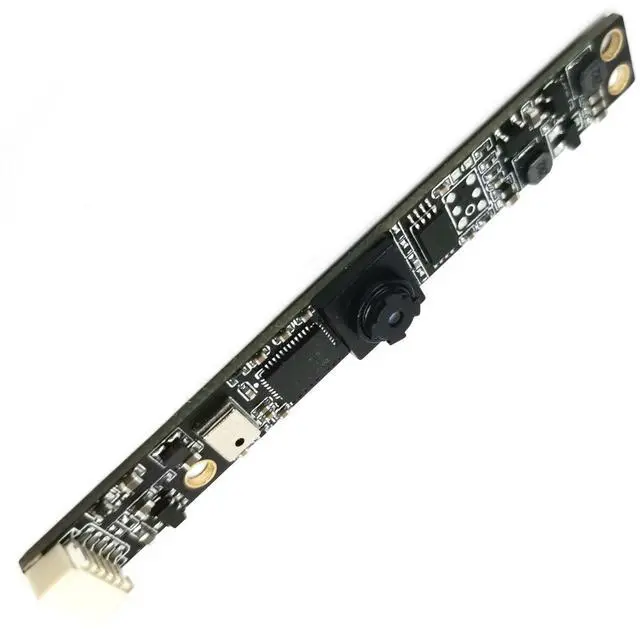

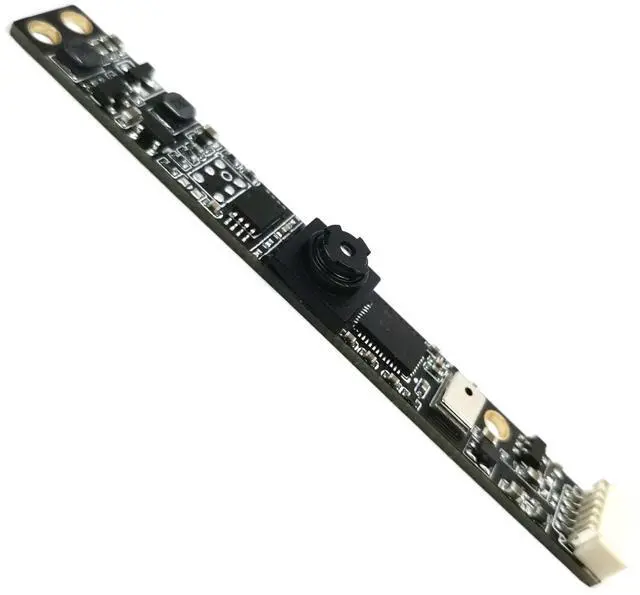

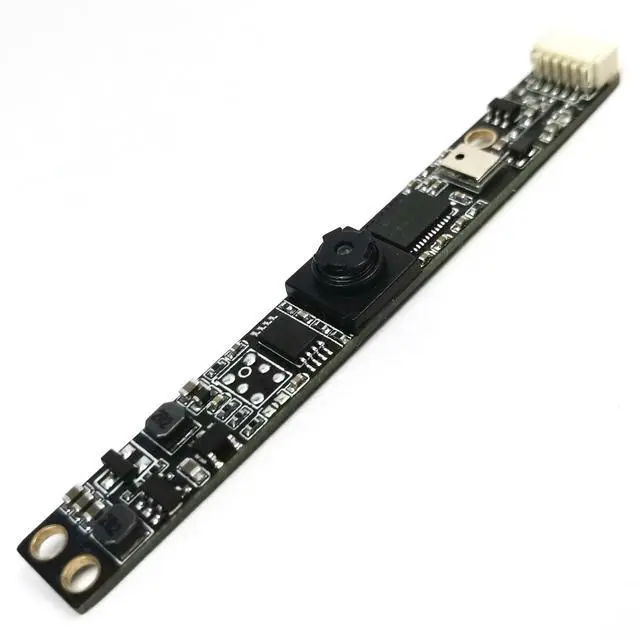

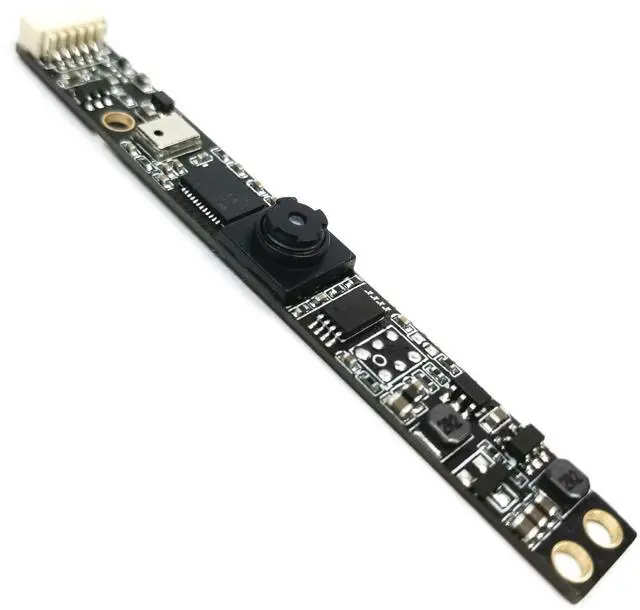

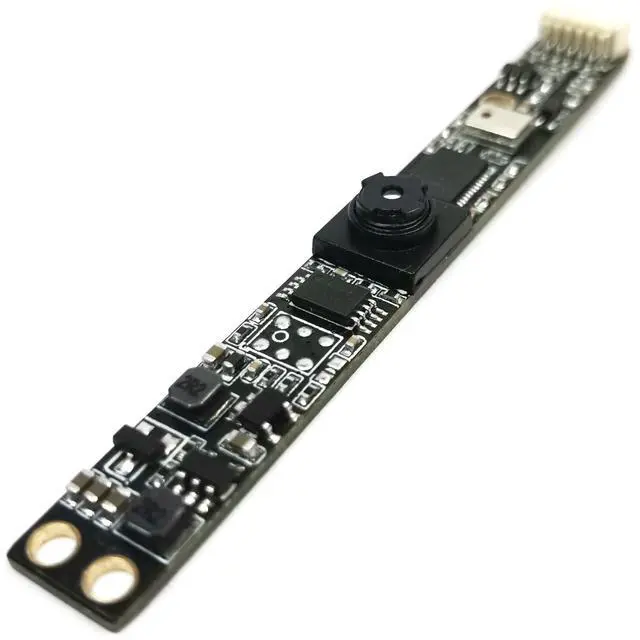

    2MP  USB2.0 Camera Module

    this 2MP USB camera module adopts the 1/5-inch CMOS image sensor with maximum resolution of 1600×1200 at 30fps frame rate. Mini size, 65° FOV, high speed USB2.0 interface, default 1.0 meter USB cable, UVC-compliant, plug and play.



    Main Parameters



    Product Name

    2MP USB2.0 Camera Module

    Product Code

    WN-L2109.K229L

    Module Size

    60*8mm

    Image Sensor

    1/5-Inch CMOS Sensor

    Max. Resolution

    1600H*1200V

    Pixel Size

    1.7*1.7µm

    Output Format

    MJPEG, YUY2

    Field of View

    65°

    Focus Mode

    Fixed Focus

    Image Color

    Color

    Shutter Mode

    Electronic Rolling Shutter

    Audio Input

    Digital One-way Audio

    Output & Power Supply

    High Speed USB2.0

    Interface

    5 PIN 1.00MM Socket

    Controllable Parameters

    Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure

    Supported OS

    UVC-compliant, Plug and Play for Windows, Android, Linux, Mac OS, etc.

    Connection Cable

    Default1.0 Meter USB Cable


    Supported Resolutions and Frame Rates


    Formats

    Resolutions

    Frame Rates

    MJPEG

    1600*1200

    15FPS

    1280*1024

    15FPS

    1280*720

    15FPS

    640*480

    30FPS

    YUY2

    1600*1200

    5FPS

    1280*720

    5FPS

    640*480

    30FPS

    Working Conditions
    https://counter.pushauction.com/7d4818af-b9d4-43ef-9c72-def6910cb6b8/bf7eac70-8a58-4ac4-be93-db80fd633d71.jpg

    12mp autofocus usb camera module 4k 30fps webcam board for computer UVC usb2.0 1080p 60fps pc camera 300ms pdaf fast auto focus camera imx362 machine vision industrial camera for laptop

    Camera specifications:
    Sensor: 1/2.55 inch IMX362.
    Maximum resolution: 4000 (H) x 3000 (V)
    Compression format: MJPEG / YUV2 (YUYV).
    Autofocus mode: phase detection autofocus.

    Power:
    4000 x 3000 MJPEG@15fps, 3840 x 2160 MJPEG@30fps
    2592 x 1944 MJPEG@30fps YUY2@3fps,2560x1440MJPEG@30fps YUY2@3fps
    2048 x 1536 MJPEG@30fps YUY2@3fps,1920x1080MJPEG@60fps YUY2@5fps
    1600 x 1200 MJPEG@45fps YUY2@5fps,1280x1024MJPEG@60fps YUY2@10fps
    1280 x 720 MJPEG@60fps YUY2@10fps,800x600MJPEG@45fps YUY2@25fps
    640 x 480 MJPEG@45fps YUY2@25fps, 320 x 240 MJPEG@45fps YUY2@25fps

    lense
    M12 lens, DFOV 76 degrees, HFOV 65 degrees.

    Power supply.
    Power supply and connection: USB bus power 4P 2.0 mm socket.
    Voltage: DC 5V
    Current: 60mA~180mA.
    Operating temperature: -20°C to 65°C.

    Adjustable parameters: brightness, contrast, hue, saturation, sharpness, gamma, white balance, exposure

    USB 2.0 Type A port, plug and play without additional drivers or special software.
    Compatible with WinXP/Vista/Win7/Win8/Win9/Win10/Win11, MacOS, Linux, Android
    Plug and play for PC computer, laptop, Amcap, OpenCV, VLC, V4L2, Jetson Nano, Ubuntu, fswebcam, Facetime, Camerafi, USB camera, OBS, Xbox One, Zoom etc.


    Product information

    Condition New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.
    Country of Origin China
    MPN Does Not Apply
    Brand Unbranded
    Model WN-L2109.K229L
    Connectivity USB 2.0
    Frame Rate 30 fps
    Features Fixed Focus
    Maximum Photo Resolution 1600 H x 1200 V
    Colour Black
    Manufacturer Warranty 1 Year
    EAN Does not apply
