What are the external dimensions?

From Cooler Master's website: 499 x 210 x 500mm (incl. Protrusions), 430 x 210 x 477mm (excl. Protrusions). This is pretty accurate as I just measured mine.

Does this case provide good airflow?

Yes, this case provides good airflow, as it features a polygonal FineMesh front panel designed for high airflow and includes three pre-installed ARGB fans to enhance cooling.

Can this case accommodate large video cards?

Yes, this case can accommodate video cards with a maximum length of 410 mm.

Can the case fit different sizes of motherboards?

Yes, the case is compatible with Mini-ITX, Micro-ATX, ATX, and SSI CEB motherboards. It also supports E-ATX motherboards up to dimensions of 12” x 10.7”.

Backordered

$89^.99

$109.99

Limit 2 per customer.

ETA Date: 11/14/2025.

About Backordered Items

Price alert

Add to wish list(Found on 29 wish lists)

Sold by Newegg

Shipped by Newegg

Best Sellers

BeachAudio

Top Rated

4.4 (8,545 total ratings)

$135^.88

Volume Discounts Available

antonline

Top Rated

4.5 (17,946 total ratings)

$153^.61
+ FREE SHIPPING

Adorama

Top Rated

4.5 (5,728 total ratings)

$89^.99
+ $31.60 Shipping

Main image of Cooler Master TD500 Mesh V2 Black Gaming Airflow ATX Mid-Tower Case, Polygonal Mesh Panel, Crystalline Tempered Glass, 3x 120mm ARGB Fans, USB 3.2 Gen 2 Type C, 360 Radiator (TD500V2-KGNN-S00)

Alt view image 2 of 16 - Cooler Master TD500 Mesh V2 Black Gaming Airflow ATX Mid-Tower Case, Polygonal Mesh Panel, Crystalline Tempered Glass, 3x 120mm ARGB Fans, USB 3.2 Gen 2 Type C, 360 Radiator (TD500V2-KGNN-S00)

Alt view image 3 of 16 - Cooler Master TD500 Mesh V2 Black Gaming Airflow ATX Mid-Tower Case, Polygonal Mesh Panel, Crystalline Tempered Glass, 3x 120mm ARGB Fans, USB 3.2 Gen 2 Type C, 360 Radiator (TD500V2-KGNN-S00)

Alt view image 4 of 16 - Cooler Master TD500 Mesh V2 Black Gaming Airflow ATX Mid-Tower Case, Polygonal Mesh Panel, Crystalline Tempered Glass, 3x 120mm ARGB Fans, USB 3.2 Gen 2 Type C, 360 Radiator (TD500V2-KGNN-S00)

Alt view image 5 of 16 - Cooler Master TD500 Mesh V2 Black Gaming Airflow ATX Mid-Tower Case, Polygonal Mesh Panel, Crystalline Tempered Glass, 3x 120mm ARGB Fans, USB 3.2 Gen 2 Type C, 360 Radiator (TD500V2-KGNN-S00)

Alt view image 6 of 16 - Cooler Master TD500 Mesh V2 Black Gaming Airflow ATX Mid-Tower Case, Polygonal Mesh Panel, Crystalline Tempered Glass, 3x 120mm ARGB Fans, USB 3.2 Gen 2 Type C, 360 Radiator (TD500V2-KGNN-S00)

Alt view image 7 of 16 - Cooler Master TD500 Mesh V2 Black Gaming Airflow ATX Mid-Tower Case, Polygonal Mesh Panel, Crystalline Tempered Glass, 3x 120mm ARGB Fans, USB 3.2 Gen 2 Type C, 360 Radiator (TD500V2-KGNN-S00)

Alt view image 8 of 16 - Cooler Master TD500 Mesh V2 Black Gaming Airflow ATX Mid-Tower Case, Polygonal Mesh Panel, Crystalline Tempered Glass, 3x 120mm ARGB Fans, USB 3.2 Gen 2 Type C, 360 Radiator (TD500V2-KGNN-S00)

Alt view image 9 of 16 - Cooler Master TD500 Mesh V2 Black Gaming Airflow ATX Mid-Tower Case, Polygonal Mesh Panel, Crystalline Tempered Glass, 3x 120mm ARGB Fans, USB 3.2 Gen 2 Type C, 360 Radiator (TD500V2-KGNN-S00)

Alt view image 10 of 16 - Cooler Master TD500 Mesh V2 Black Gaming Airflow ATX Mid-Tower Case, Polygonal Mesh Panel, Crystalline Tempered Glass, 3x 120mm ARGB Fans, USB 3.2 Gen 2 Type C, 360 Radiator (TD500V2-KGNN-S00)

Alt view image 11 of 16 - Cooler Master TD500 Mesh V2 Black Gaming Airflow ATX Mid-Tower Case, Polygonal Mesh Panel, Crystalline Tempered Glass, 3x 120mm ARGB Fans, USB 3.2 Gen 2 Type C, 360 Radiator (TD500V2-KGNN-S00)

Alt view image 12 of 16 - Cooler Master TD500 Mesh V2 Black Gaming Airflow ATX Mid-Tower Case, Polygonal Mesh Panel, Crystalline Tempered Glass, 3x 120mm ARGB Fans, USB 3.2 Gen 2 Type C, 360 Radiator (TD500V2-KGNN-S00)

Alt view image 13 of 16 - Cooler Master TD500 Mesh V2 Black Gaming Airflow ATX Mid-Tower Case, Polygonal Mesh Panel, Crystalline Tempered Glass, 3x 120mm ARGB Fans, USB 3.2 Gen 2 Type C, 360 Radiator (TD500V2-KGNN-S00)

Alt view image 14 of 16 - Cooler Master TD500 Mesh V2 Black Gaming Airflow ATX Mid-Tower Case, Polygonal Mesh Panel, Crystalline Tempered Glass, 3x 120mm ARGB Fans, USB 3.2 Gen 2 Type C, 360 Radiator (TD500V2-KGNN-S00)

Alt view image 15 of 16 - Cooler Master TD500 Mesh V2 Black Gaming Airflow ATX Mid-Tower Case, Polygonal Mesh Panel, Crystalline Tempered Glass, 3x 120mm ARGB Fans, USB 3.2 Gen 2 Type C, 360 Radiator (TD500V2-KGNN-S00)

Alt view image 16 of 16 - Cooler Master TD500 Mesh V2 Black Gaming Airflow ATX Mid-Tower Case, Polygonal Mesh Panel, Crystalline Tempered Glass, 3x 120mm ARGB Fans, USB 3.2 Gen 2 Type C, 360 Radiator (TD500V2-KGNN-S00)

Customer images

Shop All Cooler Master Products

Cooler Master TD500 Mesh V2 Black Gaming Airflow ATX Mid-Tower Case, Polygonal Mesh Panel, Crystalline Tempered Glass, 3x 120mm ARGB Fans, USB 3.2 Gen 2 Type C, 360 Radiator (TD500V2-KGNN-S00)

(188)(43) Write a Review

Options: TD500 Mesh V2 (Black)

TD500 Mesh V2 (White)
TD500 Mesh V2 (Black)

Polygonal Mesh: Polygonal FineMesh features a 3D contour and is also capable of simultaneously providing high airflow and dust filtration.
Triple ARGB Fans: Three addressable RGB fans flood the Polygonal Mesh front panel with lighting while providing considerable airflow to the system.
USB 3.2 Gen 2 Type C Support: USB 3.2 Gen 2 Type C port built into the I/O panel allows multi-purpose, streamlined data transmission.
Versatile Cooling Options: Support for up to seven 120mm fans and 360mm front and top radiator support ensure that performance is not compromised.
Tool-Free Crystalline TG Side Panel: Featuring a crystalline tempered glass side panel, completely toolless for quick access to the internals.
PSU Shroud With Removable Cover: TD500 Mesh V2’s removable PSU cover allows users to freely decide whether to showcase or keep their PSUs hidden.

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (188)

MASTERBOX TD500 MESH V2

EXQUISITELY RUTHLESS

MasterBox TD500 Mesh V2’s iconic polygonal design keeps your system looking unique and your gaming sessions streamlined.

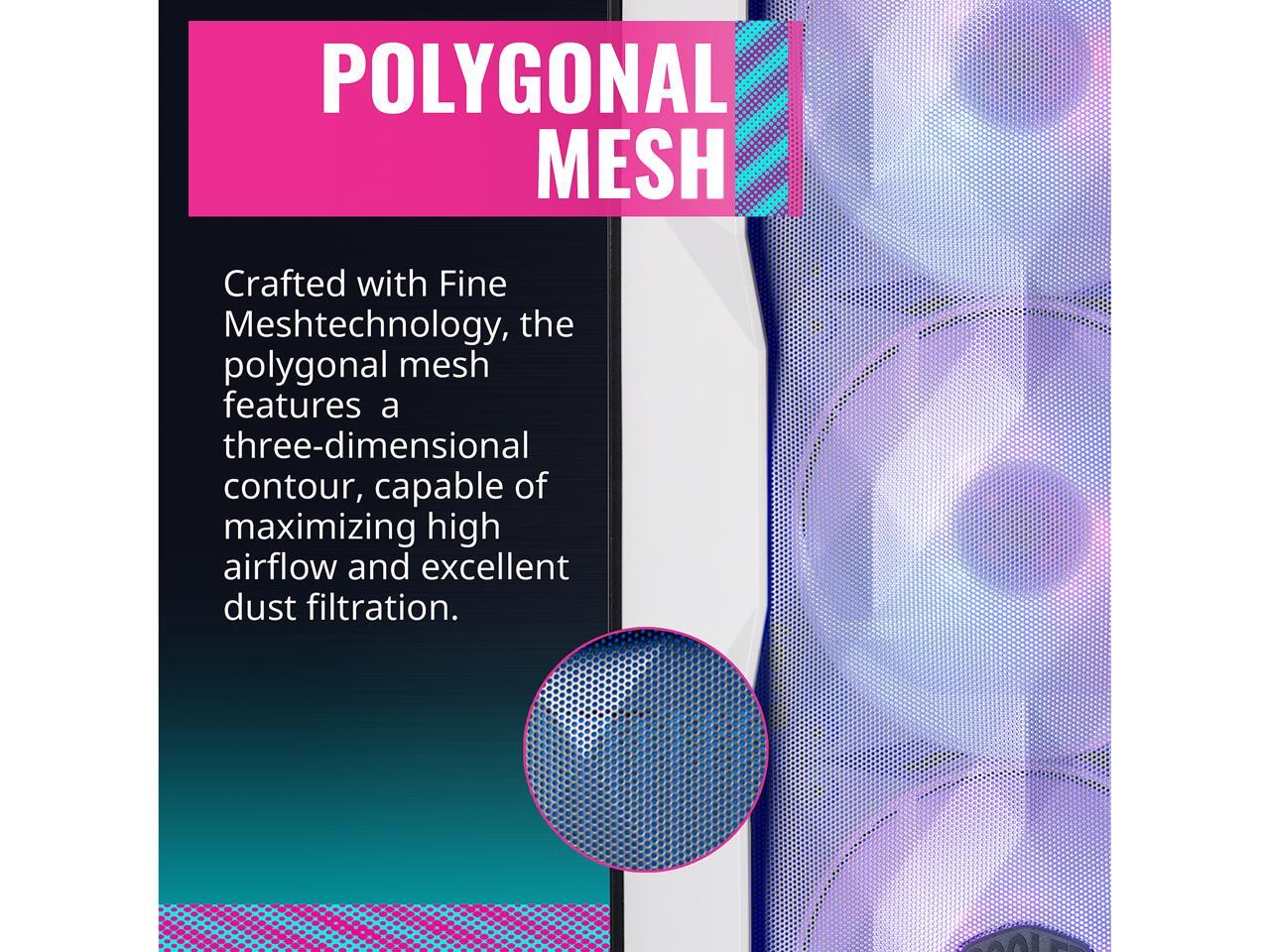

FINEMESH PERFORMANCE FRONT PANEL

Polygonal FineMesh features a 3D contour and is also capable of simultaneously providing high airflow and dust filtration.

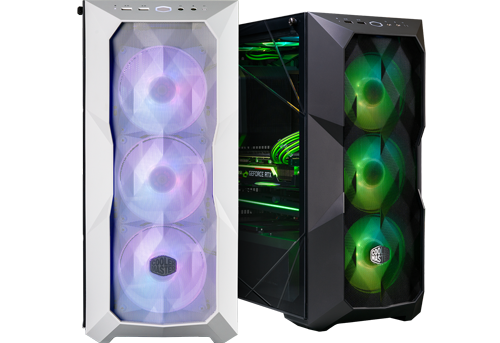

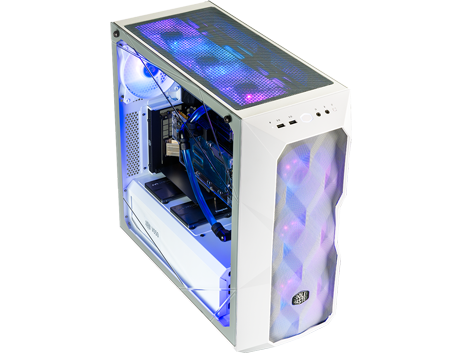

AVAILABLE IN BOTH BLACK & WHITE COLORATIONS

MasterBox TD500 Mesh V2 is available in both black and white so you can choose the color that best matches your setup.

THREE CF120 ARGB FANS INCLUDED

Pre-installed CF120 ARGB fans provide ample airflow, ensuring low temperatures, high performance, and eye-catching aesthetics during even the most intense gaming sessions.

USB 3.2 GEN 2 TYPE C SUPPORT

USB 3.2 Gen 2 Type C port built into the I/O panel allows multi-purpose, streamlined data transmission.

ARGB/FAN HUB INCLUDED

The included controller allows users to manage systems lighting independently from the hardware configuration and provides the user with 4 additional fan headers in case of need.

REMOVEABLE TOP PANEL

The top panel is entirely removable for improved access during assembly and ease of mounting of cooling solutions.

TOOL-FREE CRYSTALLINE TG SIDE PANEL

Featuring a crystalline tempered glass side panel, completely toolless for quick access to the internals.

VERSATILE COOLING OPTIONS

Support for up to seven 120mm fans and 360mm front and top radiator support ensure that performance is not compromised.

PSU SHROUD WITH REMOVABLE COVER

MasterBox TD500 Mesh V2’s removeable PSU cover allows users to freely decide whether to showcase or keep their PSUs hidden.

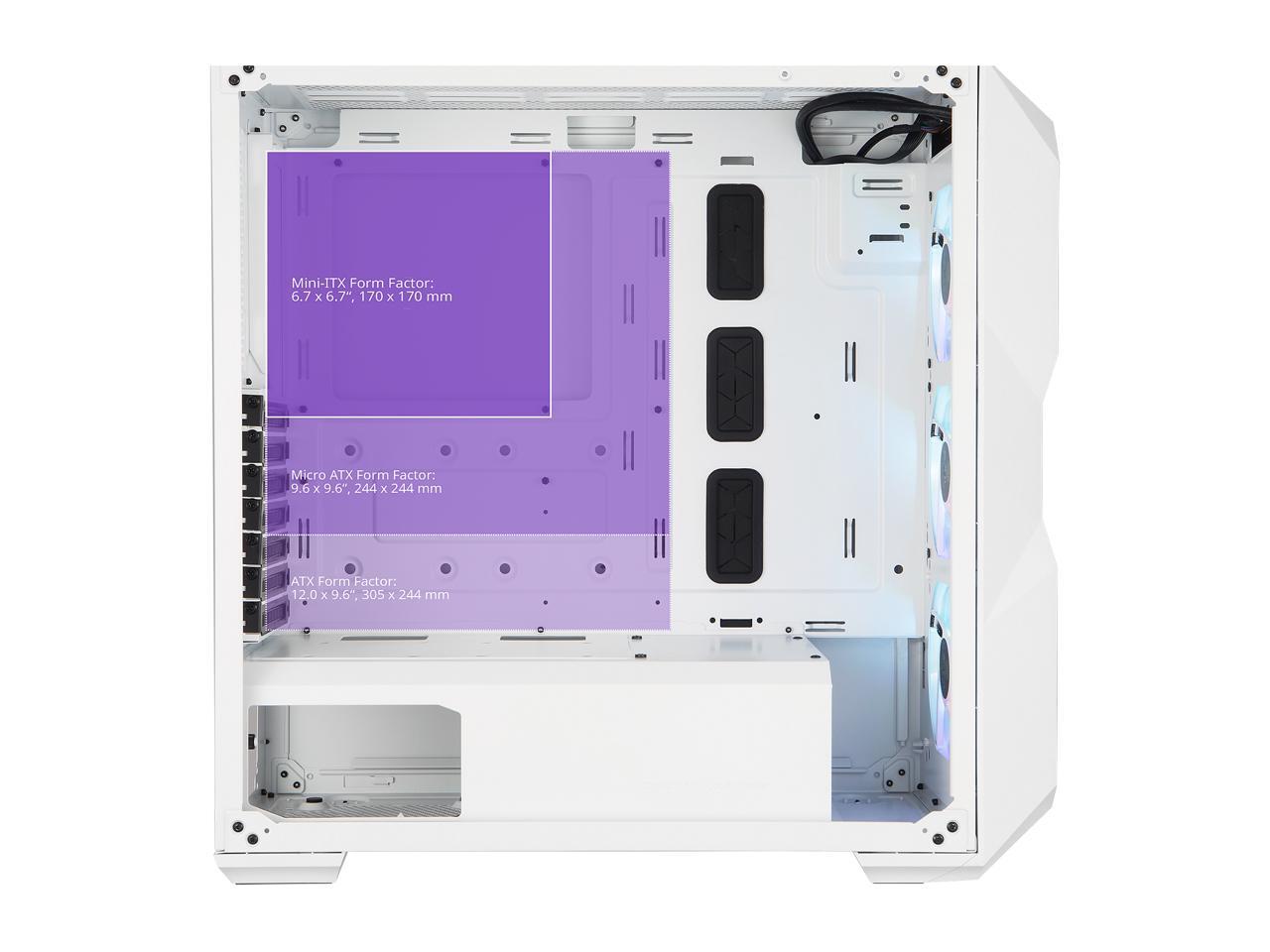

HARDWARE COMPATIBLITY

MasterBox TD500 Mesh V2 is natively compatible with ITX, M-ATX, and ATX motherboards.

E-ATX motherboards, such as SSI-CEB models, are compatible with dimensions up to 12” x 10.7”.

MasterBox TD500 Mesh V2MasterBox TD500 Mesh V2's iconic polygonal design keeps your system looking unique and your gaming sessions streamlined. DesignPolygonal FineMesh features a 3D contour and is also capable of simultaneously providing high airflow and dust filtration. FansPre-installed CF120 ARGB fans provide ample airflow, ensuring low temperatures, high performance, and eye-catching aesthetics during even the most intense gaming sessions. Ports & Slots - USB 3.2 GEN 2 Type C SupportUSB 3.2 Gen 2 Type C port built into the 1/0 panel allows multi-purpose, streamlined data transmission. Removable top panelThe top panel is entirely removable for improved access during assembly and ease of mounting of cooling solutions.

Motherboard - Hardware CompatibilityMasterBox TD500Mesh V2 is natively compatible with ITX, M-ATX and ATX motherboards. E-ATX motherboards, such as SSI-CEB models, are compatible with dimensions up to 12" x 10.7". Customization - Versatile cooling optionsSupport for up to seven 120mm fans and 60mm front and top radiator support ensure that performance is not compromised. Tool-free crystalline TG side panelFeaturing a crystalline tempered glass side panel, completely toolless for quick access to the internals. PSU Shroud with removable coverMasterBox TD500 Mesh V2's removable PSU cover allows users to freely decide whether to showcase or keep their PSUs hidden.

ARGB/FAN HUB IncludedThe included controller allows users to manage systems lighting independently from the hardware configuration and provides the user with 4 additional fan headers in case of need.

Model
Brand	Cooler Master
Series	TD
Model	TD500V2-KGNN-S00
Part Number	TD 500 Mesh

Details
Type	ATX Mid Tower
Color	Black
Case Material	Exterior: Steel, Mesh, Plastic Left Side Panel: Tempered Glass
Motherboard Compatibility	Mini-ITX, Micro-ATX, ATX, SSI CEB, E-ATX* (*up to 12” x 10.7” motherboards, may impact cable management feature)
Dust Filters	Bottom / Front / Top

Expansion
Internal 3.5" Drive Bays	2
Internal 2.5" Drive Bays	3
Expansion Slots	7

Front Panel Ports

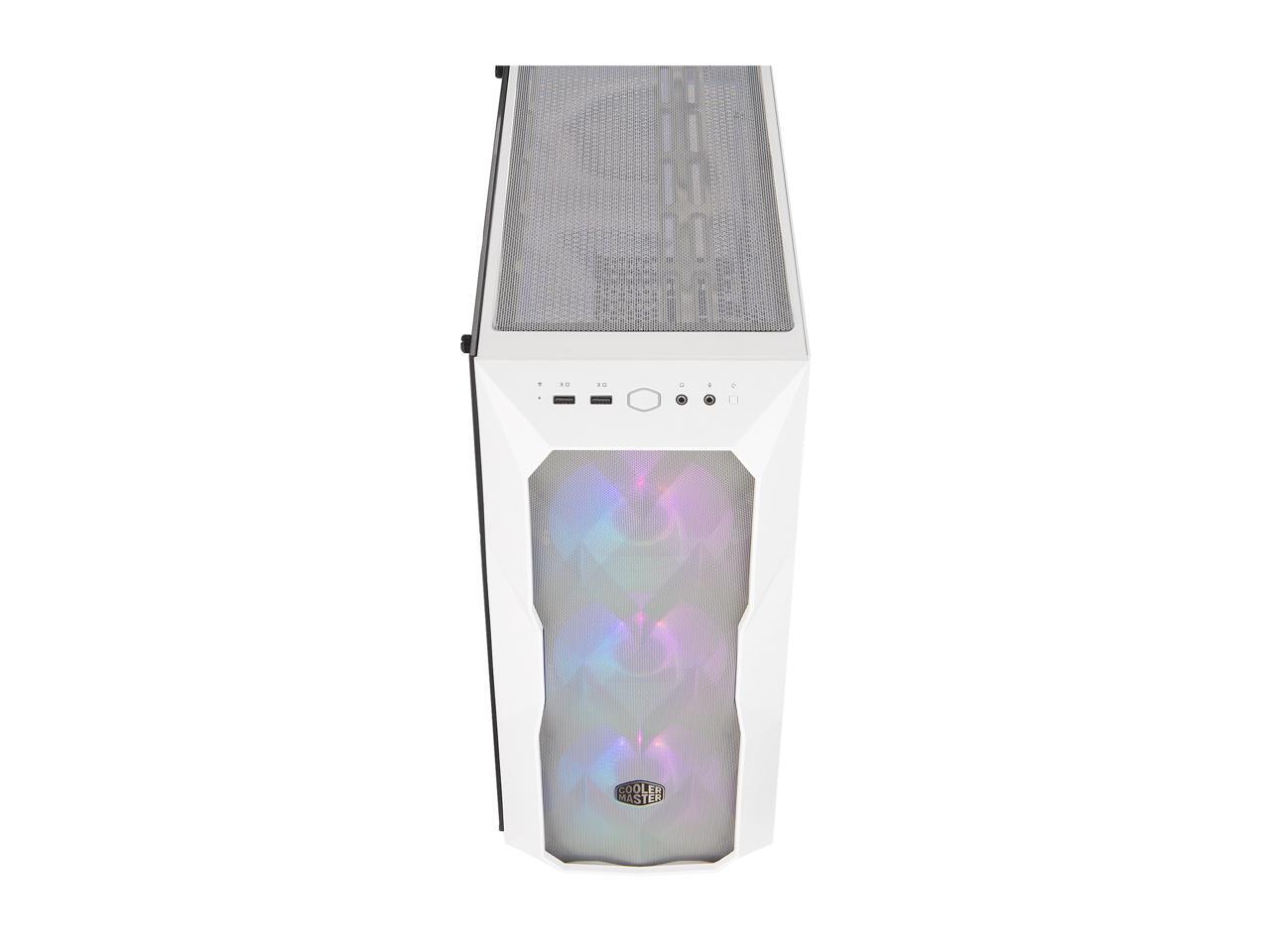

Front Ports	2 x USB 3.2 Gen 1, 1 x USB 3.2 Gen 2 Type-C, 1 x Audio, 1 x ARGB Fan Hub

Cooling System

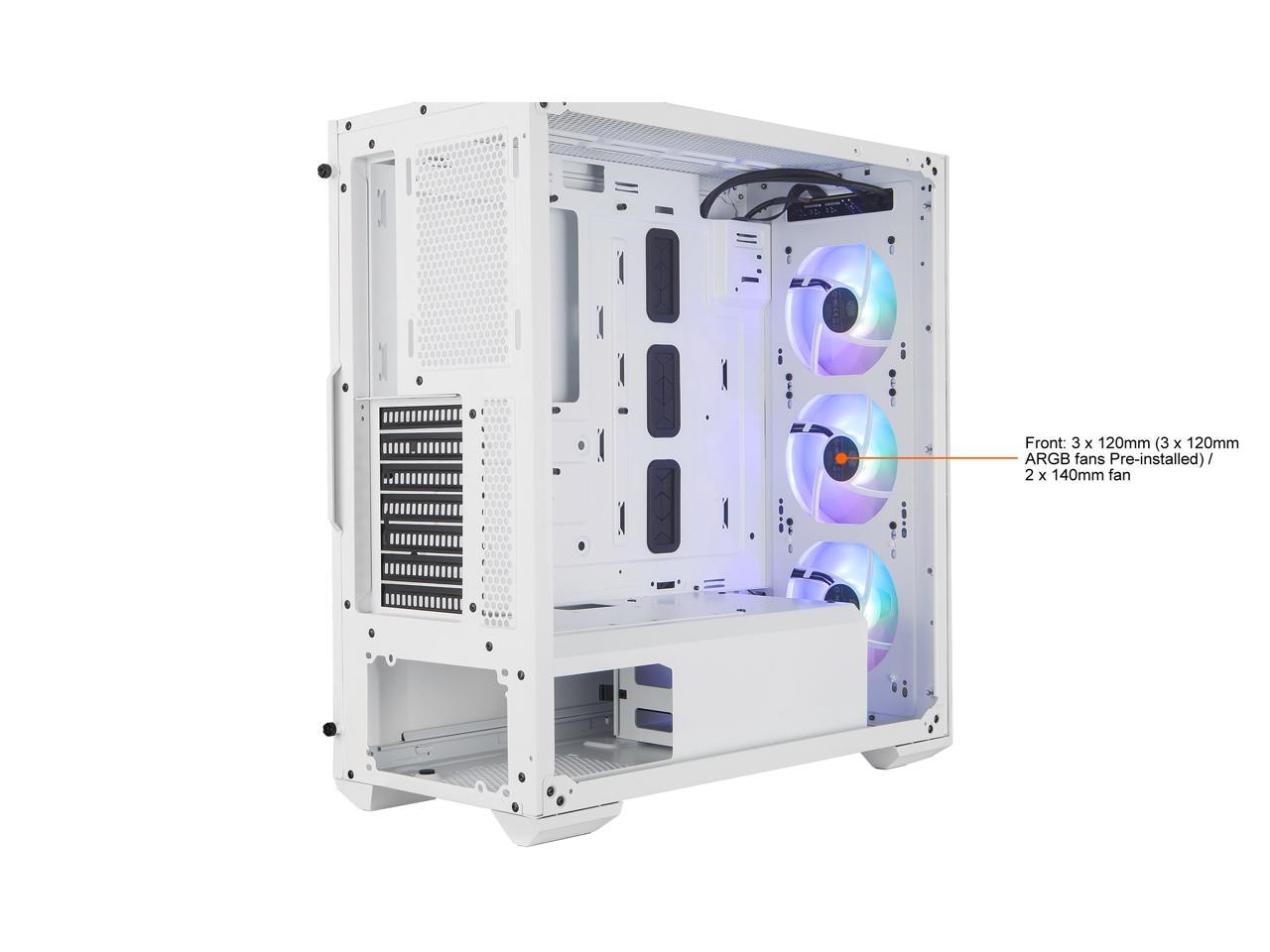

Fan Options	Top: 3 x 120mm/ 2 x 140mm Front: 3 x 120mm/ 2 x 140mm Rear: 1 x 120mm Pre-installed Fan(s): Front: 3 x 120mm ARGB Fans
Radiator Options	Top: 120 / 240 / 360mm(recommended maximum thickness - 55mm) Front: 120 / 140 / 240 / 280 / 360mm Rear: 120mm

Dimensions & Weight

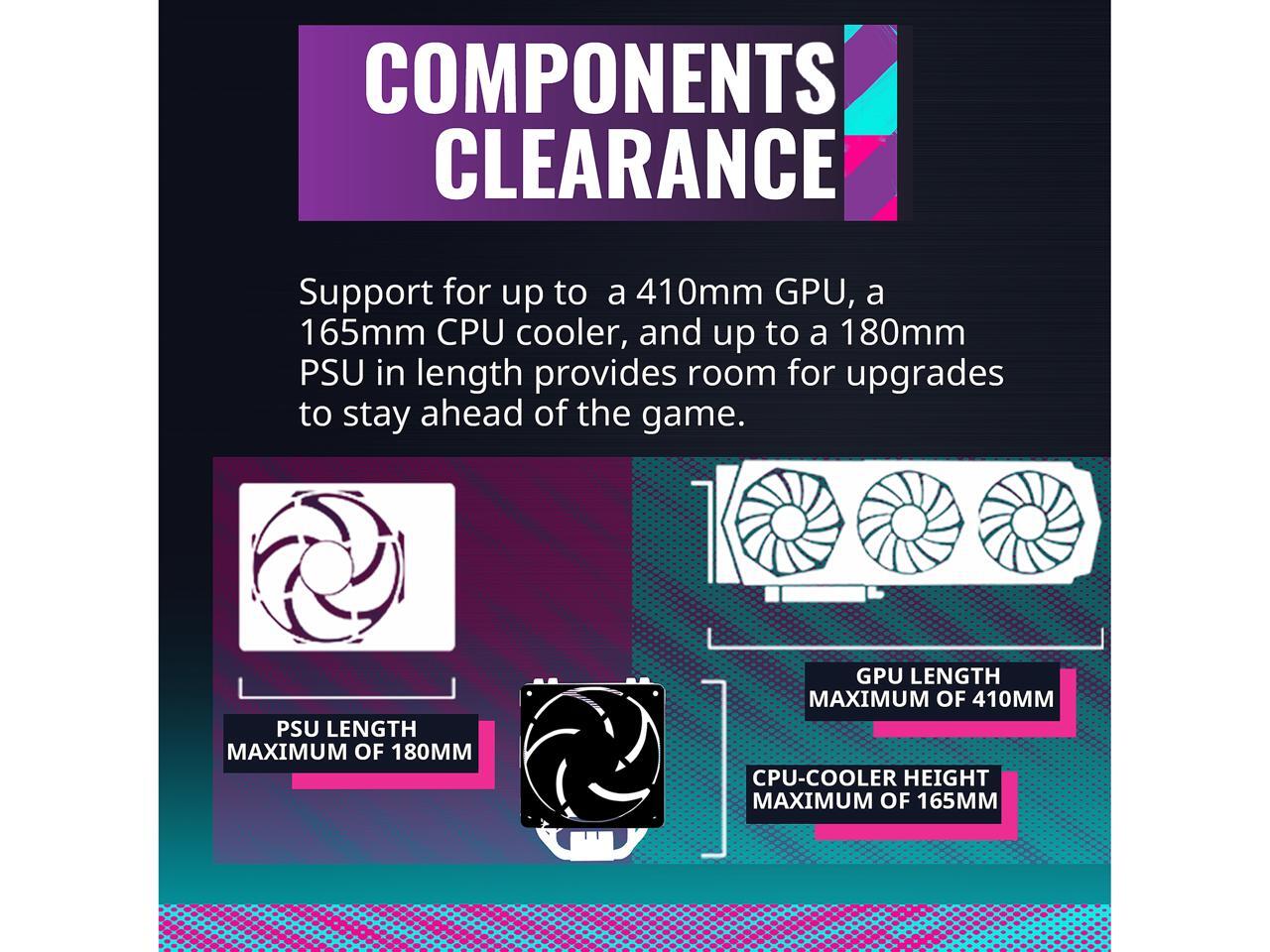

Max GPU Length	410 mm
Max CPU Cooler Height	165 mm
Max PSU Length	200 mm

Additional Info
Package Content	TD500 Mesh V2 Tool Kit Manuel
