10 Pcs Carbide Burr Set 1/8" Shank Compatible with Dremel Milwaukee Bits Rotary Tools Attachment Kit Rasp Drill File Accessories Metal Wood Stone Steel Grinding Carving Cutting Polishing

Sworker 10 PCS Tungsten Carbide Burr.

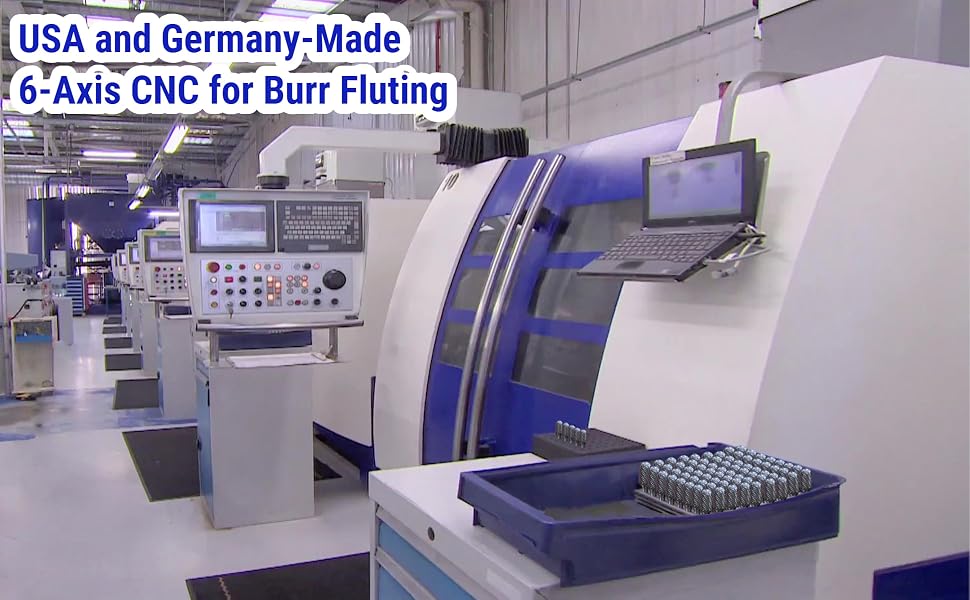

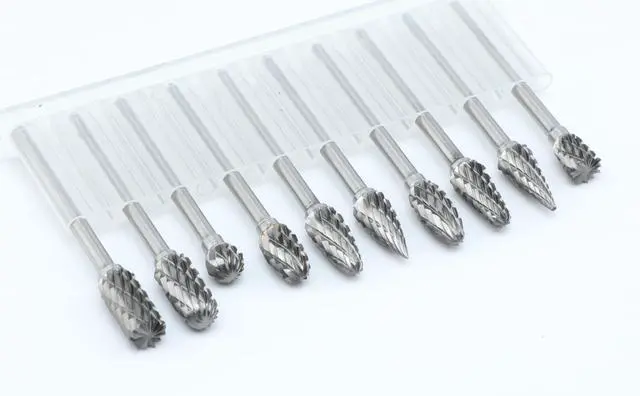

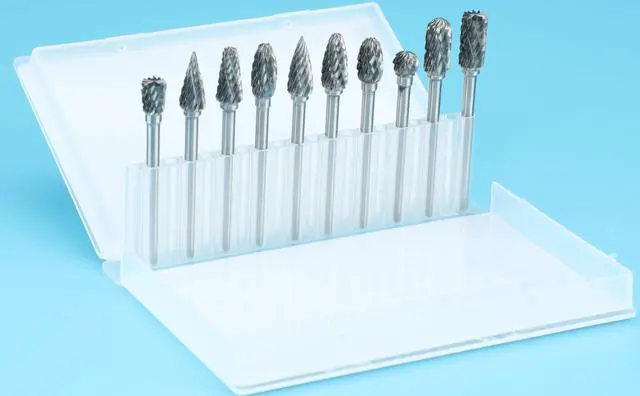

Designed in Germany, Manufactured by Germany and USA-made 6-Axis CNC, Made in China. Package Includes: 10 PCS 3mm shank carbide burr set, 1 twenty-slots plastic clamshell box (10 empty for more storage) like old cassette tape holder, 1 paper box and 1 manual.

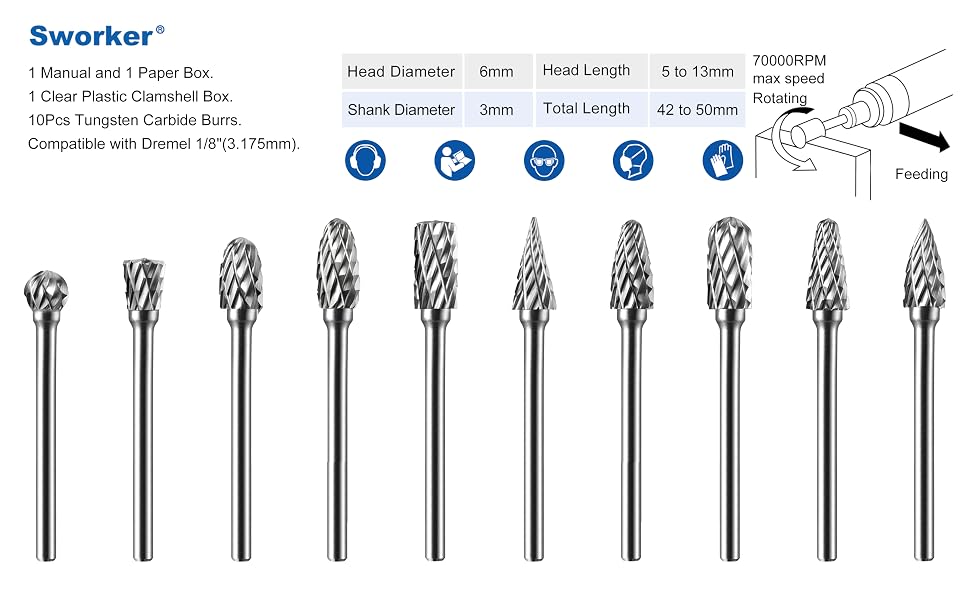

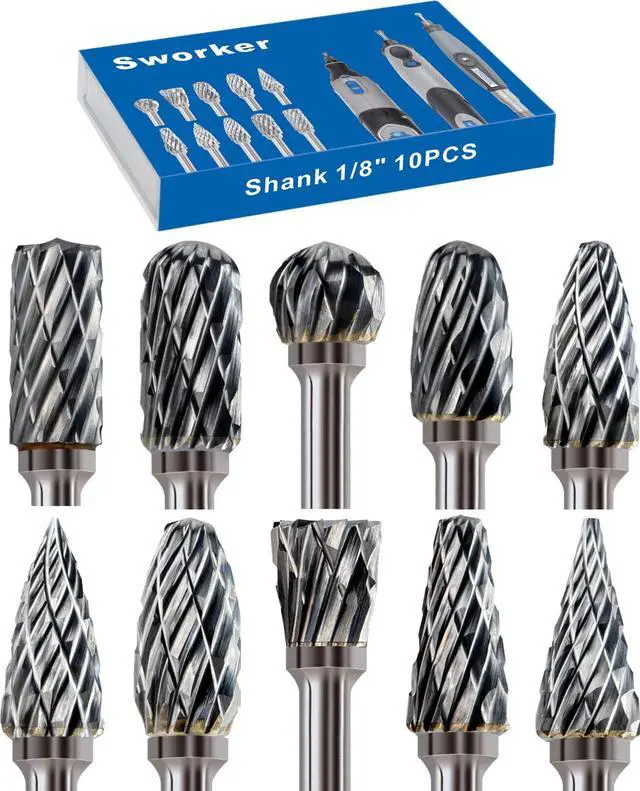

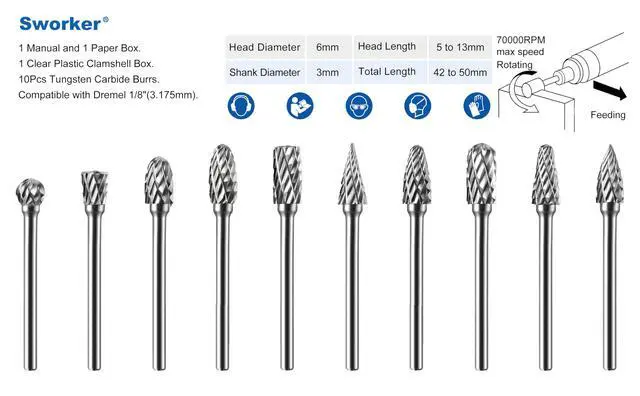

Head Shapes: End-Cut Cylindrical, Ball-Nosed Cylindrical, Ball, Oval, Ball-Nosed Tree, Tree, Flame, Cone, Inverted Cone. Head Dia.: 6mm. Head L.: 5 to 12mm. Head Spiral Flutes Qty.: 14. Head Material: Tungsten Carbide. Head Hardness: HRA90. Shank Dia.: 3mm. Shank L.: 38mm. Shank Material: 40Cr. Overall L.: 43 to 50mm.

Cut Style: Double Cut, Max Rotation Speed: 70000 RPM, Direction of Rotation: Right Hand/Clockwise, Feed Direction: Generally counter-rotationally or with a swinging motion. direction of rotation to get fine finish. Optimal Drive Tool: Straight, Angle Die Grinder, Robot. Average Drive Tool: Drill, Drill Press. Drive Type: Air or Electric Rotary Tool. Optimal Fix Type: 3mm or 1/8"(3.175mm) Collet and Nut, Average Fix Type: 3-jaws Chuck.

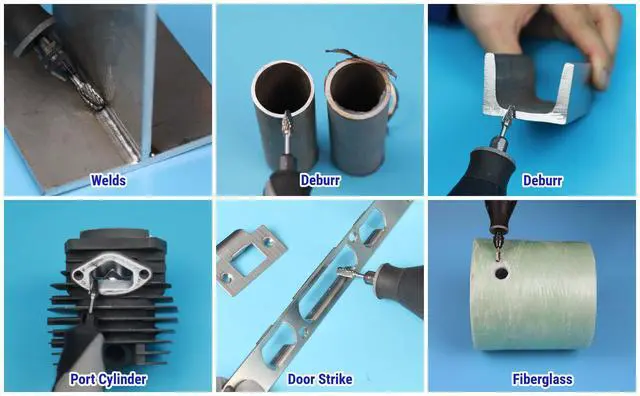

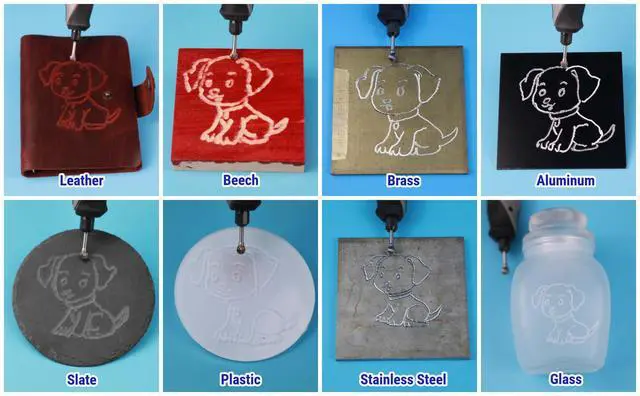

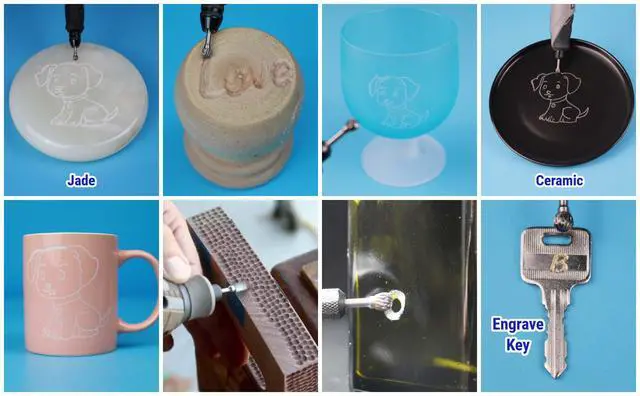

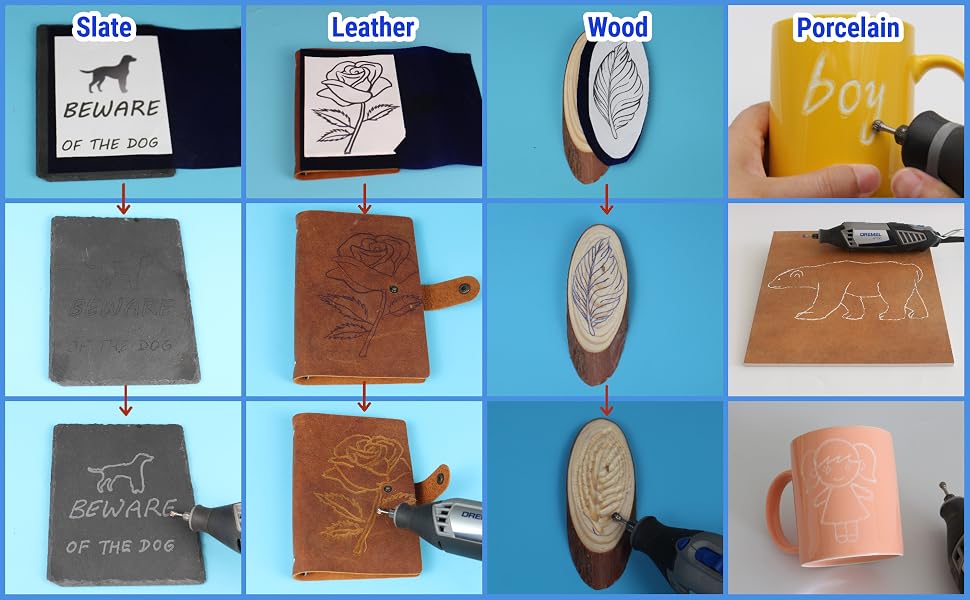

Materials Applications: Hard Wood, Balsa, Wax, Soapstone, Slate, Marble, Granite, Concrete, Steel, Hardened Steel, Weld-Seam, Stainless Steel, Brass, Copper, Bronze, Aluminum, Cast-Iron, Cast-Steel, Cobalt, Nickel, Titanium, Zinc, Earthenware, Terracotta, Porcelain, Fiberglass, Plastic, Rubber, Fiber-Reinforced Plastics and so on. Burrs Applications: Carving, Engraving, Sculpting, Deburring, Contouring, Chamfering, Milling, Cleaning, Porting, Cutting, Grinding, Polishing, Elongating, Tooling, etc.

Manual: 1, Always wear ear, eye, face protection and protective safety gloves. 2, Generally, for rough work, move the burrs across the workpiece counter-rotationally. 3, Pass the tool over the workpiece in the direction of rotation to achieve fine finishes. 4, Min Clamping depth is 2/3 of the shank, if you have to clamp less, pls low speed. 5, If rough running, strong vibrations and increased flying sparks, pls use a new one. 6, Do not apply too much pressure, Let the speed do the work. Smaller burrs require faster speeds. 7, Soft materials, such as aluminum, use a grinding oil to reduce debris clogging. Grind glass, use water as lubricant. 8, Elongate holes, grip tool firmly with two hands and use a swinging motion, which prevents chatter, result in a safer cut. 9, Avoid impact loads, otherwise parts teeth will break off, shank will bend. Do not sink the burr for more than 1/3 of its periphery. 10, Recommendation for drives: shank 1/8" (75 to 300W), shank 1/4" (from 300W), for coarse cuts, 500W+ advantageous.
