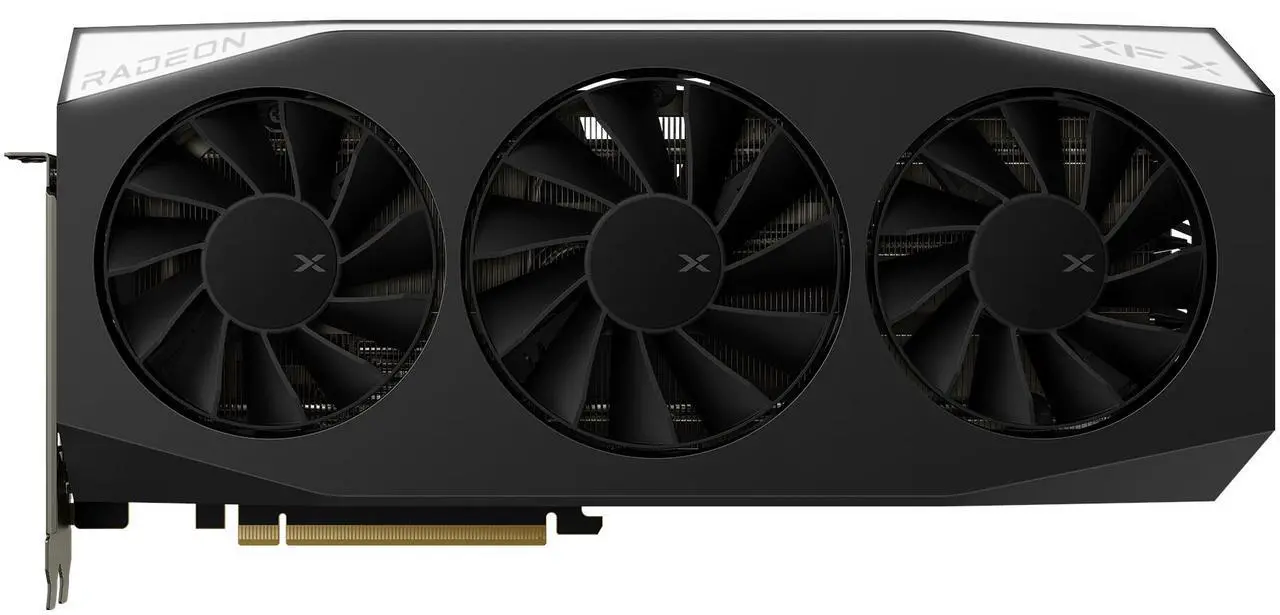

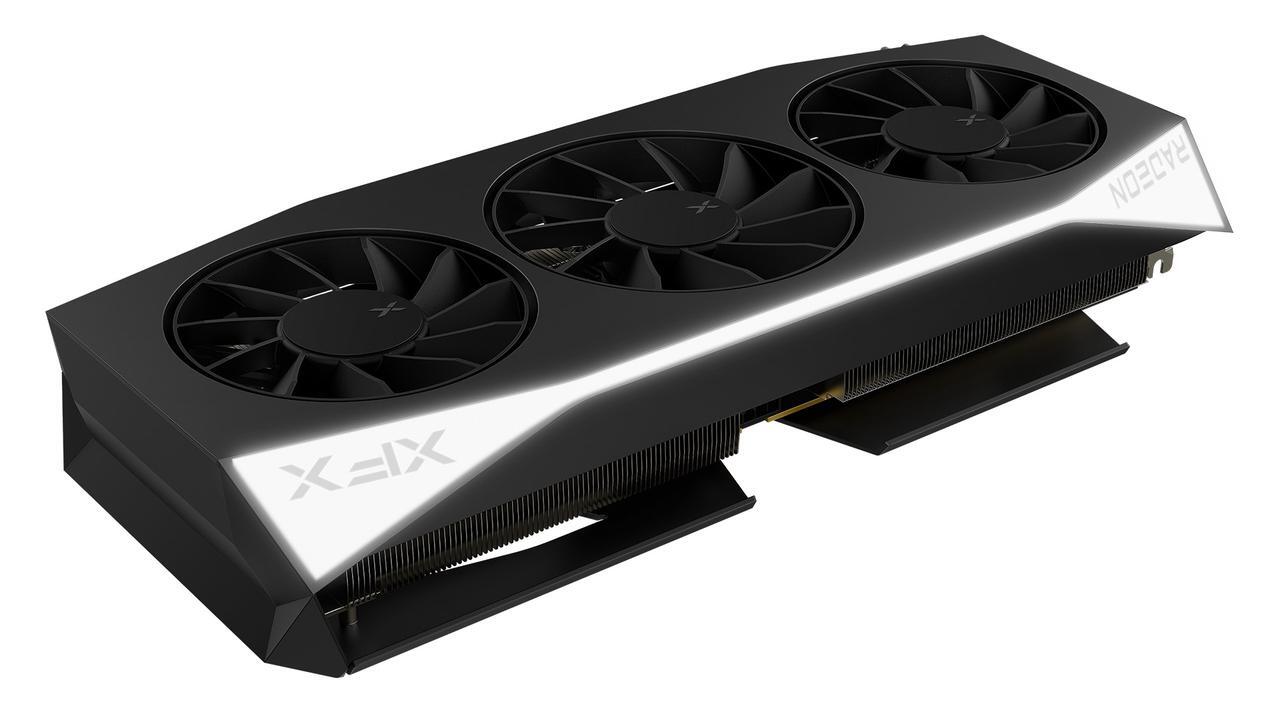

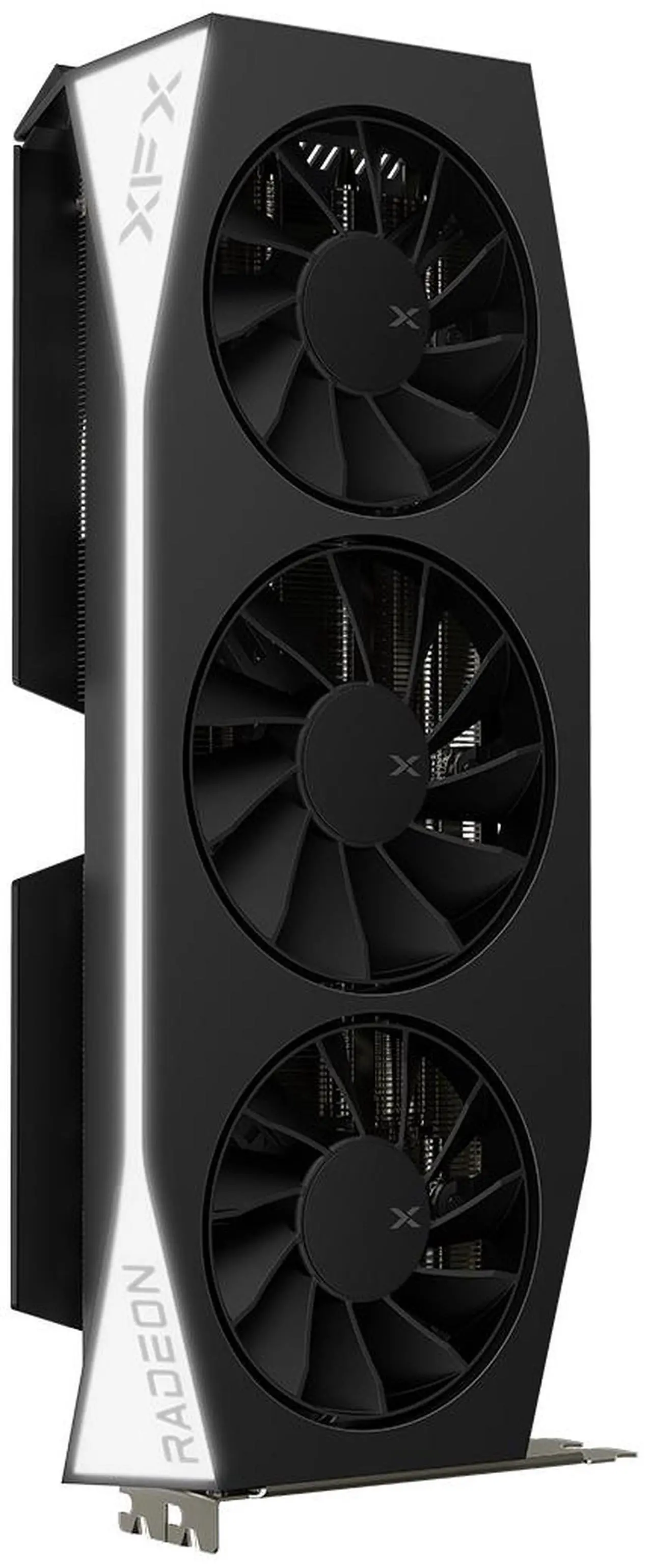

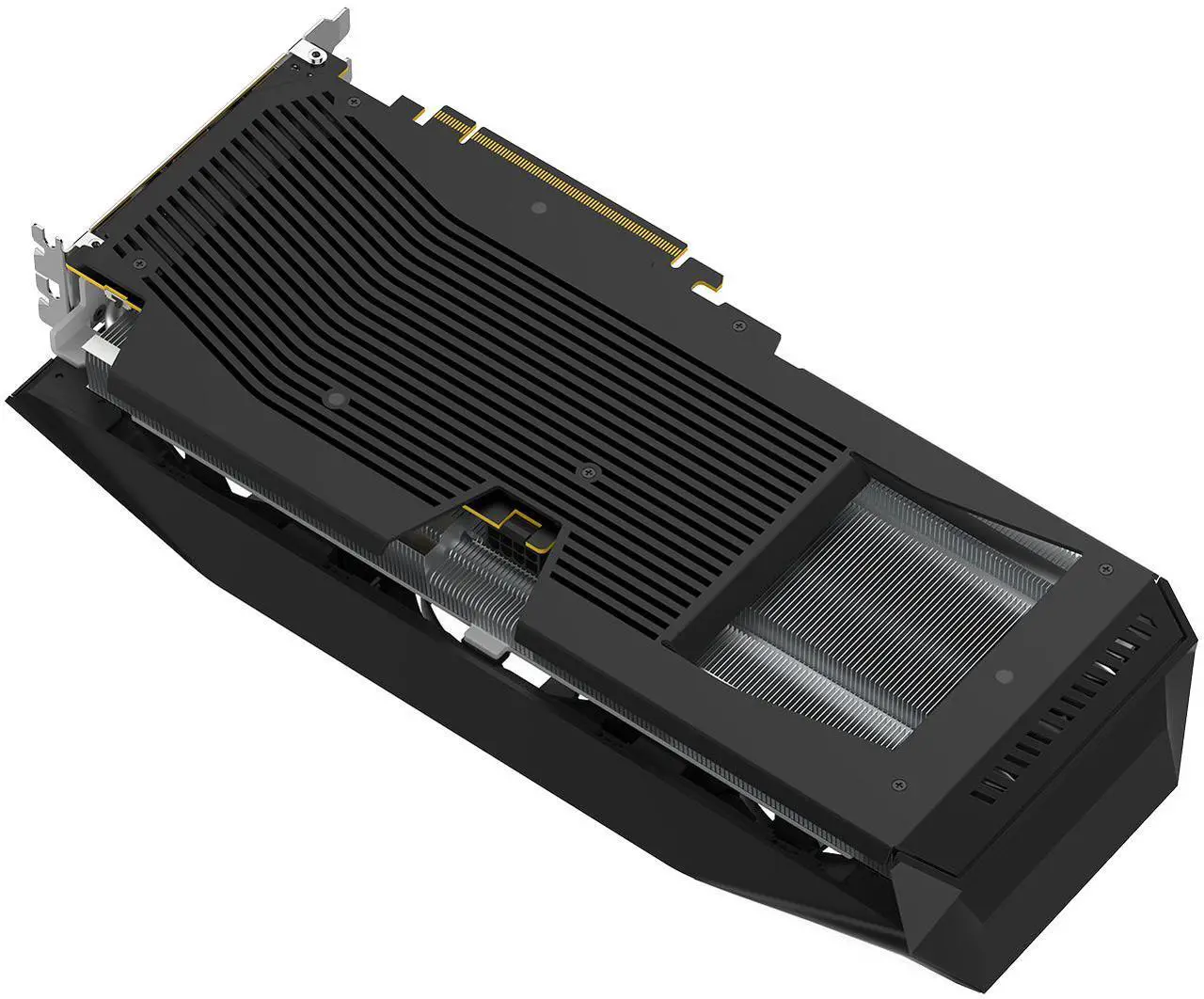

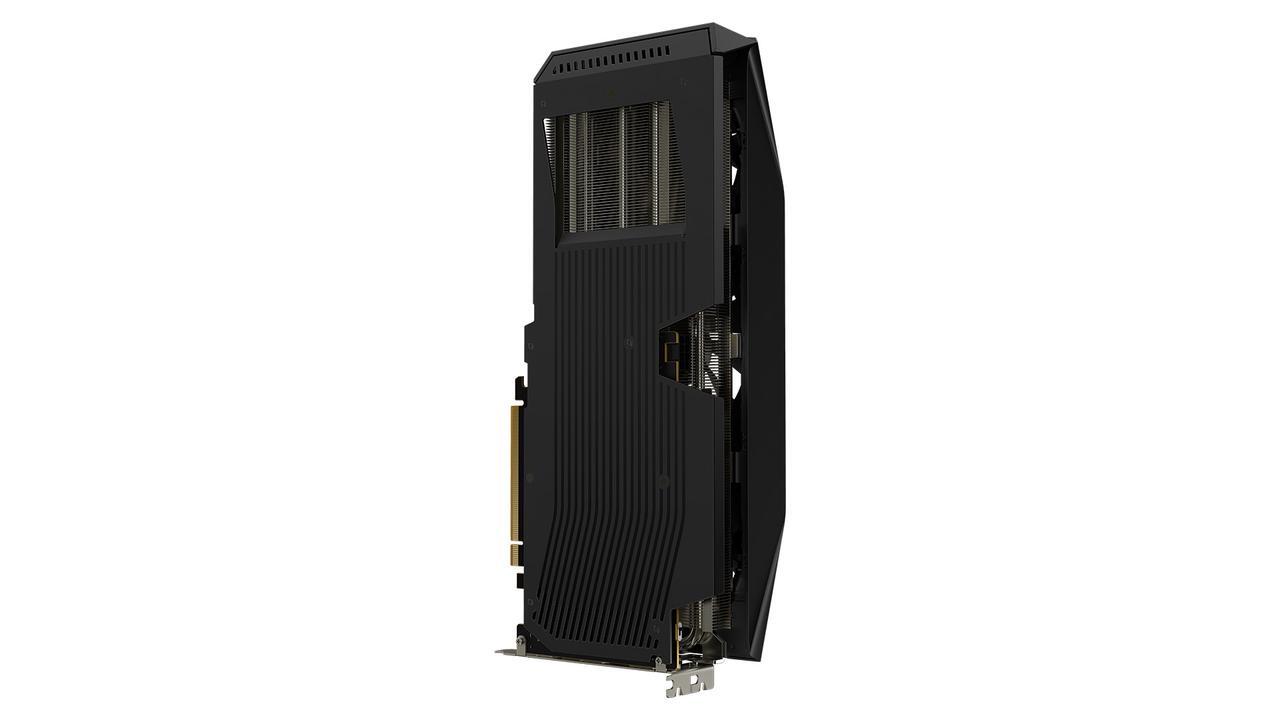

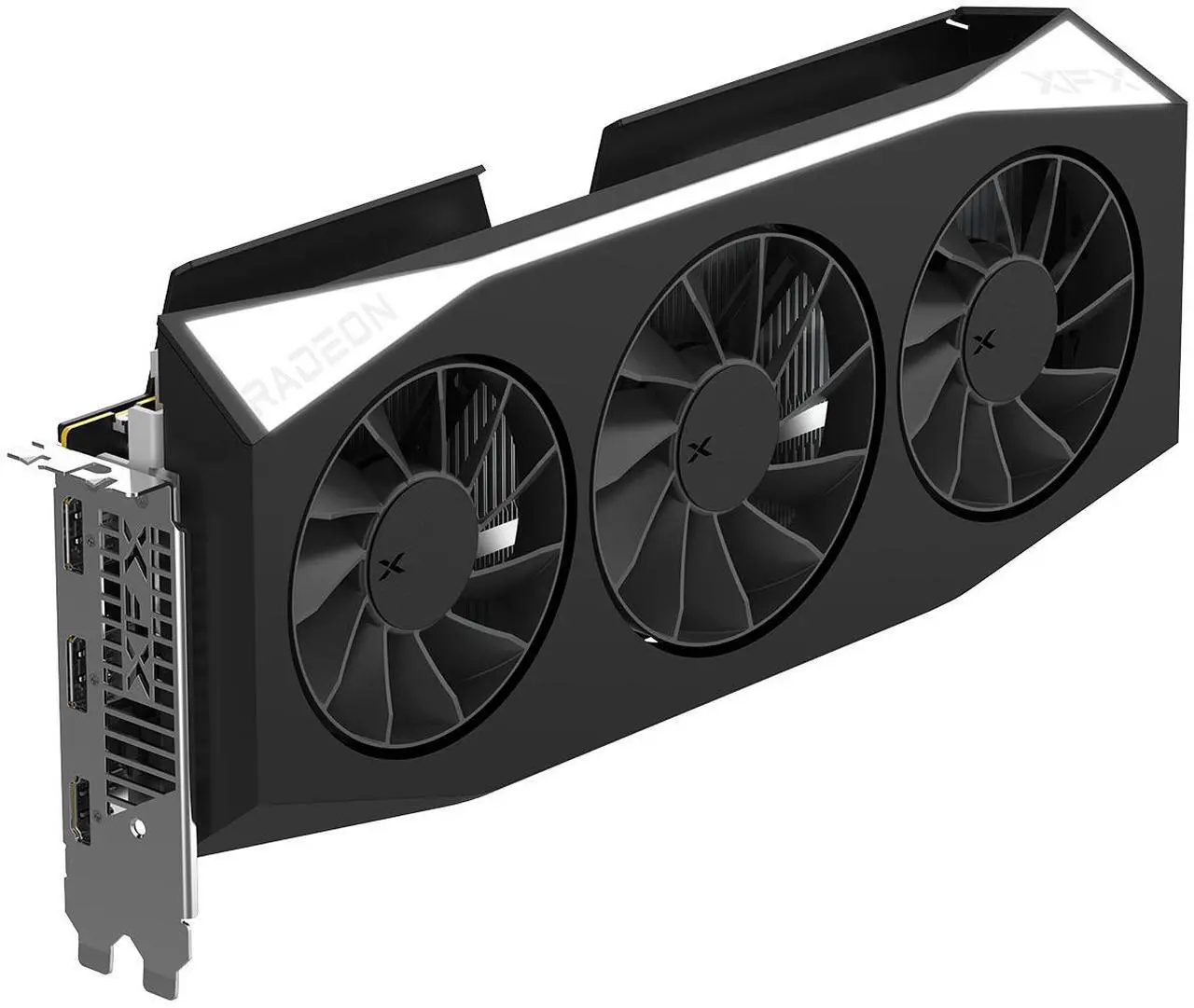

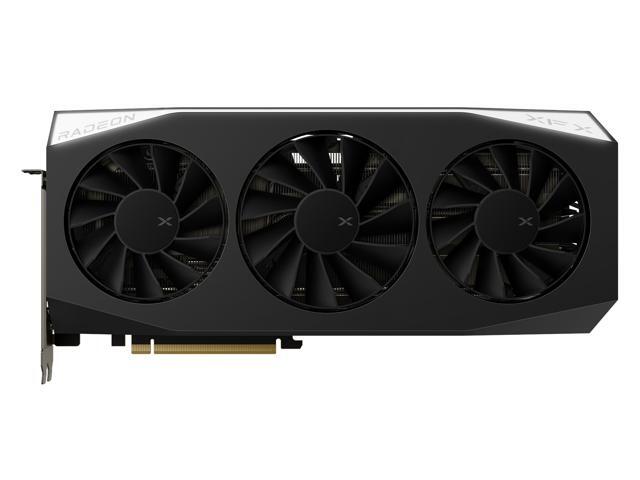

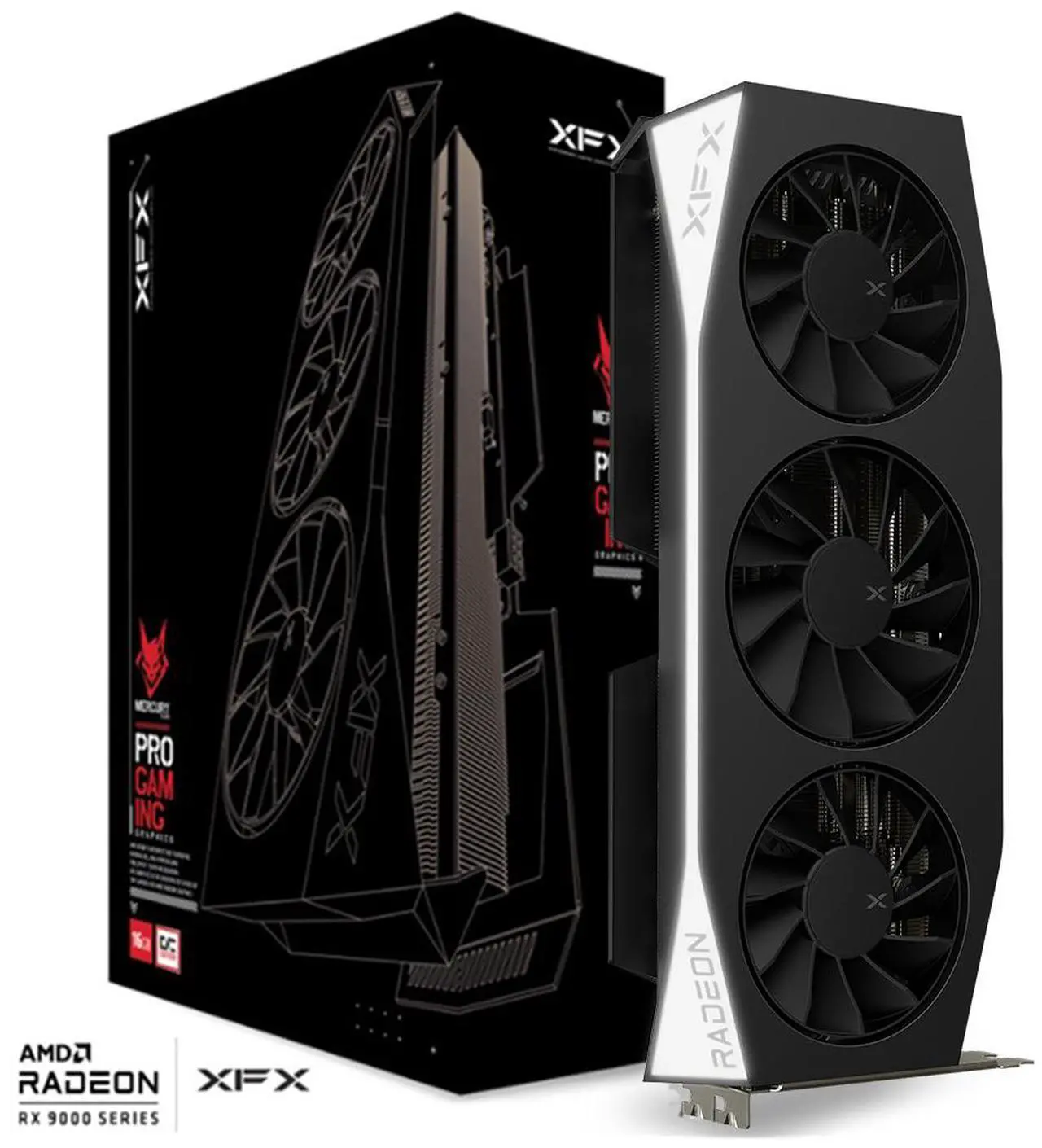

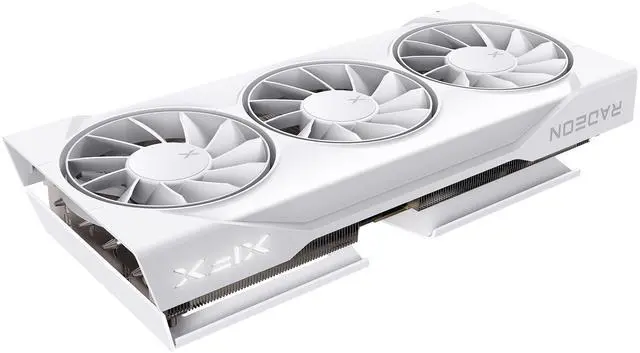

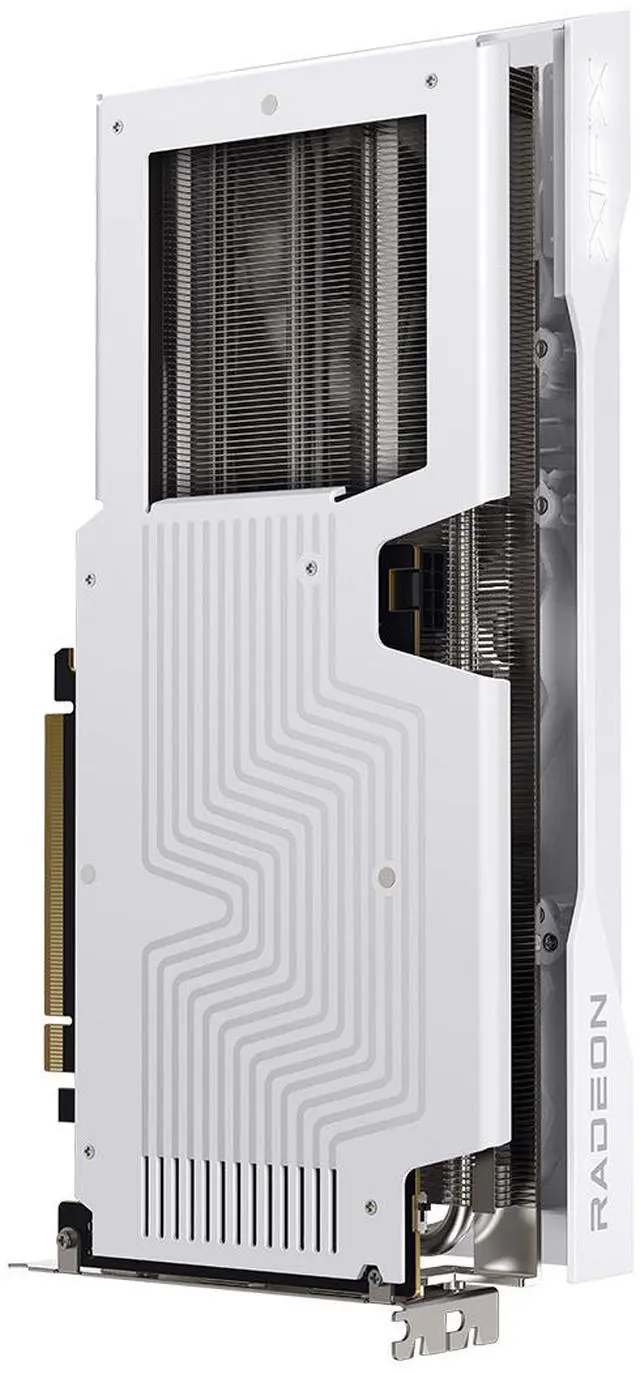

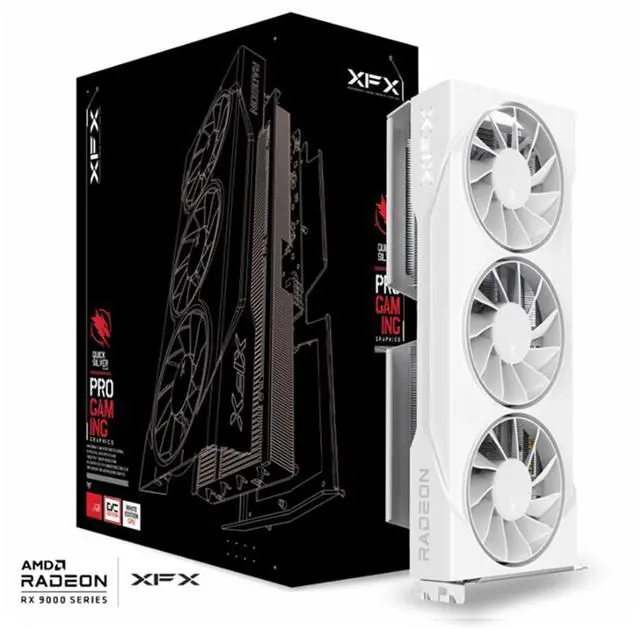

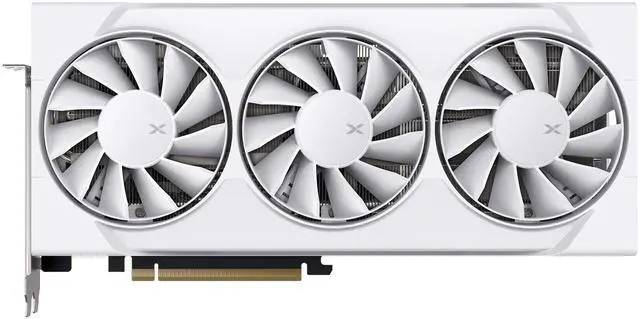

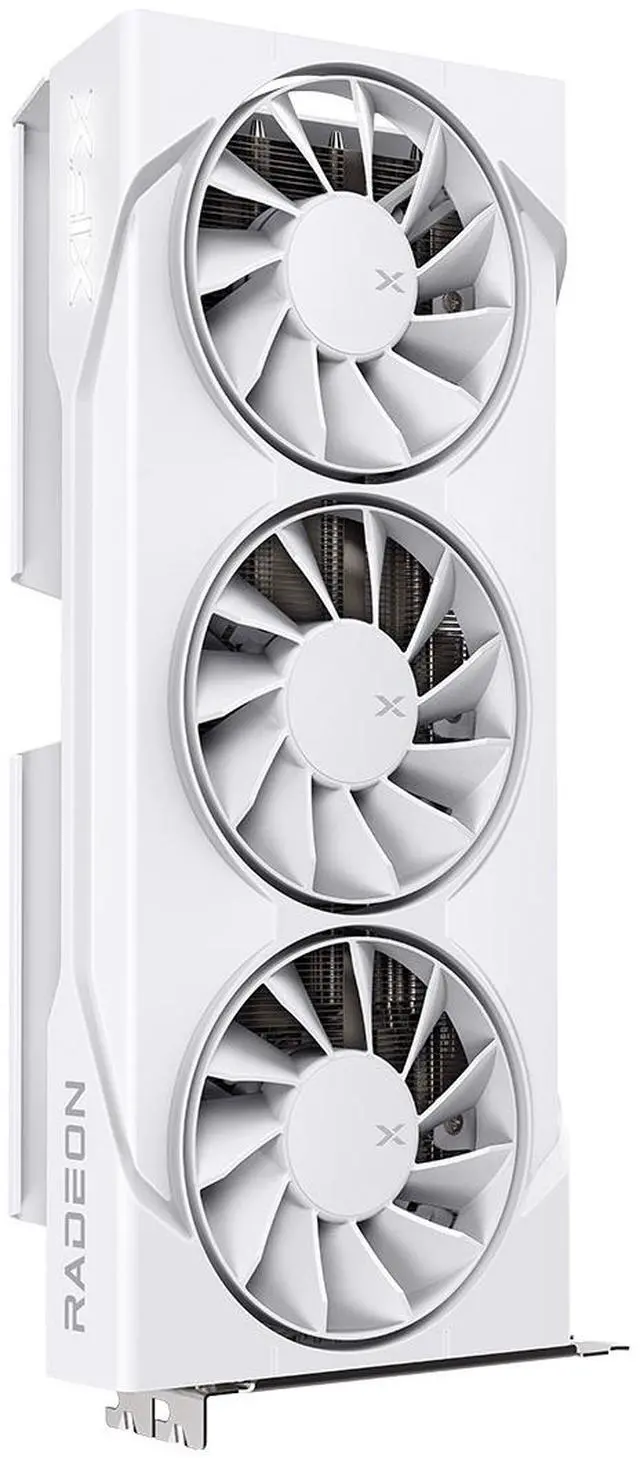

XFX Mercury Radeon RX 9060 XT 16GB GDDR6 PCI Express 5.0 x16 ATX Graphics Card RX-96TMERCBA
- 16GB 128-Bit GDDR6
- Core Clock 1900 MHz
- Boost Clock 3320 MHz
- 1 x HDMI 2.1 2 x DisplayPort 2.1
- 2048 Stream Processors
- PCI Express 5.0 x16
+
+
Specs
Reviews
Learn more about the XFX RX-96TMERCBA
| Brand | XFX |
|---|---|
| Series | Mercury |
| Model | RX-96TMERCBA |
| Interface | PCI Express 5.0 x16 |
|---|
| Chipset Manufacturer | AMD |
|---|---|
| GPU Series | AMD Radeon RX 9000 Series |
| GPU | Radeon RX 9060 XT |
| Architecture | RDNA 4 |
| Core Clock | 1900 MHz |
| Game Clock | 2780 MHz |
| Boost Clock | 3320 MHz |
| Stream Processors | 2048 Stream Processors |
| Effective Memory Clock | 20000 MHz (20 Gbps) |
|---|---|
| Memory Size | 16GB |
| Memory Interface | 128-Bit |
| Memory Type | GDDR6 |
| DirectX | DirectX 12 Ultimate |
|---|
| Multi-Monitor Support | 3 |
|---|---|
| HDMI | 1 x HDMI 2.1 |
| DisplayPort | 2 x DisplayPort 2.1 |
| Max Resolution | 7680 x 4320 |
|---|---|
| CrossFireX Support | No |
| SLI Support | No |
| Virtual Reality Ready | Yes |
| Cooler | Triple Fans |
| Operating Systems Supported | Supported operating systems include Linux®, Windows 10/11. 64-bit operating system required. |
| Thermal Design Power | 182W |
| System Requirements | PCI Express compatible motherboard with one x16 PCIe slot Minimum 550W or greater power supply - NOTE: Minimum recommended system power supply wattage is based on the specific graphics card and the typical power requirements of other system components. Your system may require more or less power. OEM and other pre-assembled PCs may have different power requirements. Minimum 8GB of system memory. Recommended 16GB. |
| Recommended PSU Wattage | 550W |
| Power Connector | 8-Pin |
| Form Factor | ATX |
|---|---|
| Max GPU Length | 320 mm |
| Card Dimensions (L x H) | 32 x 12.7 x 5.3 cm |
| Slot Width | 2 Slots |
| Date First Available | June 24, 2025 |
|---|
