Brand | XFX |
---|---|
Model | HD-435X-ZAH2 |
Interface | PCI Express 2.0 x16 |
---|
Chipset Manufacturer | ATI |
---|---|
GPU | Radeon HD 4350 |
Core Clock | 600 MHz |
Stream Processors | 80 Stream Processors |
Effective Memory Clock | 800 MHz |
---|---|
Memory Size | 1GB |
Memory Interface | 64-Bit |
Memory Type | DDR2 |
DirectX | DirectX 10.1 |
---|---|
OpenGL | OpenGL 2.0 |

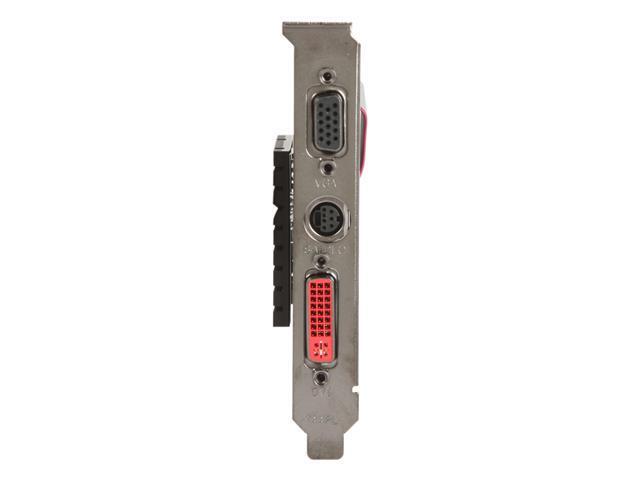

D-SUB | 1 x D-SUB |
---|---|
DVI | 1 x DVI |
TV-Out | HDTV / S-Video Out |
RAMDAC | 400MHz |
---|---|
Max Resolution | 2560 x 1600 |
RoHS Compliant | Yes |
CrossFireX Support | Yes |
Cooler | Fanless |
System Requirements | Minimum 300 Watt Power Supply Requirement |
Dual-Link DVI Supported | Yes |
HDCP Ready | Yes |
Form Factor | Low Profile Ready |
---|---|
Low Profile Bracket Included | Yes |
Card Dimensions (L x H) | 6.6" x 2.73" |

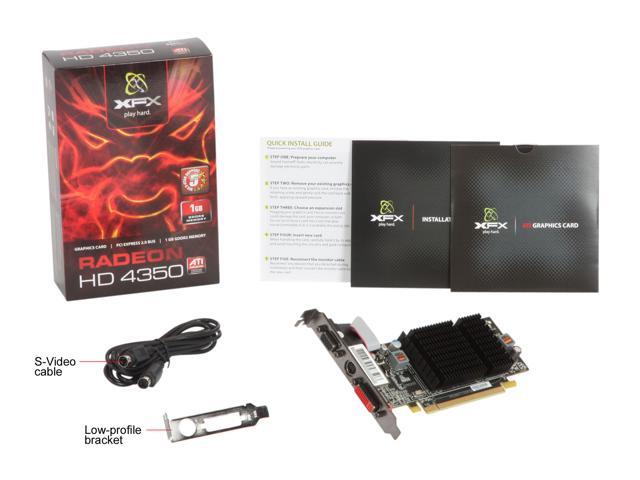

Package Contents | HD-435X-ZAH2 Installation CD with Multi-Language User Guide Quick Installation Guide Driver CD Installation Guide XFX Serial Number Door Hanger S-Video Cable Low Profile Bracket |
---|
Date First Available | May 26, 2009 |
---|
Pros: It has a S-video port and TV-Out capability for connecting to old TVs. It is low profile.
Cons: It runs hot even with a relatively big heatsink.
Overall Review: I purchase it mainly to fit inside a low profile HTPC that is connecting to an old TV that can only accept S-video. So far, the video display is fine with that old SDTV. I am not using it to play games; therefore, I don't know how well it works with games. Having said this, I run a Car-Paint 3D demo program downloaded from ATI web site, and the demo runs fine. It generates quite a bit of heat in that low profile case if I only use the chasis fan and the power supply fan. I fix the problem with two fans spinning very slow sucking air from the video card. I feel that this problem can also be fixed by using a well ventilated full size computer case. By the way, its desktop graphics for Aero score in Windows Experience Index is only 3.8. I don't understand why its desktop graphic score is much lower than its 3D graphic score. Checking review in internet and find that this is normal for Radeon 4350.
