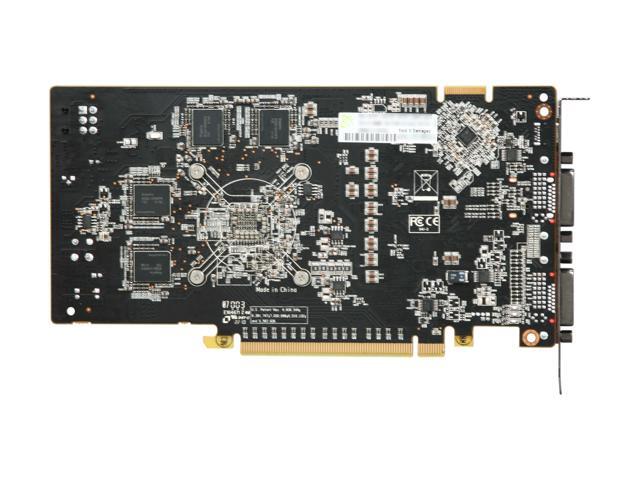

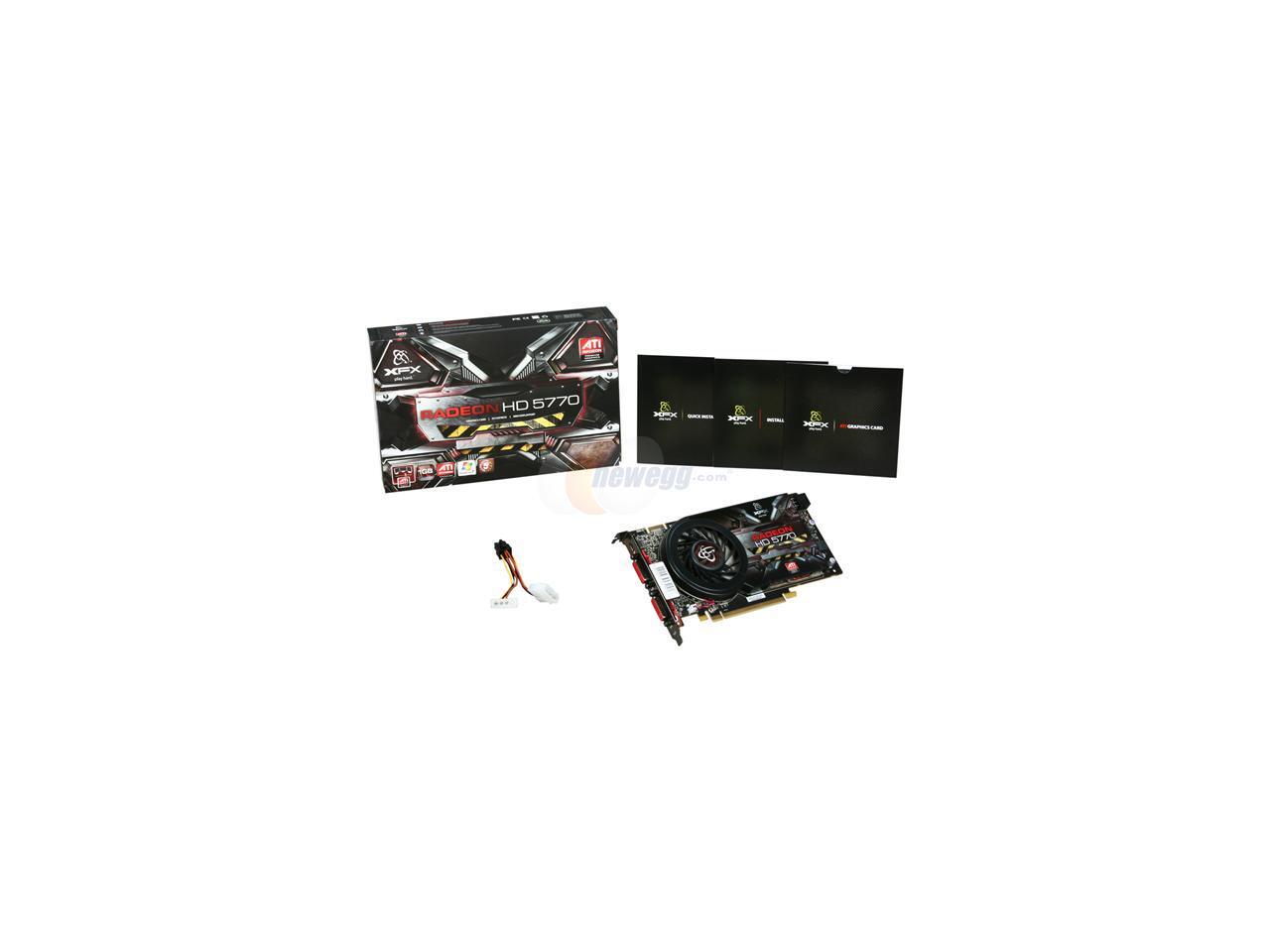

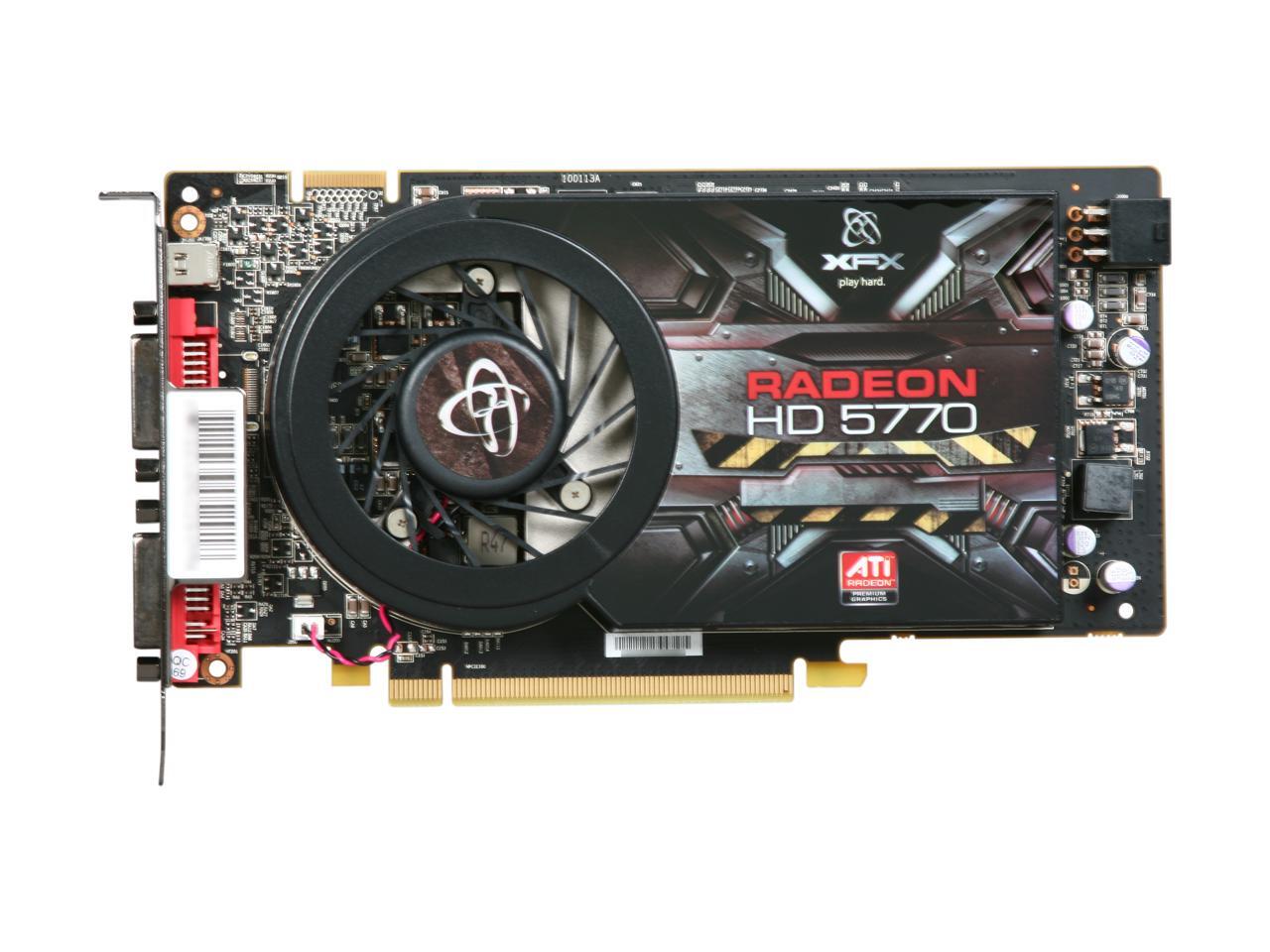

XFX Radeon HD 5770 DirectX 11 HD-577X-ZMF3 1GB 128-Bit DDR5 PCI Express 2.1 x16 CrossFireX Support Video Card with Eyefinity
OUT OF STOCK.
- 1GB 128-Bit DDR5
- Core Clock 850 MHz
- 2 x DVI 1 x Mini DisplayPort
- 800 Stream Processors
- PCI Express 2.1 x16
Specs
Reviews
Learn more about the XFX HD-577X-ZMF3
| Brand | XFX |
|---|---|
| Model | HD-577X-ZMF3 |
| Interface | PCI Express 2.1 x16 |
|---|
| Chipset Manufacturer | ATI |
|---|---|
| GPU Series | AMD Radeon HD 5000 series |
| GPU | Radeon HD 5770 |
| Core Clock | 850 MHz |
| Stream Processors | 800 Stream Processors |
| Effective Memory Clock | 1200MHz (4.8Gbps) |
|---|---|
| Memory Size | 1GB |
| Memory Interface | 128-Bit |
| Memory Type | DDR5 |
| DirectX | DirectX 11 |
|---|---|
| OpenGL | OpenGL 3.2 |

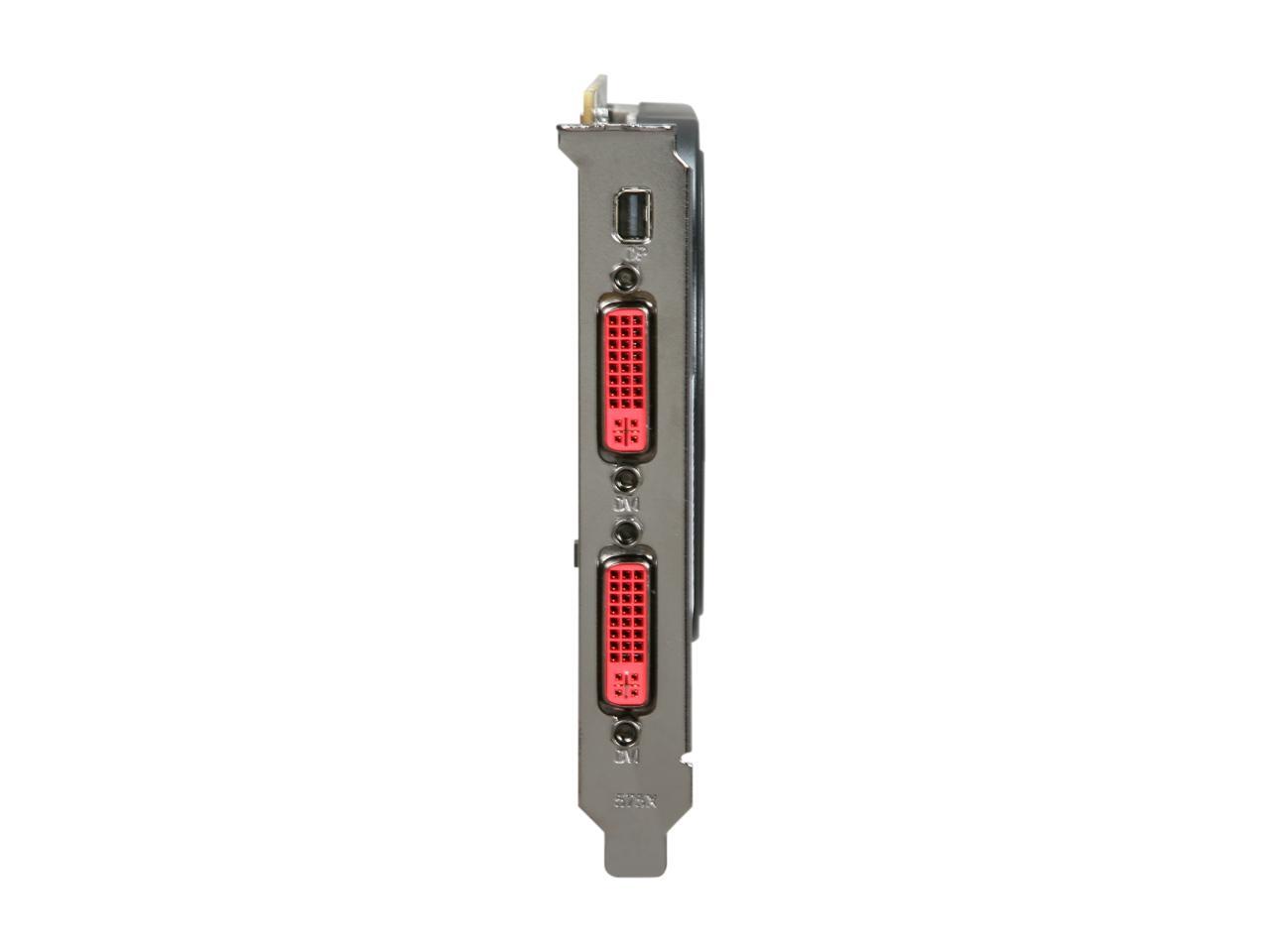

| DisplayPort | 1 x Mini DisplayPort |
|---|---|
| DVI | 2 x DVI |
| RAMDAC | 400MHz |
|---|---|
| Max Resolution | 2560 x 1600 |
| Eyefinity Support | Yes |
| CrossFireX Support | Yes |
| Cooler | With Fan |
| System Requirements | Minimum 500 Watt Power Supply Requirment |
| Power Connector | 6-Pin |
| Dual-Link DVI Supported | Yes |
| Card Dimensions (L x H) | 8.8" x 4.4" |
|---|
| Date First Available | September 02, 2010 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): Lifetime
- Limited Warranty period (labor): Lifetime
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's Standard Return Policy
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 800-880-3225
- Support Website
- View other products from XFX
LOADING...




















Pros: - When I benchmarked it out of the box, I was able to get the framerates really low on really high end graphics processing, but it refused to choke. - Runs cool, I am not in the mood for taking it apart right now, but I am assuming that the TIM and Heatsink has good contact. - By cool, I mean full load for 30 minutes and it doesn't break 40 degrees C or choke. - LOL, why do they not make cards single slot anymore if they can run like this. - Best card I could find in a single slot without shelling out 600-1000 dollars and building a liquid cooling solution. - Runs quiet, if audiophile noise atmosphere is for you this is your card, I set the fan to 100% in ATI and still can't hear it (lol results may vary, i did soundproof mod my alienware, but not only one who says its quiet. Lets put it this way, if any of your fans are bigger than 40 mm and more than 500 rpm, the XFX will be quieter.)
Cons: No Crossfire bridge I guess :p, but after everything I said up there, complaining about that would be really obnoxious.
Overall Review: Have been slowly working up the overclock each day, up to 1400 memory clock from 1200 and 950 over 850 on the core. I don't think I want to raise it anymore and volt kill such a nice running card. Just so you know it isn't one of those single slots that has a belly taking up the next pci or pcie x1, it will fit great in some small, small cases and mobos. I wish my westinghouse suckonitor could play dvi-d or dvi to hdmi.
