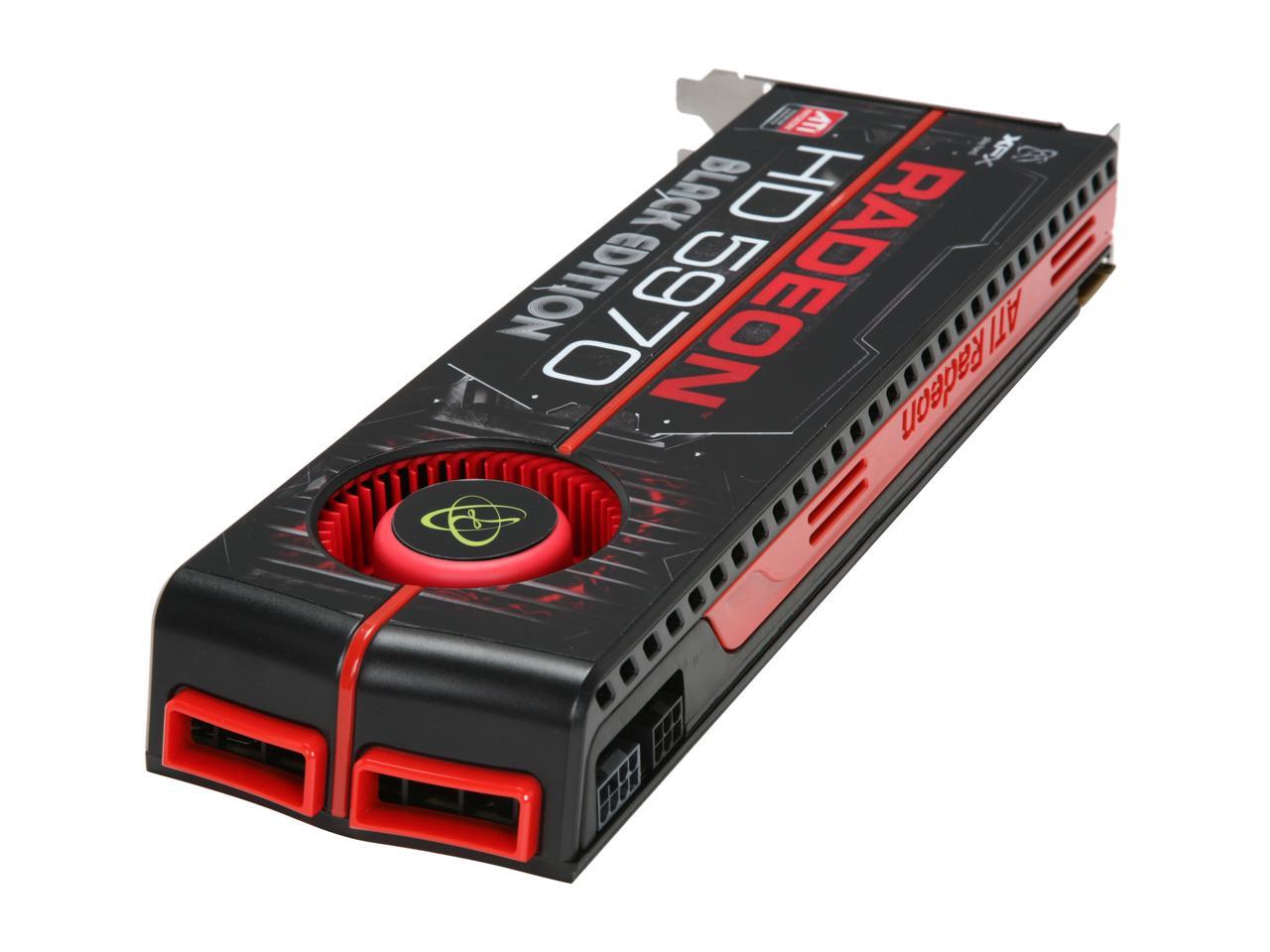

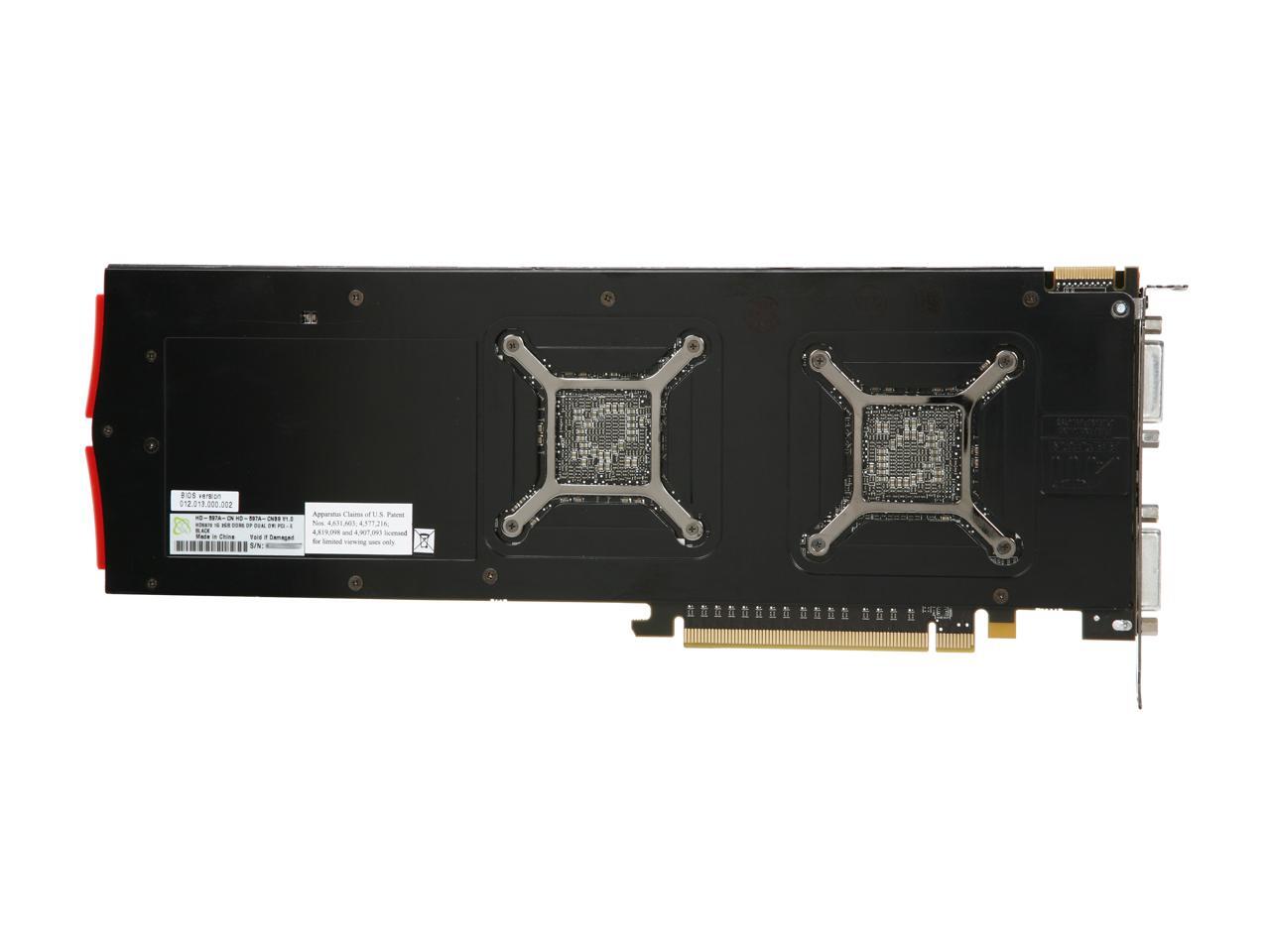

XFX HD-597A-CNB9 Radeon HD 5970 Black Edition 2GB 512 (256 x 2)-bit GDDR5 PCI Express 2.1 x16 HDCP Ready CrossFireX Support Video Card
OUT OF STOCK.
- 2GB 512 (256 x 2)-Bit GDDR5
- Core Clock 725 MHz (up to +30% with OverVolt Tool)
- 2 x DVI 1 x HDMI (via Adapter) 1 x Mini DisplayPort
- 3200 (1600 x 2) Stream Processors
- PCI Express 2.1 x16
Specs
Reviews
Learn more about the XFX HD-597A-CNB9
| Brand | XFX |
|---|---|
| Model | HD-597A-CNB9 |
| Interface | PCI Express 2.1 x16 |
|---|
| Chipset Manufacturer | ATI |
|---|---|
| GPU Series | AMD Radeon HD 5000 series |
| GPU | Radeon HD 5970 |
| Core Clock | 725 MHz (up to +30% with OverVolt Tool) |
| Stream Processors | 3200 (1600 x 2) Stream Processors |
| Effective Memory Clock | 4GHz (up to +20% with OverVolt Tool) |
|---|---|
| Memory Size | 2GB |
| Memory Interface | 512 (256 x 2)-Bit |
| Memory Type | GDDR5 |
| DirectX | DirectX 11 |
|---|
| HDMI | 1 x HDMI (via Adapter) |
|---|---|
| DisplayPort | 1 x Mini DisplayPort |
| DVI | 2 x DVI |
| RAMDAC | 400MHz |
|---|---|
| Max Resolution | 2560 x 1600 |
| Eyefinity Support | Yes |
| CrossFireX Support | Yes |
| Cooler | With Fan |
| System Requirements | Minimum 650 Watt Power Supply Requirement |
| Power Connector | 1 x 6-Pin + 1 x 8-Pin |
| Dual-Link DVI Supported | Yes |
| HDCP Ready | Yes |
| Card Dimensions (L x H) | 12" x 4.376" x 1.5" |
|---|
| Package Contents | HD-597A-CNB9 Installation CD with Multi-Language User Guide Quick Installation Guide Driver CD Installation Guide XFX Serial Number Door Hanger Mini DisplayPort to DisplayPort Adapter DVI to HDMI Adapter Black Edition Badage |
|---|
| Date First Available | December 02, 2009 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): Lifetime
- Limited Warranty period (labor): Lifetime
- Read full details
Return Policies
- Return for refund within: Non-refundable
- Return for replacement within: 30 days
- This item is covered by Newegg.com's Replacement Only Return Policy
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 800-880-3225
- Support Website
- View other products from XFX
LOADING...
LOADING...




















Pros: *First Off Im not a Fanboy of anything, my money goes to the best product and thats it. I own both mid to high end Nvidia and ATI cards. I own a Nvidia BFG 9800GTX, 260GTXm, ATI 9800XT, HD4650, and 2 XFX 5970 Black Edition Video Cards. No Offence but dont listen to the two other posts below saying they were dissapointed and saying that their Nvidia 9800GTX runs better, Thats either a faulty card or they dont know what they are doing, because just 1 ATI 5970 at Stock speeds alone spanks a 9800GTX even running in SLI. I can say that because last month I finished a build for a friend with 2 Nvidia 250GTS runing SLI (250 is the same as a 9800GTX) Dont get me wrong the 9800GTX is a monster card that can run almost all games a high settings with great framerates. But its no comparison to a 5970. I have not tried Crysis yet but the games I do have I have not found a game that I was not able to run at Ultra Settings at 1900 x 1200 without any of them dropping 60fps.
Cons: No Video Card is Perfect, not even this expensive piece of beauty. - This thing runs hot!!! (But thats expected and obvious) - Like many ATI Sometimes the Drivers need work. - Size of the Card - Expensive - NO DIRT 2 =*0( - NO Free Game for that matter - NO Soup Fo you!! This is an on the side con but this card doesnt do great at lower settings and lower resolution for some reason (But who the heck wants to play their games at low settings) But when I set my settings to Ultra high and at the highest resolution my monitor can handle these cards ran like nothings bothering it.
Overall Review: In case you are wondering, Machine Specs. - 28" Hanns G LCD 1900 x 1200 - AMD Phenom II X4 945 OC@ 3.4Ghz - Enzotech Extreme-X 120mm CPU Fan - MSI 790FX-GD70 - 16GB GSkill Ripjaw DD3 1600 - 1TB Hitachi 7200rpm <--- This is my only Bottleneck! - Rosewill 950w 140mm Fan Power Supply - 2 XFX 5970 Black Edition in CrossFire both @ X16 - Liteon Blu-Ray drive and Plextor DVD Burner - ATI TV Wonder 650 USB - Logitech G35 7.1 Headphones - Rosewill Destroyer Mid Tower Case w/8 120mm case fans. YES BOTH 5970 CARDS FIT JUST FINE! No modifications to the case at all. If you plan on buying this card no matter if its this brand or any brand make sure you have the auto notify and find your self a 4 leaf clover or eat your lucky charms because they are that hard to find. I have two 5970 cards because I ate two bowls of Lucky Charms that morning. =0) Yes this card will run anything at Ultra Settings, search youtube you will see Modern Warfare 2 reach as high as 800fps Not Kidding!
