XFX XTR Series P1-650B-BEFX 650 W ATX12V / EPS12V SLI Ready CrossFire Ready 80 PLUS GOLD Certified Full Modular Active PFC With Full Modular Cables

OUT OF STOCK.
  • ATX12V / EPS12V
  • Full Modular
  • 80 PLUS GOLD Certified
  • 100 - 240 V 50/60 Hz
Overview
Specs
Reviews

XTR Series 650W Easy Rail Plus Power Supply with Modular Cables

XTR Series 650W
  • EasyRail™ Plus Technology allows lots of Wattage headroom to handle your devices
  • Hybrid Fan Control allows the power supply to operate silently until it reaches 20% load or 77°F (25°C)
  • Ultra Quiet Fan Design
  • Ultra Voltage Regulation Design
  • Haswell Ready
  • AMD Radeon CrossFire Ready
  • NVIDIA GeForce SLI Ready
  • Multiple PCI-E 6-Pin and 6+2Pin connectors
  • True Wattage guarantee
  • 80 Plus Gold certifying 90% power efficiency
  • Extreme heat tested capacitors

Features

xfactor 2_0

- See the XFX Difference

Exclusive XFX Technologies - Quality Components - Greater Durability

  • EasyRail Plus Technology
  • Total Thermal System
  • Ultra Quite Fan Design
  • Ultra Voltage Regulation Design

EasyRail Plus Technology

The simplest and most powerful PSU design makes the operation of multiple components possible. No matter what combination of components, you've got plenty of power.

EasyRail Plus Technology

Total Thermal System (Hybrid-Fan Mode)

When in hybrid mode, this power supply will operate silently until it reaches 20% load or 77°F (25°C). Hybrid Fan Control offers you automatic fan control between silent and active modes to give you quieter operations.

Total Thermal System (Hybrid-Fan Mode)

xperience 2_0

- Maximizes Your Gaming Experience

Designed for high performance gaming with high power options and multi-GPU ready design

  • AMD Radeon CrossFire Ready
  • NVIDIA GeForce SLI Ready
  • Multiple PCI-E 6-Pin and 6 + 2-Pin connectors
  • Designed to handle the most power hungry components

Multi-GPU Ready

All XFX PSUs can be used to power multi-GPU configurations. As for the models with high Wattage, up to four GPUs can be powered.

Multi-GPU Ready

Haswell Ready

The series power supply is compatible with Intel 4th generation processors to use the new efficiency features.


xformance 2_0

- Super Efficiency and Quality Components

80 Plus Certified PSUs are designed to reduce lost Wattage and reduce your overall power consumption. The high quality components ensure that your PSU will stand the test of time.

  • 80 Plus Certified
  • True Wattage Guarantee

80 Plus Gold Certification for Great Efficiency

80 Plus Gold Certification for great efficiency

80 Plus is a voluntary certification program intended to promote efficient energy use in computer power supply units. With 80 Plus Gold Certification, this power supply offers up to 90% power efficiency at typical load. XFX PSUs allow you to get nearly every watt you pay for.

True Wattage Guarantee

True Wattage Guarantee

The Wattage you see isn't always the Wattage you get. Some brands tweak tests to get great Wattage ratings for their power supplies. The Wattage ratings may be based on unrealistic testing environment like 25°C. But in real world situations, their power supplies deliver much lower maximum Wattage. XFX PSUs guarantee the advertised Wattage, even above standard operating conditions at 50°C.

Extreme Heat Tested Capacitors

Extreme Heat Tested Capacitors

The internal PC operating temperature is around 35°C. But the internal PSU temperature can be much higher. XFX uses all high-quality capacitors rated to withstand temperature of up to 105°C.

Specifications

General

  • +12V Rail Outputs: Single
  • 100% Tested and Verified: Y
  • Maximum Wattage (W): 650
  • Modular Cables: Y
  • Performance Category: Enthusiast

Technologies

  • CrossFire Ready: Y
  • Hasewell Ready: Y
  • SLI Ready: Y

Ratings & Efficiencies

  • AC Input Current (Arms): 9.5 - 4.5A
  • AC Input Frequency (Hz): 50/60 Hz
  • AC Input Voltage (VAC): 100 ~ 240
  • Efficiency @ Typical Load: Up to 90%
  • Energy-Efficiency: 80 Plus Gold Certified

Other Features

  • High Reliable 221°F (105°C) Japanese Capacitors: Y
  • Solid State Capacitors: Y
  • Tight voltage regulation (±5%): Y

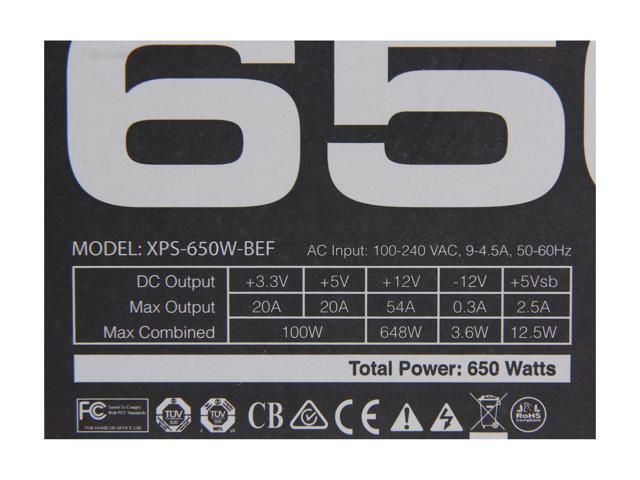

Load Range

  • Max -12V Output Current (A): 0.3
  • Max +12V Output Current (A): 54
  • Max +3.3V Output Current (A): 20
  • Max +5V Output Current (A): 20
  • Max +5VSB Output Current (A): 2.5

Cable Connectors

  • Modular ATX12V / EPS12V: One 4 + 4-pin, One EPS 12V 8-pin
  • Modular FDD: 1
  • Modular Motherboard Connector: 20 + 4-Pin
  • Modular Peripheral: Up to 6
  • Modular SATA: Up to 10
  • PCI-E 6+2-pin Power Cables: 4

Safety & Protection

  • Active Power Factor Correction (PFC): Y
  • Over Current Protection (OCP): Y
  • Over Power Protection (OPP): Y
  • Over Tempurature Protection (OTP): Y
  • Over Voltage Protection (OVP): Y
  • Short Circuit Protection (SCP): Y
  • Under Voltage Protection (UVP): Y

Physical

  • Cooling Fan Size: 135mm Fluid dynamic Fan (Black)
  • Master Carton Dimensions (W x H x D): 16.93 x 11.6 x 13.39 inches (43 x 29.5 x 34cm)
  • Master Carton Weight (Approx.): 29.2lbs (12.8kg)
  • Package Dimensions (W x H x D): 12.55 x 8.26 x 6.42 inches (31.9 x 21 x 16.3cm)
  • Package Weight (Approx.): 7.05lbs (3.2kg)
  • Units per Carton: 4

What's in the Box

What's in the Box

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 5 years
  • Limited Warranty period (labor): 5 years
