XIGMATEK MC NRP-MC751 750 W ATX12V Ver.2.2 / EPS12V Ver. 2.92 SLI Ready CrossFire Ready 80 PLUS Certified Modular Active PFC Power Supply

OUT OF STOCK.
  • ATX12V Ver.2.2 / EPS12V Ver. 2.92
  • Modular
  • 80 PLUS Certified
  • 100 - 240 V 47 - 63 Hz
  • +3.3V@30A,+5V@28A,+12V1@18A,+12V2@18A, +12V3@18A,+12V4@18A,-12V@0.8A,+5VSB@3.0A
Specs
Reviews

Learn more about the XIGMATEK NRP-MC751

General
Brand XIGMATEK
Series MC
Model NRP-MC751
Details
Type ATX12V Ver.2.2 / EPS12V Ver. 2.92
Maximum Power 750 W

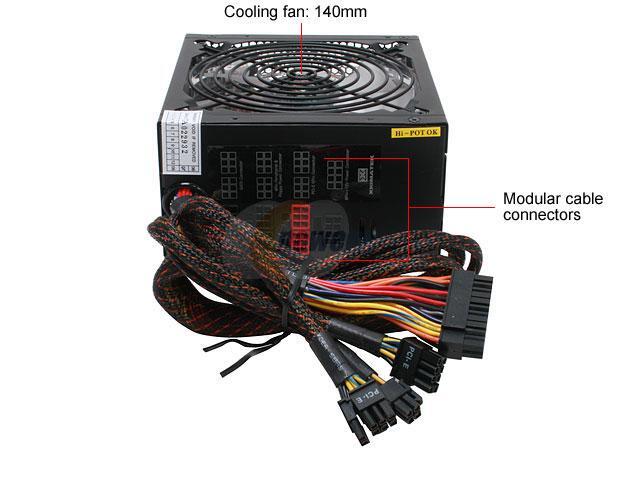

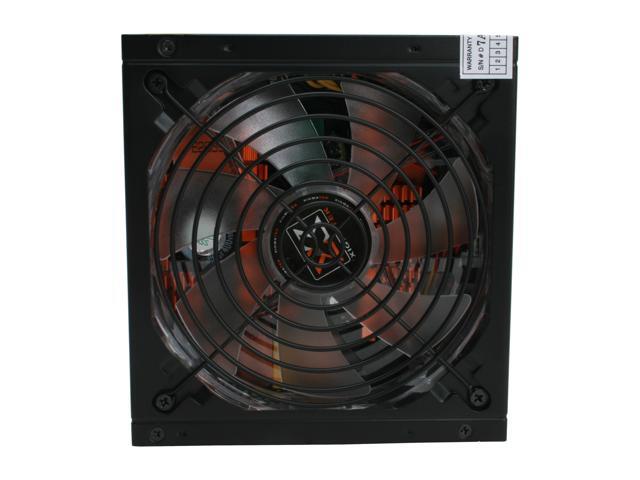

Fans 140mm Fan
PFC Active

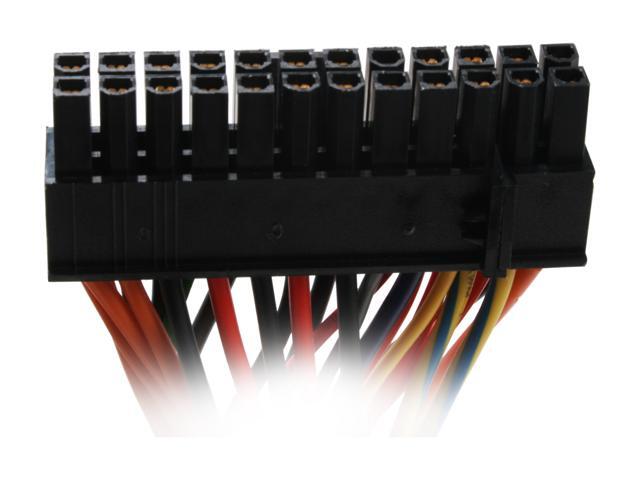

Main Connector 20+4Pin
+12V Rails 4
PCI-Express Connector 2 x 6-Pin, 2 x 6+2-Pin
SATA Power Connector 6
SLI SLI Ready
CrossFire CrossFire Ready
Modular Modular
Hold-up Time 16ms min.
Efficiency Up to 87%
Energy-Efficient 80 PLUS Certified
Over Voltage Protection Yes
Overload Protection Yes
Input Voltage 100 - 240 V
Input Frequency Range 47 - 63 Hz
Input Current 10A @ 115V, 5A @ 230V

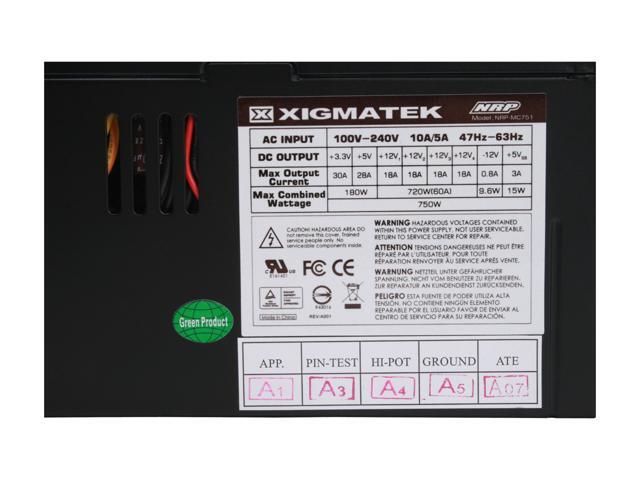

Output +3.3V@30A,+5V@28A,+12V1@18A,+12V2@18A,
+12V3@18A,+12V4@18A,-12V@0.8A,+5VSB@3.0A
MTBF >120,000 Hours
Approvals cUL, CE, TUV, FCC

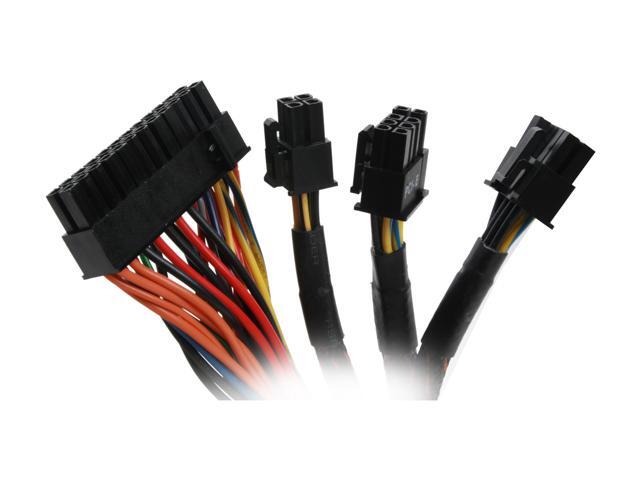

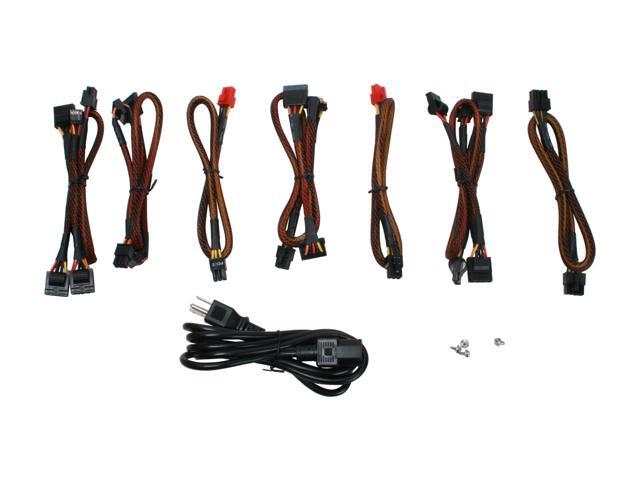

Connectors 1 x Main connector (20+4Pin)
1 x 12V(4+4Pin)
1 x 12V(8Pin)
7 x peripheral
6 x SATA
1 x Floppy
4 x PCI-E
Features
Features Multiple +12V Output

High Efficiency (up to 80%)

Active Power Factor Correction (0.99 PFC)

Double Forward Circuit Design

Universal AC Input(Full Range)

Smart and Silent Fan Control

13.5(14)cm Cooling Fan

Easy Swap Connector

Cable Management Swap Connector

Support ATX / BTX / EPS.

Capability for Intel / AMD platforms.

Completed protection OVP / OCP / OPP / UVP / SCP / OTP.

Mesh Sleeve Cable Design

Honey Comb Structure

Japan Electric Capacity
Dimension & Weight
Dimensions 6.3" x 5.9" x 3.4"
Additional Information
Date First Available February 05, 2008

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
