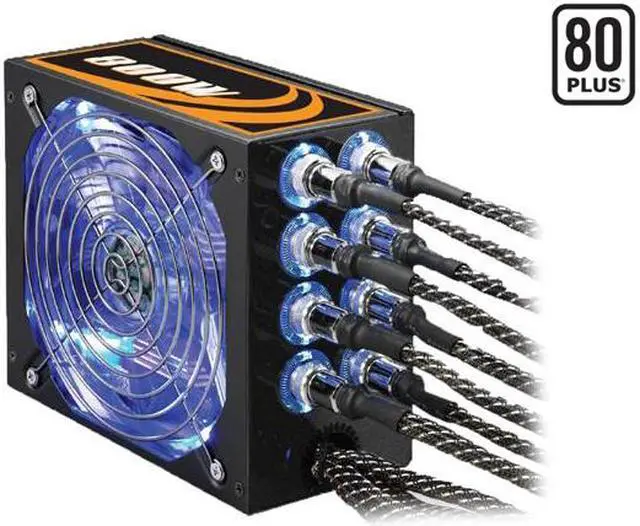

XION AXP Lan-Party Edition AXP-800R14HE 800 W ATX12V V2.2 / EPS 12V 2.92 SLI Certified CrossFire Ready 80 PLUS Certified Modular Active PFC Power Supply

(12) Write a Review
  • ATX12V V2.2 / EPS 12V 2.92
  • Modular
  • 80 PLUS Certified
  • 115 - 240 V 47 - 63 Hz
  • +3.3V@24A,+5V@30A,+12V1@20A,+12V2@20A,+12V3@20A,+12V4@33A, +12V5@33A, +12V6@20A, [email protected],+5VSB@5A
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (12)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the XION AXP-800R14HE

General
Brand XION
Series AXP Lan-Party Edition
Model AXP-800R14HE
Details
Type ATX12V V2.2 / EPS 12V 2.92
Maximum Power 800 W

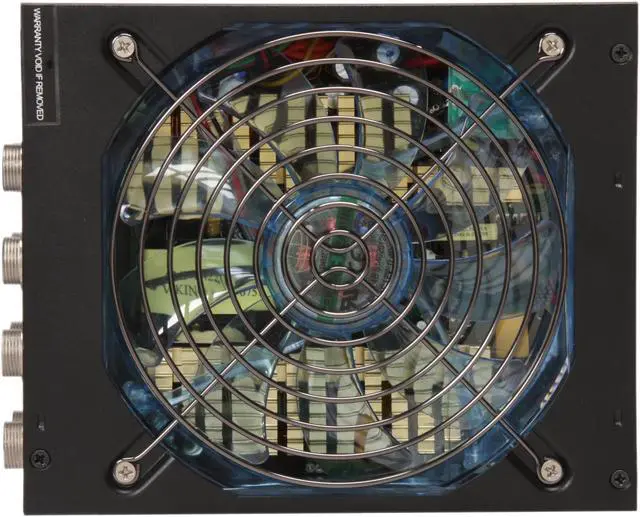

Fans 140mm Silent Blue LED Cooling Fan

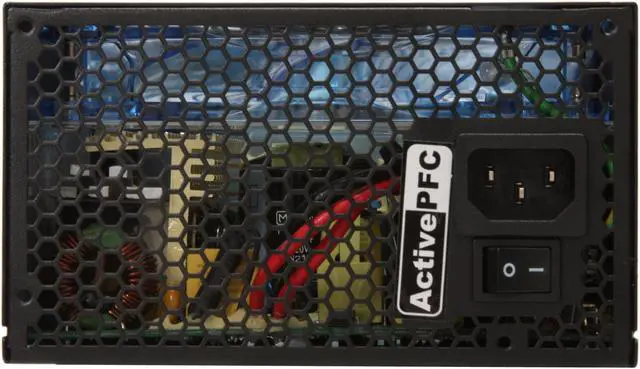

PFC Active
Main Connector 20+4Pin
+12V Rails 6
PCI-Express Connector 2 x 6-Pin, 2 x 6+2-Pin
SLI SLI Certified
CrossFire CrossFire Ready
Modular Modular
Power Good Signal 100-500ms
Hold-up Time 16ms min.
Efficiency Up to 84 %
Energy-Efficient 80 PLUS Certified
Over Voltage Protection Yes
Overload Protection Yes
Input Voltage 115 - 240 V
Input Frequency Range 47 - 63 Hz
Input Current 15A

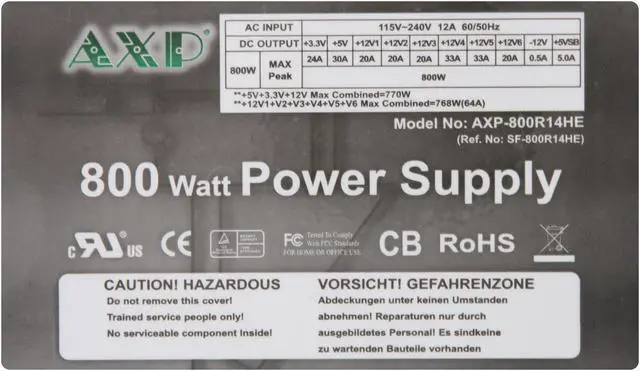

Output +3.3V@24A,+5V@30A,+12V1@20A,+12V2@20A,+12V3@20A,+12V4@33A, +12V5@33A, +12V6@20A, [email protected],+5VSB@5A
MTBF >120,000 Hours
Approvals CUL, FCC, TUV, CE, C-tick, CB, BSMI

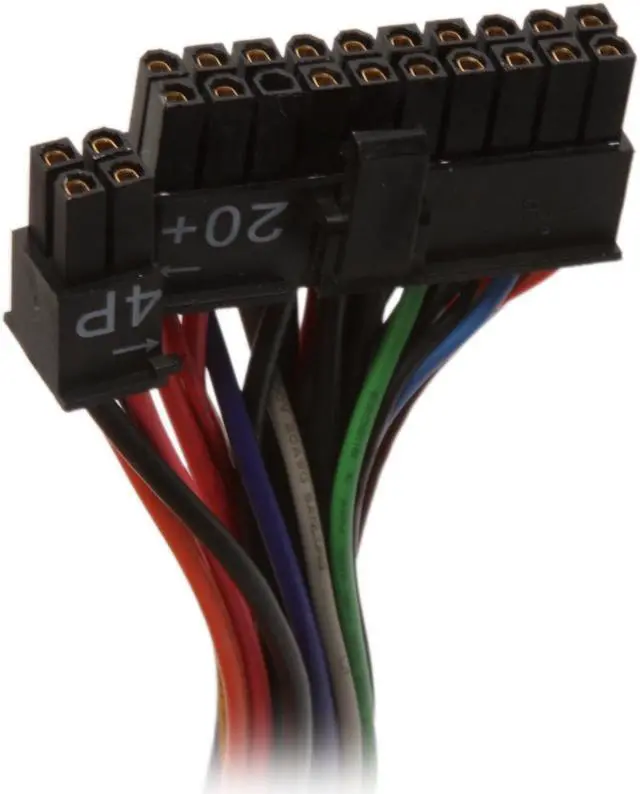

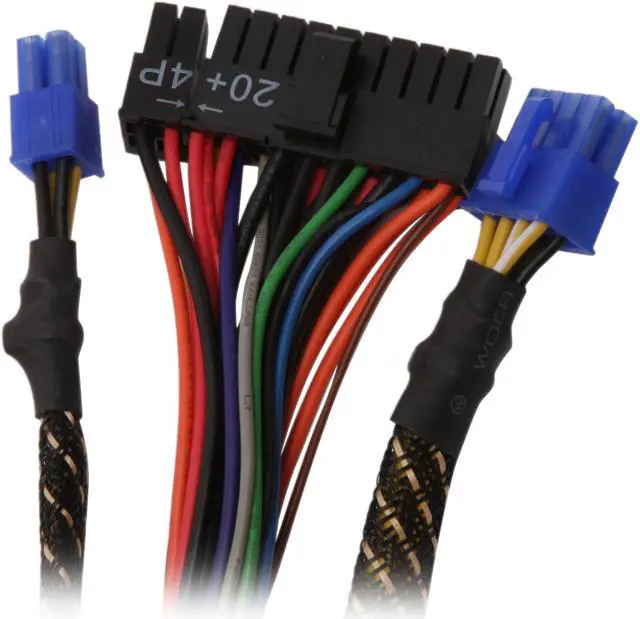

Connectors 1 x Main connector (20+4Pin)
1 x 12V(P4)
1 x 12V(8Pin)
8 x Peripheral
6 x SATA
1 x Floppy
4 x PCI-E
Features
Features Individual 6 x 12V Rail-Design: offers unflappable & Clean current delivery under heavy load and provide stable voltage output.

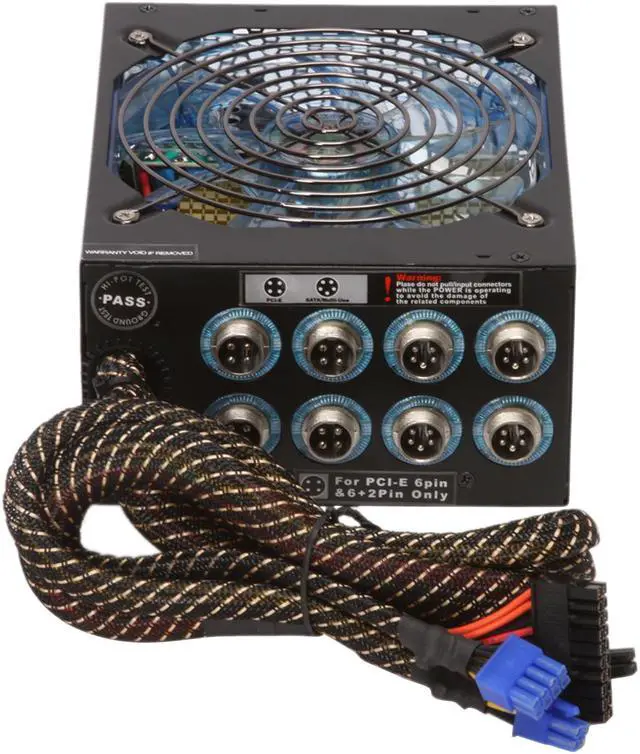

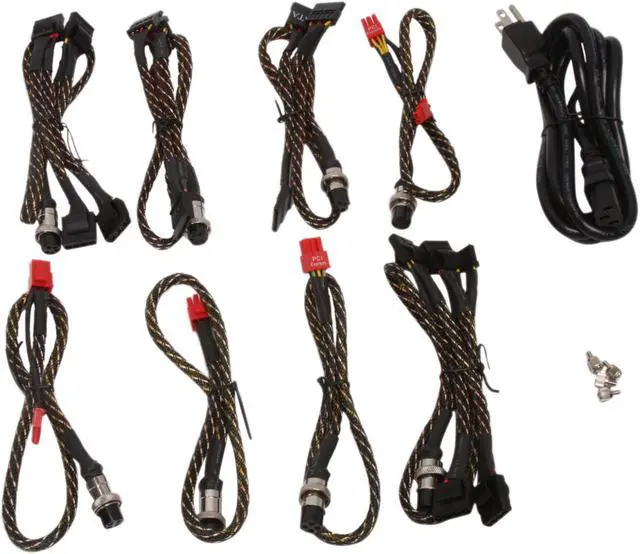

Advance Modular Cabling Support with unique LED design function.

Over Current Protection

Over Voltage Protection

Short Circuit output protection

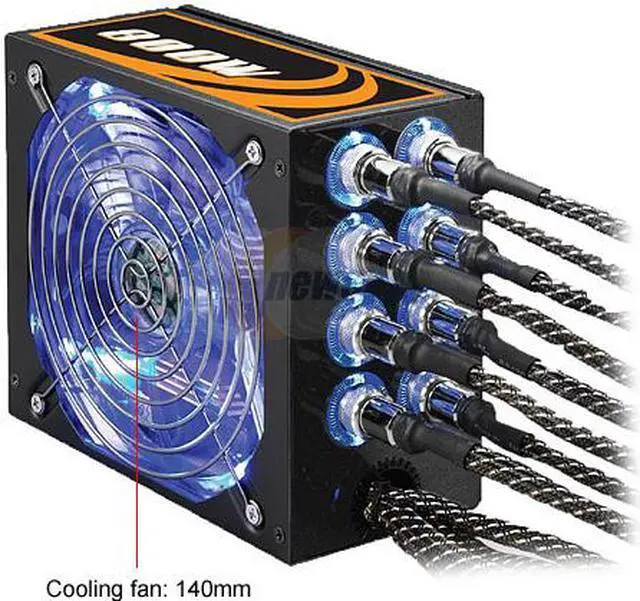

140mm Silent Blue LED Fan with Auto. Temp. Control
Additional Information
First Listed on Newegg September 08, 2008
