- The XPG CORE REACTOR is a modular, 80 Plus Gold power supply unit equipped with 100% Japanese capacitors.
- Combined with Line Level Control (LLC) resonant topology, it is power-efficient, reliable and makes creating a tidy build easy
- The 80 Plus Gold certified XPG CORE REACTOR gives you 90% efficiency at 50% load.

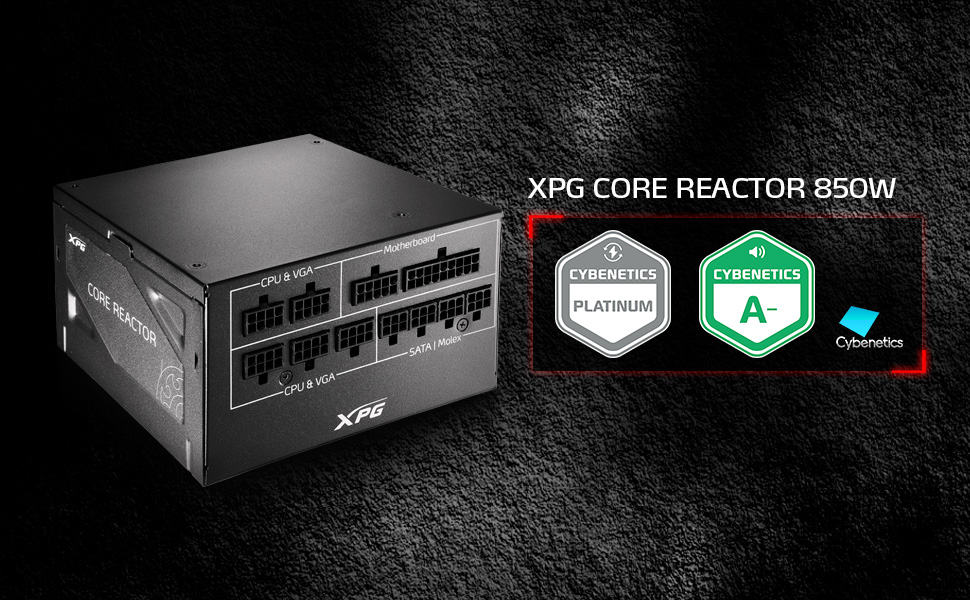

- XPG CORE REACTOR SERIES is certified by Cybenetics for its efficiency and noise level, scoring at the top of its category in both ETA and LAMBDA standards.

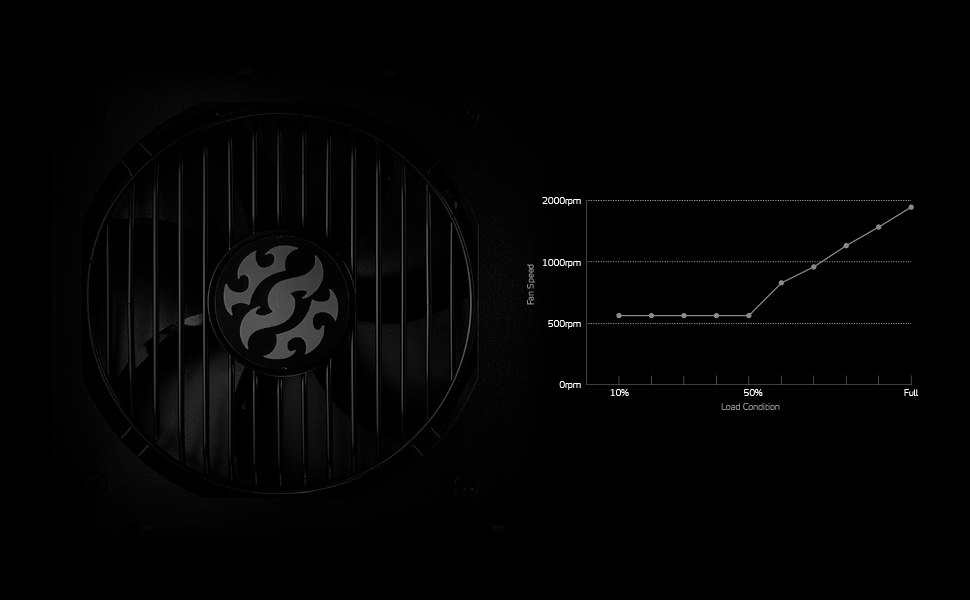

- Intelligent fan-curve provides near-quiet operations, even when at full power load.
- The fan control starts at a low 3.3v, 660rpm ± 10%, and remains at this speed until surpassing 50% load, prolonging the lifespan of the fan and the power supply unit.

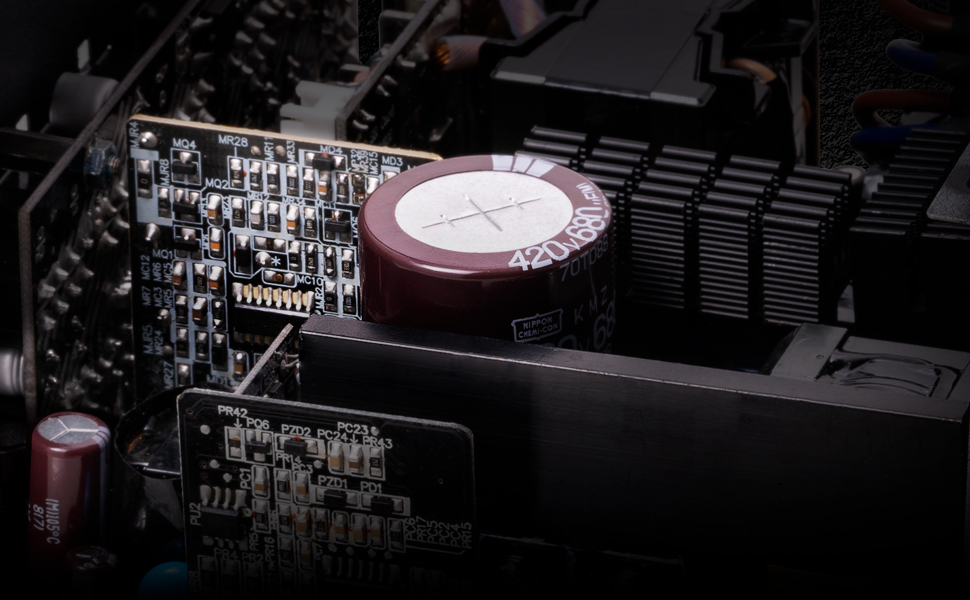

- Equipped with All 105°C Japanese capacitors, the XPG CORE REACTOR provides you with reliability and stability. The XPG CORE REACTOR's DC voltage is maintained within ±2% and reduces ripple and noise by up to 35% for enhanced dependability.

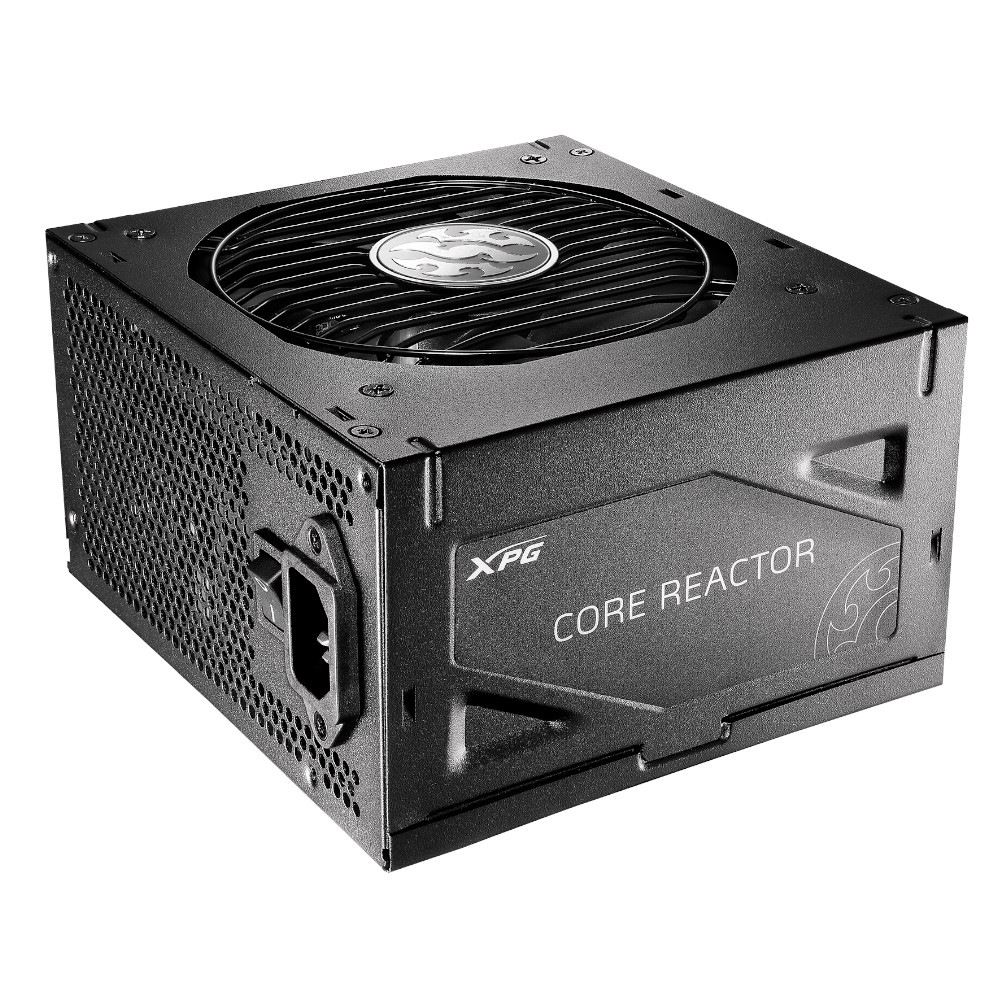

- The XPG CORE REACTOR is compact in size due to the combination of high-quality components, a well-thought-out layout, and a new manufacturing process.

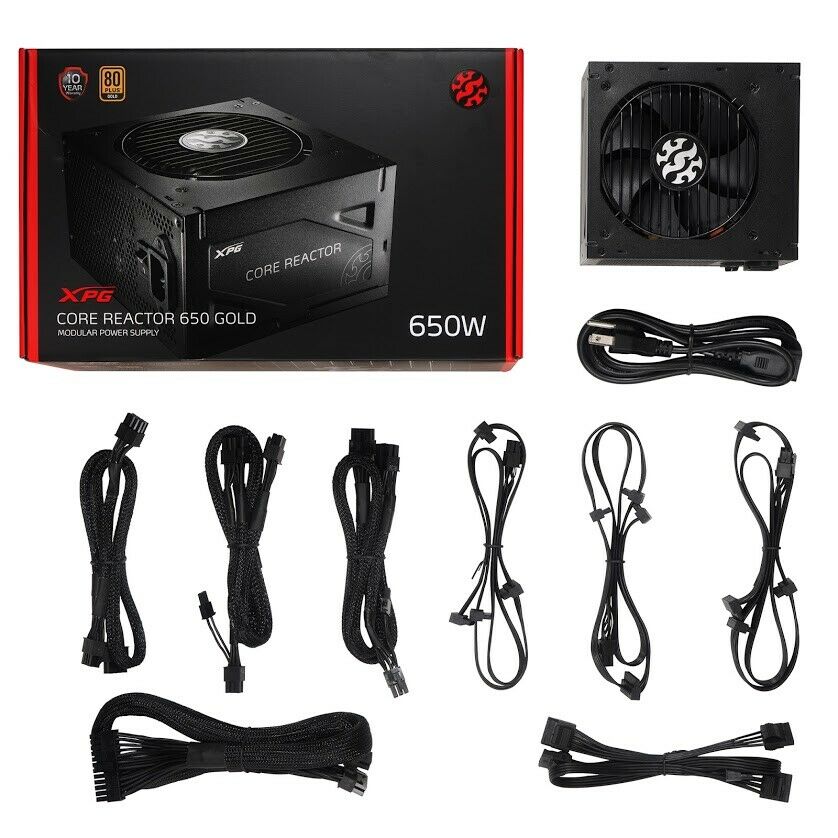

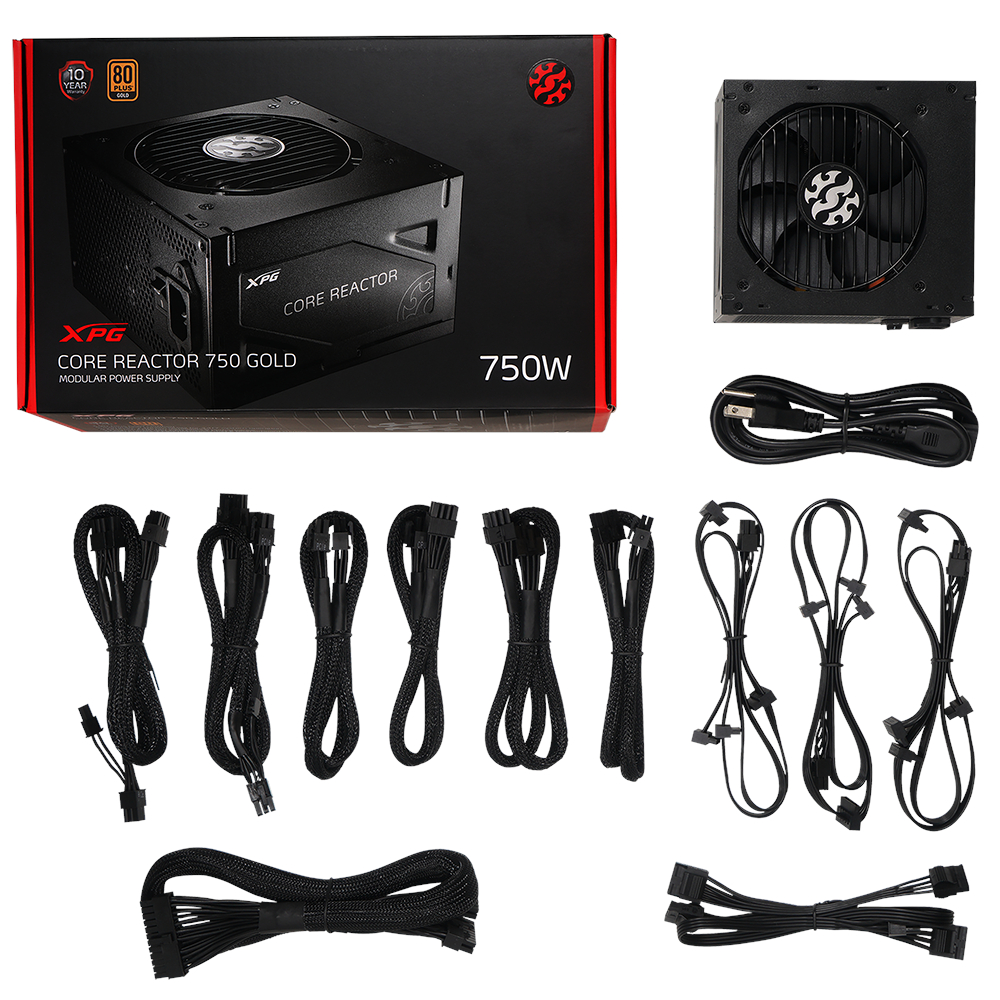

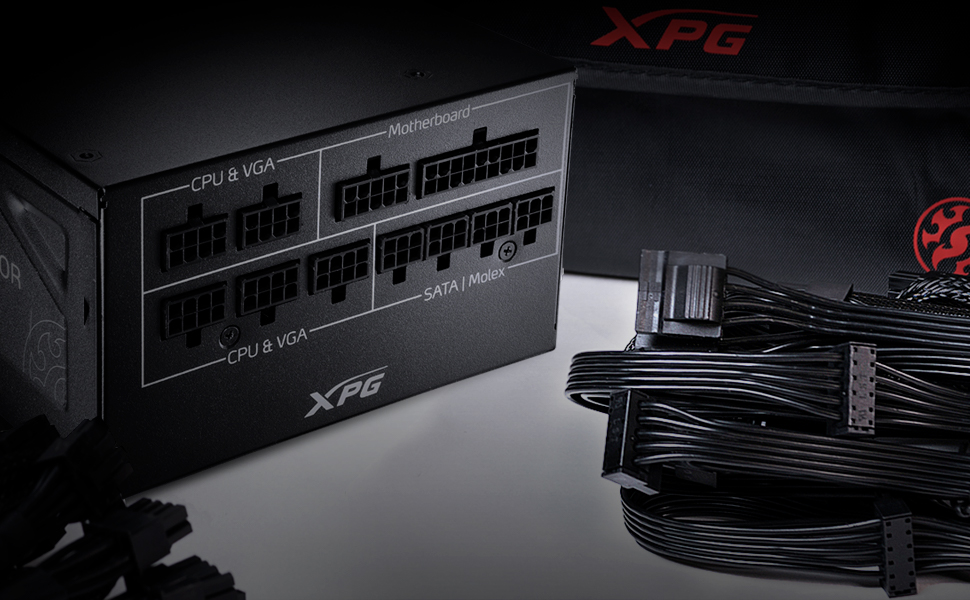

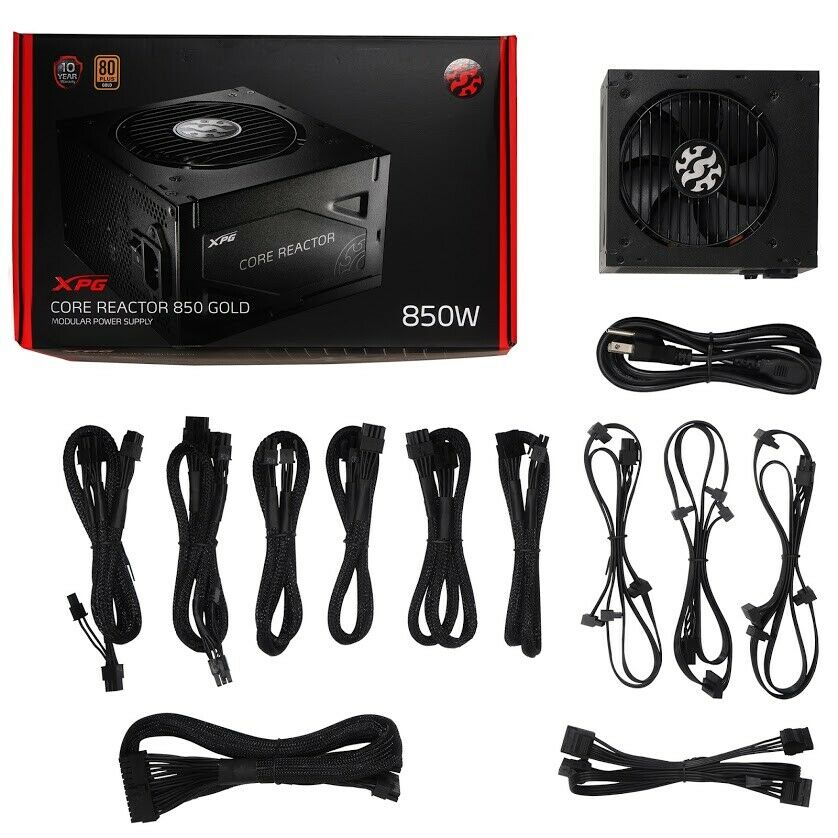

- What's more, its modular design reduces cable clutter and simplifies system building.
- The XPG CORE REACTOR comes with an array of protection mechanisms for peace of mind and backed by a 10-year warranty.
- Over Current Protection (OCP)
- Over Voltage Protection (OVP)
- Under Voltage Protection (UVP)
- Over Power Protection (OPP)
- Short Circuit Protection (SCP)
- Over Temperature Protection (OTP)
- No Load Operation (NLO)
- Surge & Inrush Protection (SIP)
| Dimensions (L x W x H) | 140 x 150 x 86mm |
|---|---|
| 80 PLUS RATING | GOLD |
| Certification | CE / UKCA / CB / FCC (IC) / EAC / CCC / TUV / cTUVus / RCM / NOM / BSMI / KC |
| Protections | OCP / OVP / UVP / OPP / SCP / OTP / NLO / SIP |
| ATX Version | Intel ATX 12V v2.52 |
| PFC | 0.99 |
| Input Voltage | 100V-240V |
| Input Current | 10A-5A |
| Input Frequency | 47Hz-63Hz |
| Operating Temperature | 50°C |
| Fan Size | 12cm |
| Fan Bearing | FDB (Fluid Dynamic Bearing) |
| Fan Speed | 2400 RPM |
| MTBF | 100,000 hours at full load |
| Weight | 850W: (3.2lb+2.4lb) ±5% / 750W: (3.1lb+2.4lb) ±5% / 650W: (2.9lb+1.1lb) ±5% |

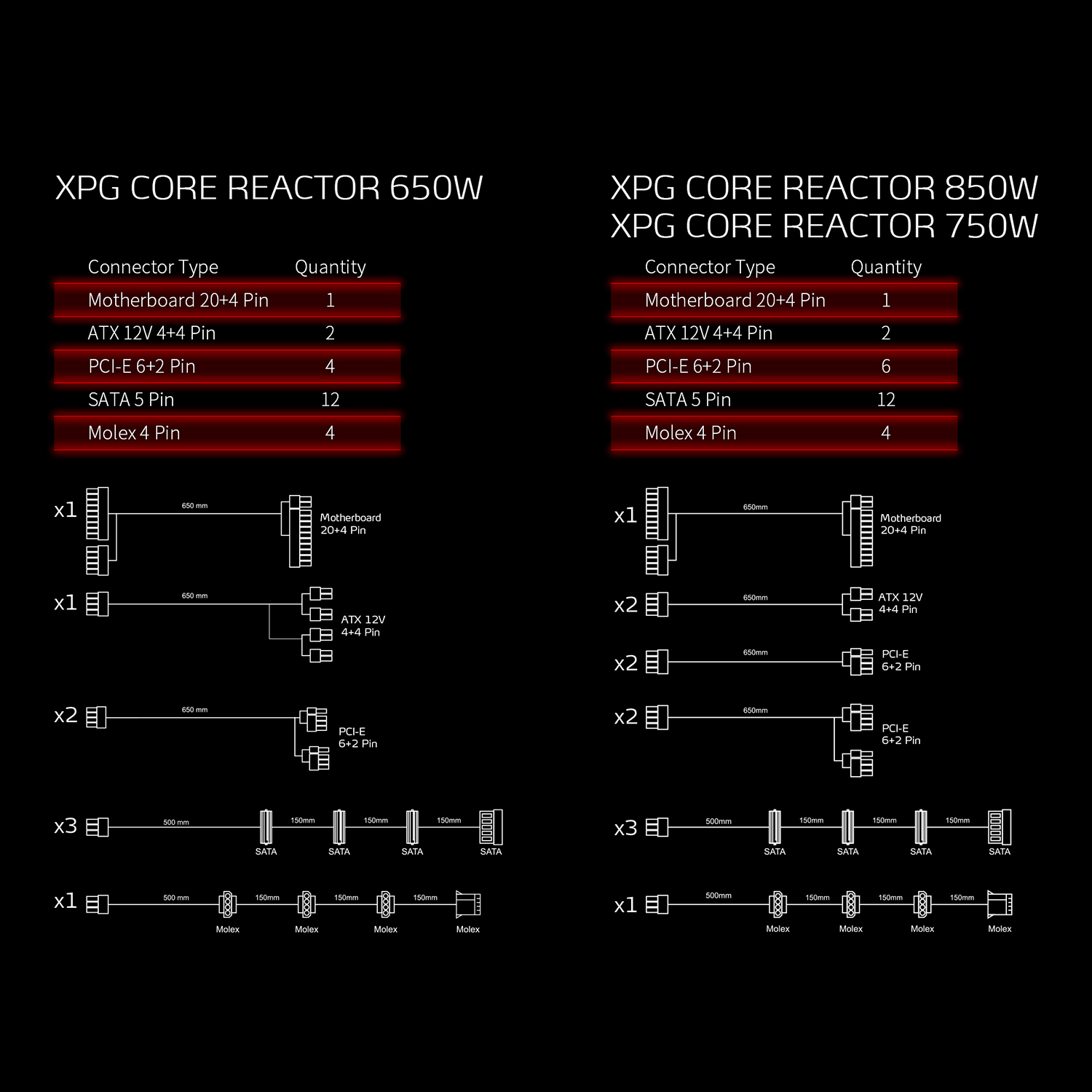

Connection Specifications:
ATX 24 Pin Connector: 1
EPS 8 (4+4) Pin Connector: 2
SATA Connector: 12
Peripheral 4 Pin Connector: 4
PCI-E 6+2 Pin Connector: 6
Connection Specifications:
ATX 24 Pin Connector: 1
EPS 8 (4+4) Pin Connector: 2
SATA Connector: 12
Peripheral 4 Pin Connector: 4
PCI-E 6+2 Pin Connector: 6
Connection Specifications:
ATX 24 Pin Connector: 1
EPS 8 (4+4) Pin Connector: 1
SATA Connector: 12
Peripheral 4 Pin Connector: 4
PCI-E 6+2 Pin Connector: 4
Q: Why are Japanese capacitors better?
A: Japanese manufacturers are a leader in the development of new water-based electrolyte systems with enhanced conductivity; and they produce the most reliable and best-performing products.
Q: What should I do if the power supply fails to function properly?
A: If your system does not turn on after installing the power supply, please follow the troubleshooting guide listed below:
1. Make sure the AC main power cord is connected to your PC correctly.
2. Please make sure the AC source is switched On
3. Please make sure the AC On/Off switch on the back panel of the power supply unit in the "I" (On) position.
4. Please make sure the MB & CPU Power Socket & connectors are connected correctly on the Motherboard.
5. If you still have problem turning on your PC, please contact ADATA Tech Support, Service Center or your local dealer.
Q: Which cables are compatible with the XPG CORE REACTOR?
A: Please only use the modular cables bundled with the power supply unit.
| Products | ||||||
|---|---|---|---|---|---|---|
| Wattage | 1300W | 1000W | 850W | 750W | 650W | 450W |
| 80 Plus Rating | PLATINUM | PLATINUM | GOLD | GOLD | BRONZE | BRONZE |
| Fan Speed | 2,150 RPM | 2,150 RPM | 2400 RPM | 2400 RPM | 2,000 RPM | 2,000 RPM |
| MTBF | 120,000 Hours at full load | 120,000 Hours at full load | 100,000 Hours at full load | 100,000 Hours at full load | 100,000 Hours at full load | 100,000 Hours at full load |
| Total Connectors | 39 | 26 | 25 | 25 | 19 | 12 |
Pros: Feels smaller than some PSU I have used and is light with easy to bend and plug in cables. Simple installation. Looks really nice if visible in your case. The fan vent has a nice shiny XPG in the center. It's not a sticker.
Cons: Doesn't have a lot of SATA power space.
Overall Review: I don't need too many sata powered components and the cables are on the shorter side. This is perfect for my own mid tower build. I do get an audible click when turning power and off. Not sure if that's normal but there are no issues so far.
