Ingenic T31 + GC4653 4MP IP Camera Development Board, H.265/H.264 HD Video Encoder Module,RTSP/ONVIF Board for Developers
- -Processing Core & Image Sensor: Powered by the Ingenic T31ZX primary SoC paired with a 1/2.7" GC4653 4MP sensor, delivering real-time video capture up to 2560x1440 resolution at 25FPS with minimum illumination down to 0.01lux/F1.2.
- -Dual-Stream Encoding & Bandwidth Control: Supports H.264/H.265 video compression standards with configurable output bitrates ranging from 128Kbps to 8000Kbps across dual streams to optimize network transmission and storage efficiency.
- -Extensive Protocol & Streaming Integration: Pre-integrated with standard network and media protocols including RTSP, RTMP, WebRTC, ONVIF, GB/T28181, and HTTP/WS-FLV for straightforward integration into local servers, NVRs, or streaming platforms.
- -
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Description

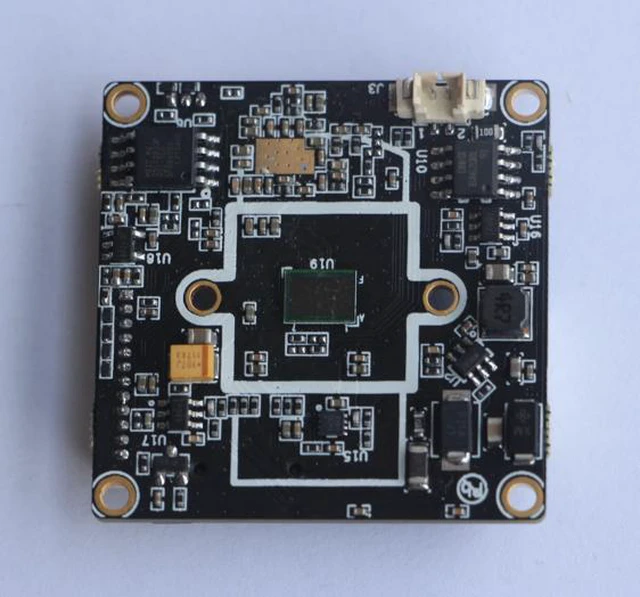

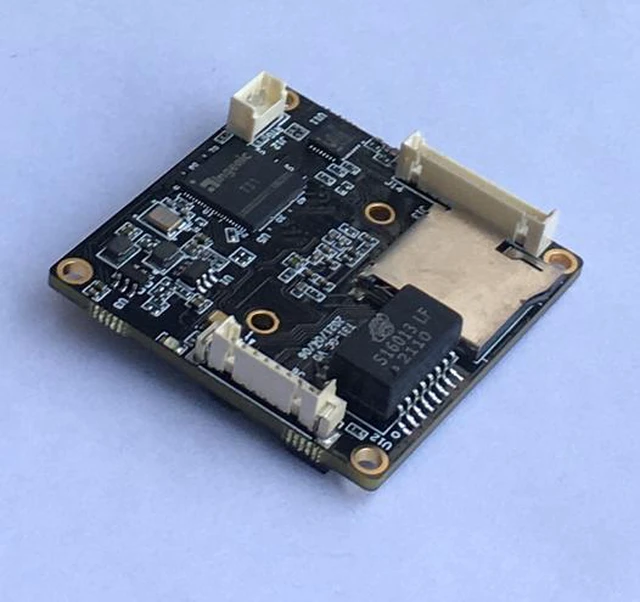

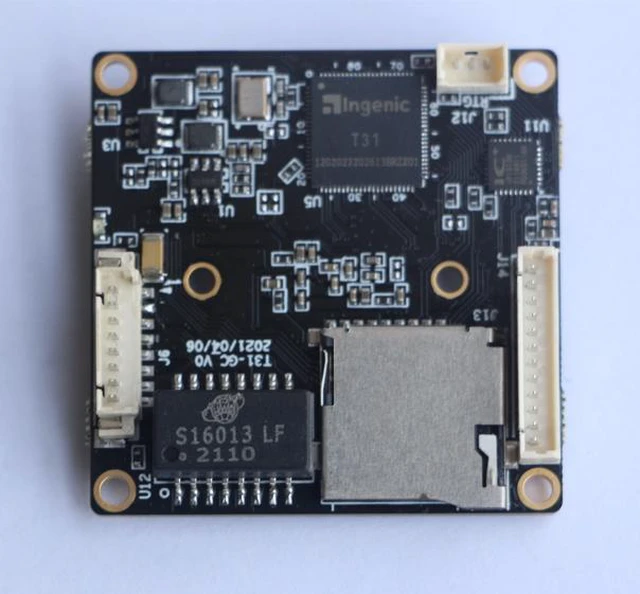

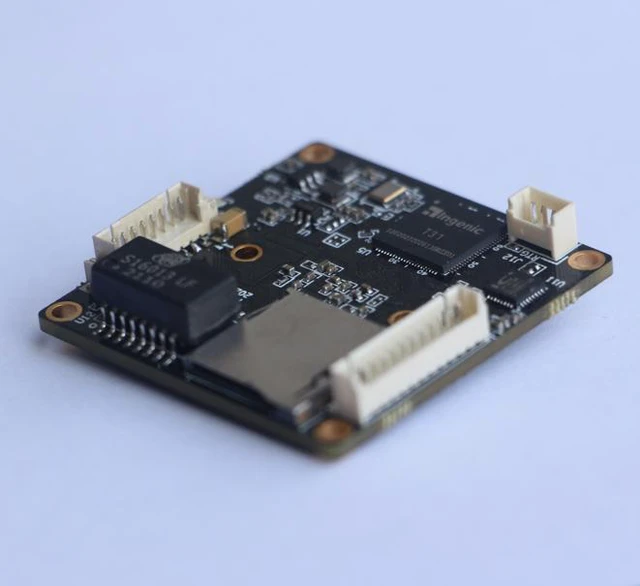

The XSW-T31ZX-GC4653 is an embedded 4MP IP camera development board designed for system integration, video testing, and vision application evaluation. Powered by the Ingenic T31ZX SoC paired with a GC4653 image sensor, the module provides stable 2560x1440 video capture at up to 25FPS with selectable 4mm lens option.

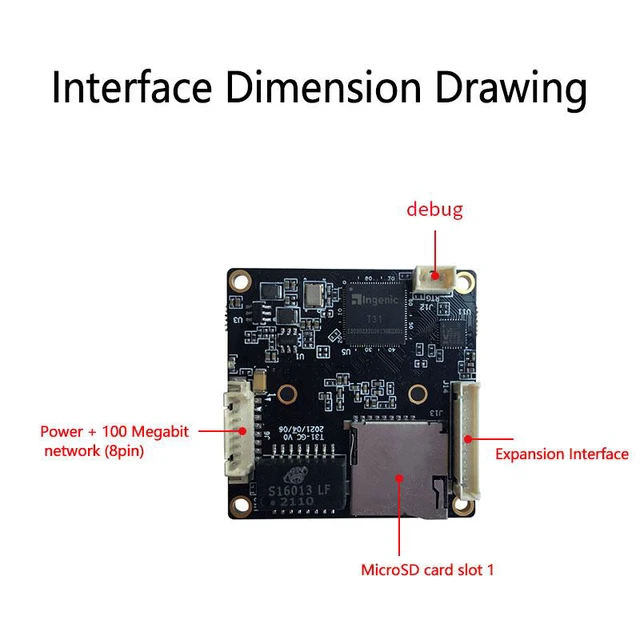

Engineered for straightforward network deployment, the board supports dual H.264/H.265 streams and integrates widely used streaming protocols such as RTSP, RTMP, WebRTC, and ONVIF over a 10M/100M Ethernet connection. For local recording and testing, it includes an onboard MicroSD card slot, alongside standard audio input/output interfaces.
Features
Processor & Image Sensor: Integrates the Ingenic T31ZX system-on-chip with a 1/2.7" GC4653 sensor, supporting standard video streaming up to 2560x1440 resolution at 25 FPS.
Video Encoding & Bandwidth: Supports dual-stream H.264/H.265 video compression with customizable bitrates (128Kbps to 8000Kbps) to accommodate network bandwidth limits.
Network & Streaming Protocols: Compatible with standard network and video streaming protocols including RTSP, RTMP, WebRTC, ONVIF, GB/T28181, and HTTP/WS-FLV.

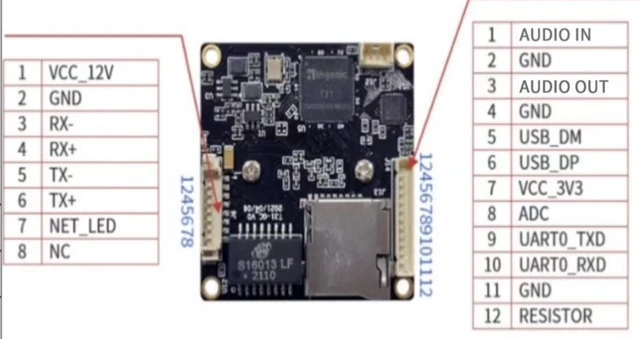

Storage & Audio Expansion: Equipped with an onboard MicroSD card slot supporting up to 512GB capacity, alongside audio input/output terminals for standard audio pass-through.
Hardware Specs & Operating Environment: Compact 38x38mm form factor powered by 12V DC input (max power consumption $\le$ 3W), designed for operating temperatures between -10°C and 50°C.
| Name model | Ingenic T31ZX |
| Sensor | GalaxyCore GC4653 |
| Lens | 4mm (Optional 2.8mm,6mm,8mm and other lenses, suitable for different installation scenarios) |
| Sensor type | GC4653 1/2.7 4MP sensor |
| Minimum illumination | 0.01lux/F1.2(colors) 0.01lux/F1.2(black) |
| Shutter | 1/3 second to 1/100.000 second |
| Day-night conversion | Support hard light sensitive soft light sensitive |
| Video compression standard | H.264/H.265 |
| Compress the output bitrate | 128Kbps~8000Kbps |
| Number of streams | dual-stream |
| Maximum image size | 2560x1440 |
| Maximum frame rate | 25FPS |
| Image setting | Brightness, contrast, saturation, exposure, upside down, left and right mirror |
| audio output | support |
| Audio input | support |
| access protocol | HTTP-FLV/RTSP/WEBRTC/RTMP/WS-FLV/WS-RAW/ONVIF GB/T28181 |
| Networking protocol | Support for TCP/IP, DHCP, DNS, NTP, RTSP, RTMP live |
| Wired network | 1 RJ45 10M/100M Ethernet port |
| Local client | support |
| Network access | support |
| Local upgrade | support |
| OSD superposition | Supports more than 2 user-defined regions Time display |
| TF | Supports up to 512GBSD card storage |
| Video download | Supports local and remote video download |
| Replay | Supports remote video playback |
| Operating temperature and humidity | The humidity ranges from -10 ° C to 50 ° C and is less than 95% |
| TDP | 3W MAX |
