Ingenic T40XP + GC4653 4MP AI IP Camera Board, 8 INT2 NPU, H.265/H.264 Encoder, 4G LTE & Wi-Fi Module, Dual Sensor Support, Fast Boot Dev Kit

Product Description

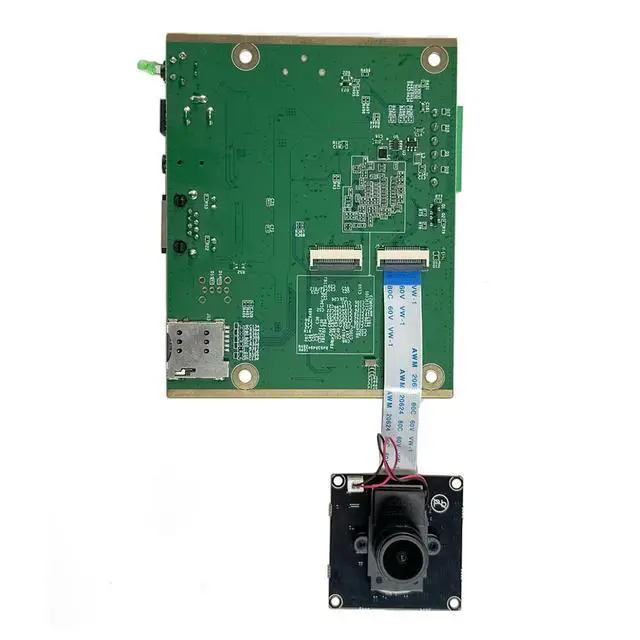

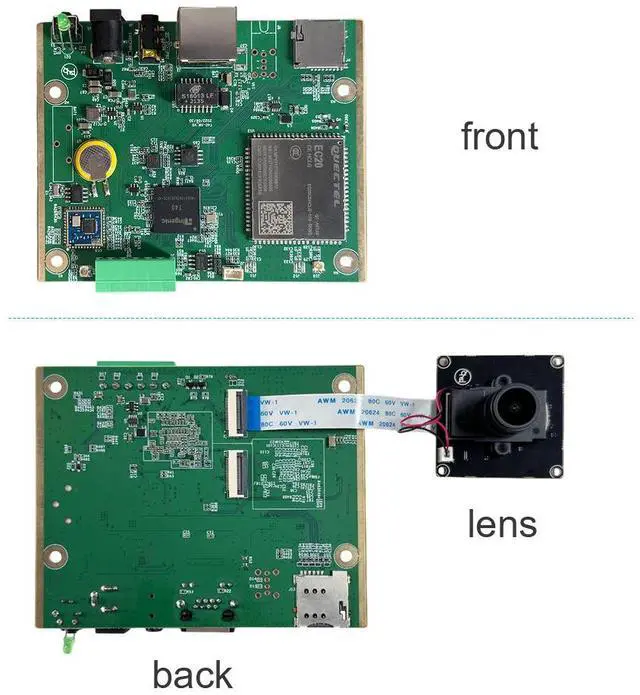

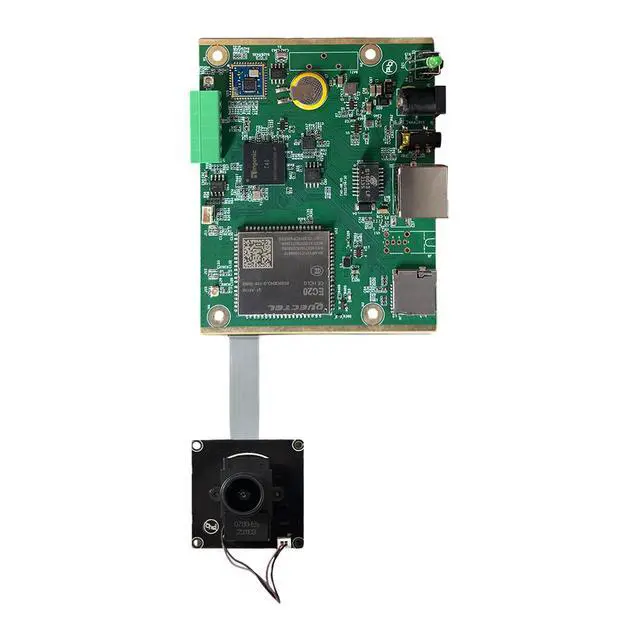

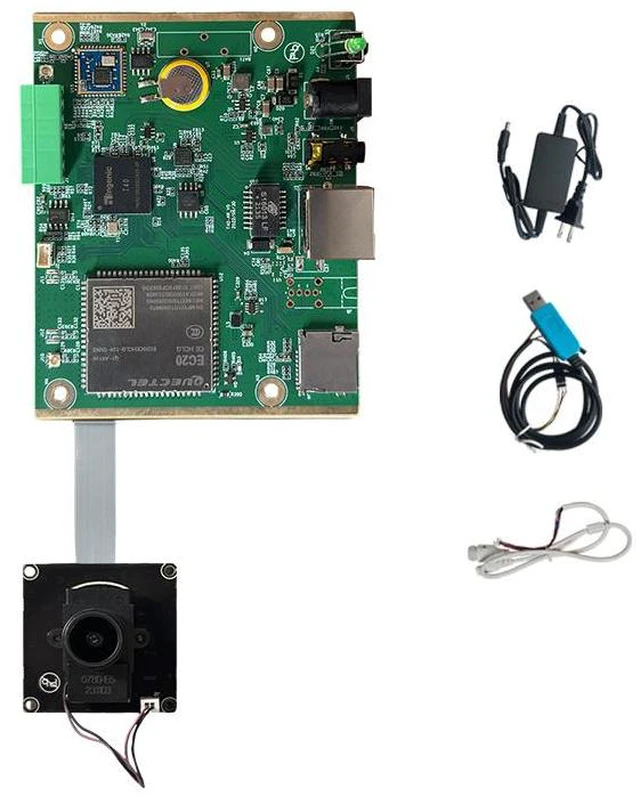

The XSW-T40XP is an industrial-grade AI IP camera development board designed for edge computing and embedded vision applications.

Powered by the Ingenic T40XP processor with an integrated 8 TOPS (INT2) Neural Processing Unit, the module provides reliable hardware acceleration for complex machine vision tasks, including YOLOv5-based object and license plate recognition. Paired with a 4-Megapixel GC4653 image sensor, it ensures stable video capture supported by efficient H.264 and H.265 video compression.

Engineered for versatile and remote deployments, the board features comprehensive networking options including a built-in Quectel 4G LTE cellular module and a 100M Ethernet port. To meet the demands of time-sensitive and power-conscious industrial environments, the system features a fast cold boot sequence. Built with a continuous operation lifespan rating of over 5 years, the board functions reliably within a wide temperature range of -20°C to 75°C.

Features

Processor & Edge AI: Driven by the Ingenic T40XP SoC featuring an 8T INT2 NPU, providing hardware-level support for customized AI algorithms and deep learning models.

Image & Video Specifications: Equipped with a 4MP GC4653 sensor and dual-sensor (SENSOR0/SENSOR1) hardware interfaces. Supports dual-stream H.264/H.265 encoding for optimized bandwidth usage.

Cellular & Network Connectivity: Integrates an onboard Quectel 4G LTE module (via internal USB bus) with a SIM card slot, alongside a 10/100M RJ45 Ethernet port for remote data transmission.

Fast Boot Technology: Designed for rapid deployment, the system achieves a cold boot.

Memory & Physical Storage: Built with 256MB internal memory, 128Mbit SPI NOR Flash, and an onboard TF (MicroSD) card socket for local media and log storage.

Industrial I/O Interfaces: Includes DC 12V power input, 3.5mm Mic In for audio recording, and terminal blocks for RS485, UART, and GPIO peripheral expansion.

Robust Operating Environment: Rated for a continuous operational lifespan of over 5 years, supporting a wide operating temperature range of -20°C to 75°C.
