16-Channel Multi-Protocol IP Streaming Converter, 1080P H.265/H.264 IP Stream Gateway with 3.5mm Analog Audio, RTSP/RTMP/HTTP-FLV/ONVIF Protocol Converter, Supports Up to 512GB MicroSD

Overview

The XSWTVR-30M16ACH is a professional 16-channel video protocol converter designed for system integration and multi-destination live distribution. Operating through a single 100Mbps Ethernet port via a network switch, it receives up to 16 IP video streams (up to 1080P) and transcode/relays them across various network protocols, including RTSP, RTMP, HTTP-FLV, and ONVIF. It also integrates a 3.5mm LINE-IN analog audio port, allowing local audio signals to be embedded into the IP stream.

Bitrate Allocation Limit: The maximum combined bandwidth across all 16 channels is capped at 30Mbps. Individual stream bitrates and resolutions must be configured within this total limit.

Features:

16-Channel Video Stream Relay Processes and converts up to 16 IP network video streams (up to 1080P resolution). Maximum total combined bitrate capacity is capped at 30Mbps across all channels.

Multi-Protocol Streaming Conversion Receives RTSP, RTMP, RTP, UDP-TS, and HTTP-FLV inputs; converts and outputs to HTTP-FLV, RTSP, RTMP, WS-FLV, WS-RAW, ONVIF, and GB28181.

3.5mm Analog Audio Input Features 1-channel 3.5mm LINE-IN analog audio input alongside IP audio stream processing, encoding into AAC audio output format.

TF Card Slot for Local Recording Built-in MicroSD (TF) card slot supports up to 512GB expansion for local video recording and remote web playback. (Note: MicroSD / TF card is NOT included in the package).

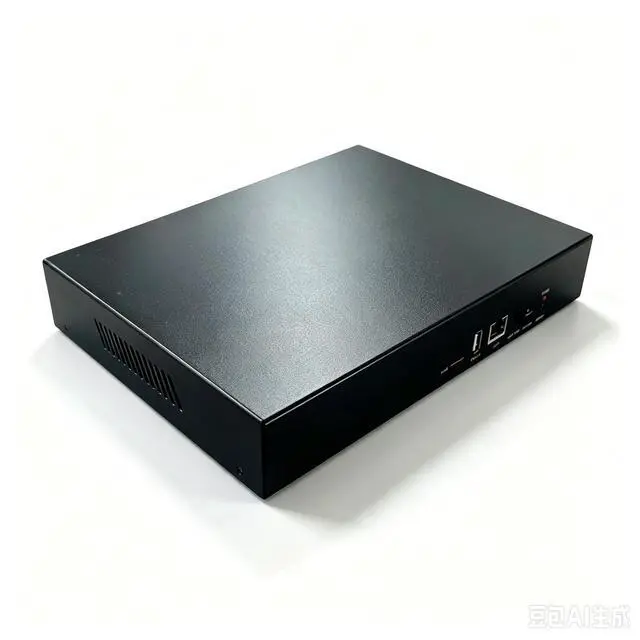

Pro-AV Technical Requirement Compact metal chassis (270 x 215 x 44 mm) powered by DC 12V. Requires technical expertise in IP networking, streaming protocols, and bandwidth allocation.
