Since 2006, XTAR has been specializing in the development and manufacture of high quality Li-ion batteries, smart chargers, and LED flashlights.
XTAR has experienced R&D department and self-contained factory, so we are also capable of providing good quality and affordable products to meet a variety of special requirements.
XTAR Professional Charger
XTAR Professional Charger
XTAR Professional Charger
XTAR AA AAA & Charger

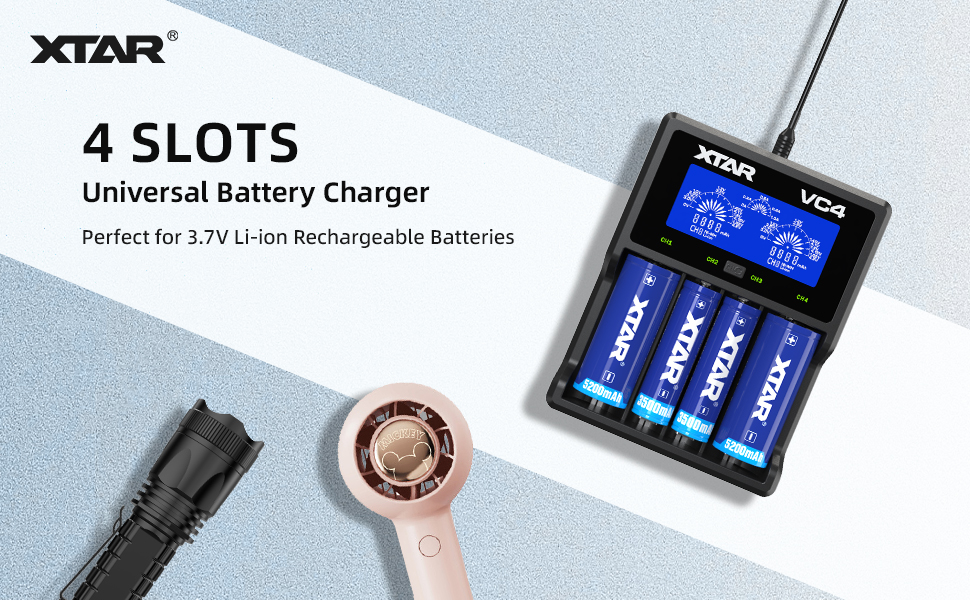

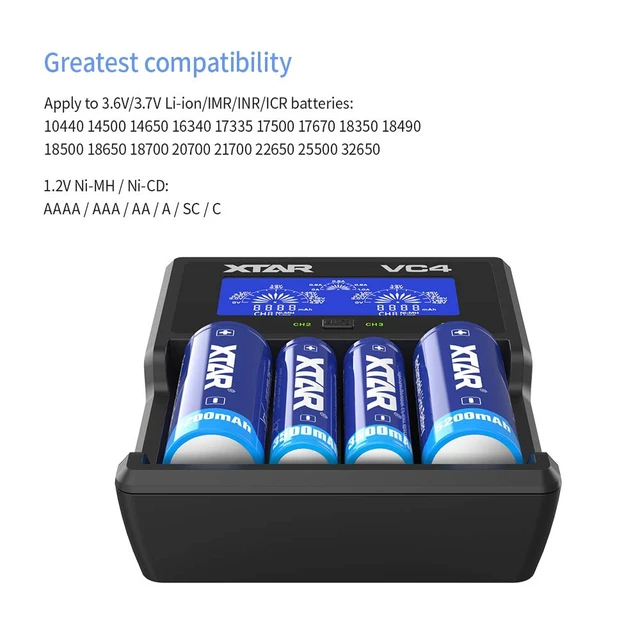

Greatest Compatibility
Compatible with different kinds and sizes of most batteries:
1. 3.6V/3.7V Li-ion/IMR/INR/ICR: 10440 14500 14650 16340 17335 17500 17670 18350 18490 18500 18650 18700 20700 21700 22650 25500 32650
2. Ni-MH/Ni-CD: AAAA AAA AA A SC C D
Note: 1. Cannot charge protected 20700/21700 batteries.
1. Can maximally charge two 32650 cells(CH1 &CH4)two 18650 cells (CH2&CH3) simultaneously"Ni-MH symbol will flick max 10 minutes when charging Ni-MH battery due to 0V activation.

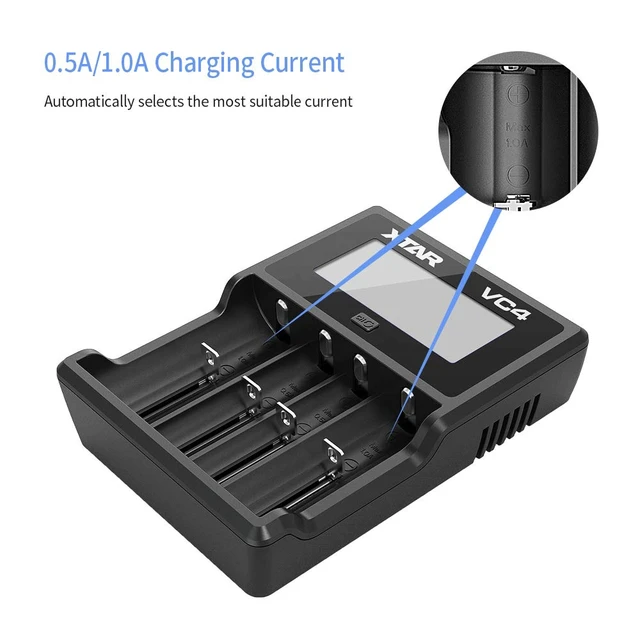

Intelligent Charging
Just insert it in the slot to choose the current best suited for your batteries. Only CH1 and CH4 have a 1.0A charging current. Once using CH2 or CH3, all channels will be 0.5A. Above please use a 5V 2A output adapter. It is not recommended to charge batteries with a high -power adapter(5V 3A).
Charge Everywhere.

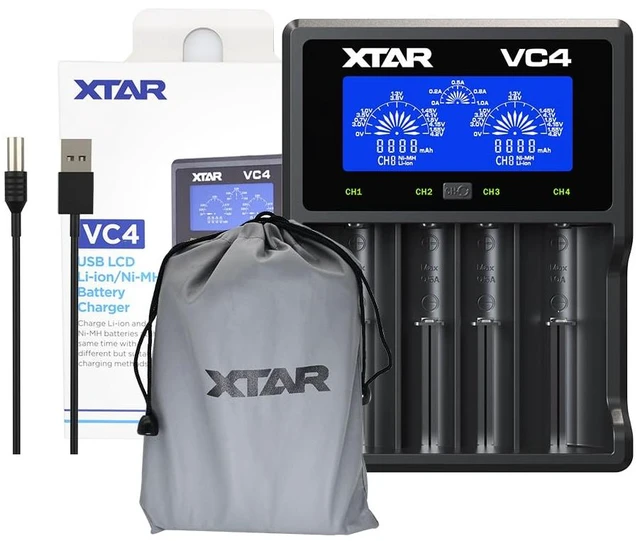

The VC4 Battery charger comes with a DC port cable, Compatible with all 5V USB power including USB wall adapters, cell phone chargers, solar panels, PC USBs, power banks, etc. Recommend 5V/2.1A power source or above to maximize efficiency.

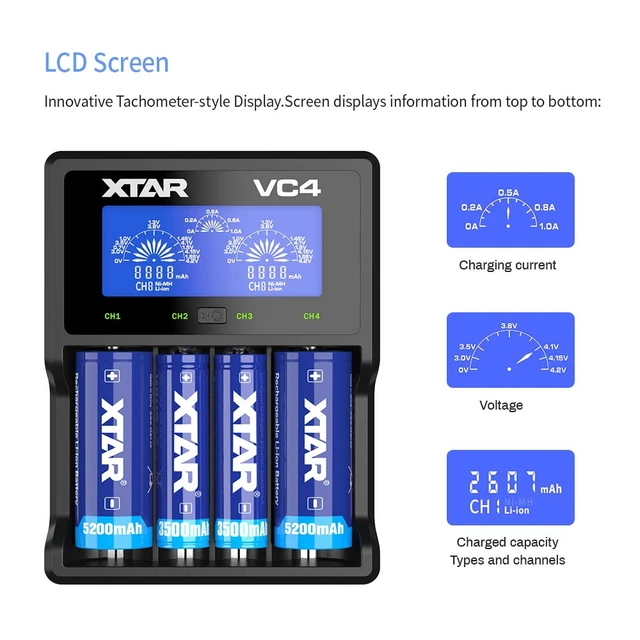

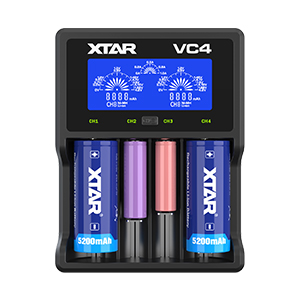

Smart LCD Display
With an Innovative Tachometer-style Display. The corresponding battery icon shows the direct charging current, battery capacity, battery types, channels, and charging status. Clearly See Real-time Charging Status. Pressing the button can switch the charging status of the battery channels.
Indicator Color Meaning

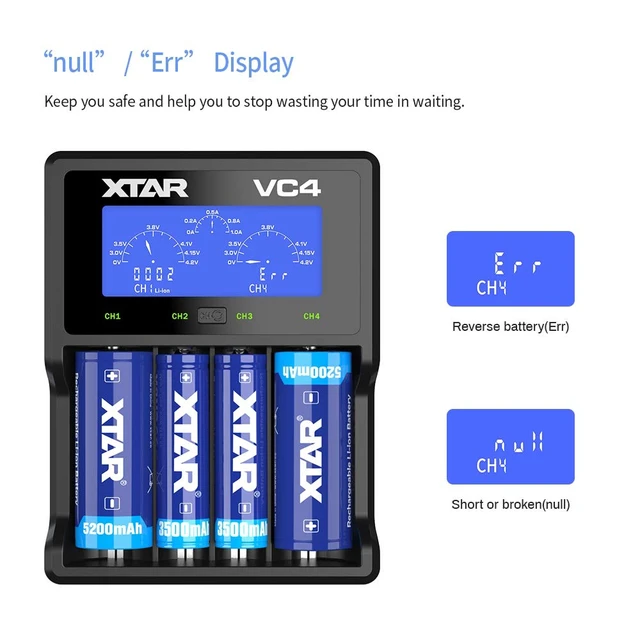

Connect the power supply and insert batteries, it will automatically start charging. And with a smart Indicator Color, Green: standby / fully charged / polarity reversed. Red: self-examining/charging / activating /short circuit. No Light: power supply unconnected.
0V Activation
0V activation function, which is first originated from XTAR, revives the over-discharge battery. Insert the battery and the charger will automatically detect and activate the battery.
TC-CC-CV Three-stage Charging
This charger regulates the voltage and current delivered to the batteries in three automatic stages to ensure batteries receive optimum charging with minimal wear and tear.
Temperature Monitoring Design
Built-in real-time temperature control protection system, makes the battery charging process more stable,15"C maximum temperature rise keep your batteries cool during the charging.
Multiple Protections Ensure Safe Charging
Built-in protection circuit can effectively prevent over-current, over-charge, over-voltage, short- circuit,combined with XTAR's soft-start function, making charging safer.

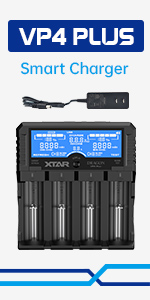

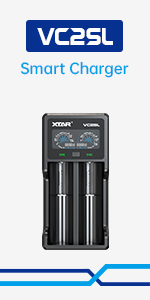

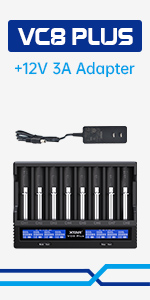

 4 slot battery charger |  VC8 PLUS battery charger |  VP4 PLUS Battery charger |  VC2SL battery charger |  PB2S Battery charger |  SC1 PLUS battery charger | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — no data | — no data | — no data | — no data | — | — |
| Compatible battery | Charge 3.6 V / 3.7 V LI - ion/MR/INR/ICR 10440/14500/17335/17500/14650/16340/17670/18350/18650/18700/18490/18500/20700/21700/22650/25500/26650/32650 1.2V NI-MH/NI-CD AAAA/AAA/AA/A/SC/C Note: Can charge protected 21700 batteries. | Charge 3.6V/3.7V Li-ion/IMR/INR/ICR 10440/14500/14650/16340/17500 / 17670/18350/18490/18500/18650 / 18700/20700/21700/22650/2550 /26650 1.2V Ni-MH/Ni-CD AAAA / AAA / AA / A / SC / C Note: Can charge protected 20700/21700 batteries. | Charge 1) 3.6V/3.7V Li-ion/IMR/INR/ICR 10440/14500/ 14650/16340/ 17335/17500/17670/18350/18490 /18500/18650/18700/20700/ 21700/22650/25500/26650/32650 2) 1.2V Ni-MH/Ni-CD AAAA / AAA / AA / A / SC / C / D 3) 11.1V 3S Battery Pack | Charge 3.6V/3.7V LI-ION/IMR/INR/ICR 10440/14500/14650/16340/17335/17500/17670/18350/18490/1850/18650/18700/20700/21700/22650/25500/26650 1.2V NI-MH/NI-CD AAAA/AAA/AA/A/SC/C Note: can charge protected 20700/21700 batteries. | Charge 3.6/3.7V unprotected 18650/18700/20700/21700 and protected 18650 Li-ion/IMR/INR/ICR batteries. | charge3.6V/3.7V rechargeable 18650/18700/20700/21700/26650/26800 Li-ion and 1.2V NiMH D batteries. Note:Also compatible with protected 26800 Li-ion batteries. |
| Contents Displayed Of LCD | 1.Charging Current Gear 2.Battery Voltage 3.Charging Capacity 4.Battery Type 5.Battery Channel | 1.Battery Voltage 2.Real-time Power 3. Charging Capacity 4.Battery Type 5.Battery Internal Resistance 6.Charging Cu | 1.Charging Current 2.Battery Pack Status 3.Charging Capacity Percentage 4.Battery Types 5.Battery Channel 6.Battery Voltage 6.Battery Resistance 7.Charge/Test/Refresh Status | 1.Charging Current Gear 2.Battery Voltage 3.Charging Capacity 4.Battery Type 5.Battery Internal Resistance | 1.Battery Voltage 2.Charging Current 3.Charging Capacity 4. Battery output and input status | no data |
| Charging Interface | Type-c input port | Dual input port,with DC & Type-C port | DC input port | Type-C Input | Type-C Input | Type-C Input |
| QC 3.0 Fast Charging | ? | ? | no data | no data | ? | ? |
| The Current of the Slot | Max 3Ax1slot , 2Ax2 / 1Ax4 / 0.5Ax4 slot | Max 3Ax1 slot , 2Ax2 / 1Ax4 / 1Ax8 slot | Max 2A×2 (CH1&CH4)slot,1A×4/0.5A×4 slot | Max 1x2A slot, 1Ax2/0.5Ax2 slot | Max 2Ax2 slot,2Ax1/1Ax2 slot | Max 3A×1slot, 2A×1 slot |
| 0V Activation | ? | ? | ? | ? | ? | ? |
| Whether the current can be adjusted manually | ? | ? | ? | ? | no data | no data |
| Temperature Control | ? | ? | ? | ? | ? | no data |
| USB Output Function | no data | no data | ? | ? | ? | ? |
| Package Contents | 1xVC4SL charger+QC3.0 adapter+1xcharging cable+1x manual | 1xVC8 PLUS charger++12V 3A adapter+1xcharging cable+1x manual | 1x VP4 PLUS charger+1xcharging cable+1x manual+1x probes+12V 3A adapter+ 1x charer pouch | 1xVC2SL charger+1x charging cable+1x manual | 1xPB2S charger+1x charging cable+1x manual | 1xSC1 PLUS charger+1xcharging cable+ 1x buckle+1x manual |
Greatest Compatibility
Compatible with different kinds and sizes of most batteries:
1. 3.6V/3.7V Li-ion/IMR/INR/ICR: 10440 14500 14650 16340 17335 17500 17670 18350 18490 18500 18650 18700 20700 21700 22650 25500 32650
2. Ni-MH/Ni-CD: AAAA AAA AA A SC C D
Note: 1. Cannot charge protected 20700/21700 batteries.
1. Can maximally charge two 32650 cells(CH1 &CH4)two 18650 cells (CH2&CH3) simultaneously"Ni-MH symbol will flick max 10 minutes when charging Ni-MH battery due to 0V activation.
Intelligent Charging
Just insert it in the slot to choose the current best suited for your batteries. Only CH1 and CH4 have a 1.0A charging current. Once using CH2 or CH3, all channels will be 0.5A. Above please use a 5V 2A output adapter. It is not recommended to charge batteries with a high -power adapter(5V 3A).
Charge Everywhere.
The VC4 Battery charger comes with a DC port cable, Compatible with all 5V USB power including USB wall adapters, cell phone chargers, solar panels, PC USBs, power banks, etc. Recommend 5V/2.1A power source or above to maximize efficiency.
Smart LCD Display
With an Innovative Tachometer-style Display. The corresponding battery icon shows the direct charging current, battery capacity, battery types, channels, and charging status. Clearly See Real-time Charging Status. Pressing the button can switch the charging status of the battery channels.
Indicator Color Meaning
Connect the power supply and insert batteries, it will automatically start charging. And with a smart Indicator Color, Green: standby / fully charged / polarity reversed. Red: self-examining/charging / activating /short circuit. No Light: power supply unconnected.
0V Activation
0V activation function, which is first originated from XTAR, revives the over-discharge battery. Insert the battery and the charger will automatically detect and activate the battery.
TC-CC-CV Three-stage Charging
This charger regulates the voltage and current delivered to the batteries in three automatic stages to ensure batteries receive optimum charging with minimal wear and tear.
Temperature Monitoring Design
Built-in real-time temperature control protection system, makes the battery charging process more stable,15"C maximum temperature rise keep your batteries cool during the charging.
Multiple Protections Ensure Safe Charging
Built-in protection circuit can effectively prevent over-current, over-charge, over-voltage, short- circuit,combined with XTAR's soft-start function, making charging safer.
4 slot battery charger | VC8 PLUS battery charger | VP4 PLUS Battery charger | VC2SL battery charger | PB2S Battery charger | SC1 PLUS battery charger | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — no data | — no data | — no data | — no data | — | — |
| Compatible battery | Charge 3.6 V / 3.7 V LI - ion/MR/INR/ICR 10440/14500/17335/17500/14650/16340/17670/18350/18650/18700/18490/18500/20700/21700/22650/25500/26650/32650 1.2V NI-MH/NI-CD AAAA/AAA/AA/A/SC/C Note: Can charge protected 21700 batteries. | Charge 3.6V/3.7V Li-ion/IMR/INR/ICR 10440/14500/14650/16340/17500 / 17670/18350/18490/18500/18650 / 18700/20700/21700/22650/2550 /26650 1.2V Ni-MH/Ni-CD AAAA / AAA / AA / A / SC / C Note: Can charge protected 20700/21700 batteries. | Charge 1) 3.6V/3.7V Li-ion/IMR/INR/ICR 10440/14500/ 14650/16340/ 17335/17500/17670/18350/18490 /18500/18650/18700/20700/ 21700/22650/25500/26650/32650 2) 1.2V Ni-MH/Ni-CD AAAA / AAA / AA / A / SC / C / D 3) 11.1V 3S Battery Pack | Charge 3.6V/3.7V LI-ION/IMR/INR/ICR 10440/14500/14650/16340/17335/17500/17670/18350/18490/1850/18650/18700/20700/21700/22650/25500/26650 1.2V NI-MH/NI-CD AAAA/AAA/AA/A/SC/C Note: can charge protected 20700/21700 batteries. | Charge 3.6/3.7V unprotected 18650/18700/20700/21700 and protected 18650 Li-ion/IMR/INR/ICR batteries. | charge3.6V/3.7V rechargeable 18650/18700/20700/21700/26650/26800 Li-ion and 1.2V NiMH D batteries. Note:Also compatible with protected 26800 Li-ion batteries. |
| Contents Displayed Of LCD | 1.Charging Current Gear 2.Battery Voltage 3.Charging Capacity 4.Battery Type 5.Battery Channel | 1.Battery Voltage 2.Real-time Power 3. Charging Capacity 4.Battery Type 5.Battery Internal Resistance 6.Charging Cu | 1.Charging Current 2.Battery Pack Status 3.Charging Capacity Percentage 4.Battery Types 5.Battery Channel 6.Battery Voltage 6.Battery Resistance 7.Charge/Test/Refresh Status | 1.Charging Current Gear 2.Battery Voltage 3.Charging Capacity 4.Battery Type 5.Battery Internal Resistance | 1.Battery Voltage 2.Charging Current 3.Charging Capacity 4. Battery output and input status | no data |
| Charging Interface | Type-c input port | Dual input port,with DC & Type-C port | DC input port | Type-C Input | Type-C Input | Type-C Input |
| QC 3.0 Fast Charging | ? | ? | no data | no data | ? | ? |
| The Current of the Slot | Max 3Ax1slot , 2Ax2 / 1Ax4 / 0.5Ax4 slot | Max 3Ax1 slot , 2Ax2 / 1Ax4 / 1Ax8 slot | Max 2A×2 (CH1&CH4)slot,1A×4/0.5A×4 slot | Max 1x2A slot, 1Ax2/0.5Ax2 slot | Max 2Ax2 slot,2Ax1/1Ax2 slot | Max 3A×1slot, 2A×1 slot |
| 0V Activation | ? | ? | ? | ? | ? | ? |
| Whether the current can be adjusted manually | ? | ? | ? | ? | no data | no data |
| Temperature Control | ? | ? | ? | ? | ? | no data |
| USB Output Function | no data | no data | ? | ? | ? | ? |
| Package Contents | 1xVC4SL charger+QC3.0 adapter+1xcharging cable+1x manual | 1xVC8 PLUS charger++12V 3A adapter+1xcharging cable+1x manual | 1x VP4 PLUS charger+1xcharging cable+1x manual+1x probes+12V 3A adapter+ 1x charer pouch | 1xVC2SL charger+1x charging cable+1x manual | 1xPB2S charger+1x charging cable+1x manual | 1xSC1 PLUS charger+1xcharging cable+ 1x buckle+1x manual |
