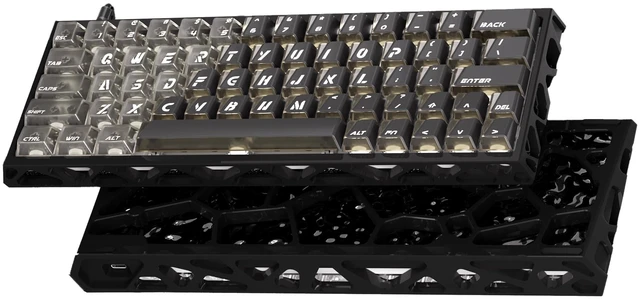

XVX Trooper63 HE Hall Effect Keyboard,Dual RGB Aluminum Phantom Black | Hall effect magnetic switches, dual north-south RGB, CNC aluminum, 64 keys with arrows, hot-swap, wired only, matte black

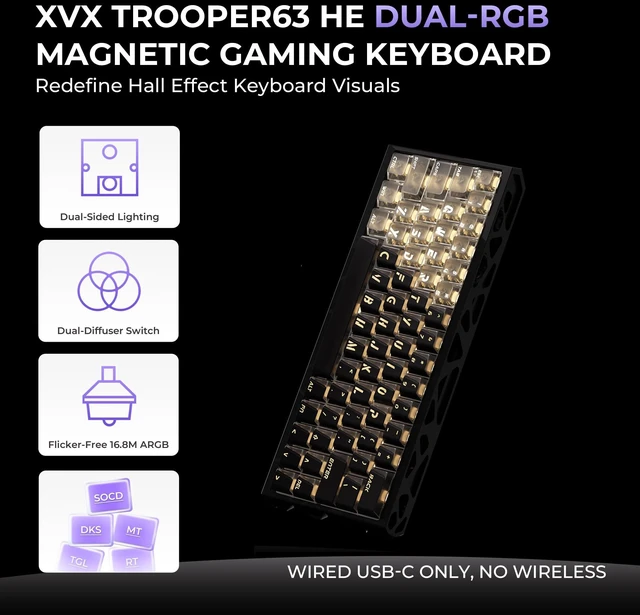

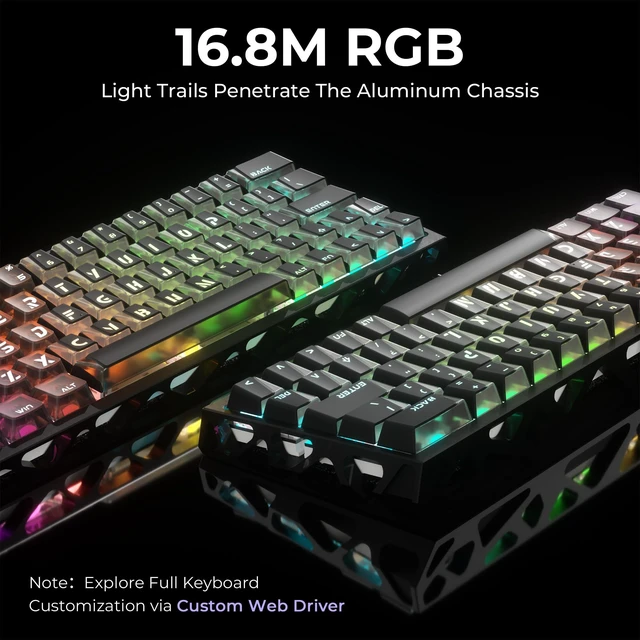

- Dual-Lighting RGB: North and south LEDs light both the legends and the wedge-cut double-shot PRISM keycaps at once, so neither viewing angle is left unlit

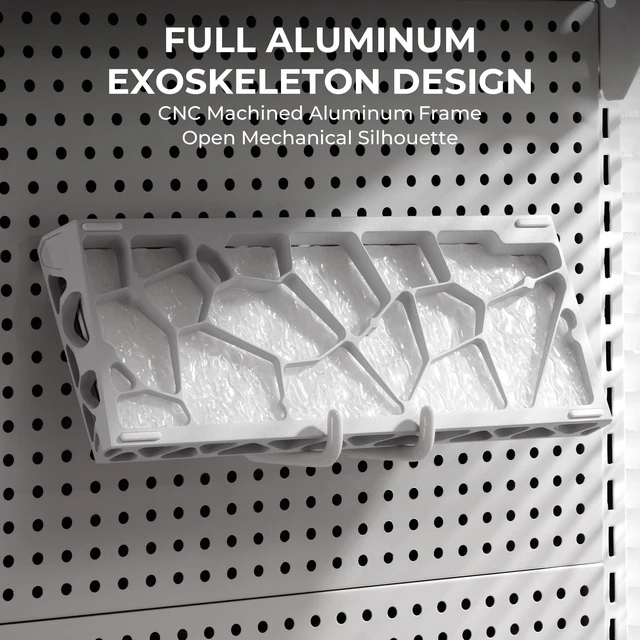

- Phantom Black Aluminum Case: CNC-machined skeleton chassis finished in a matte black powder coat, over a 1.5mm carbon fiber plate and non-flex-cut FR4 board with PORON, IXPE and PET damping for a deep low-resonance sound at 673g
- 64 Keys With Arrows: Keeps the 304.8 x 110.5 x 32mm footprint and fixed 7 degree angle while giving you dedicated arrow keys, so aiming and everyday navigation work without a function layer

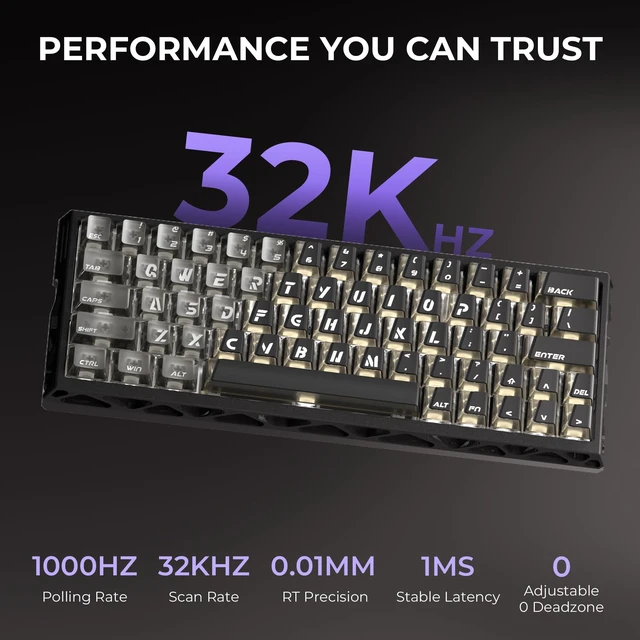

- Tuned Hall Effect Response: 32KHz sensor and 4000Hz key scan drive 0.01mm-step Rapid Trigger with per-key DKS, MT, TGL and SOCD, and hot-swap sockets accept KS-20 magnetic switches
- Browser Setup With Nothing To Install: The web driver runs on Windows, macOS and Linux to calibrate switches, remap keys, record macros and store profiles, and connection is wired USB-C only, with no Bluetooth or 2.4GHz wireless
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

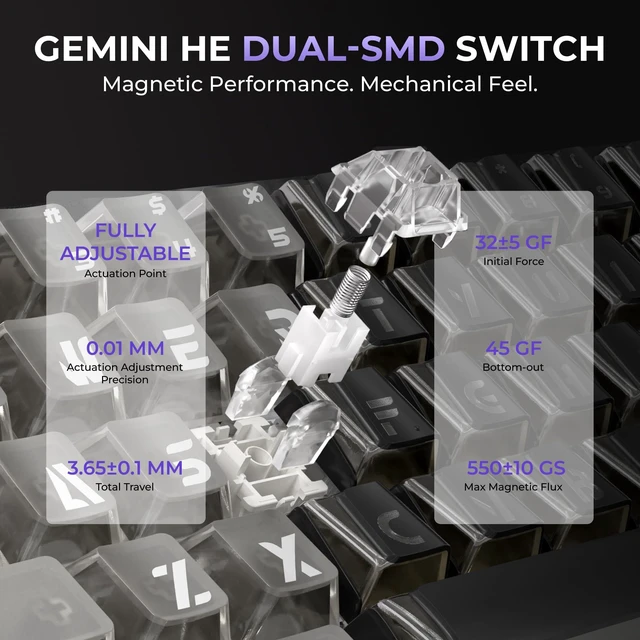

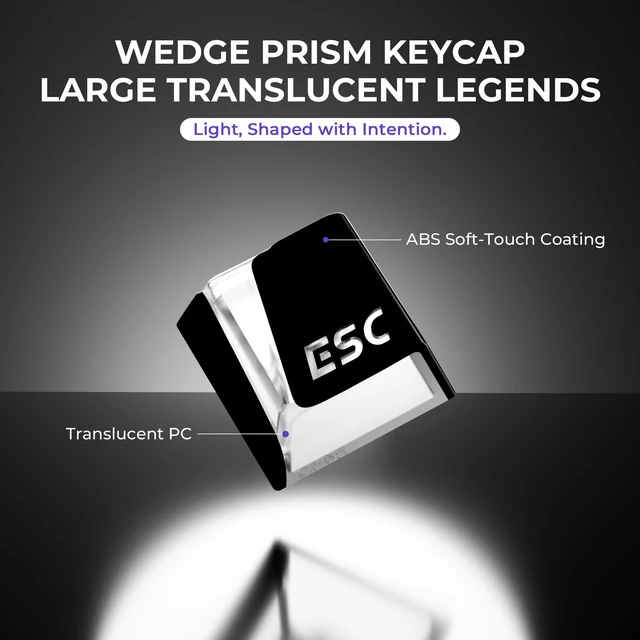

Phantom Black is for setups where the board should stay quiet until the lights come on. The matte black powder coat over the CNC aluminum skeleton drops the visual noise around every key, so when Gemini fires you read light rather than chassis. It does show fingerprints sooner than the lighter finishes, a soft dry cloth handles daily cleaning. Gemini is why this board looks the way it does. Hall Effect sensing removes the physical switch sockets a mechanical board needs, freeing space on the PCB, and Trooper63 HE spends it running north-facing and south-facing LEDs at once instead of choosing one side. The wedge-cut PRISM caps are double-shot, so light travels through the cap rather than only escaping around it. Feel is tuned rather than spec-driven. A 1.5mm carbon fiber plate sits over a non-flex-cut 1.2mm FR4 board with PORON plate foam, IXPE switch pads, PET film and PORON case foam, and the linear Gemini HE switches run 32gf initial force across 3.65mm of travel, landing creamy rather than hollow. The 64-key ANSI layout measures 304.8 x 110.5 x 32mm at a fixed 7 degree angle, compact enough to free up mouse room while keeping dedicated arrow keys, so navigation never needs a function layer. Upgrades stay open: GH60 compatible for keycap swaps, and the hot-swap sockets take KS-20 magnetic switches. Setup runs in the browser-based web driver on Windows, macOS and Linux with nothing to install, covering Rapid Trigger tuning, per-switch calibration, lighting and onboard profiles. One thing to confirm before ordering: this board is wired USB-C only, with no Bluetooth or 2.4GHz support, so it is not the pick if you need wireless. In the box you get the keyboard, a USB Type-C cable, a 2-in-1 keycap and switch puller, spare Gemini HE switches, extra accent keycaps and the manual. Trooper63 HE also ships in Stella White and Saku
Product information
| Brand | XVX |
| Compatible Devices | Gaming Console, Laptop, PC, Tablet |
| Connectivity Technology | USB-C |
| Keyboard Description | Magnetic Switch Mechanical Keyboard |
| Recommended Uses For Product | Business, Education, Gaming, Programming |
| Special Feature | 64 Keys With Arrows, Backlit, Dual RGB, Magnetic Switch Rapid Trigger |
| Color | Phantom Black |
| Keyboard backlighting color support | RGB |
| Style | Classic |
| Material | CNC Aluminum Case |
| Additional Features | 64 Keys With Arrows, Backlit, Dual RGB, Magnetic Switch Rapid Trigger |
| Switch Type | Linear |
| Keyboard Layout | QWERTY |
| Mechanical Keyboard Switch Model | Outemu |
| Total USB 2.0 Ports | 1 |
| Compatible Operating System Family | Windows |
| Number of Keys | 85 |
| Style Name | Classic |
| Enclosure Material | CNC Aluminum Case |
| Keyboard Plate Material | Carbon Fiber |
| Antenna Location | Business, Education, Gaming, Programming |
| Built-In Media | USB Type-C cable, 2-in-1 keycap and switch puller, spare Gemini HE switches, extra accent keycaps, manual |
