Yahboom ROS Expansion Board for Raspberry Pi Jetson Nano Robotic Development Board with 9-axis IMU Sensor STM32F103C8T6 Core (ROS Expansion Board)

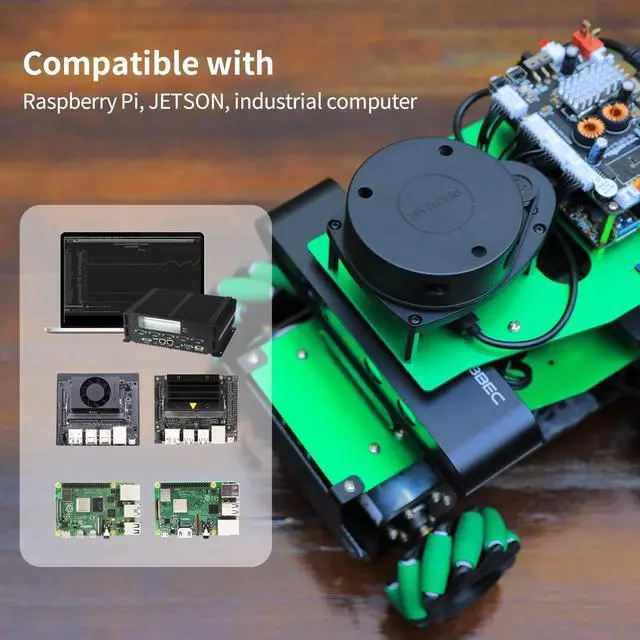

Compatible with multiple development boards: Compatible with Raspberry Pi Jetson series development boards, Sunflower Pi, industrial control board development boards, and also has multiple power supply interface outputs, providing stable power supply for DIY expansion boards.

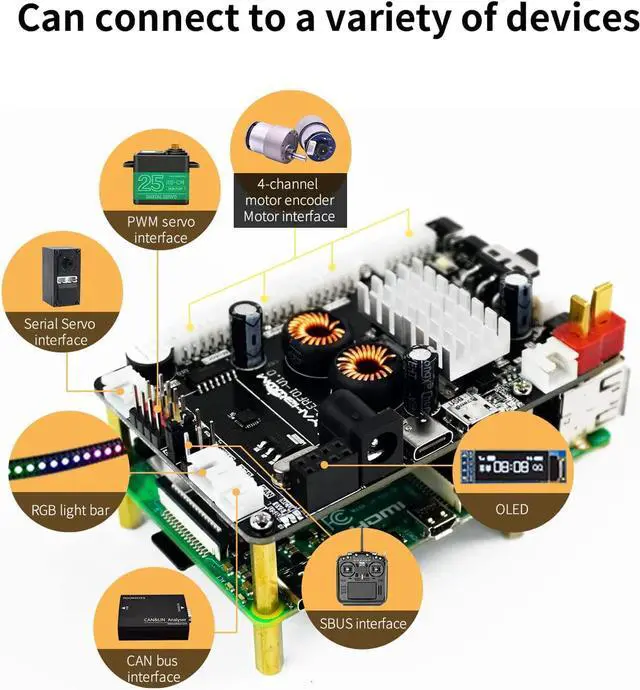

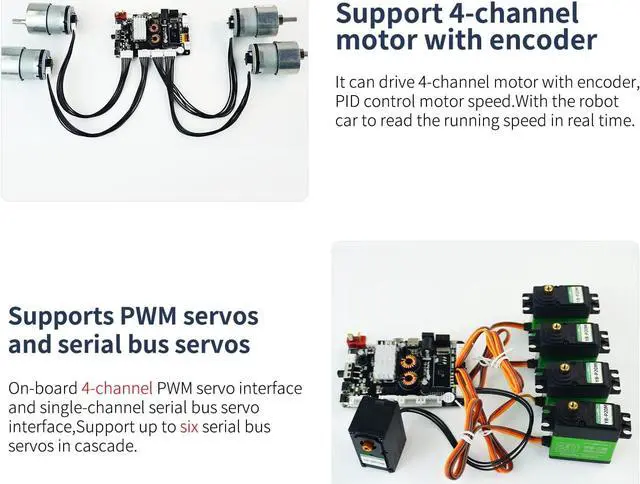

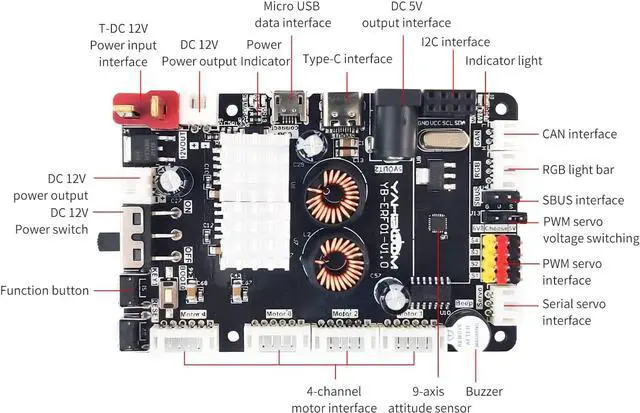

Rich peripheral interfaces: The expansion board supports 4-way encoder motors, which can drive various vehicle types, such as mecanum wheels, four-wheel differentials, tracks, etc.; it also supports PWM servos and serial bus servos, which can adapt to various forms of robot arm development; it also supports USB serial communication, CAN bus communication, and SBUS bus communication.

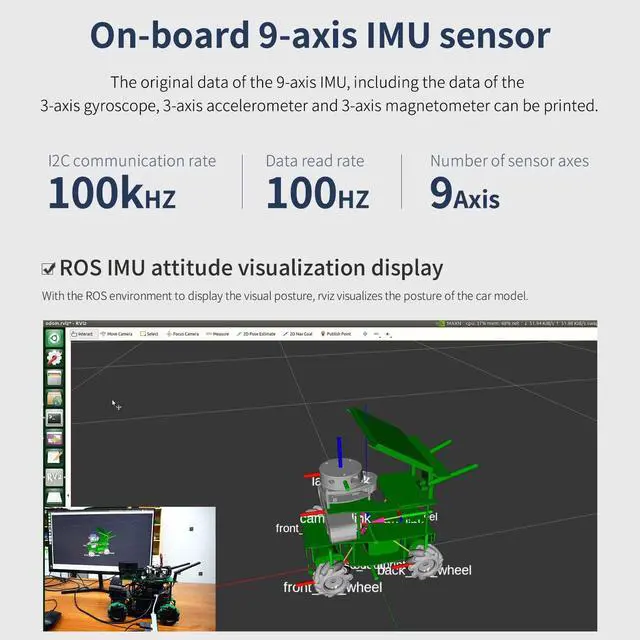

Multi-functional robot expansion board: The control board is equipped with a 9-axis IMU attitude sensor, which can obtain real-time posture information of the robot and is widely used in ROS robot kit development.
Fully open source data: Provides basic peripheral driver routines written in STM32CUBEIDE, including driving encoder motors, PWM servos, serial bus servos, reading and solving MPU9250 9-axis attitude sensor data, and controlling multiple communication interfaces; open hardware schematic, which is more user-friendly when used with the driver routines.
