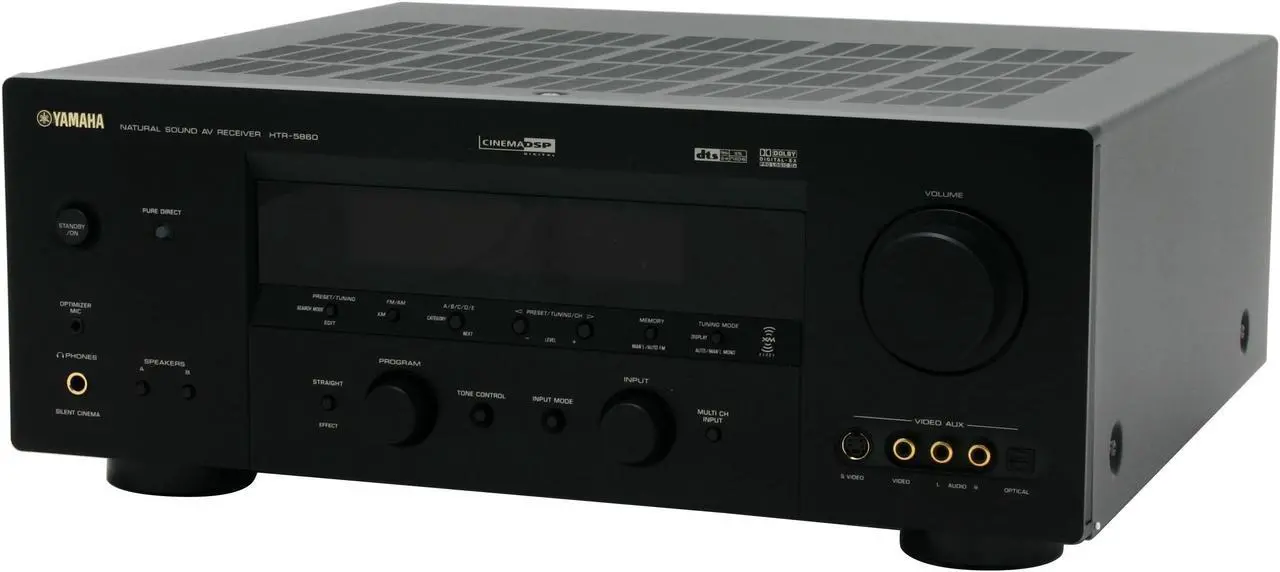

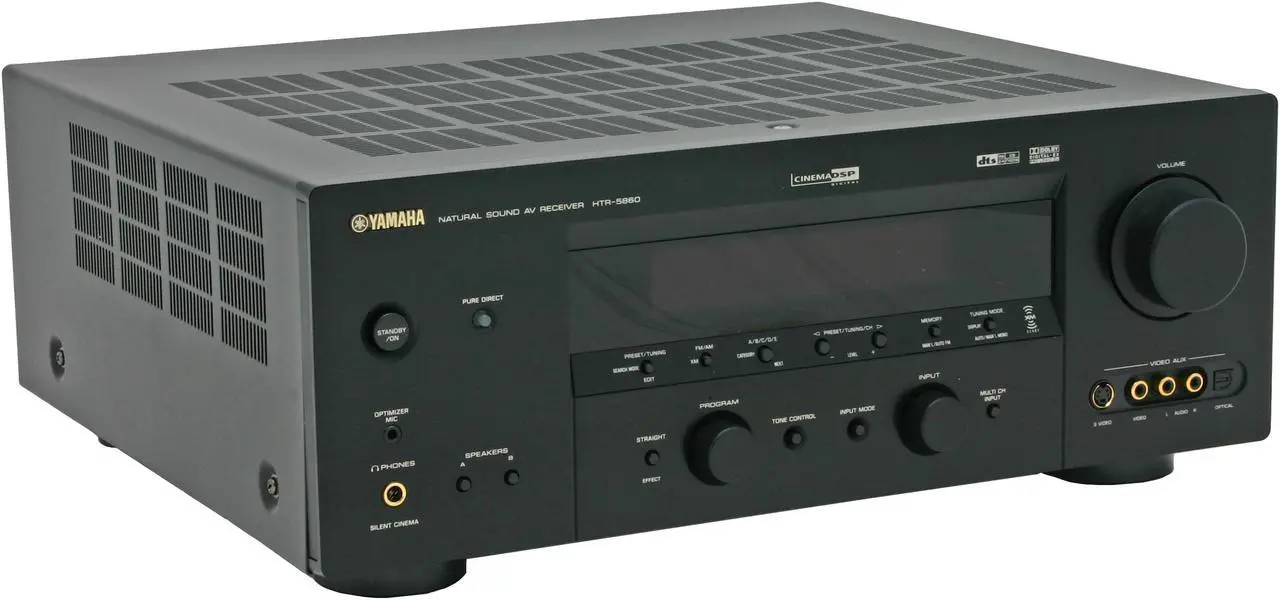

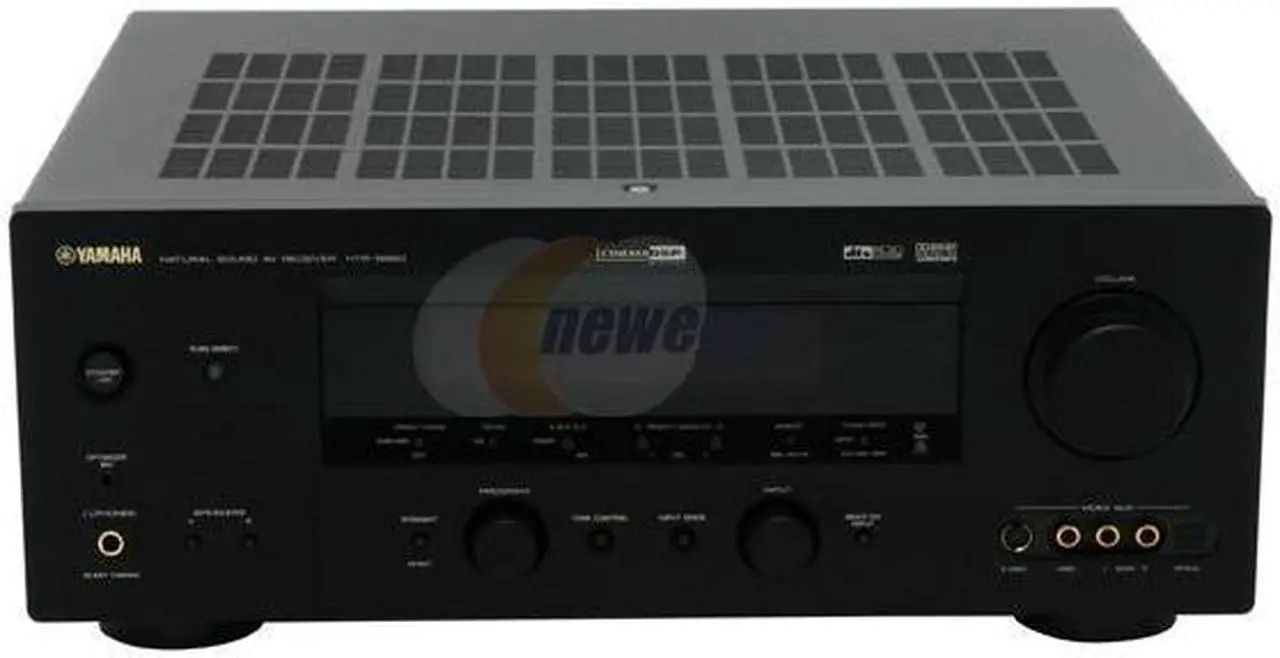

YAMAHA HTR-5860 7.1-Channel Digital Home Theater Receiver

(1) Write a Review
  • 7.1-Channel RMS Output Power (20Hz - 20kHz) 95W x 7 RMS Output Power (1kHz) 110W x 7 Total Power (20Hz - 20kHz) 665W
  • Dolby Digital EX, DTS-ES, Dolby Pro LogicIIx and DTS 96/24 Compatibility
  • XM Satellite Radio Ready
  • FM/AM Tuner
Specs
Reviews (1)

Learn more about the Yamaha HTR-5860

Model
Brand YAMAHA
Model HTR-5860
Details
Type Receiver
Color Walnut
Channels 7.1-Channel
Remote Control Yes
On Screen Display Yes
Other Specifications Pure Direct
Surround Programs: 14
Night Listening Enhancer
Dialogue Lift
YPAO (w/Optimizer Microphone)
Processing
Power Output RMS Output Power (20Hz - 20kHz) 95W x 7
RMS Output Power (1kHz) 110W x 7
Total Power (20Hz - 20kHz) 665W
Decoder Dolby Digital EX, DTS-ES, Dolby Pro LogicIIx and DTS 96/24 Compatibility
D/A Converter 192 kHz / 24 bit
Speaker Switching Speaker A/B or A + B
Radio
FM/AM Tuner Included
Satellite Radio Ready XM

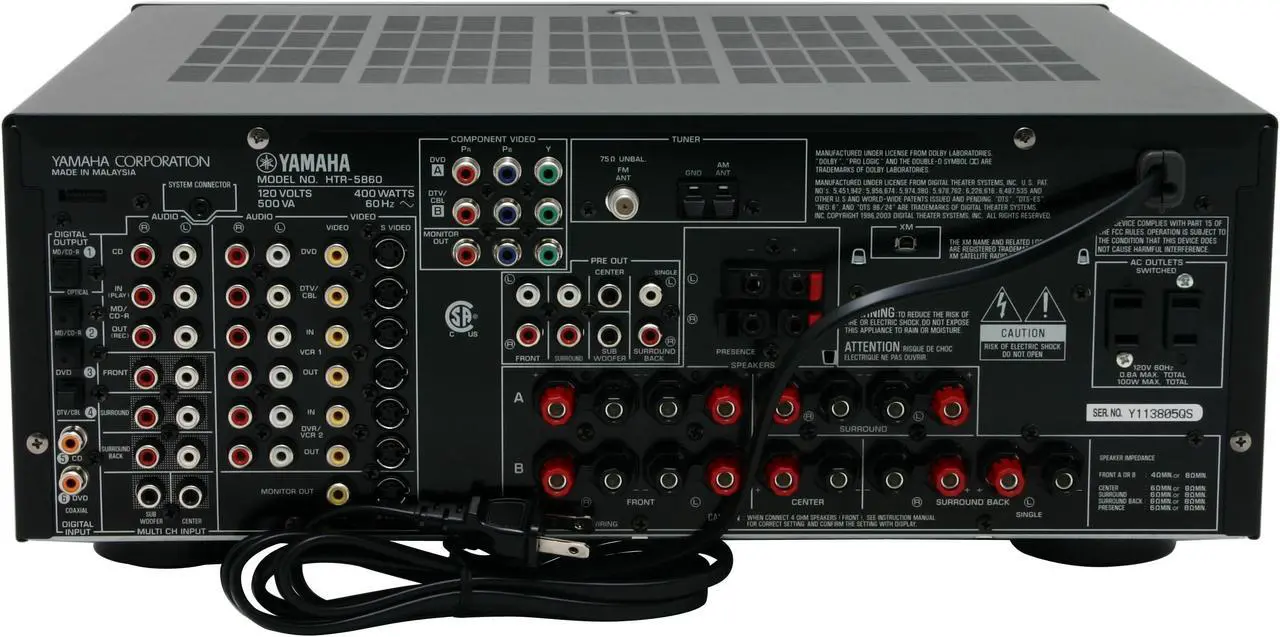

Connectivity
Component Video 2 In / 1 Out
Digital Optical Audio 4 In / 1 Out
Digital Coaxial Audio 2 In
Headphone Jack Yes
Multi Channel Input 8-Channel
Pre-Amp Out 7.1-Channel
Other Connectors A/V Inputs (S-Video): 5 (All S-Video)
Power
Power Supply AC 120V, 60Hz
Consumption 400 W/500 VA
Standby Consumption 0.1W or less
Features
Features Digital ToP-ART and High Current Amplification
Pure Direct for High Quality Sound Reproduction

Dialogue Lift for Enhanced Dialogue Sound Output
Quad-Field CINEMA DSP and 14 Surround Programs
Night Listening Enhancer (Cinema/Music) and SILENT CINEMA

Surround Back Power-Amp Assignable (for Presence Channels) for the Ultimate Surround Sound System

Accurate Touch Volume Control
Selectable 9-Band Subwoofer Crossover
Subwoofer Phase Select
Analog Mixdown
Straight/Effect Switch
Direct Stereo and 2-Channel Stereo Mode
High Dynamic Power and Linear Damping
Wide-Range Audio Frequency Response for DVD-Audio/Super Audio CD
9-Channel Speaker Terminals (incl. Presence Channels)
Surround Back Power-Amp Assignable (for Presence Channels)
8-Channel External Decoder Input
Speaker A, B or A+B Selection (Front L/R)
Audio Delay for Lip Sync (0–160 ms)
Virtual CINEMA DSP
Wide-Range Video Bandwidth (60MHz -3dB)
HDTV Compatible Component Video Out
Preset Remote Control Unit
Sleep Timer
40-Station Preset Tuning
Auto Preset Tuning
Dimensions & Weight
Dimensions 17.2" x 6.75" x 16.6"
Weight 27.8 lbs.
Additional Information
Date First Available June 01, 2005
