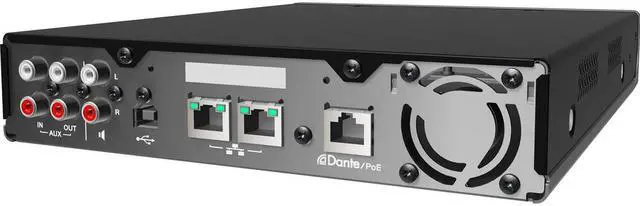

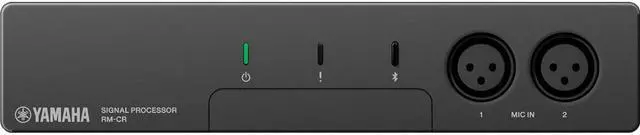

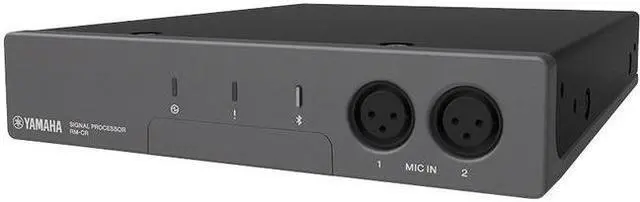

Yamaha RM-CR Remote Conference Audio Processor
- Signal Processor for ADECIA
- Customizable Communications Solutions
- Connect to Two RM-CG Ceiling Mics
- Connect to Two VXL1B-16P Speakers
- Compatible with SWR2311P-10G PoE Switch
- Auto Tuning for Optimization of Sound
- Auto Mixing for Optimal Balance of Audio
- USB, VoIP, Analog, Bluetooth I/O
- Network Audio Support for Dante
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Yamaha RM-CR
| Brand | Yamaha |
|---|---|
| Model | RM-CR |
| Type | Audio Processor |
|---|---|
| Specification | Operating Temperature: 32° to 104°F (0° to 40°C) Operating Humidity: 30 to 90% (non-condensing) Storage Temperature: -4° to 140°F (-20° to 60°C) Storage Humidity: 20 to 90% (non-condensing) Indicator: Power Indicator, Status Indicator, Bluetooth Indicator, Network Port Indicator x3 Network Ether1: Dante Audio/Dante Control, Remote Control, WebUI, PoE+ Ether2/Ether3: Corporate Network, Remote Control, SIP, WebUI USB Network (Front): USB2.0, Network Class, WebUI, Fixed IP Cable Requirements: Ether1/2/3 : Cate 5e or higher (STP Recommended) USB Network : USB Cable (A-microB type) Audio Frequency Response: 20Hz - 20kHz Sampling Rate: 48kHz Bit depth: 24bit Latency: 7 [ms] (Dante In to USB Out, includes signal processing) Audio I/O Dante: 16in x 16out USB: USB2.0, Audio Class 1.0 Input: 2ch, Output: 2ch @48kHz Mic Input: XLR balanced, Input 2ch AUX: RCA unbalanced (Line Level), Input: 2ch, Output: 2ch Speaker Out: RCA unbalanced (Line Level), Output: 2ch Bluetooth: Version 4.2, Supported profiles: HFP(1.6), A2DP, AVRCP, Supported Codec: CVSD, SBC, mSBC Wireless Output: Class2, Maximum communication distance: 10m (32.8 ft) (no obstacles), Radio frequency (operational frequency): 2,402 to 2,480 MHz, Maximum output power (EIRP): 4.0 dBm (2.5 mW) SIP Call Handling: Dial, Answer, Hold, Resume, Forwarding, Do not disturb, Call ID, Voice Mail Notifications (switch configured) Call Bridging: Supports Bridging SIP, USB, BT and AUX Calls. Join, Split, Hold, Resume, 5+1 Lines: Up to 2 SIP calls, 1 USB call, 1 Bluetooth Call, 1 AUX, plus the user Codecs: G.711, G.722HD, G.729ab, G.726 DTMF Support: RTP event, SIP in-band, SIP info package Security: SRTP Support (RFC 1889), IETF SIP support (RFC 3261 and companion RFCs) |
| Power Supply | PoE+(IEEE 802.3at, LLDP), DC 48V |
|---|---|
| Power Consumption | 15.0W |
| Feature | Yamaha Unified Communications RM-CR is the audio signal processor at the heart of the RM series. Standard network audio support for "Dante" all compatible devices can be connected with single network cable. Up to 2 RM-CG and 2 VXL1B-16P can be connected via PoE switch SWR2311P-10G. It can automatically recognize connected devices on the same network for audio routing and is equipped with the Auto Tuning functions that automatically measure and provide the optimum sound settings for the environment as well as Auto Mixer functions that automatically mix the audio of all connected microphones with various input/output connections such as USB, VoIP, analog, and Bluetooth. |
|---|
| Dimension | 8.46" x 10.23" x 1.730" |
|---|---|
| Weight | 3.30 lbs. |
| First Listed on Newegg | November 11, 2022 |
|---|
