YAMAHA RX-V573BL 7.1-Channel Network AV Receiver
OUT OF STOCK.
- 7.1 channel
- 4 HDMI 4K/3D passthrough
- Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, DTS-HD High Resolution Audio
LOADING...
Overview
Specs
Reviews
Seven discrete amplifiers provide versatile speaker options, including 7.1ch surround, Bi-Amp to double power to main speakers, or Zone B for extended audio coverage. Yamaha AV Controller App provides simple network control. CINEMA DSP 3D offers an enveloping home theater experience. Expand Apple connectivity with AirPlay® and versatile USB input for iPad®. Includes futuristic technologies like 4k video pass-through and ECO mode.
This AV receiver provides advanced HDMI features including 4K pass-through. 4K refers to four times the resolution of a 1080p display. While not yet available, 4K displays and sources are sure to become popular in the future. This receiver is capable of passing the 4K data from the source to the display, for image clarity far beyond present standards.
3D means the receiver can handle 3D signal data. The Audio Return Channel function enables data to be sent and received via the same HDMI cable, so you can hear the sound from the TV via a single HDMI cable, with no need for an extra optical cable.

This AV Receiver lets you use the Yamaha AV Controller app that is downloadable from the iTunes App Store or Android Market to control power on/off and volume, select input and DSP modes and operate other functions from an iPod, iPhone, iPad or Android phones. A tablet version is also available.
This AV receiver supports AirPlay, which means they can accept wireless music streaming from iPod touch, iPhone or iPad, as well as from iTunes on Macs or PCs. This makes it easy to enjoy music from your mobile devices or computer on your home theater system. You can use view metadata such as song title, artist name as well as album art* via AV receiver's on-screen display.
*Some models don't support album art display.

YPAO analyzes the room acoustics and adjusts various audio parameters for optimum sound in just a few minutes. It's like having a professional installer calibrate your system.
A USB port on the front panel allows convenient connection of an iPod/iPhone/iPad, which also charges when connected. Because the digital signal from the iPod/iPhone/iPad is transmitted directly to the AV receiver, there is no signal loss or interference, so you enjoy the best possible sound quality. In addition, you can use the receiver's remote control unit to operate the iPod/iPhone/iPad music playback functions.
Pressing a SCENE button powers on the AV Receiver and selects the input source and DSP mode. You can re-set the buttons for different sources by selecting a source and DSP mode, then pressing a SCENE button for more than three seconds.
CINEMA DSP 3D provides a wide, high and dense sound field. HD Audio format decoding lets you enjoy HD Audio sources. Virtual Presence Speaker delivers 3-dimensional sound without actual use of presence speakers.
When the AV receiver is in HDMI Standby Through mode, the input source (Blu-ray™ Disc player, game console, etc.) for viewing on the monitor can be changed via the remote control. There's no need to turn on the AV receiver in order to switch sources.
Another benefit of HDMI is the availability of CEC functionality. When the unit is connected to a CEC compatible TV, it will turn on and off together with the TV, and you can use the TV remote to control the volume. CEC also provides advanced functionality with other components. For example, you can use the receiver's remote unit to control player functions like Skip and Stop.
*All connected devices must be HDMI CEC compatible. Some CEC compatible TVs/players may not work.
The Subwoofer Trim control enhances the low frequencies by avoiding overlap with the front speaker output. This will result in a cleaner, more focused sound stage while providing a seamless frequency response. When subwoofer frequency overlap occurs in conventional systems, the overall sound is "pushed" toward the subwoofer. Subwoofer Trim takes care of this by separating the low subwoofer frequencies cleanly, thus stabilizing the front stage while providing a well-balanced enhanced bass sound.
When music is encoded into a digitally compressed format like MP3, the frequency response suffers. Yamaha's Compressed Music Enhancer employs sophisticated digital signal processing using exclusive algorithms to restore what was lost, so the music always sounds the way it should.
Yamaha's new ECO mode reduces power consumption by about 20%. It can be set from the top of the GUI menu.
* Compared to power consumption when ECO mode is off (Yamaha measurement).
Auto Power Down lets you save energy by selecting to turn off the power after 2, 4, 8 or 12 hours.
Yamaha makes its receivers eco-friendly with a low standby power consumption of 0.1W in IR Standby mode (1W in HDMI Standby Through mode, 2W in Network Standby mode).
Audio Features
-
7-channel powerful surround sound
115W per Channel (8 ohms, 1 kHz, 0.9 % THD, 1 ch driven)
80W per Channel (8 ohms, 20 Hz-20 kHz, 0.09 % THD, 2 ch driven) - HD Audio format decoding: Dolby TrueHD and DTS-HD Master Audio; Dolby Digital Plus and DTS-HD High Resolution Audio
- Discrete amp configuration
- Burr-Brown 192 kHz/24-bit DACs for all channels
- Direct Mode for high quality sound reproduction
- Low jitter PLL circuitry helps optimize sound imaging
- Assignable amplifiers for bi-amp connection
4K pass-through for next generation super high resolution images

HDMI with 3D and Audio Return Channel

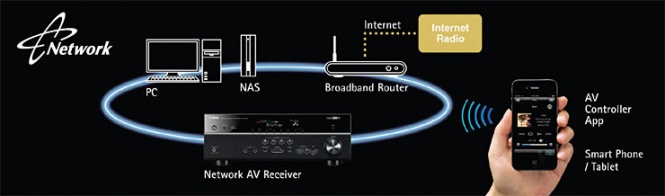

Network Functions
This AV receiver provides a variety of network functions that enable you to access more sources and also enhance operation. You can connect the receiver to a PC to enjoy Internet Radio. The AV Controller app (from iTunes App Store or Android Market) lets you control various functions from your iPod, iPhone, iPad or Android phones.
AV Controller App for Easy, Convenient Operation

AirPlay Allows Streaming Music to AV receiver

*Some models don't support album art display.

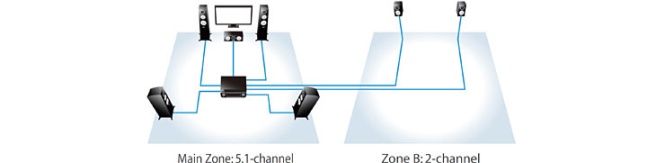

Zone B output provides 2-channel sound in a second room
Zone B output capability allows the receiver to send 2-channel sound to a second zone, so the main zone now has 5-channel output. This means that users can enjoy stereo sound in a second room. The same source will play in both zones (cannot use two sources).
YPAO Sound Optimization for Automatic Speaker Setup

USB Digital Connection for iPod, iPhone and iPad on the Front Panel

SCENE for One-Touch Start

HD Audio with CINEMA DSP 3D and Virtual Presence Speaker

Input Selection in HDMI Standby Through Mode

HDMI CEC for Easy Operation

*All connected devices must be HDMI CEC compatible. Some CEC compatible TVs/players may not work.
Subwoofer Trim for Improved Sound Imaging

Compressed Music Enhancer

Adaptive DRC (Dynamic Range Control)
Adaptive DRC automatically adjusts the dynamic range of the sound according to the volume level. This ensures that you hear clear dialogue and vocals, and all sound effects at comfortable levels. There is no need to adjust the volume level as you listen; everything from whispers to big explosions will be heard clearly and comfortably at the same volume setting. It also tones down loud TV commercials, and is ideal for low-volume, late-night listening, when you do not want to disturb others.ECO mode lowers power consumption by 20%*

* Compared to power consumption when ECO mode is off (Yamaha measurement).
Selectable Auto Power Down

Low Standby Power Consumption

Other Notable Video Features
- Supports Deep Color (30/36 bit), x.v.Color, 24 Hz Refresh Rate and Auto Lip-Sync compensation
Other Notable Advanced Features
- Charging of iPod, iPhone and iPad via USB when AV Receiver is off
- iPod/iPhone song titles displayed in English and Western European languages on the front panel
- Multi language color OSD for improved visibility
- Audio input assign capability for HDMI and component video input
- Audio Delay for adjusting Lip-Sync (0-250 ms)
- 40-station preset tuning / Auto preset tuning
- Preset remote unit
- Background Video feature (for Radio only)
Other Notable Surround Realism
- SILENT CINEMA and Virtual CINEMA DSP
Exceptional Audio PerformanceFeaturing 7-channel powerful surround sound with 192 kHz/24-bit Burr Brown DACs for all channels, the RX-V573 delivers high dynamic, powerful output capability to bring you cinema-like audio experience just in the comfort of your home. The RX-V573 uses discrete amp output stages, providing much better sound quality and better output drive for low impedance speakers. Zone B output means that users can enjoy 2-channel sound in a second room, while the main zone has 5-channel output (same source plays in both zones). The assignable amplifier support bi-amp connection. The Direct Mode makes for high quality sound reproduction while the low jitter PLL circuitry helps optimize sound imaging. The HD Audio format decoding for Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus and DTS-HD High Resolution Audio refreshes your listening experience with tantalizing high-definition audio that is as stunning as the high-definition pictures.
Future ReadyThe RX-V573 provides advanced HDMI features including 4K Pass-Through for higher picture quality, 3D for enjoying 3D video sources, and ARC (Audio Return Channel), which makes it easier to hear TV sound. It also supports Deep Color (30/36 bit), x.v.Color, 24 Hz Refresh Rate and Auto Lip-Sync compensation to sync the dialogue and pictures.
Network Functions Add More ConvenienceAirPlay allows music streaming from Mac, PC, iPod, iPhone, iPad. The AV Controller app lets you easily operate various functions from an iPod, iPhone, iPad or Android device. The access to Internet Radio (vTuner) allows you to keep track of your favorite station while the DLAN 1.5 function makes content share from your digital devices much easier than before.
CINEMA DSP 3D mode & VIRTUAL Presence SpeakerThe actually measured sound field data contain the information of the height of the sound images. CINEMA DSP 3D mode achieves the reproduction of the accurate height of the sound images so that it creates the accurate and intensive stereoscopic sound fields in a listening room. Thanks to Virtual Presence Speaker function, you can also enjoy CINEMA DSP 3D surround even without Front Presence Speakers.
SCENE – A NEW LEVEL OF OPERATING EASEFour SCENE buttons make operating the receiver easier than ever. They are initially set to default settings for DVD Viewing, Disc Listening, TV Viewing and Radio Listening. Pressing a SCENE button automatically launches a number of operations that initiate play of the source controlled by that button. Other SCENE settings are also available, such as iPod Listening, XM Listening, TV Sports Viewing and Action Game Playing. Browsing and selecting the settings is quickly accomplished by changing Input via the front panel and watching the on-screen display. The settings can be selected for one-time use, or they can replace the original default settings. The SCENE names can be changed also.
YPAO Automatic System CalibrationYamaha’s YPAO system uses a small microphone and sophisticated equalization to automatically set the best sound for any room, no matter where the speakers are. First it checks the speaker connections and phase of each speaker. Then it sends out tones which are captured by the microphone to analyze the room acoustics and sets a variety of parameters, such as the speaker size, the distance of the speakers and even the sound pressure level, etc. Until it achieves the best sound conditions for your room and you don't have to do anything!
