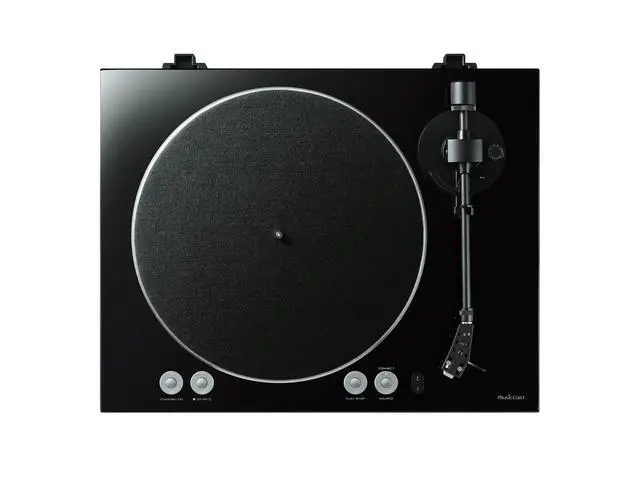

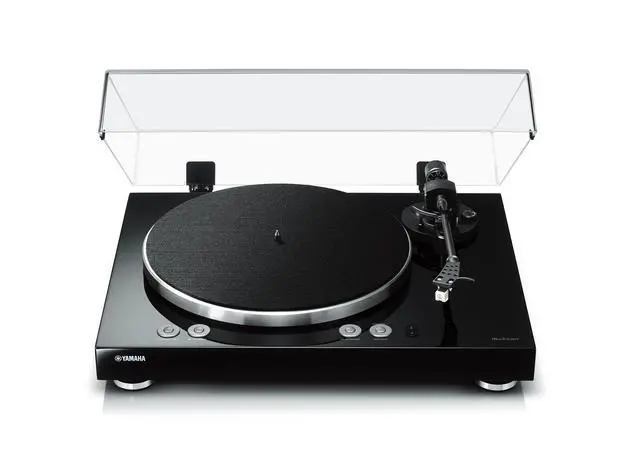

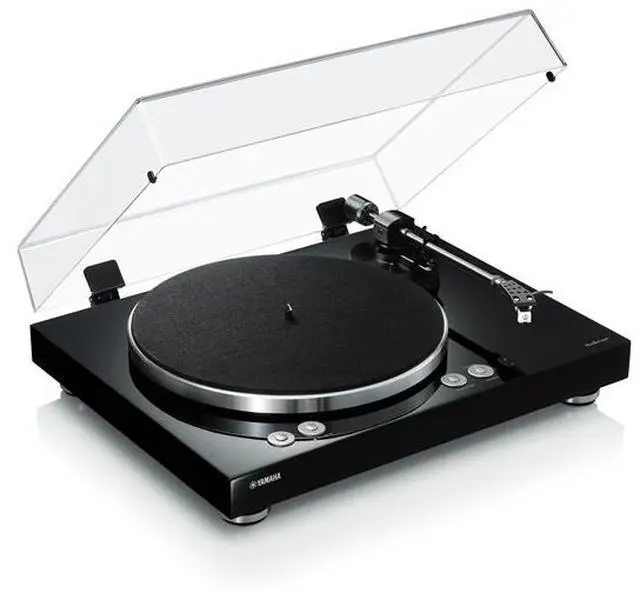

Yamaha TT-N503BL MusicCast VINYL 500 Wi-Fi Turntable - Black
- Wirelessly connect to any MusicCast device for seamless listening
- Straight tonearm contributes to sound transparency and openness
- Belt drive turntable
- Music streaming services built-in
- Wi-Fi built-in including support for 2.4 GHz and 5 GHz bands
+
+
Learn more about the Yamaha TT-N503BL
| Brand | Yamaha |
|---|---|
| Series | MusicCast VINYL 500 |
| Model | TT-N503BL |
| Part Number | TT-N503BL |
| Type | Turntable |
|---|---|
| Color | Black |
| Inputs | Network Section File Format: MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC / WAV / AIFF: up to 192 kHz / 24-bit, DSD: up to 11.2 MHz Ethernet: Yes Wi-Fi: Yes (2.4 / 5 GHz) AirPlay: Yes Bluetooth Section Version/Profile: Ver. 4.2 / A2DP, AVRCP Audio Codec: SBC, AAC Maximum Communication Range: 10 m / 32.8 ft. 10 in. (without interferene) Turntable Drive Method: Belt drive Motor: DC motor Wow And Flutter: 0.2% Platter: Aluminium die-cast (Diameter 30 cm) Output Level: 450 mV (-7 dBV, with RIAA EQ, 1 kHz, 3.54 cm / sec), 2.5 mV ± 3 dBV (without RIAA EQ, 1 kHz, 3.54 cm / sec) Signal To Noise Ratio: 67 dB or higher (A-weighted, 20 kHz, LPF) Tonearm Tonearm: Static balance straight tonearm Effective Arm Length: 223.5 mm Overhang: 19 mm Stylus Pressure Adjustment Range: 0-4 g Acceptable Cartridge Weight: 15.5-19 g (including headshell) Attached Cartridge Cartridge Type: MM type Output Voltage: 2.5 mV (1 kHz, 3.54 cm / sec) Stylus Pressure: 3.5 ± 0.5 g Cartridge Weight: 5.0 ± 0.3 g Cartridge Height: 17.0 ± 0.7 mm Head-shell Weight: 10 g (including screws, nuts and wires) |
|---|---|

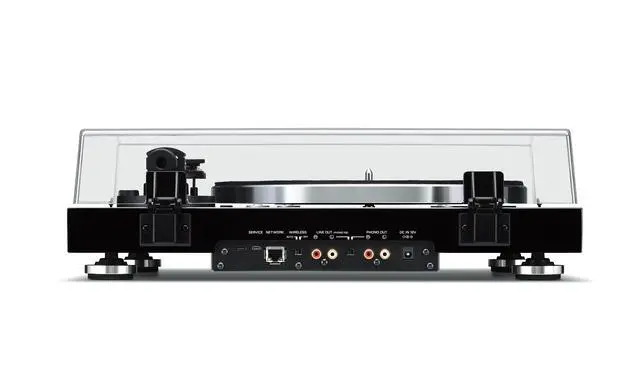

| Outputs | Output Terminal: RCA: 2 (PHONO, LINE) Output Level: 2.0 ± 0.3 V (1 kHz, 0 dB, Fs 44.1 kHz) Dynamic Range: 100 dB or higher (1 kHz, -60 dB, Fs 44.1 kHz) |
| Turntable Speed | Rotation Speed: 33-1/3 rpm, 45 rpm Rotation Speed Variation: +/- 2% |
| Support Format | MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC / WAV / AIFF: up to 192 kHz / 24-bit, DSD: up to 11.2 MHz |
| Frequency Response | Fs 44.1 kHz; 2 Hz to 20 kHz (+0 / -3 dB), Fs 48 kHz; 2 Hz to 24 kHz (+0 / -3 dB), Fs 96 kHz; 2 Hz to 48 kHz (+0 / -3 dB), Fs 192 kHz; 2 Hz to 96 kHz (+0 / -6 dB) |
| Signal-to-Noise Ratio | [IHF-A network] 110 dB or higher (Infinity zero, Fs 44.1 kHz) |
| Total Harmonic Distortion | Harmonic Distortion: 0.003 % or lower (1 kHz, 0 dB, Fs 44.1 kHz) |
| Power Consumption | Power Consumption: 6W Standby Power Consumption: 1.4 W (Network standby ON, Bluetooth standby OFF, Wired), 1.8 W (Network standby ON, Bluetooth standby ON/OFF, Wi-Fi), 1.6 W (Network standby ON, Bluetooth standby ON, Wired) |
|---|
| Feature | Wirelessly connect to any MusicCast device for seamless listening Straight tonearm contributes to sound transparency and openness Belt drive turntable Music streaming services built-in Wi-Fi built-in including support for 2.4 GHz and 5 GHz bands |
|---|
| Dimension | 17-3/4” x 5-3/8” x 14-1/2” |
|---|---|
| Weight | 12.6 lbs. |
| First Listed on Newegg | March 23, 2026 |
|---|
