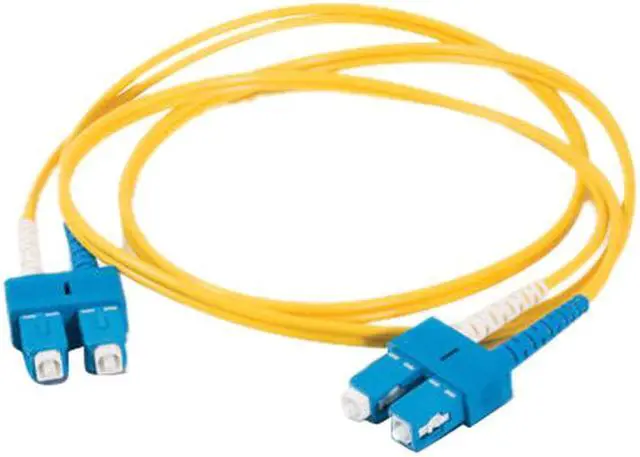

MAIN OVERVIEW FEATURES: Cable Type: Fiber OpticCable Characteristic: Patch CableFiber Optic Mode: Single-modeCore/Cladding Diameter: 9/125 µmCable Length: 19.69 ftConnector on First End: 2 x SC NetworkConnector on Second End: 2 x SC NetworkColor: YellowWeight (Approximate): 2.88 ozEnvironmentally Friendly: YesEnvironmental Certification: RoHSCountry of Origin: ChinaLimited Warranty: Lifetime
Cost-effective solution that provides high bandwidth and transmission rates over longer distances. With SC to SC termination, this high-quality fiber optic patch cable is specifically designed for gigabit Ethernet applications. The proprietary injection molding process provides each connection greater durability in resisting pulls, strains and impacts from cabling installs.
Each cable is 100% optically inspected and tested for insertion loss before you receive it. A pull-proof jacket design surrounds the popular 9/125 single mode fiber, immune to electrical interference.
Quality Fiber Optic Patch CableCables To Go high quality Duplex single mode fiber optic patch cable provides blazing fast data transmission rates over a long distance, ideal for use in Gigabit network applications.
Excellent ConstructionThis premium fiber optic patch cable comes encased in a pull-proof jacket and features injection molding process to provide better resistance in pulls, strains and impact for years of hassle-free use.
Learn more about the Cables To Go 37488
Model
Brand
C2G
Model
37488
Type
Fiber
Type
Others
Color
Yellow
Details
Length
19.69 ft.
Connector Number
1
Connector Detail
Connector A: 2 x SC Male Connector B: 2 x SC Male
Specifications
SC Connector Dimensions: 10.6mm Height x 26mm Width x 58mm Depth (with installed duplex clip) Maximum Connector Loss: 0.50 dB Typical Connector Loss: 0.30 dB Typical Return Loss: -25 dB Buffer Material: PVC Buffer OD: 900 um Jacket Material: PVC (OFNR riser-rated) Jacket OD:2.8 mm Installation Tensile Load: 100 N (445 lbs) Long-Term Tensile Load: 50 N (222 lbs) Maximum Tensile Load: 100 N/cm Installation (Loaded) Minimum Bend Radius: 5.0cm (1.97in) Long-Term (Unloaded) Minimum Bend Radius: 3.0cm (1.2in)Crush Resistance: 750 N/cmImpact Resistance: 1,000 cycles Flex Resistance: 5,000 cycles Attenuation at 1550 nm: 0.25 dB/km Attenuation at 1310 nm: 0.35 dB/km Operating Temperature: -20ºC to +70ºC Please Note: Attenuation testing performed in accordance with EIA/TIA-455-171A.
Features
Features
Cost-effective solution that provides high bandwidth and transmission rates over longer distances. With SC to SC termination, this high-quality fiber optic patch cable is specifically designed for gigabit ethernet applications. The patented injection molding process provides each connection greater durability in resisting pulls, strains and impacts from cabling installs.
Each cable is 100% optically inspected and tested for insertion loss before you receive it. A pull-proof jacket design surrounds the popular 9/125 single mode fiber, immune to electrical interference.
