What is the maximum tensile load for the C2G 37483 Fiber Optic Cable?

The maximum tensile load for the C2G 37483 Fiber Optic Cable is 100 N/cm.

What are the connector types of the C2G 37483 Fiber Optic Cable?

The C2G 37483 Fiber Optic Cable has LC Male as Connector A and ST Male as Connector B.

$26^.99

$52.02

Limit 99999 per customer.

Price alert

Add to wish list

Sold by Newegg

Shipped by Newegg

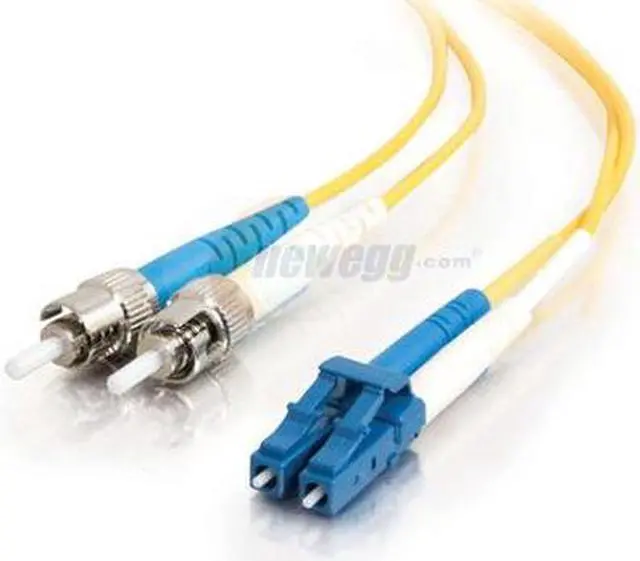

Main image of C2G 37483 OS2 Fiber Optic Cable - LC-ST 9/125 Duplex Single-Mode PVC Fiber Cable, Yellow (32.8 Feet, 10 Meters)

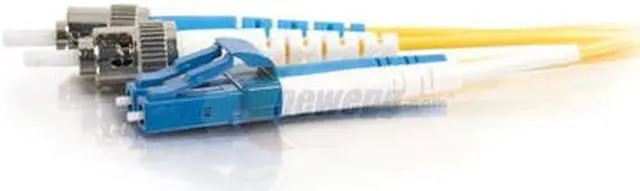

Alt view image 2 of 4 - C2G 37483 OS2 Fiber Optic Cable - LC-ST 9/125 Duplex Single-Mode PVC Fiber Cable, Yellow (32.8 Feet, 10 Meters)

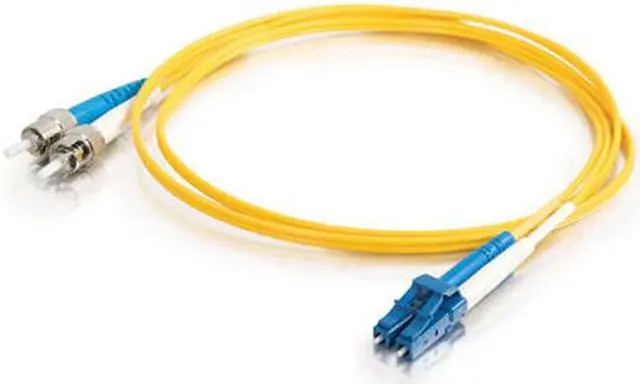

Alt view image 3 of 4 - C2G 37483 OS2 Fiber Optic Cable - LC-ST 9/125 Duplex Single-Mode PVC Fiber Cable, Yellow (32.8 Feet, 10 Meters)

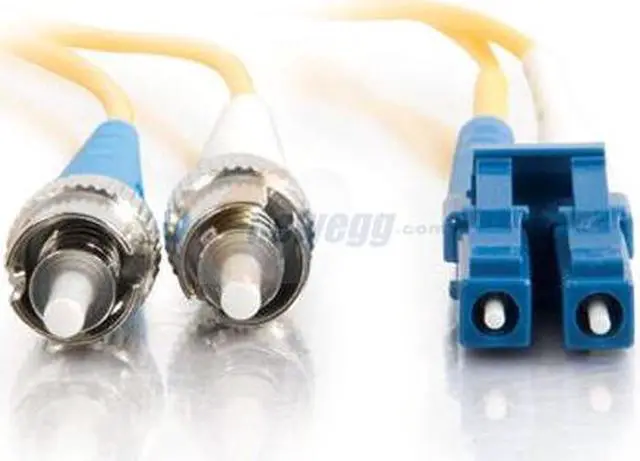

Alt view image 4 of 4 - C2G 37483 OS2 Fiber Optic Cable - LC-ST 9/125 Duplex Single-Mode PVC Fiber Cable, Yellow (32.8 Feet, 10 Meters)

Shop All Cables To Go Products

C2G 37483 OS2 Fiber Optic Cable - LC-ST 9/125 Duplex Single-Mode PVC Fiber Cable, Yellow (32.8 Feet, 10 Meters)

Be the first to review this product...

4 Connector Number
Yellow

Overview

Specs

Reviews

See all Q & A

10M LC-ST 9/125 DPX OS1/2 SM FBR-YW

Model
Brand	C2G
Model	37483
Type	Network Cable
Type	Cable Connectors
Color	Yellow

Details
Length	32.81 ft.
Connector Number	4
Connector Detail	Connector A: LC Male Connector B: ST Male
Specifications	LC Connector Dimensions: 10.75mm - Height x 12.5mm - Width x 50mm - Depth (with installed duplex clip) ST Connector Dimensions: 9.8mm - Height x 19.6mm - Width x 59mm - Depth Maximum Connector Loss: 0.50 dB Typical Connector Loss: 0.30 dB Typical Return Loss: -55 dB Buffer Material: PVC Buffer OD: 900 um Jacket Material: PVC (OFNR riser-rated) Jacket OD: 1.8 mm Installation Tensile Load: 100 N (445 lbs) Long-Term Tensile Load: 50 N (222 lbs) Maximum Tensile Load: 100 N/cm Installation (Loaded) Minimum Bend Radius: 5.0cm (1.97in) Long-Term (Unloaded) Minimum Bend Radius: 3.0cm (1.2in) Crush Resistance: 750 N/cm Impact Resistance: 1,000 cycles Flex Resistance: 5,000 cycles Attenuation at 1550 nm: 0.25 dB/km Attenuation at 1310 nm: 0.35 dB/km Operating Temperature: -20 Degree to +70 Degree Please Note: Attenuation testing performed in accordance with EIA/TIA-455-171A. Length: 10m Weight: 0.2 lbs. Jacket Rating: Standard

Features
Features	Cost-effective solution that provides high bandwidth and transmission rates over longer distances. With LC to ST termination, this high-quality fiber optic patch cable is specifically designed for gigabit ethernet applications. The patented injection molding process provides each connection greater durability in resisting pulls, strains and impacts from cabling installs. Each cable is 100% optically inspected and tested for insertion loss before you receive it. A pull-proof jacket design surrounds the popular 9/125 single mode fiber, immune to electrical interference.

Group
Length	0.5 ft.

Additional Information
First Listed on Newegg	March 24, 2011

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

Return for refund within: 45 days

Return for replacement within: 1 year

This item is covered by Newegg.com's 45/1 Return Policy.
Read full return policy for details.

Manufacturer Contact Info

Manufacturer Product Page
Manufacturer Website
Support Phone: 1-800-506-9607
Support Email: customer-service@c2g.com
