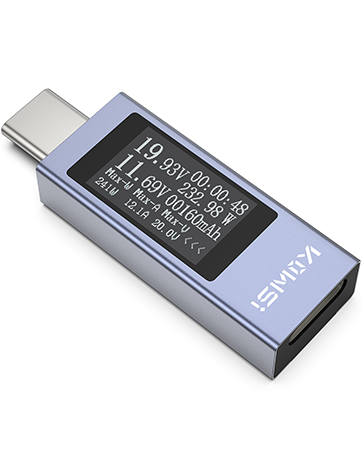

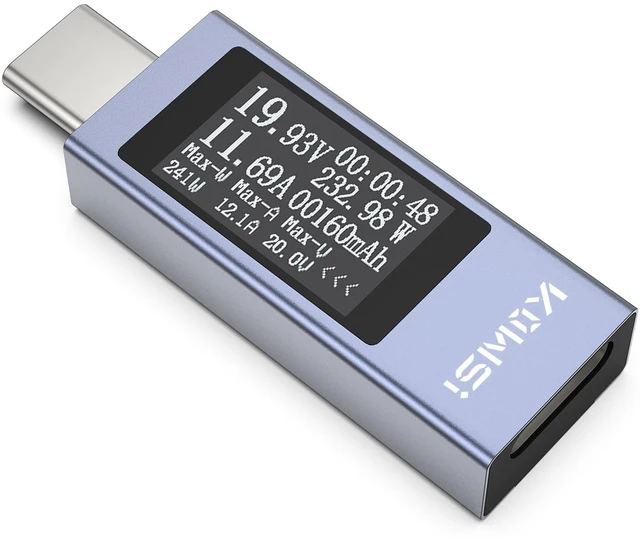

Updated Version of USB Tester - More Functions
- New Feature: Support maximum recording watts/amps/volts
- It supports bidirectional electricity and indicates the direction of the current.
Notice:
- If it is powered by USB A charger, the USB tester's screen will turn on without the USB C device connected.

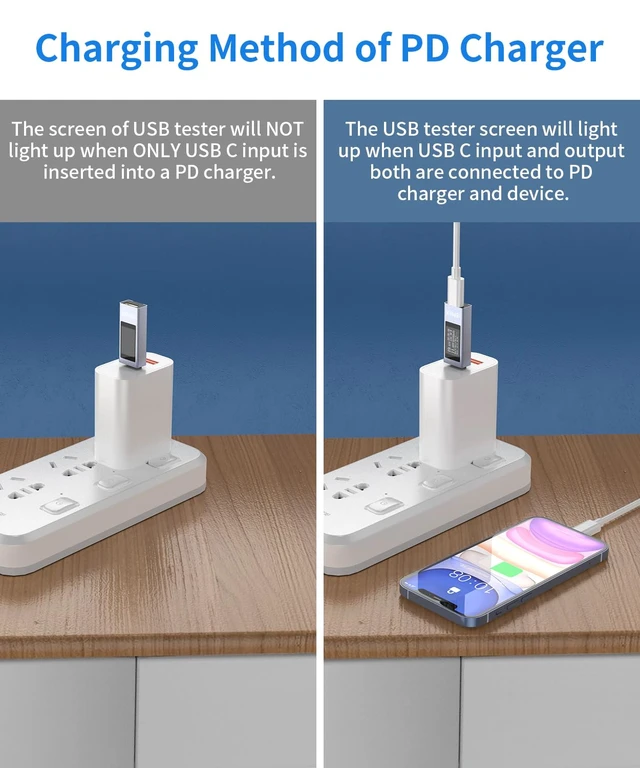

- If it is powered by PD charger, the USB tester must be connected to the USB C device so that the USB tester screen can light up.
Package Content
- 1 x USB C Tester
- 1 x Storage Box
- 1 x User Manual

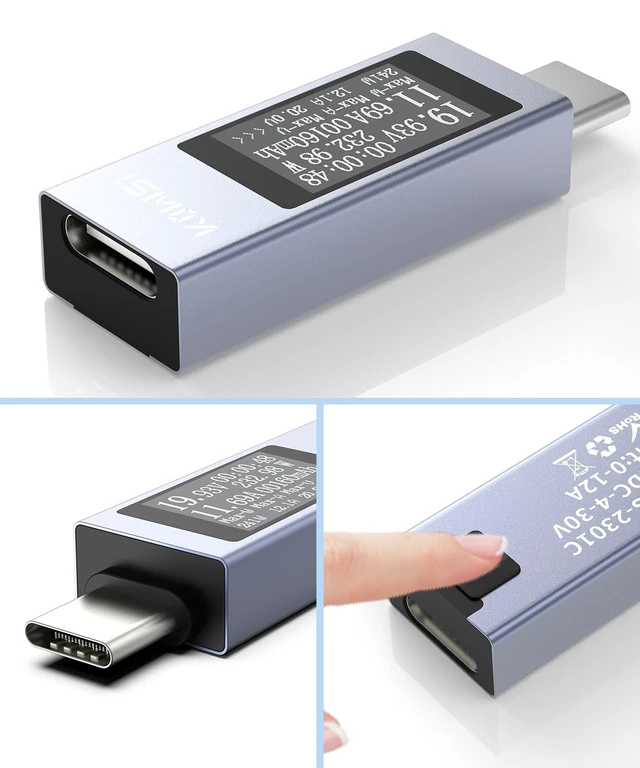

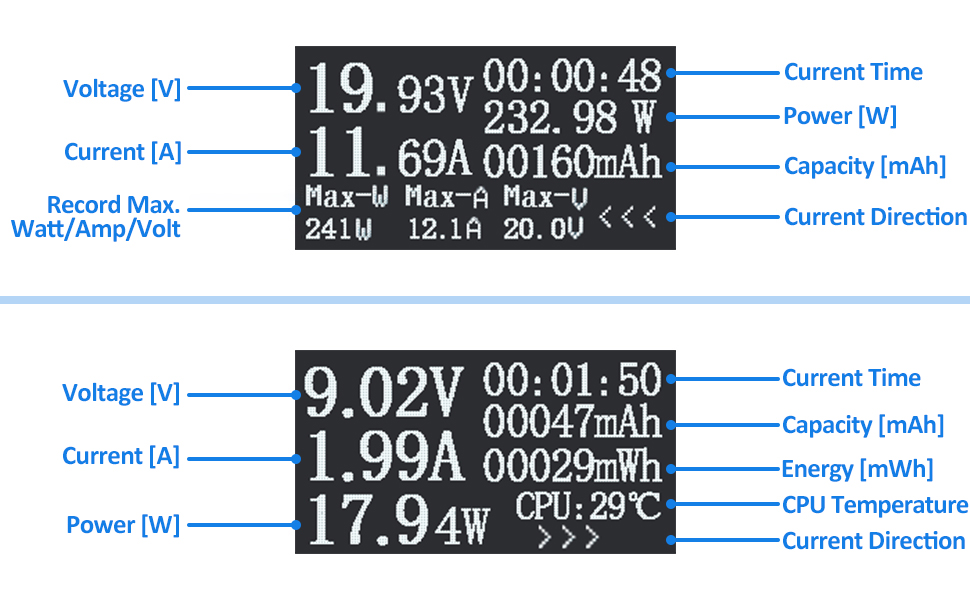

Operation Method
- Click the button once to cycle through the screens.
- Double-click the button to rotate the displayed content.
- Press and hold the button for 3 seconds to clear all capacity, amount of electricity and time.

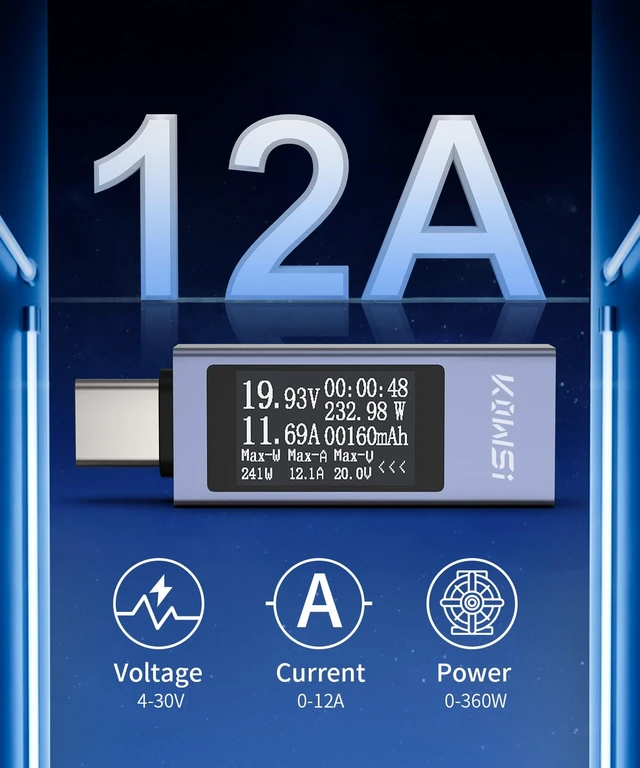

Specifications
- Model: KWS-2301C
- Voltage: 4-30V
- Current: 0-12A
- Energy: 0-360W
- Capacity: 0-99999mAh
- Electricity: 0-99999WH
- Time: 0-99h
- Record the maximum power
- Record the maximum current
- Record the maximum voltage
Additional Note
Please note that if no device (host, charger, accessory, etc.) is connected to both ends, the USB tester cannot be turned on under normal circumstances. Both ends of the USB tester must be connected to work properly.

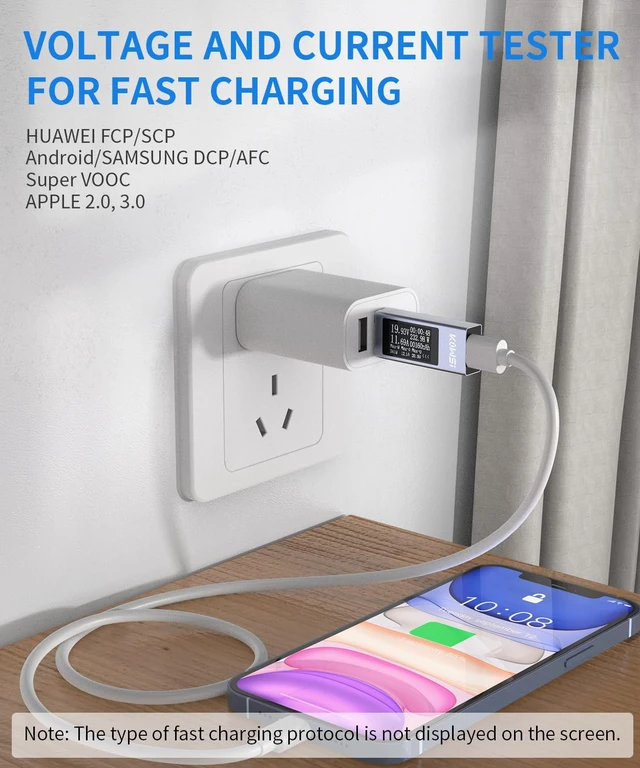

Test the maximum output current of the charging device

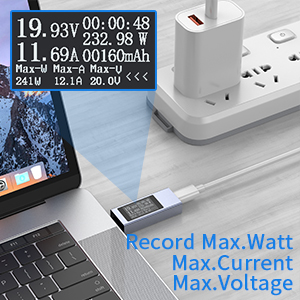

Supports maximum watt/amp/volt recording

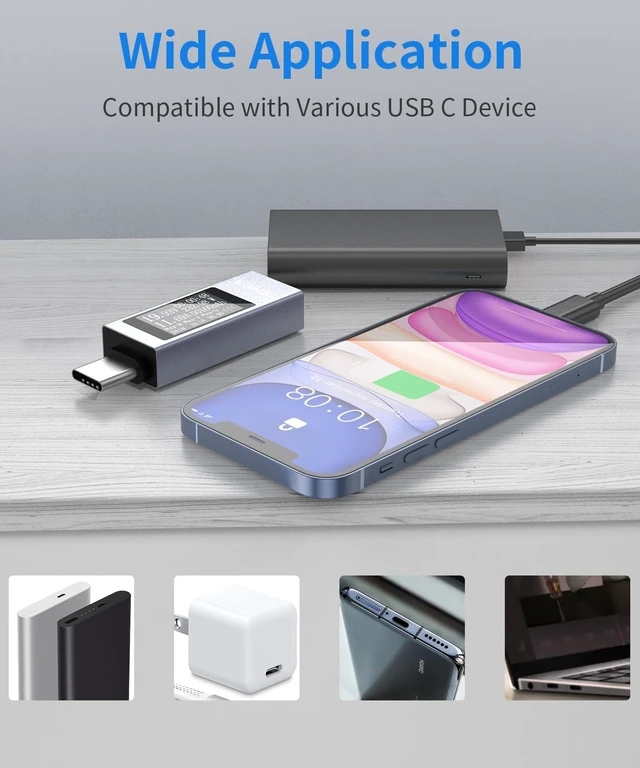

The USB measuring device can test the highest electrical output of the stable wireless charger/wireless charging cart/wireless.

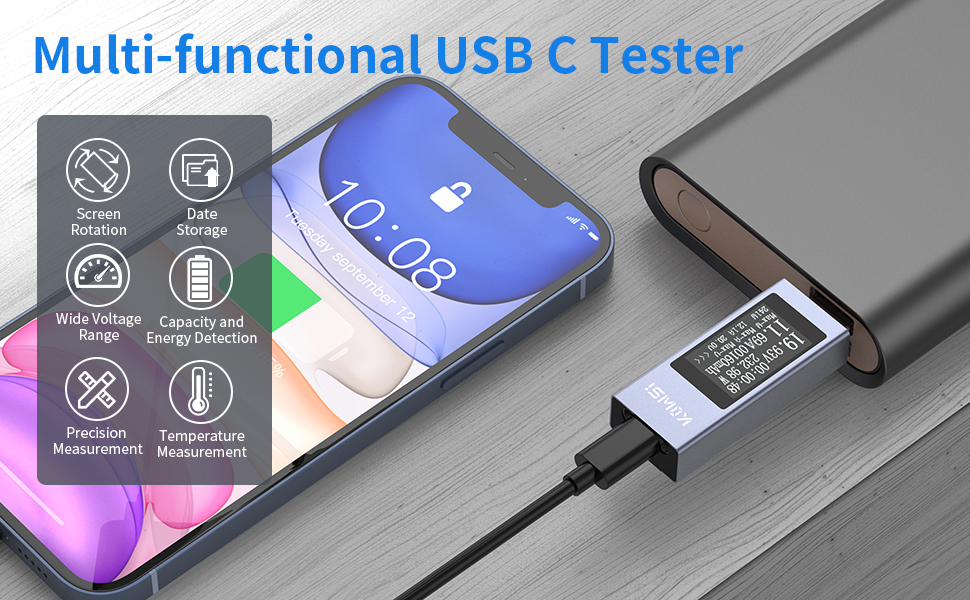

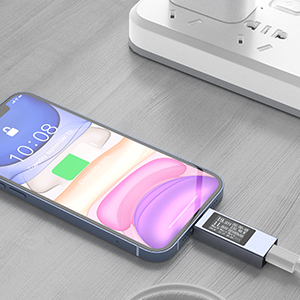

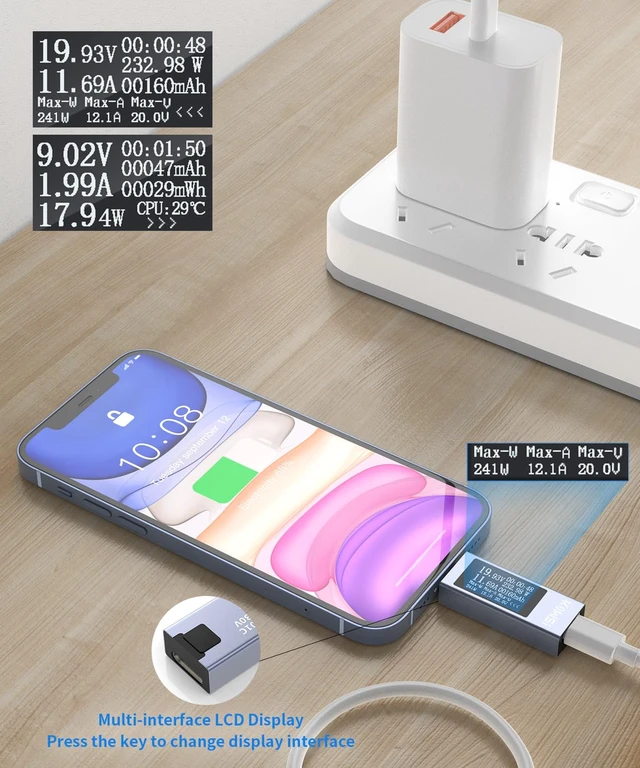

Monitor charging status in real time
When turning on Type-C devices, connect a Yojock test measurement device to monitor voltage, electricity, capacity, performance, temperature and other technical parameter information in real time. With upgrade storage function, which is convenient for later consideration.

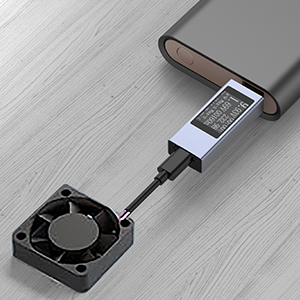

Test capacity and electrical energy of the Power Bank
First of all fully charge the power bank, then connect this USB C tester to it and restore the capacity and electricity by long pressing. Then fully discharge with the USB C meter with a 5V load until the power bank runs out of power. The mAh it shows is the real capacity of your power bank.
YOJOCK is a global brand in the consumer electronics accessories industry, provide customer around the world with high quality product and authentic service.
We devote ourselves to provide reliable, safe, durable and stable quality products to our customers. Take a look at our extensive products on store. I believe you will be able to find to meet the needs of electronics products.
YOJOCK USB C Tester
A Must Gadget checks the charging performance(charging speed and quality).
USB Tester Tool
