Mac M1 Users
- This Mac Style Triple Display Dock can drive 2 or 3 monitors on a MacBook with an M, a driver[Displaylink] can help you break through the external monitor limitation of the Apple Silicon M1 chip!
Triple 4K@60Hz Diaplays

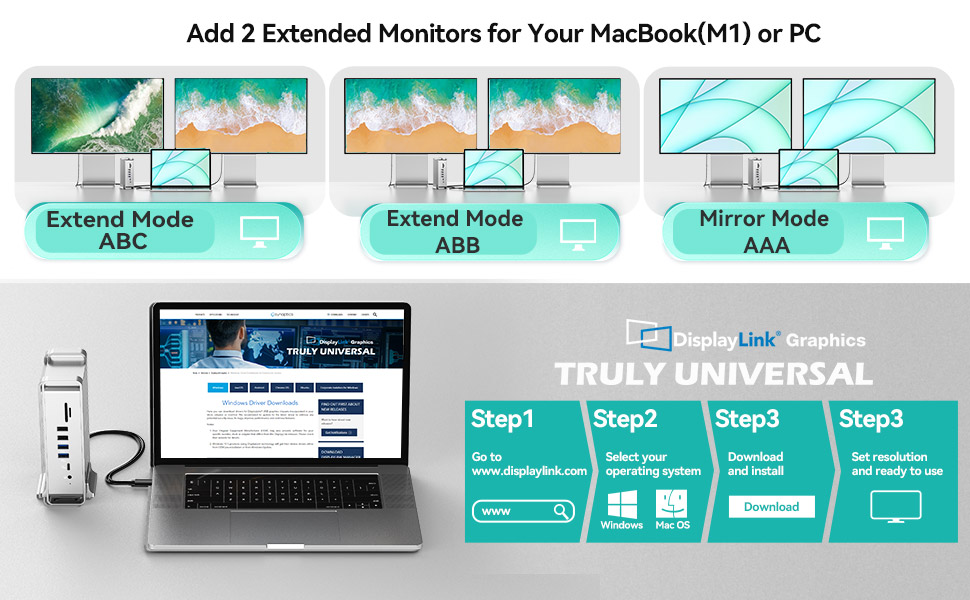

- This Displaylink docking station equipped with 2*HDMI and 1*DP ports, allowing you to expand up to triple display with your monitor, and three output modes can be set.

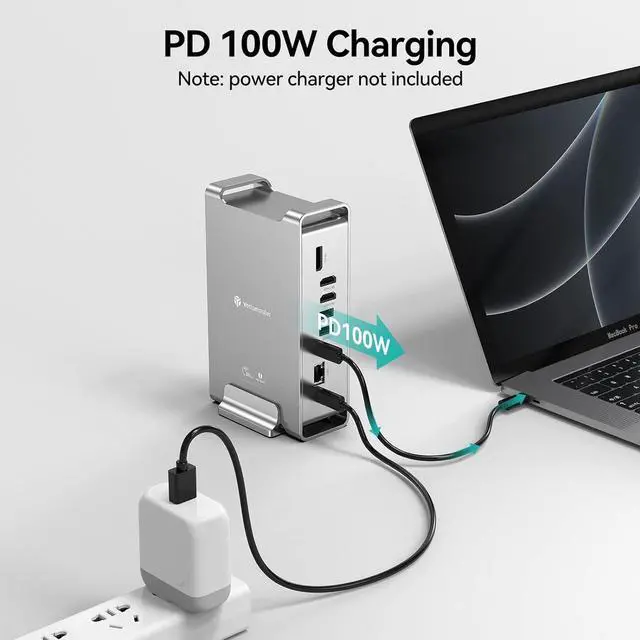

100W Fast Charging
- This USB-C docking station with Power Delivery can charge your laptop with up to 100W, so you can leave your laptop charger in your travel bag. It also can charge your other devices.
Perfect Complement for Your Mac
- A USB C docking station that made of high quality aluminum alloy - will be perfectly compatible with Mac Devices.

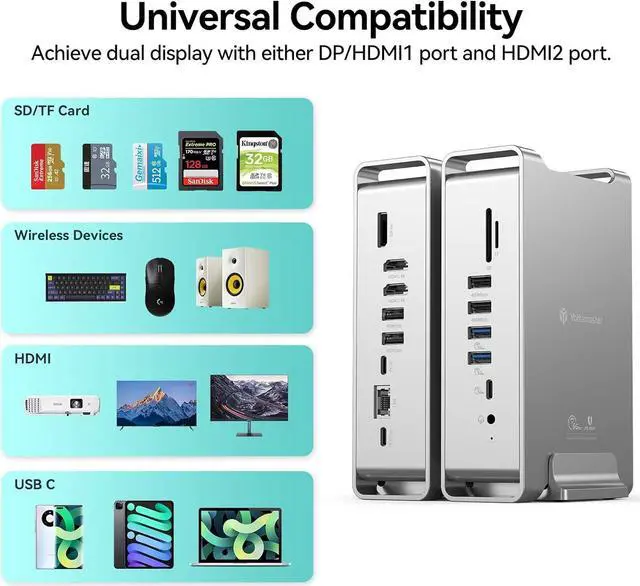

Powerful Compatibility
- This USB C Dock support Windows 10 or later, and macOS 11+ systems with Thunderbolt 4, Thunderbolt 3, USB4, and USB-C.

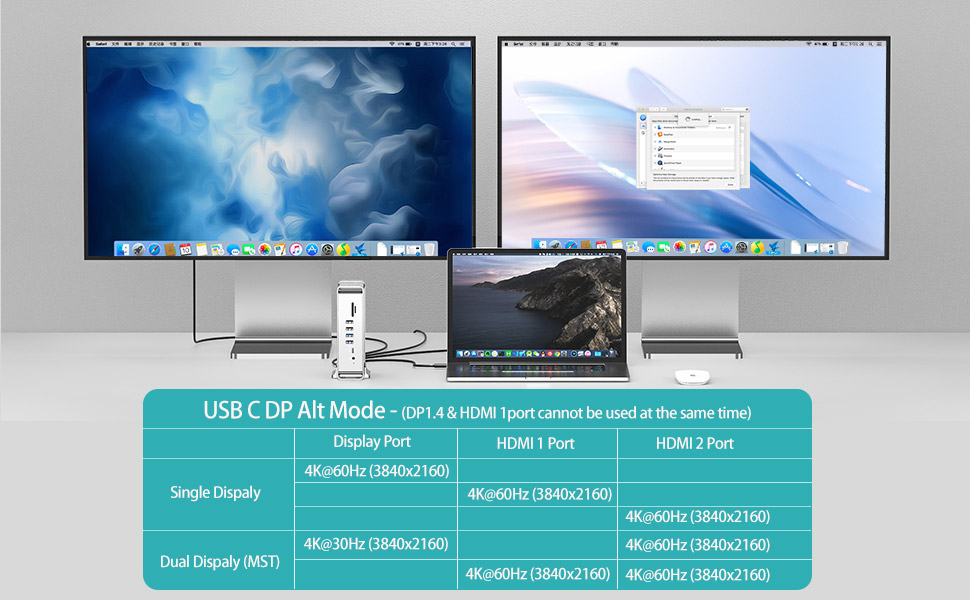

Connected to a single monitor
- 4K@60Hz via the HDMI 1 port,
- 4K@60Hz via the HDMI 2 port,
- 4K@60Hz via the DisplayPort.
Connected to two monitors
- 4K@30Hz + 4K@60Hz (via the DisplayPort and the HDMI 2 port),
- 4K@60Hz + 4K@60Hz (via the HDMI 1 port and the HDMI 2 port).
Note: DP1.4 & HDMI 1port cannot be used simultaneously!

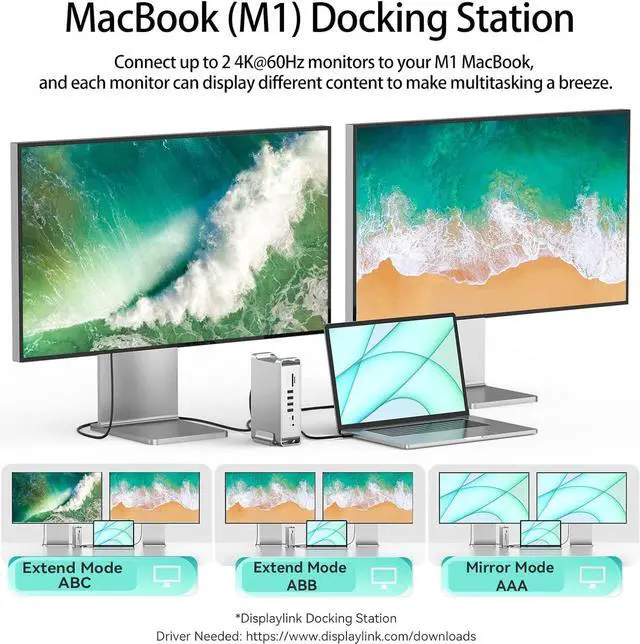

- Connect up to 2 4K@60Hz monitors to your M1 MacBook, and each monitor can display different content to make multitasking a breeze.

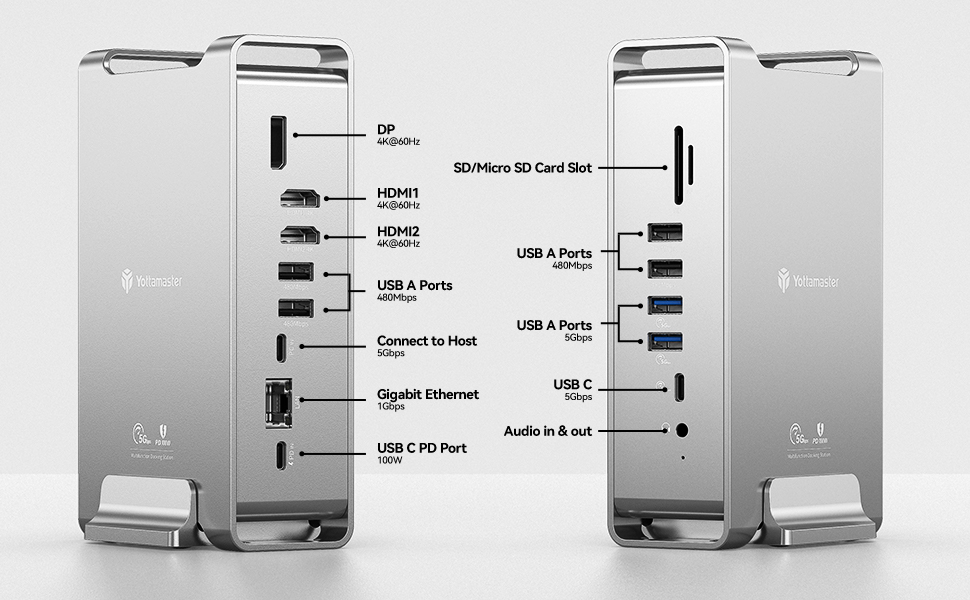

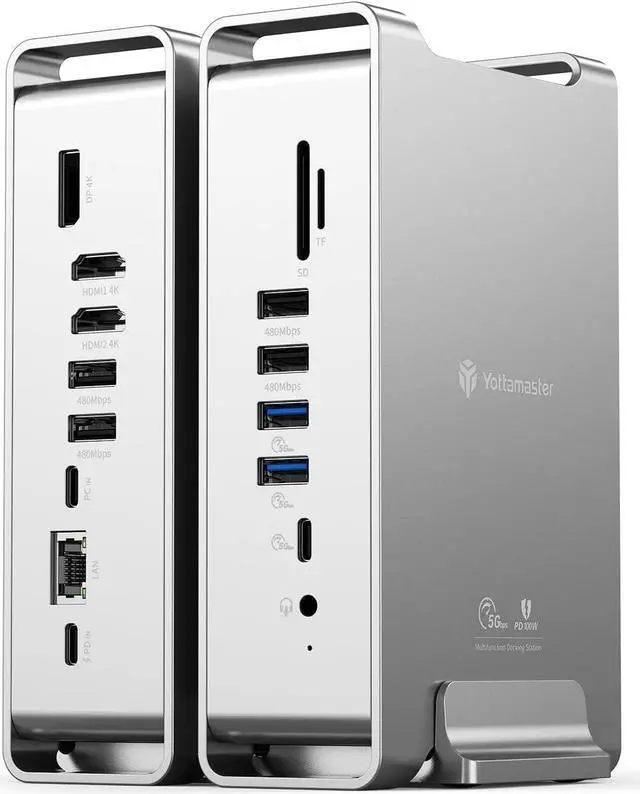

- 1 X DP port DP1.4 - 4K @ 60Hz
- 1 X HDMI port 1 - 4K @ 60Hz
- 1 X HDMI port 2 - 4K @ 60Hz
- 4 X USB-A - USB2.0 480Mbps
- 1 X USB-C (PC IN) - 5Gbps * For connecting this usb c dock to laptop/PC
- 1 X LAN RJ45 - 10/100/1000 BASE-TX Auto MDI / MDI-X, 1000Mbps
- 1 X USB-C (PD IN) - USB3.1 Gen1 5Gbps, maximum 20V / 5A PD input
- 1 X SD & TF slot - SD2.0 / UHS-II
- 2 X USB-A - USB3.1 Gen1 5Gbps
- 2 X USB-C - USB3.1 Gen1 5Gbps
- 1 X Audio in & out - 3.5mm stereo audio output & MIC input
Important Note
- HDMI 2 and DisplayPort cannot be used at the same time.
- SD and TF slots cannot be read and written at the same time.
The SD & TF slot is located at the top front of the usb c docking station, making it convenient to read and write the SD & TF card removed from the camera.
Note: SD and TF slots cannot be read and written at the same time.
Yottamaster triple dispaly docking station support 10/100/1000 Mbps ethernet. Just plug and play, it can provide fast and stable ethernet for your laptop.
The 3.5mm audio jack features both stereo and microphone functionality. Can connect earphones, headphone with microphone, speakers, etc.
