    Yottamaster 5 Bay External Hard Drive Enclosure, Aluminum USB3.0 3.5" HDD Enclosure for 3.5 2.5 Inch SATA HDD Support 5 x 16TB, Mac Style Direct Attached Storage (DAS) [PS500U3]

    (7) Write a Review
    • USB 3.0 Type-B
    • USB 3.0 Type-C
    • Without RAID
    • With RAID
    • 2 Bay
    • 2 Bay|2 Bay USB A
    • 4 Bay
    • 5 Bay
    • Reliable External Storage System for IndividualsThis 5 bay hdd enclosure support up to 80TB external expanded storage. It can support different drive type(s)-2,5"/3,5" HDD/SSD.
    • 80TB Large Storage Capacity The multi-bay hard drive enclosure can house up to 5 hard drives, single disk support up to 16TB.
    • 80mm Silent Fan InsideThe 5 bay sata enclosure built with rugged heat-dissipating aluminum shell, front and rear with cooling holes, a 80mm silent fan inside can effectively accelerate air convection and rapid cooling.
    • For 2.5/3.5 SATA Hard DriveYottamaster aluminum sata hdd enclosure features with 5 removable trays, allowing for easy installation and replacement of either the large desktop hard disk drives or the portable laptop drives and SSD's.
    • 6Gbps Transfer RateThis 5 bay hdd enclosure adopt SATA III protocol, transfer rate up to 6Gbps (MAX). Equipped with a versatile USB3.0 Type-B interface to connect other peripheral devices.
    +
    +
    Overview
    Specs
    Reviews (7)
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    Reliable External Storage System for IndividualsThis 5 bay hdd enclosure support up to 80TB external expanded storage. The front door adopt user-friendly PUSH Design for easy install and replacement of hard drives. It is an ideal choice for personal storage at home and office. It can support different drive type (s) -2, 5"/3, 5" HDD/SSDs, so you can take advantage of your hard drives' potential fully.
    80TB Large Storage Capacity The multi-bay hard drive enclosure can house up to 5 hard drives, single disk support up to 16TB. Such Large capacity supported let you handle various work demands easily, like digital imaging, video production/editing, duplicating footage, create and manage archives.
    80mm Silent Fan InsideThe 5 bay sata enclosure built with rugged heat-dissipating aluminum shell, front and rear with cooling holes, a 80mm silent fan inside can effectively accelerate air convection and rapid cooling. It is ideal for noise-sensitive environments.
    For 2.5 / 3.5 SATA Hard DriveThe 5 bay hard drive enclosure is designed for 2.5 / 3.5 SATA HDD or SSDs. Yottamaster aluminum sata hdd enclosure features with 5 removable trays, allowing for easy installation and replacement of either the large desktop hard disk drives or the portable laptop drives and SSD's.
    6Gbps Transfer RateThis 5 bay hdd enclosure adopt SATA III protocol, transfer rate up to 6Gbps (MAX). Equipped with a versatile USB 3.0 Type-B interface to connect other peripheral devices. Compatible with most Windows, Mac and Linux systems.
    Hard Drive Usage NoteIf you are using a brand new hard drive, it may need to be formatted and partitioned before it can be recognized by the computer. Please remember to back up your data.
    5 Bay Hard Drive Enclosure for 2.5"/3.5" HDD/SSDs - 5 X 16TB

    The aluminum multi-bay hard drive enclosure can house up to 5 SATA hard drives, single disk support up to 16TB. Such Large capacity supported let you handle various work demands easily, like digital imaging, video production/editing, duplicating footage, create and manage archives.

    Product Description
    With aluminum alloy body and anodizing surface, a kind of excellent design
    Main Feature
    • Single disk support up to 16TB,
    • Support Windows/MAC/Linux Systems,
    • PUSH design allows you to replace the hard drive more conveniently,
    • USB3.0 to SATA 3.0 6Gbps Transfer Speed. Backwards compatible with USB2.0/1.1.
    • Dimensions and Weight: L x W x H: 25.2 x 13.6 x 16.9 cm, 9.92 x 5.35 x 6.65 inch. Weight: 3.33kg / 117.36 oz / 7.33 lb.
      The device needs to be connected directly to your computer. Do not connect it via hub.

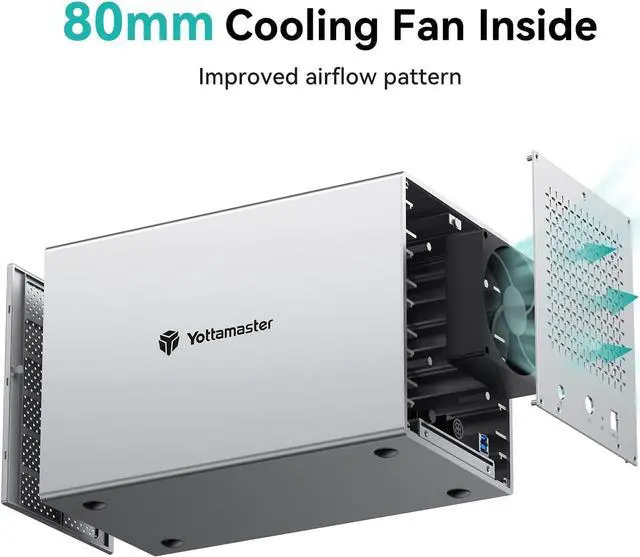

    80MM Silent Fan
    Cool all-aluminum body
    Keep your HDD/SSD in normal temperature
    • Front and rear with large area cooling holes.
    • 80mm fan speed up convection and rapid cooling.
    6Gbps Data Transfer
    USB3.1 GEN1 Type-B 6Gbps
    USB3.0 to SATA III Protocol
    • With USB-A to Type-B cable (1m/3.3ft)
    • With a versatile USB-A port to connect your peripheral devices.

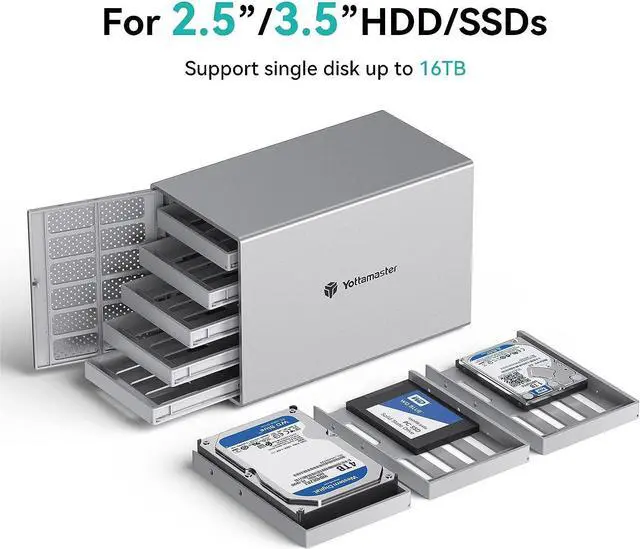

    Support Up to 80TB
    House up to 5 hard drives
    Support 2.5"/3.5" SATA HDD/SSDs
    • 5 removeable trays.
    • Easy to install/replace the large desktop drives or the laptop drives & SSDs.
    2-Year Rplacement
    What We Offer for You?
    What We Offer for You?

    2-Year F-R-E-E Rplacement & Life-time Tech Supp-ort.

    Five LED Indicator Lights
    Five LED Indicator Lights
    Five LED Indicator Lights
    • Blue light: Power on
    • Blinking blue and red alternately: Reading data
    • Red light: Hard drive error

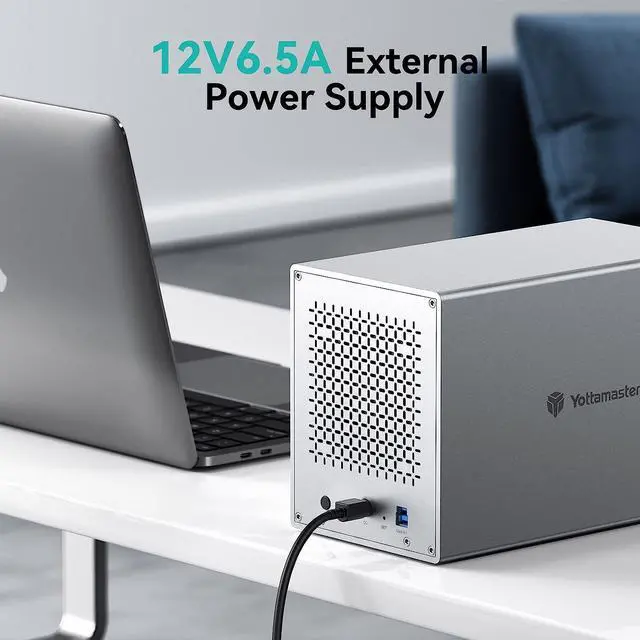

    Precautions for Power Supply Plug
    Precautions for Power Supply Plug
    Precautions for Power Supply Plug

    Please refer to the picture attached to insert the plug as the indicated direction, or the enclosure won't work properly if the plug is inserted in a wrong direction.

    Make sure that the flat end of the power connector is facing up.

    Widely Application

    How do i know if one of the hard drive is failed?
    If one of the drives is damaged/failed, the corresponding indicator will turn red and the enclosure will make a warning sound(beep).

    How to Replace A Hard Drive?
    1. Find the drive(bad one or the one you wanna replace). Eject the enclosure from PC then power off the enclosure.
    2. Pull out the drive. Format the new drive on another device first. Then insert it to the original position and turn on the enclosure.


    How to add a new hard drive into the enclosure?
    1. Safely eject the enclosure from your computer and then turn off the enclosure.
    2. If the drive you want to add is a brand new drive, please format it on another device. Then insert it into the enclosure. Do not change the drive order.

    Can I connect the device to the computer through a hub?
    We recommend that you connect the device directly to the computer, as the connection may be unstable through a hub.

    What is the specification of the fan?
    The diameter is 80mm, the voltage is 12V, and there is no current limit. 2 PIN.
