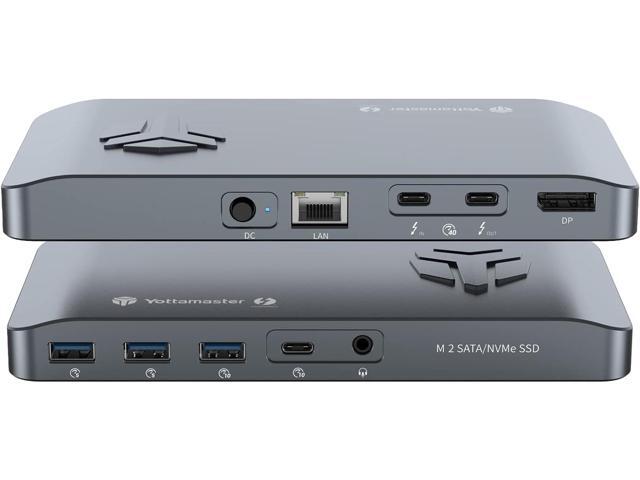

Thunderbolt 3 Dock with Dual M.2 Slot-2800MB/s, Yottamaster Thunderbolt 3 Hub with Cooling Fan- Support Dual 4K Display, 2 Thunderbolt 3, DP, 120W PD, Ethernet, USBA USBC 10Gbps, Audio [MS5]

Be the first to review this product...
  • Brand Yottamaster
  • Hardware Interface Ethernet
  • Compatible Devices Thunderbolt 3 Mac or Windows systems
  • Total USB Ports 9
  • Number of Ports 11
  • Item Weight 1 Kilograms
  • Total HDMI Ports 1
  • Wattage 120 watts
Overview
Specs
Reviews
About this item
Intel-Certified 9 IN 1 Thunderbolt 3 Dock This TB3 dock is full of features by integrating 9 multi-function ports, which comes with 2 X Thunderbolt 3 Port, 1 X USBC Gen 2 10Gbps port, 1 X USBA Gen 2 10Gbps port, 2 X USB-A 5Gbps Port, 1 X HDMI port, 3.5 mm combo jack, Gigabit Ethernet port. It can support Windows 8 and above/Mac OS 10.12 and above (NOT support Linux system). Compatible with M1 MacBooks. Thunderbolt 4/USB4 Compatible. No Driver needed.
Dual 4K DisplaysThis thunderbolt 3 docking station with cooling fan can support dual 4K@60Hz monitors via DisplayPort and Thunderbolt 3 port, or connect a single 5K/8K 60Hz monitor via the Thunderbolt 3 port.
NOTE: DisplayPort to HDMI/DVI/VGA adapter/cable must be an ACTIVE type. Warning! --Mac OS doesn't support Multi-Stream Transport (MST).

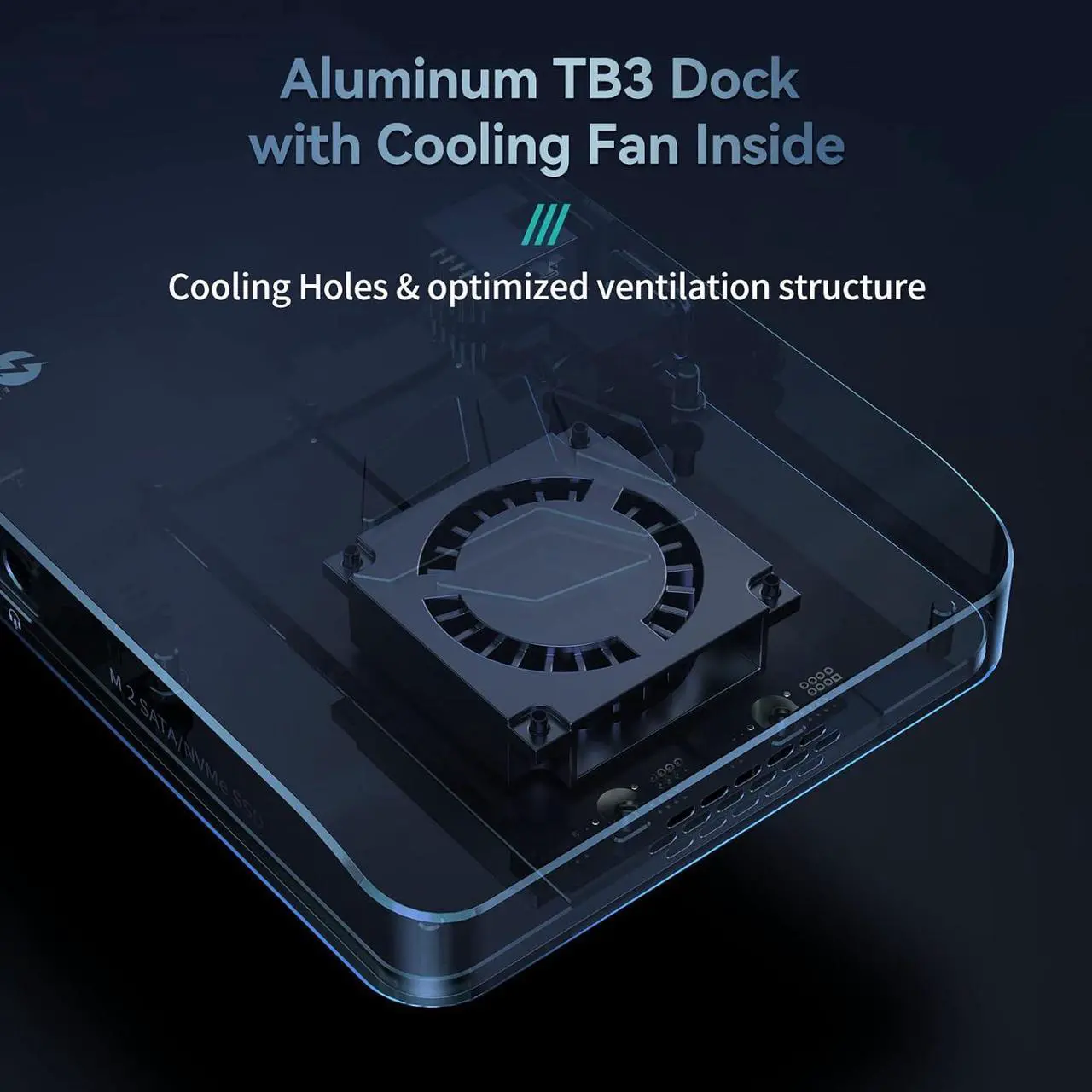

Cooler Than EverTriple cooling design - A turbo cooling fan is located under the SSD Slot, which ensures that the waste heat is released into the ambient air. The venting holes on the both side optimized the ventilation system. The internal silicone pad continuously conducts heat to the shell. Let you get the top of performanc even in most demanding workflows.

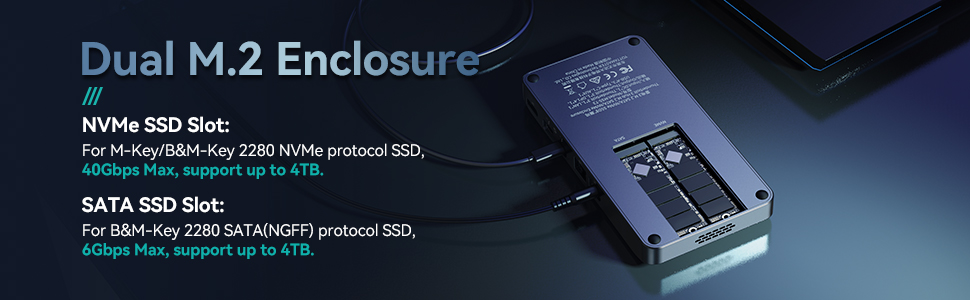

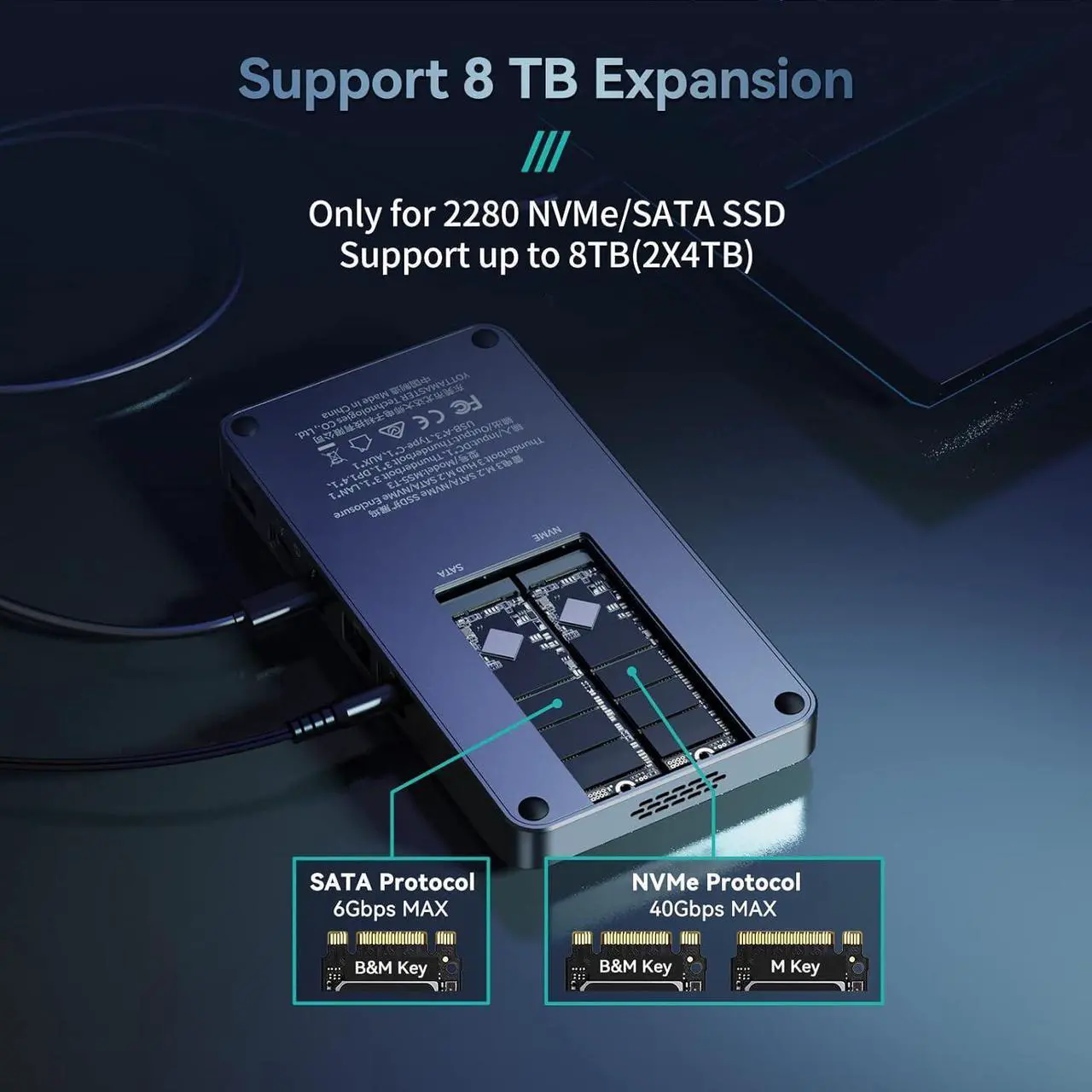

8TB Expansion - Dual M. 2 SSD EnclosureThe thunderbolt 3 nvme hub features TWO M. 2 slot (back), used for NVMe SSD and SATA SSD respectively.
NVMe SSD Slot: For M-Key/B&M-Key 2280 NVMe protocol SSD, 40Gbps Max, support up to 4TB.
SATA SSD Slot: For B&M-Key 2280 SATA (NGFF) protocol SSD, 6Gbps Max, support up to 4TB.
60W Laptop Charging120 Watt Power Supply delivers up to 60W power to charge your laptop via PD 3.0, and power all of your peripherals like your phones, tablets and other USB devices. Thunderbolt 3 Out port can daisy-chain up to 6 USB-C/Thunderbolt 3 Devices, which provides 15W (total) of power for downstream devices.
1

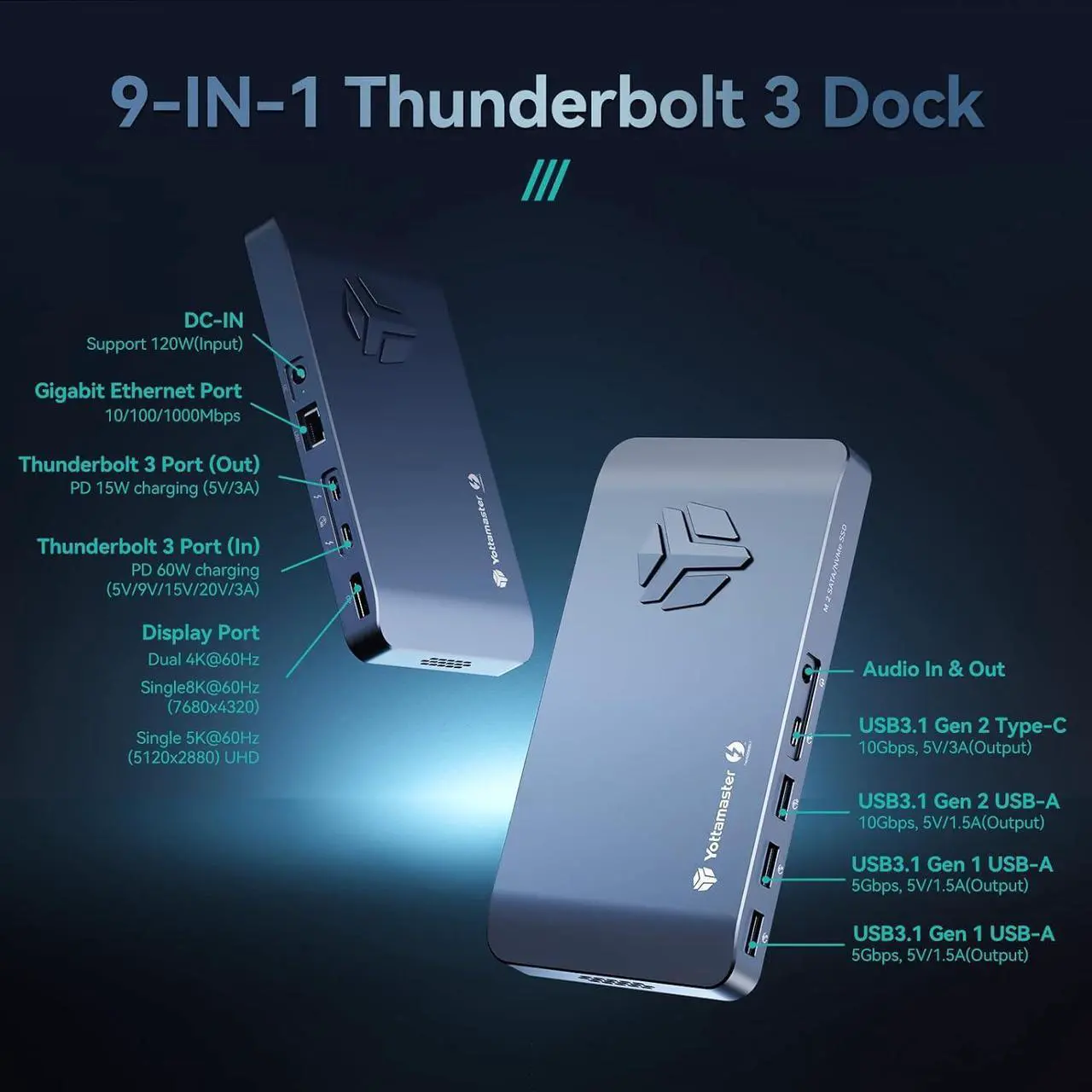

Yottamaster Intel Certified ALL-in-one Thunderbolt 3 Docking Station - Support M1

9 ports offer the unparalleled functionality & convenience

This TB3 dock delivers the fastest, most versatile connection to your Thunderbolt 3 equipped Windows PC or Mac. And let your laptop have more comprehensive functionality. Just use a single cable, this TB3 dock can charge MacBook Pro at full speed, and simultaneously drive two 4K (through DP and Thunderbolt 3 port), or single 8K external monitor, and delivers high-speed data transmission up to 40 Gbps.

Drive Dual 4K or Single 8K Displays

For Windows computer: You can extend two 4K@60hz monitors via display port and Thunderbolt 3 port. Single 8K@60Hz via Thunderbolt 3 out port.

For Mac computer: You can extend single 8K@60Hz via Thunderbolt 3 out port. Two 4K@60hz monitors via display port and Thunderbolt 3 port. Note that due to Mac DO NOT support MST, the content of monitors will be mirrored.







1

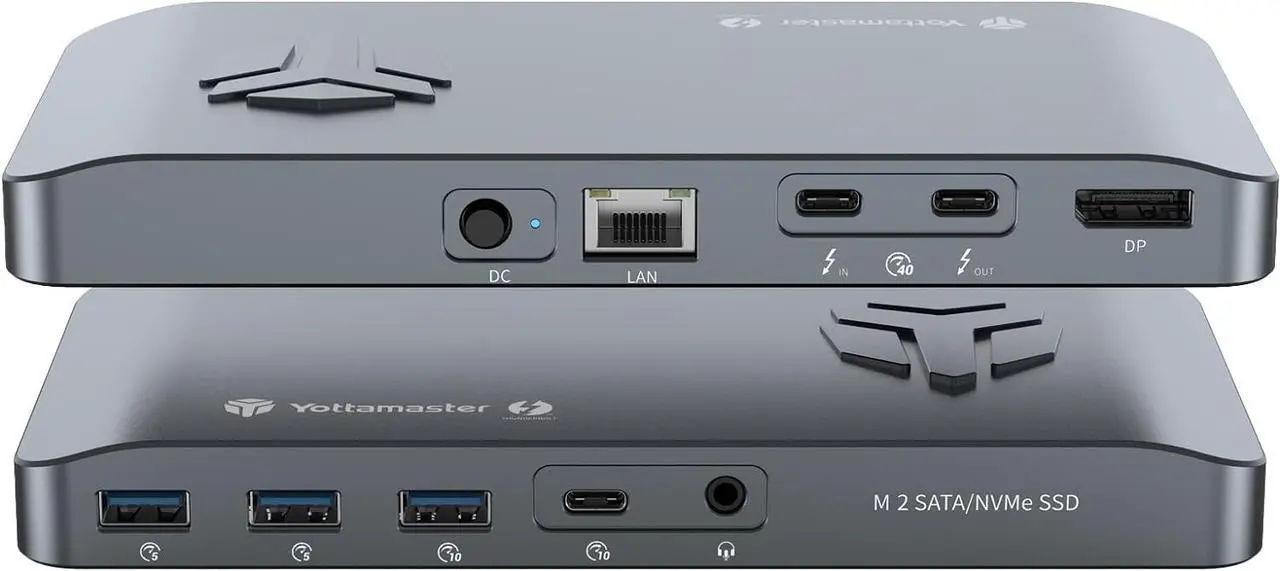

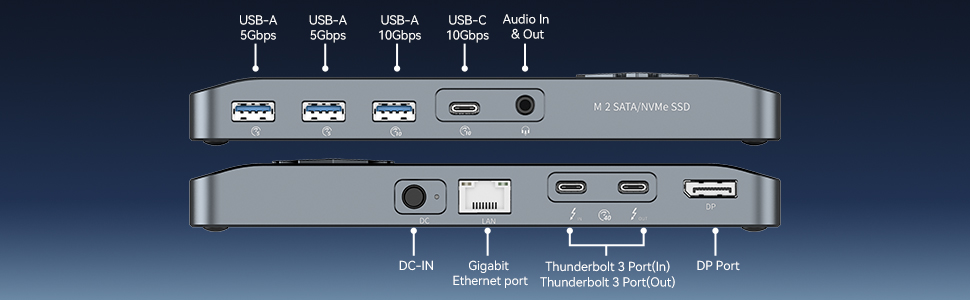

Thunderbolt 3 port

Thunderbolt 3 port(In)



  • This ports is used to connect the TB3 Dock to your Thunderbolt 3 computer.
  • With 40Gbps transfer speed. Support 120W power input and 60W PD3.0 fast charging (output-5V/9V/15V/20V/3A).



Thunderbolt 3 port(Out)



  • This port with 40Gbps transfer speed, supports PD 15W charging (5V/3A).
  • Can be used to daisy-chain up to 6 Thundertbolt 3 or USB C devices, and provide 15W of power for downstream devices. Also can connect a single 5K/8K 60Hz monitor.



DisplayPort(DP)



  • The dedicated DisplayPort connector can be used to connect an additional monitor to extend your workspace without the need to buy an additional USB-C to DisplayPort adapter.
  • It can support dual 4K displays by cooporating with the Thunderbolt 3 port.



Gigabit Ethernet port

This port supports auto-negotiation for 10Gb/s, 5Gb/s, 2.5Gb/s, 1Gb/s and 100MB/s.



3
3
Triple cooling design - Let you get the top of performanc even in most demanding workflows.

Please note: The Thunderbolt 3 (40Gbps) and USB 3.1 Gen 2 USB C (10Gbps) are the super-fast port. To handle the high-speed signals transfer, the dock will become hot while using. Also the builted-in SSD slot, NVMe protocol uses the 40Gbps bandwidth, the ssd will generate lots of heat while transfering

So we have carefully designed the structure of the dock.

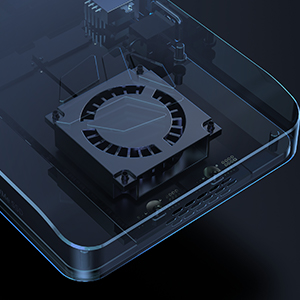

Triple cooling design - A turbo cooling fan is located under the SSD Slot, which ensures that the waste heat is released into the ambient air. The venting holes on the both side optimized the ventilation system. The internal silicone pad continuously conducts heat to the shell.

5
