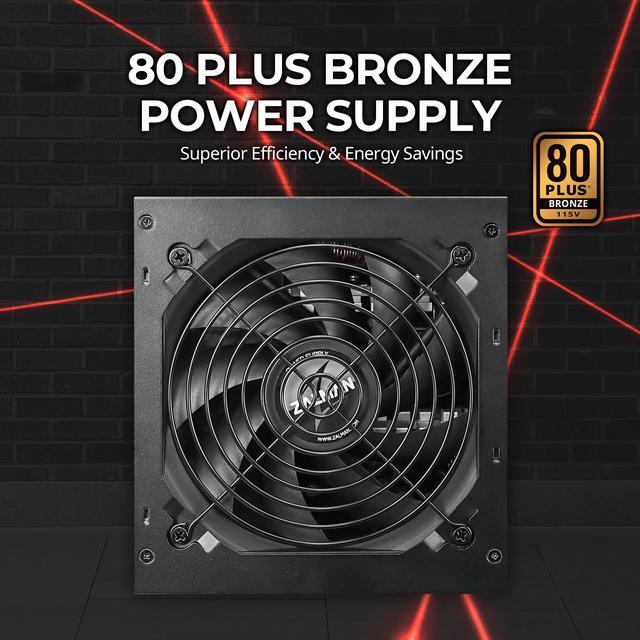

Superior Efficiency: 80 PLUS Bronze guarantees 85% efficiency with 20%, 50%, and 100% load rates (115-240VAC), significantly reducing overall system power consumption.
Stable Output: Active PFC system with maximum power factor of 99%, providing consistent and stable outputs. 105° capacitor ensure stability at high voltage.
Certified Full Protection: OCP/OVP/OPP/OTP/UVP/SCP, Safety/EMC Approvals: cTUVus, TUV, FCC, CB, CE certified.

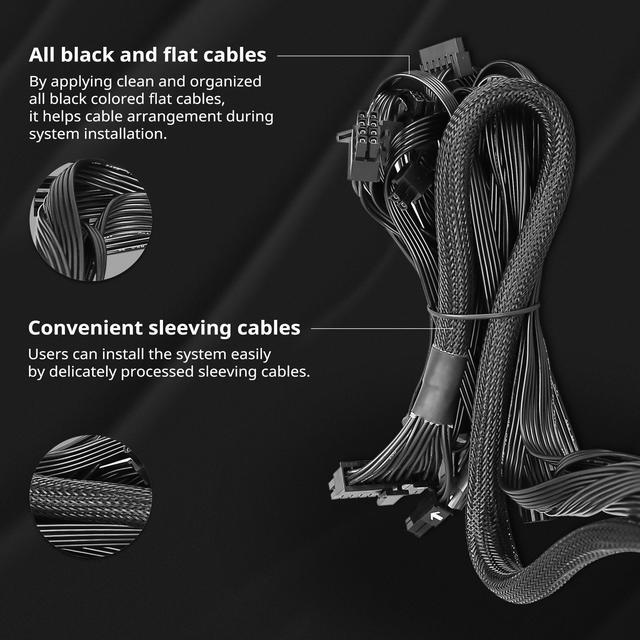

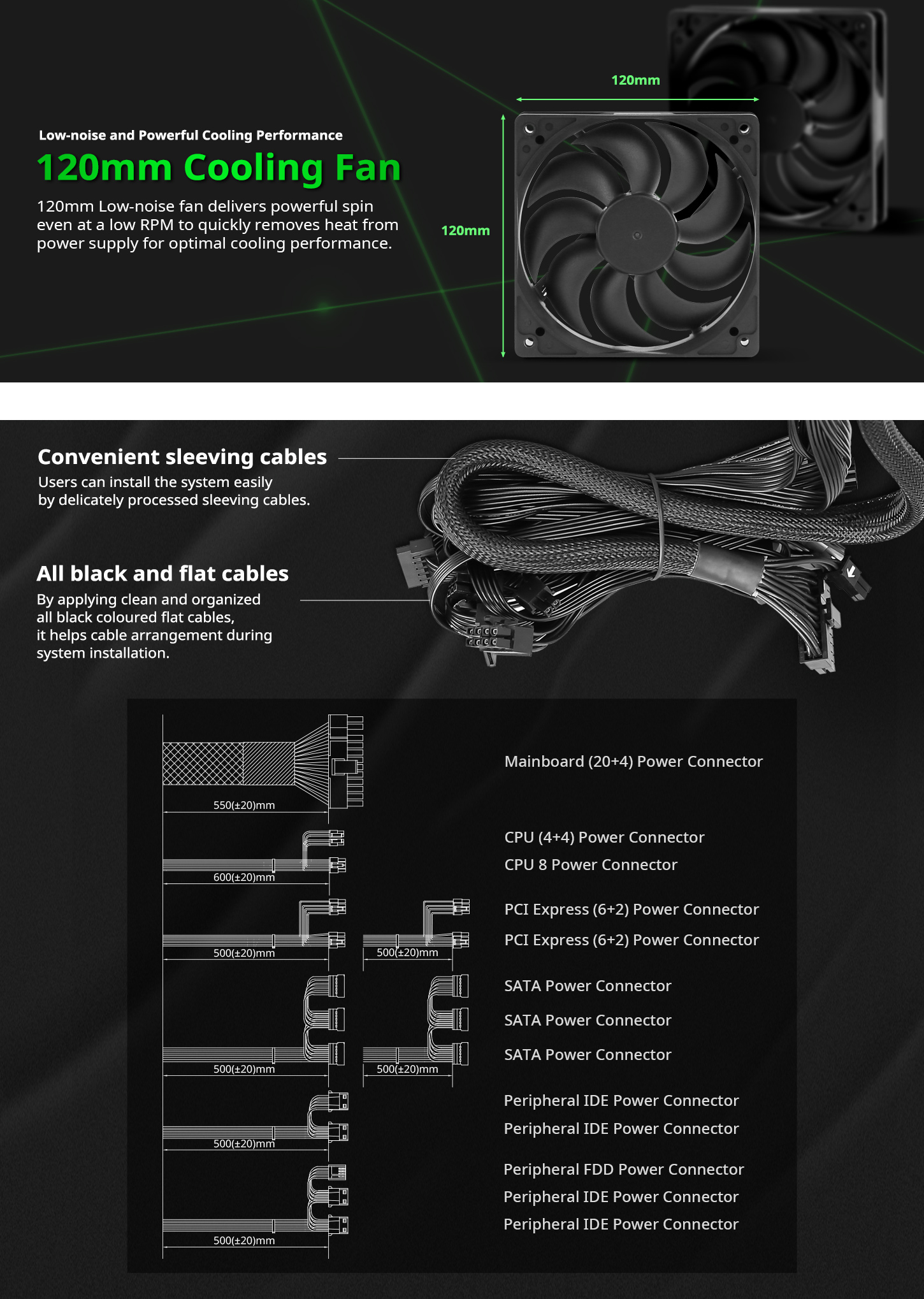

All black cables with sleeved motherboard connector to help with cable management

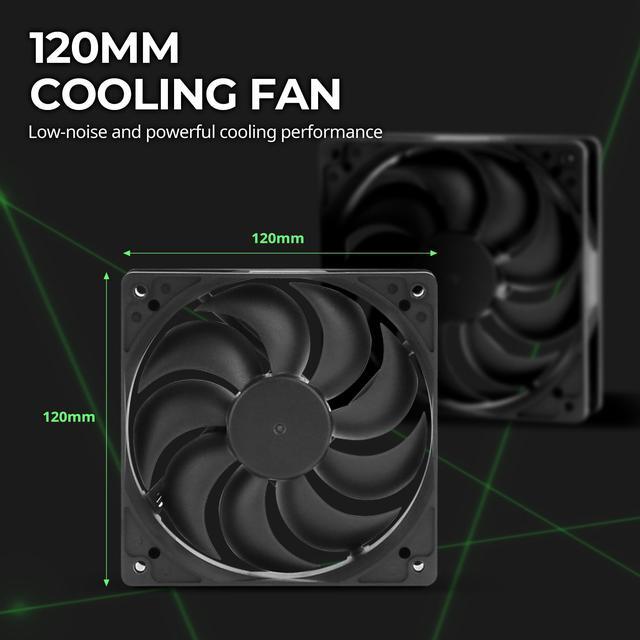

Silent 120mm fan with sleeved bearing for smooth and quiet operation.
Maximize the power of GeForce 5000 series cards with Gen5 NVMe SSD.
+
+
Overview
Specs
Reviews (6)
Any questions? Our AI beta will help you find out quickly.
Try me now

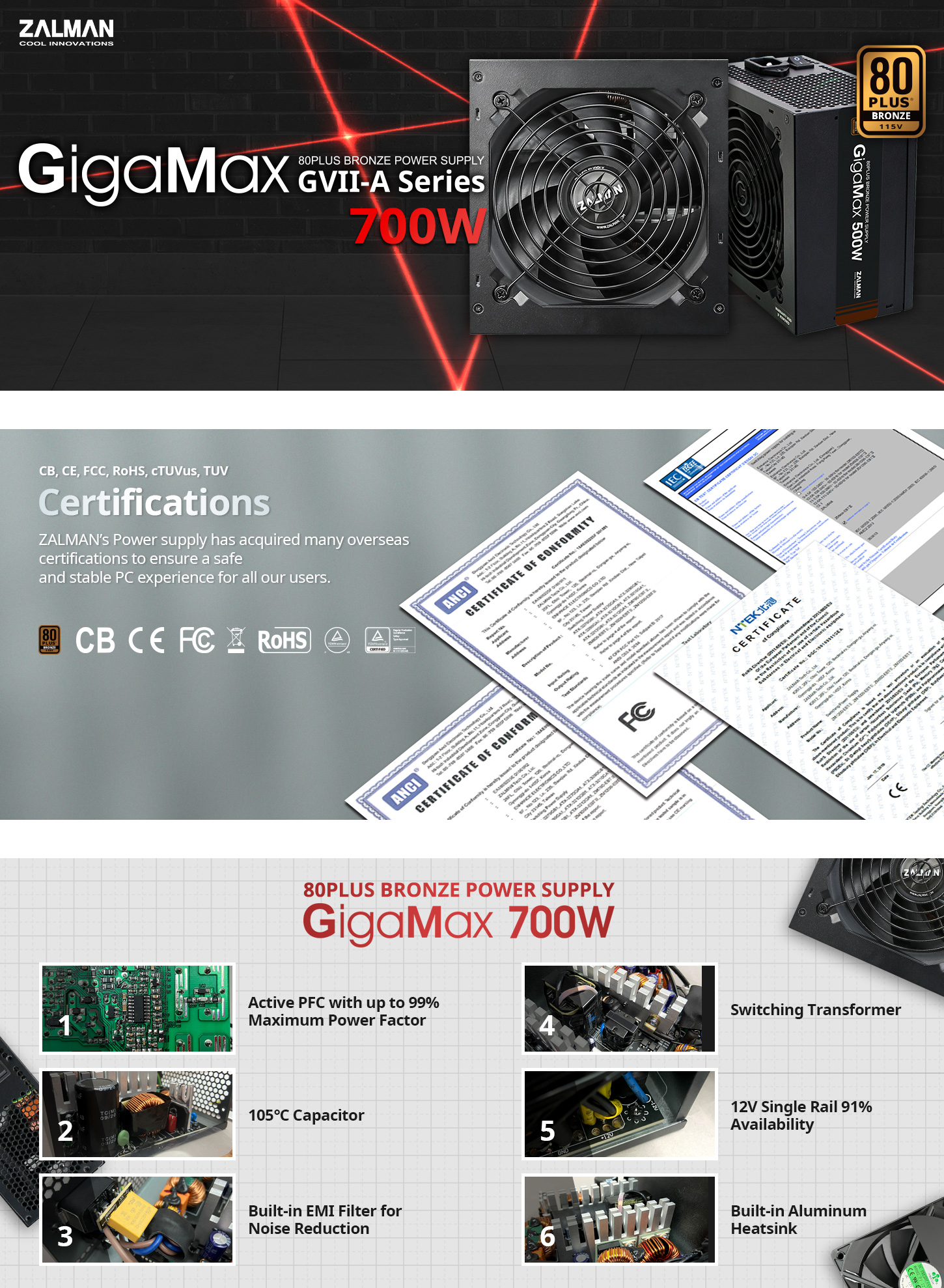

80PLUS® BRONZE, Certified high efficiency designMulti-GPU ready: PCI-E Connectors support up to dual AMD CrossFireX & Nvidia SLI. Compliance with Intel ATX12V Ver 2.31 standards. Interleaved Active PFC circuit provides extremely high PF value and high PSU efficiency. Meets ErP 2013 Lot 6 stand by power standards. (ErP: Energy-Related Products) Heavy-duty protection circuitry of Over Current, Over Power, Over Voltage, Under Voltage, Over Temperature and Short-Circuit protection. Safety / EMC Approvals: cTUVus, TUV, FCC, CB, CE certified.
Specifications

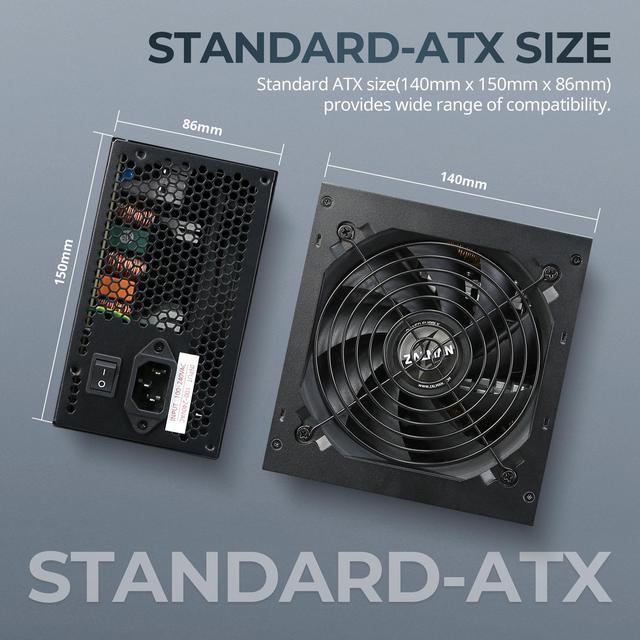

Dimensions
140(L) x 150(W) x 86(H)mm
Weight
1.6kg
80PLUS
Bronze
Type
Intel ATX 12V Ver2.31
PFC
Active PFC
Input Voltage
100-240VAC
Input Current
12-6A
Input Frequency
50-60Hz
Fan Size
120mm
Fan Bearing
Sleeve Bearing
Efficiency
Max 85% @115VAC, Typical load
MTBF
100,000hours
Operating Temperature
0~+40
Protection
OCP/OVP/OPP/OTP/UVP/SCP
Regulatory
CB, CE, EAC, RoHS, cTUVus, TUV
Learn more about the Detailed Specifications
General
Brand
ZALMAN
Series
80 Plus
Details
Color
Black
Type
ATX
Maximum Power
700 W
Fans
1

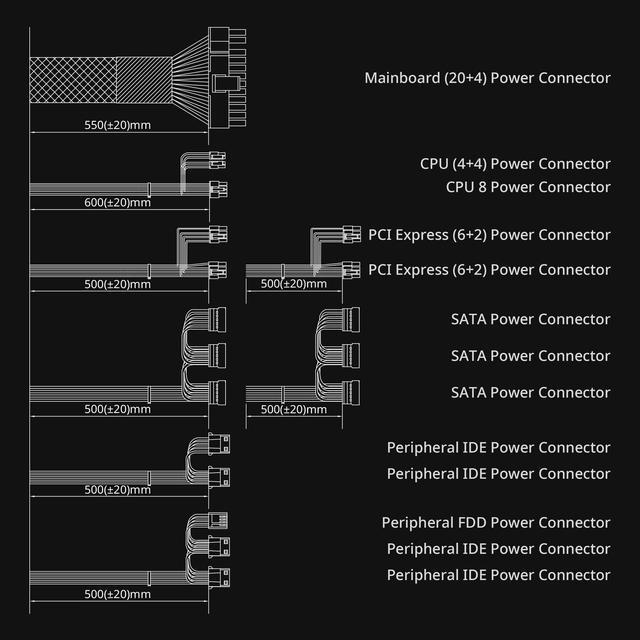

Main Connector
20+4Pin
PCI-Express Connector
2 x 6+2-Pin
SATA Power Connector
3
Max PSU Length
5.9 x 5.5 x 3.4 inches
Modular
Non-Modular
Efficiency
> 80%
Energy-Efficient
80 PLUS BRONZE Certified
Over Voltage Protection
Yes
Overload Protection
Yes
Protection
Certified Full Protection: OCP/OVP/OPP/OTP/UVP/SCP, Safety/EMC Approvals: cTUVus, TUV, FCC, CB, CE certified.
Input Voltage
100 - 240 V
Input Frequency Range
50/60 Hz
MTBF
>100,000 Hours
Dimension & Weight
Weight
3.5 lb
Details
Power Rating
700W
Efficiency
> 82%
Connectors
Main Connector
20+4 Pin
Fans
Fans Total Quantity
1
Top Fans Size
120mm
Top Fans Bearing Type
Sleeve
Additional Information
Date First Available
July 20, 2021
