Side Door
Side door made by smoky acrylic provides convenience to open and close system while protecting components.
Optimized Cooling System
Up to eight 120mm fans (2 pre-installed on the front and rear) can be installed to provide airflow keeping your system in optimal condition to increase the cooling performance.
Maximum Airflow and Ventilation
- Pre-installed fans: Front: 1 x 120mm / Rear: 1 x 120mm
- Fans support: Front: Up to 3 x 120mm / Rear: Up to 1 x 120mm / Top: Up to 2 x 120mm / Bottom: Up to 2 x 120mm

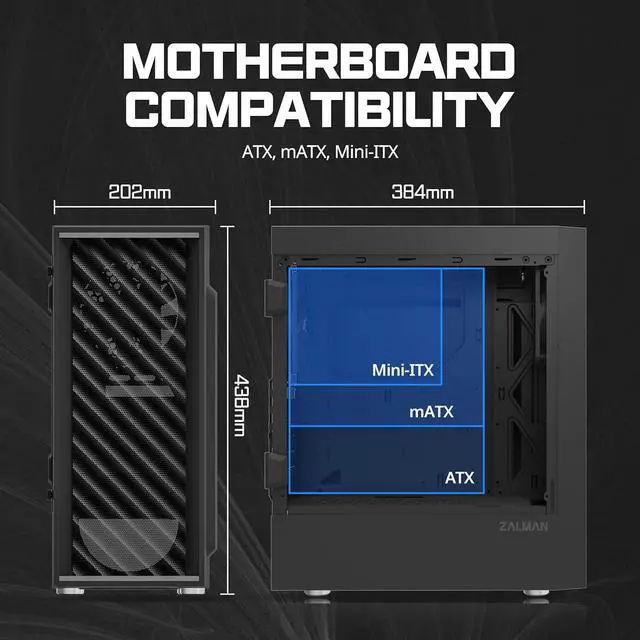

Motherboard Compatibility
ATX Mid Tower T7 provides ample space for various different form factors of motherboards with excellent expandability.

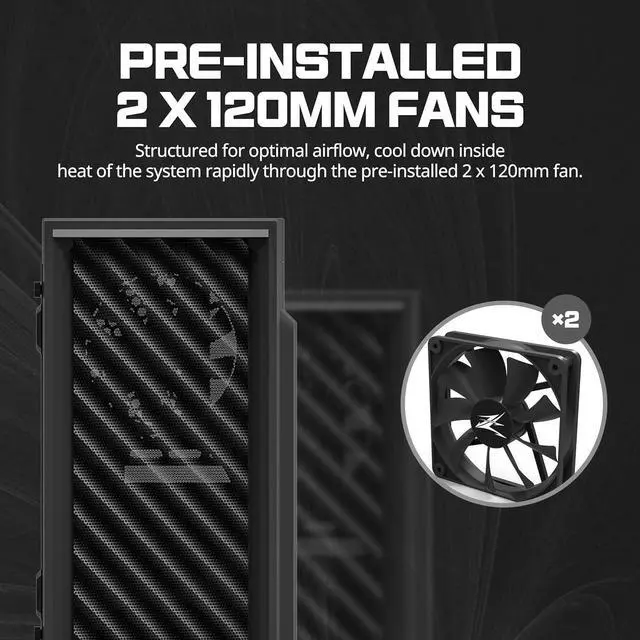

Pre-Installed 2 x 120mm Fans
Structured for optimal airflow, cool down inside heat of the system rapidly through the pre-installed 2 x 120mm fan.

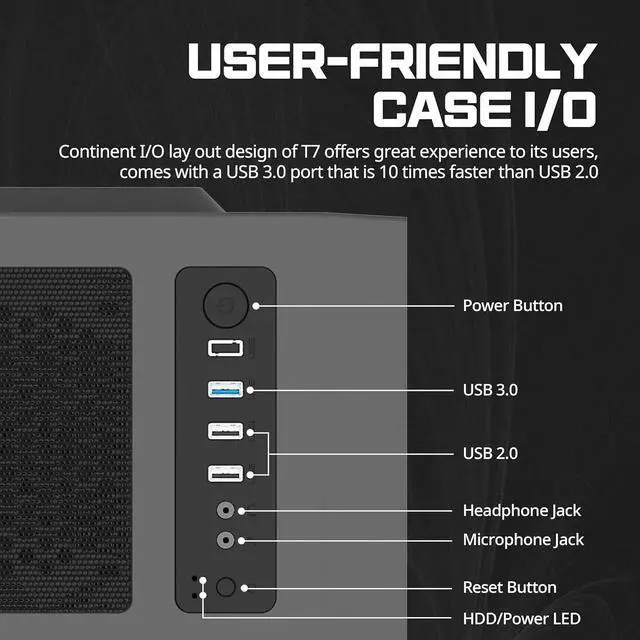

Case I/O
1 x USB 3.0, USB 2.0 x 2, Power, Reset, Headphone jack, Microphone jack

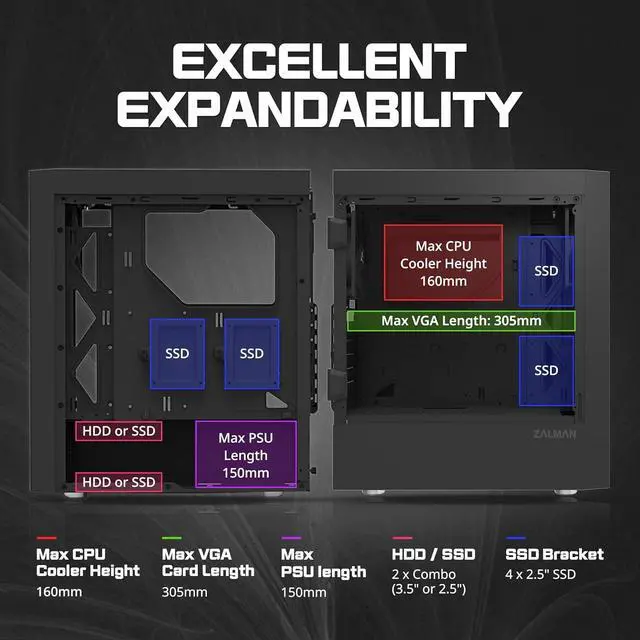

Specifications
| Model | T7 |
|---|---|
| Case Form Factor | ATX Mid Tower |
| Dimensions | 384(D) x 202(W) x 438(H)mm |
| Weight | 3.2 kg |
| Materials | Steel, Plastic, Acrylic Panel |
| Motherboard Support | ATX, mATX, Mini-ITX |
| MAX VGA Length | 305mm |
| MAX CPU Cooler Height | 160mm |
| MAX PSU Length | 150mm |
| PCI Expansion Slots | 7 |
| Drive Bays | 2 x Combo (3.5" or 2.5"), 4 x 2.5" |
| Fan Support | Front:3 x 120mm, Top:2 x 120mm, Rear:1 x 120mm, Bottom:2 x 120mm |
| Fan(s) Included | Front:1 x 120mm, Rear:1 x 120mm |
| I/O Ports | 1 x Headphone, 1 x Mic, 2 x USB 2.0, 1 x USB 3.0, Power, Reset |
