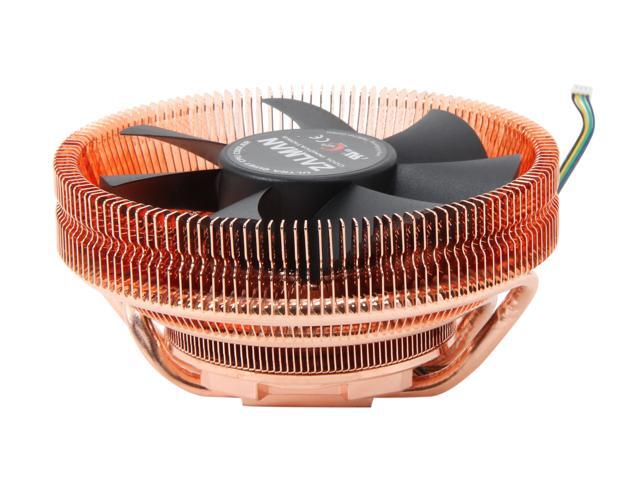

Zalman Direct
DTH technology transfers the CPU's heat directly to heatpipes, thereby minimizing heat resistance and maximizing cooling performance.
The CPU cooler's height is 60mm and is designed to be installed in ATX cases as well as slim or LP (low profile) cases.
Switching noise eliminated 110mm fan is incorporated for ultra-quiet operation.
CNPS8900 Quiet accommodates a broad range of sockets.
- Intel: LGA1155/1156/1150/1366/775
- AMD: FM2/FM1/AM3+/AM3/AM2+/AM2

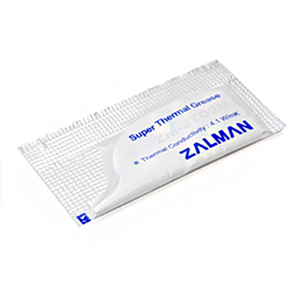

High-performance super thermal grease ZM-STG2M maximizes heat transfer from the CPU to the base of CNPS8900 Quiet for intensified cooling performance.
CNPS8900 Quiet, Backplate, Side Caps, Nuts, Bolts (Cooler), Bolts (Clip), Loading Block, Double-Sided Tape, Thermal Grease (ZM-STG2M), Extension Fan Cable, User's Manual
| Model | CNPS8900 Quiet |
|---|---|
| Dimensions | 120(L) x 120(W) x 60(H)mm |
| Materials | Fin: Aluminum, Base: Copper |
| Weight | 400g |
| Heat Dissipation Area | 1,960cm2 |
| Heat Pipes | 2 |
| Fan | 110mm PWM Fan |
| Fan Bearing Type | Long Life Bearing |
| Fan RPM | 1,000~1,500 RPM ± 10% |
| MAX Fan Noise Level | 19~25 dB(A) ± 10% |
| Color | Gray |
| Capacity | 1g |
| Rated Voltage | 12V |
| Temperature Stability | -40C~150C (-40F~+302F) |
| Socket Compatibility | Intel:1155/1156/1150/1151/1366/775, AMD:FM1/FM2/AM3+/AM3/AM2+/AM2 |
