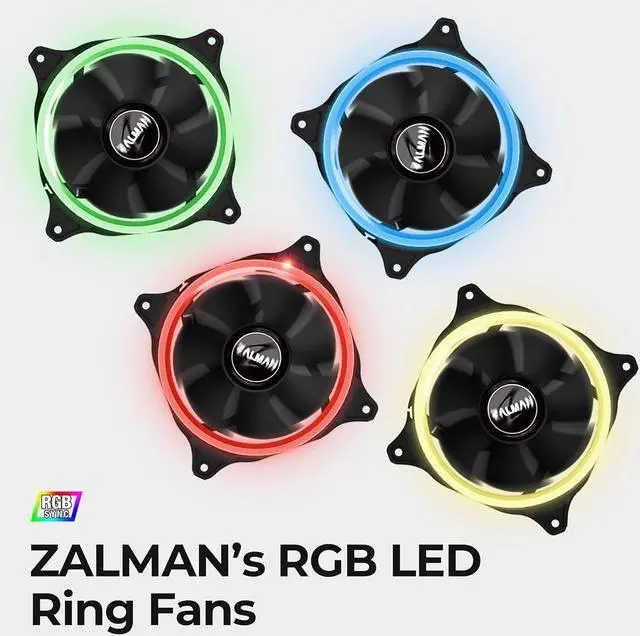

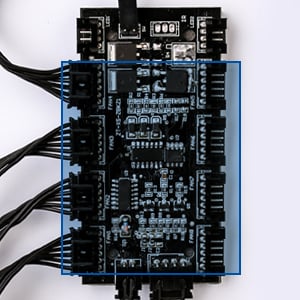

RGB LED Ring Fans Connection I/O Ports
6 Pin/8 Ports. (Four built-in)

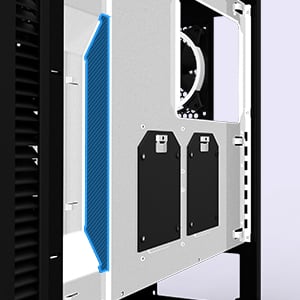

Cable Management
Lineage space design for a clean interior.

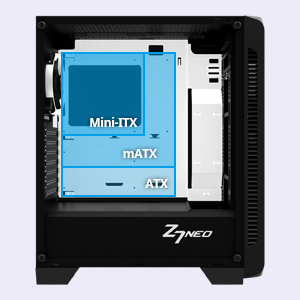

Motherboard Compatibility
ATX, mATX, Mini-ITX supported motherboard.

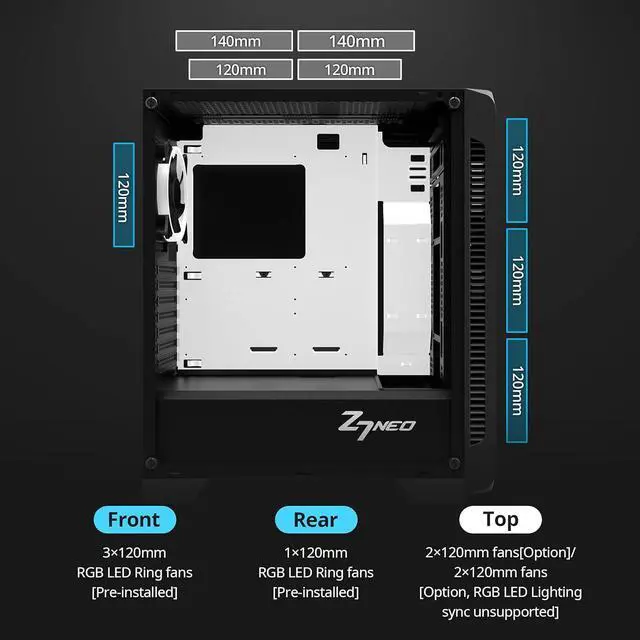

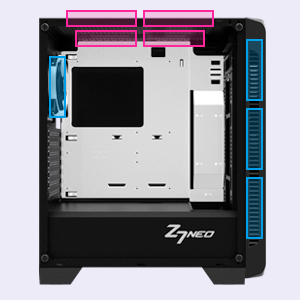

Optimal Cooling Solution
- Front: 3×120mm RGB LED Ring fans {Pre-installed]
- Rear: 1×120mm RGB LED Ring fans {Pre-installed]
- Top: 2×120mm fans [Option]/2×140mm fans [Option, RGB LED Lighting sync unsupported]

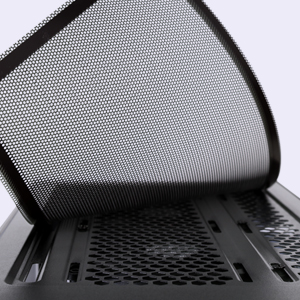

Top Large Magnetic Dust Filter
Top dust filter size 306mm×174mm

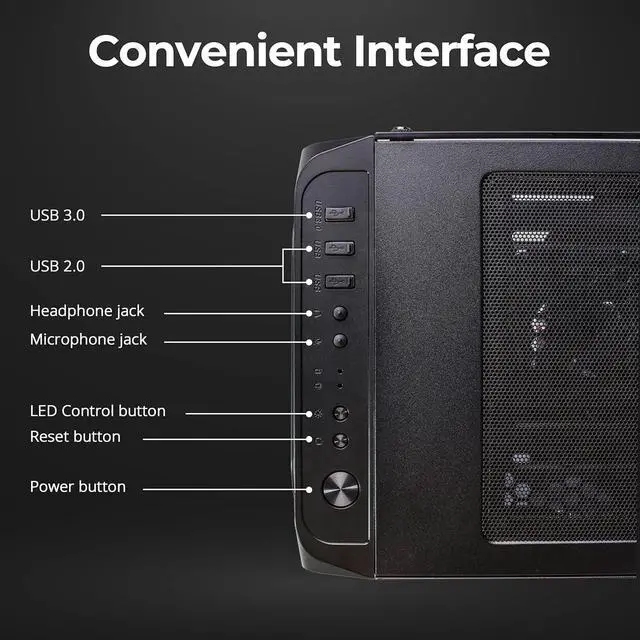

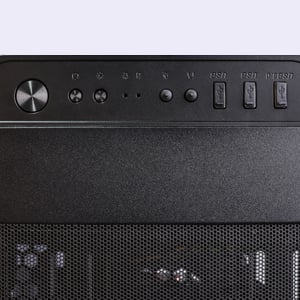

I/O Ports
USB 3.0×1, USB 2.0×2, LED Controller, Power, Reset, Headphone jack, Microphone jack

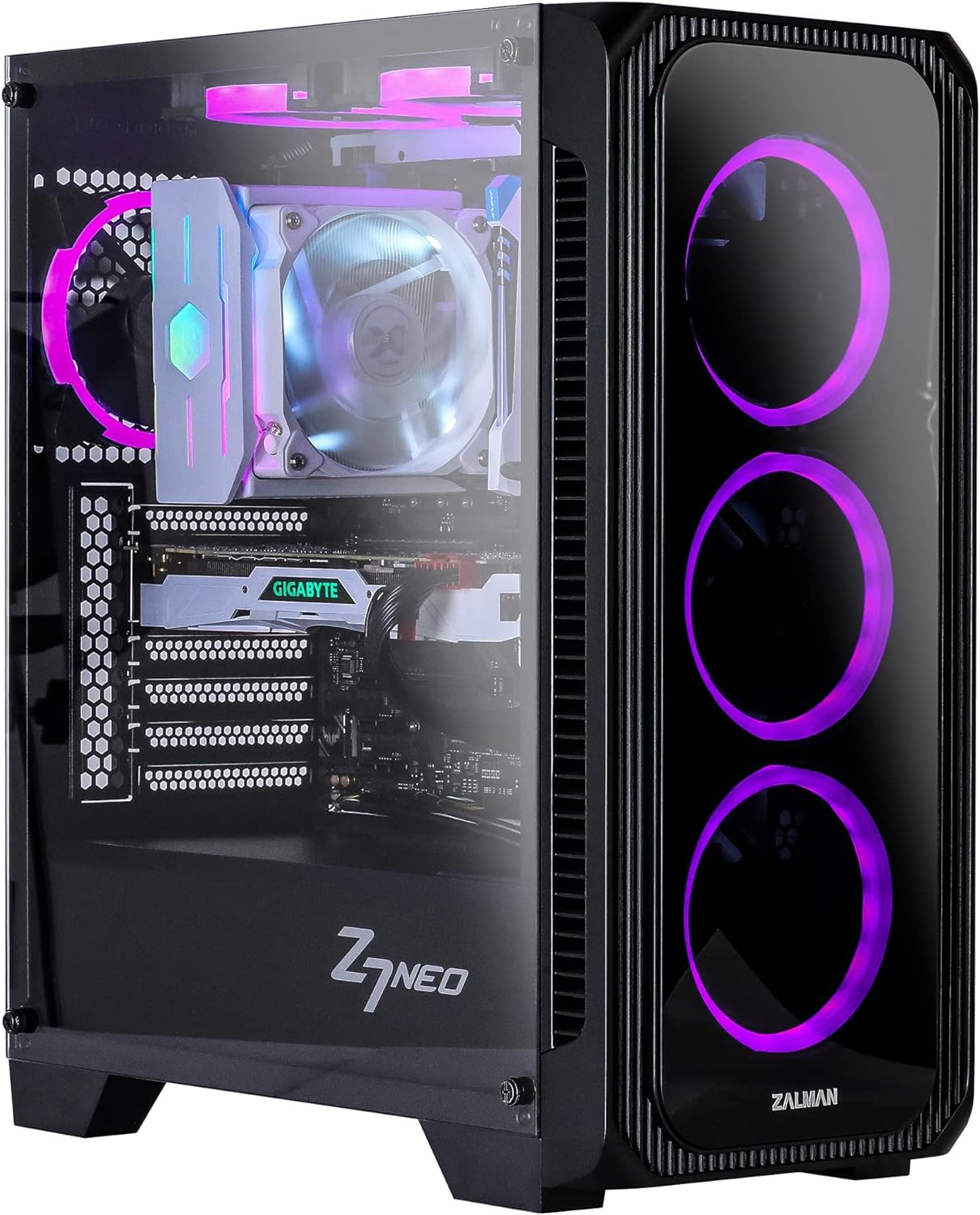

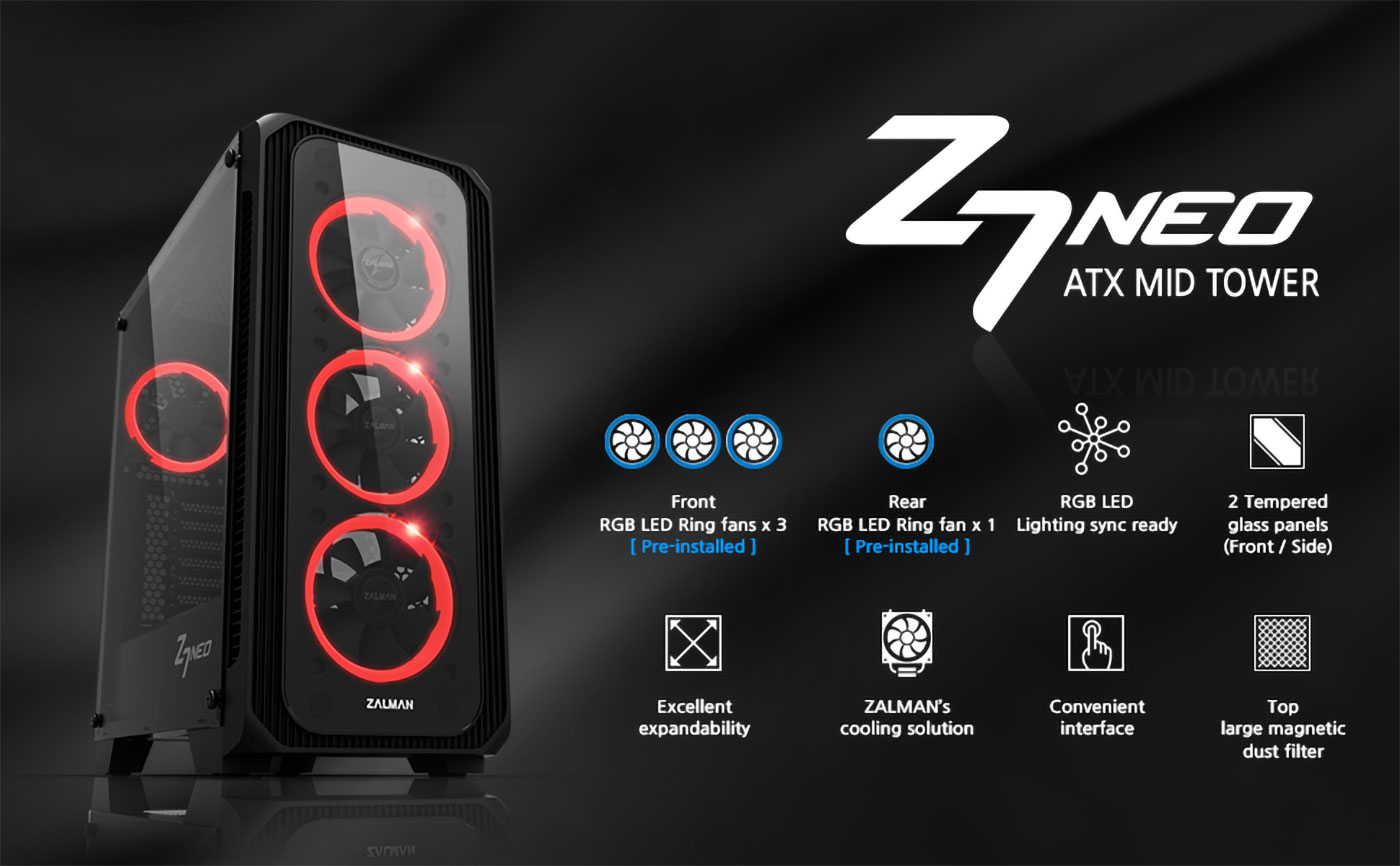

Model | Z7 NEO |
---|---|
Dimensions | 420(D)×213(W)×460(H)mm |
Case Form Factor | ATX Mid Tower |
Weight | 7.2 kg |

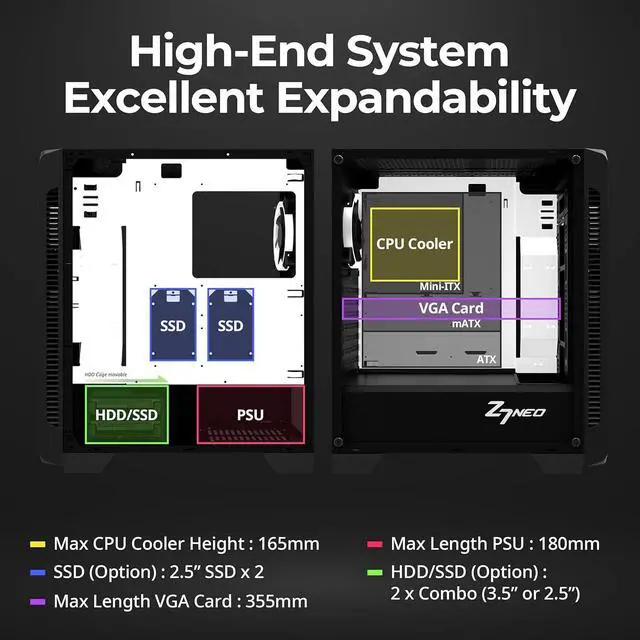

Motherboard Support | ATX, mATX, Mini-ITX |
PCI Expansion Slots | 7 |
Drive Bays | 3.5" HDD×2 or 2.5" SSD×2 |
Max VGA Length | 355mm |
Max CPU Cooler Height | 165mm |

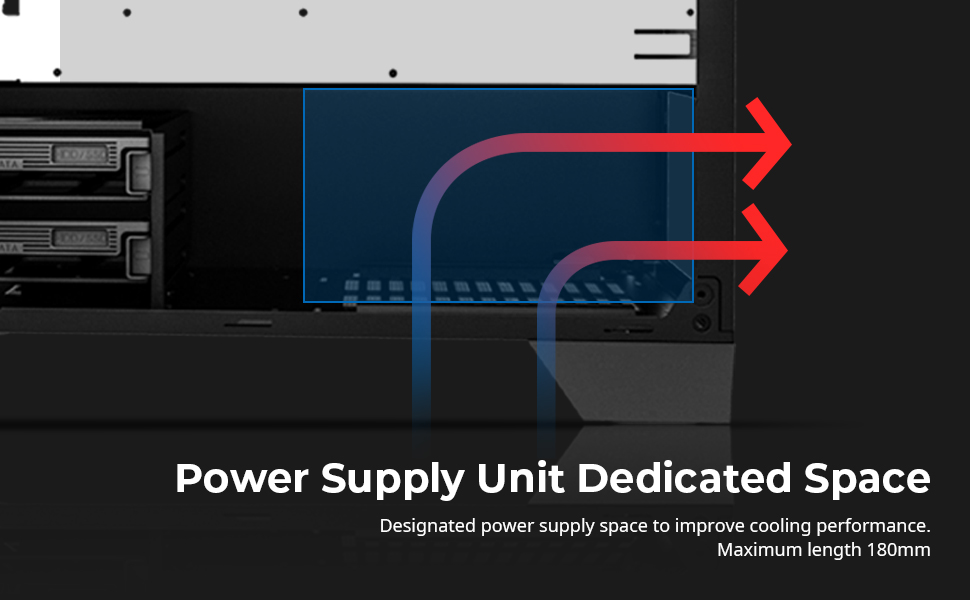

Max PSU Length | 180mm |
Fan Support | Front: 120mm×3/Top: 120mm×2, 140mm×2/Rear: 120mm×1 |
Fan(s) Included | Front: RGB LED Ring Fan×3/Rear: RGB LED Ring Fan×1 |

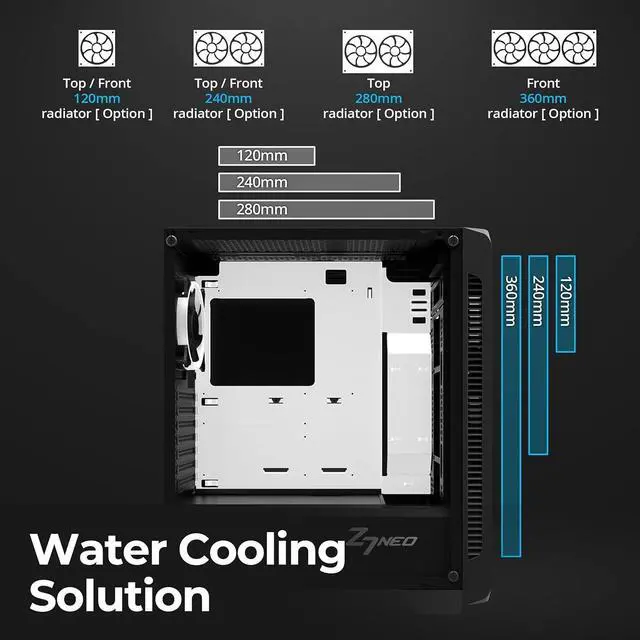

Radiator Support | Front: 120mm, 240mm, 360mm Top : 120mm , 240mm, 280mm (*Limited fitment to memory equipped with heat |
I/O Ports | USB 3.0×1, USB 2.0×2, LED Controller, Power, Reset, Headphone jack, Microphone jack |
