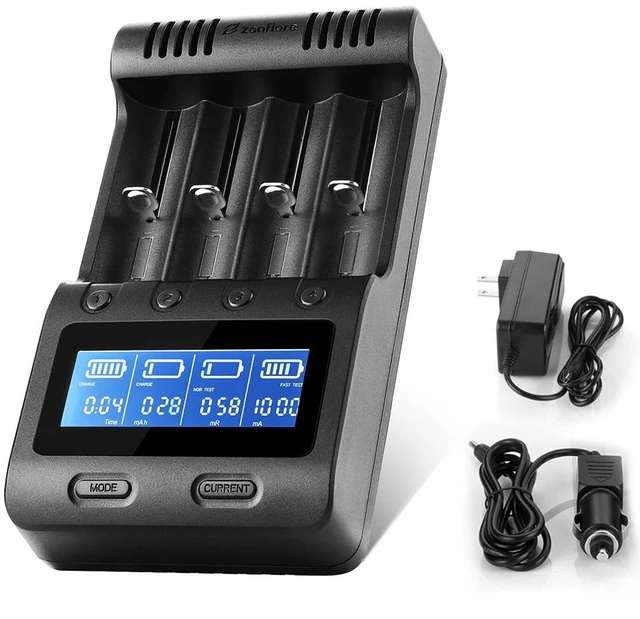

Zanflare Digital Intelligent 4 Slots LCD Universal Battery Charger is able to measure the internal resistance of each cell, and this gives you a good idea of its individual health and power delivery capabilities. Also, this charger has amazing display which tells how high much charged and how much left in minutes. What's more, the LCD is easy to read and even comes with a travel charger for when needed on the road.
Zanflare C4 Battery Charger Main Features:
Three Operation Option
CHARGE Mode
the 4 slots work independently, you can choose different charge current, and charge at the same time diffrent batteries.
FAST TEST Mode
the 4 slots work independently, you can choose different discharge current to quickly detect (first discharge and then recharge) batteries capacity.
NOR TEST Mode
the 4 slots work independently, you can choose a different discharge current to detect (first charge fully, then discharge, and then recharge) batteries capacity.
Main Features
- 4 different charge current options to choose from ( 300mA / 500mA / 700mA / 1000mA )

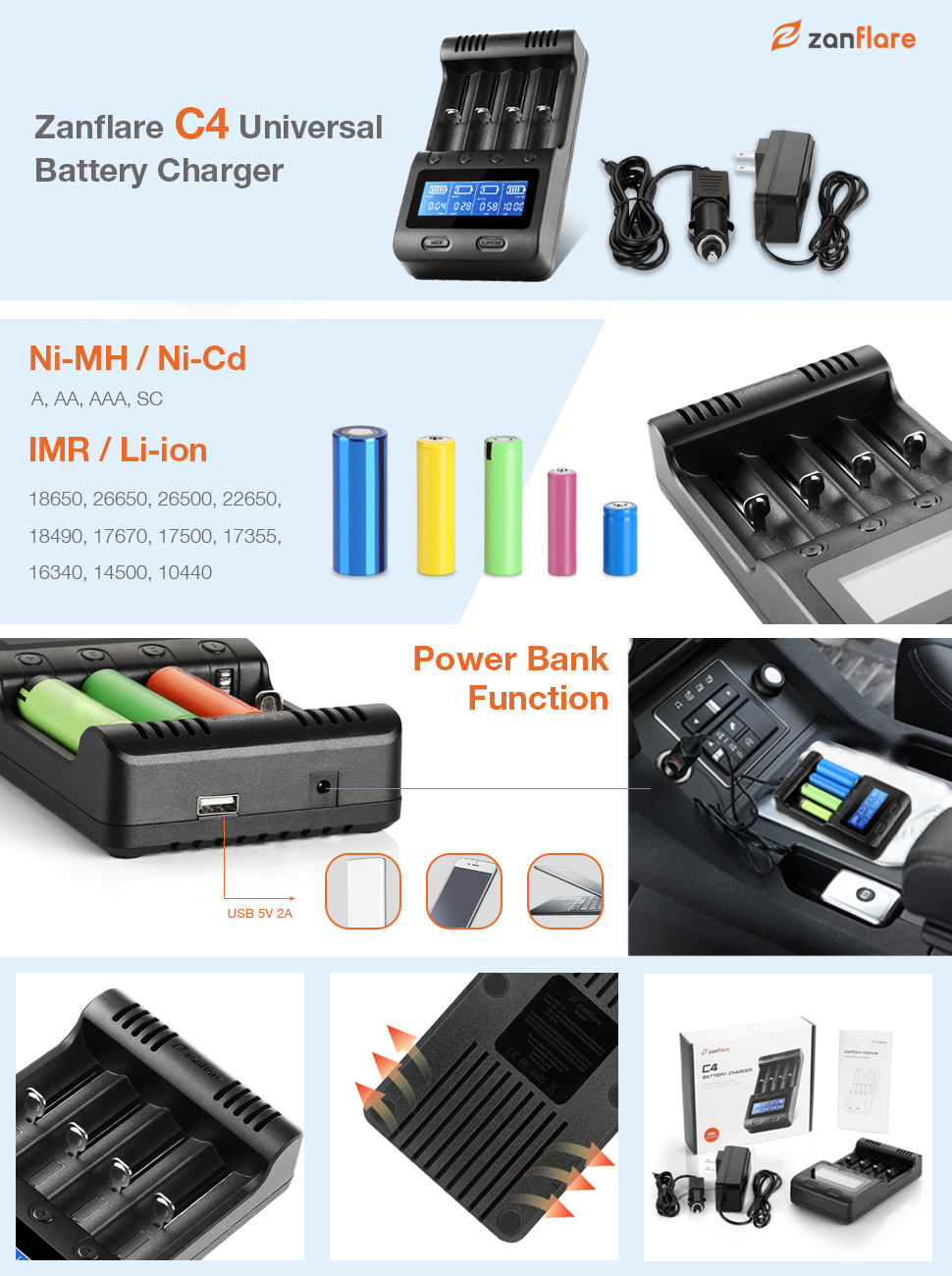

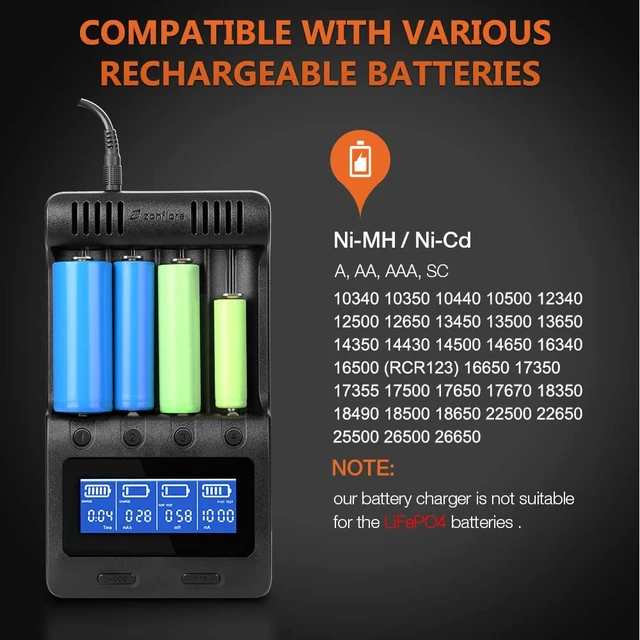

- It can charge simultaneously rechargeable batteries of different specifications ( 18650, 26650, 26500, 22650, 18490, 17670, 17500, 17355, 16340, 14500, 10440, A, AA, AAA, SC sizes )

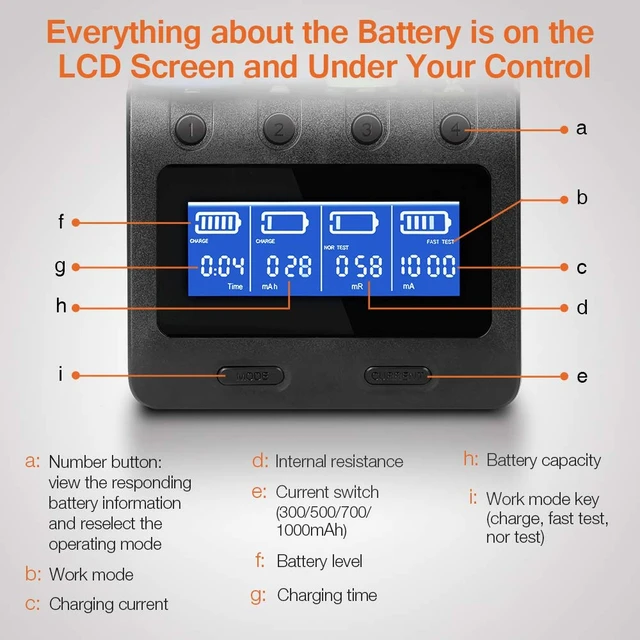

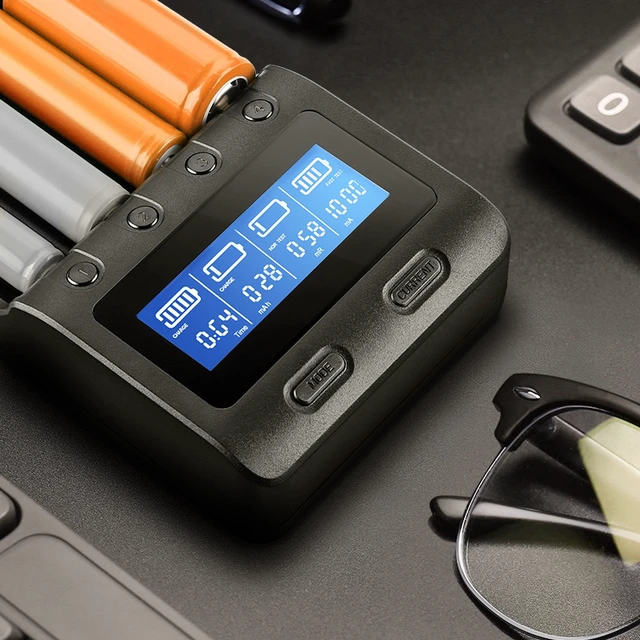

- Provided with integrated LCD display to monitor battery parameters including voltage ( V ), current ( mA ), time ( h ), capacity ( mAh ), mR internal resistance ( O )
-When the battery capacity detection process is completed, "END" symbol will start flashing and the LCD will display the battery capacity.
-When the charger is connected to the power supply, the LCD screen will bright up, if the battery is not inserted, or battery incorrect inserted, or battery damaged, the screen will display "null"
Eight Protections
- Overcharge and over-discharge protection
- Short circuit protection
- Overheat protection
- 0V voltage activation function
- Smart identification of damaged batteries
- Battery reverse polarity protection
- The 4 slots work independently
Specifications
- Input: AC 100 - 240V, 50 / 60Hz, 0.6A max, DC 12V, 1.5A

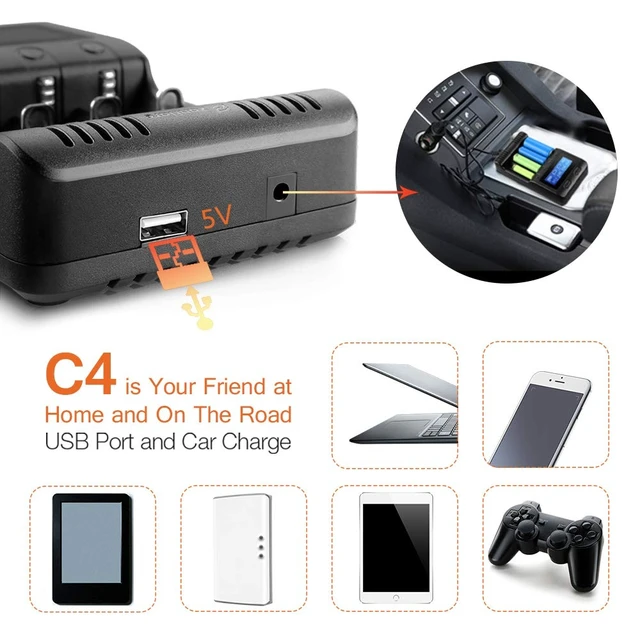

- Output: USB 5V 2A
- Charge current: 3.7V rechargeable 18650 batteries, 300mA / 500mA / 700mA / 1000mA, rechargeable Ni-MH batteries 1.48V, 300mA / 500mA / 700mA / 1000mA
- Discharge current: 300mA, 500mA
- Material: ABS
- Environmental conditions of use: humidity: 5 percent -90 percent; temperature: 0 Deg.C - 40 Deg.C
Note:
- 1. Please use this battery charger in normal working environment. Please unplug after use. Do not use AC charging and vehicle charging simultaneously in order to avoid security risks.
- 2. Zanflare battery charger can only charge cylindrical 18650 batteries and Ni-MH batteries, it can not charge LiFePO4 / damaged / inferior / Non-rechargeable batteries. Mis-use of either the charger or the batteries could cause explosion or fire.
- 3. Please ensure the battery installed is correct: make the +/- pole of the battery is match for the +/- pole of the charger.
Tips:
- 1. Please read the user manual carefully before using the Zanflare C4 battery charger.
- 2. When you encounter problems with slot damage, missing accessories, charger stop working, product damage during transportation etc, please feel free to contact Zanflare. You can contact Zanflare in three ways: Write an email through order?write an email to Zanflare website and consult .

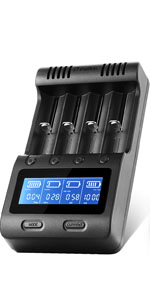

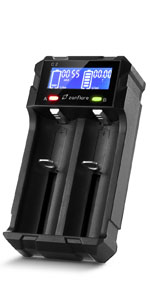

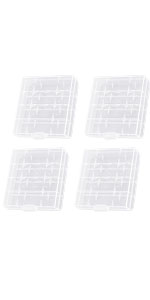

 Zanflare C4 Battery Charger |  Zanflare C2 Battery Charger |  Zanflare AA/AAA battery case |  Zanflare 18650 battery case 2pack |  Zanflare 18650 battery case 4pack | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — no data | — no data | — no data | — no data |
| Charge Battery Type | 18650, 26650, 26500, 22650, 18490, 17670, 17500, 17355, 16340, 14500, 10440, A, AA, AAA, SC sizes, RCR123 and other rechargeable batteries | 18650, 26650, 26500, 22650, 18490, 17670, 17500, 17355, 16340, 14500, 10440, A, AA, AAA, SC sizes, RCR123 and other rechargeable batteries | AA, AAA | 18650, CR123A | 18650, CR123A |
| Charging Current | 300mA / 500mA / 700mA / 1000mA | 300mA / 500mA / 1000mA | no data | no data | no data |
| LCD Display | Voltage (V), Current (mA), Time (h), Capacity (mAh), Internal Resistance (mR) | Voltage (V), Current (mA), Time (h), Capacity (mAh) | no data | no data | no data |
| Operating Modes | CHARGE mode, FAST TEST mode, NOR TEST mode | CHARGE mode | no data | no data | no data |
| Input | AC 100 - 240V, DC 12V, 1.5A | DC 5V 2A | no data | no data | no data |
| USB Output | 5V 2A | 5V 2A | no data | no data | no data |
| Size | 6.9*3.7*1.4 inches | 4.6*2.5*1.3 inches | no data | no data | no data |
| Weight | 0.6lb | 0.21lb | no data | no data | no data |
| Package | 1 x Battery Charger; 1 x Power Adapter; 1 x Car Adapter; 1 x English Instruction Manual | 1x Zanflare C2 battery charger; 1x Micro USB Cable; 1x User Manual | 4 AA battery or 4 AAA battery + 1AA battery | 2 18650 battery, or 118650 battery + 2 CR123A battery or 4 CR123 battery | 2 18650 battery, or 118650 battery + 2 CR123A battery or 4 CR123 battery |
