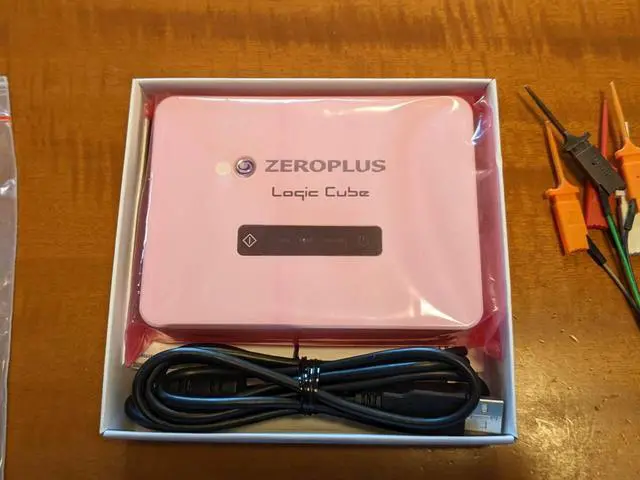

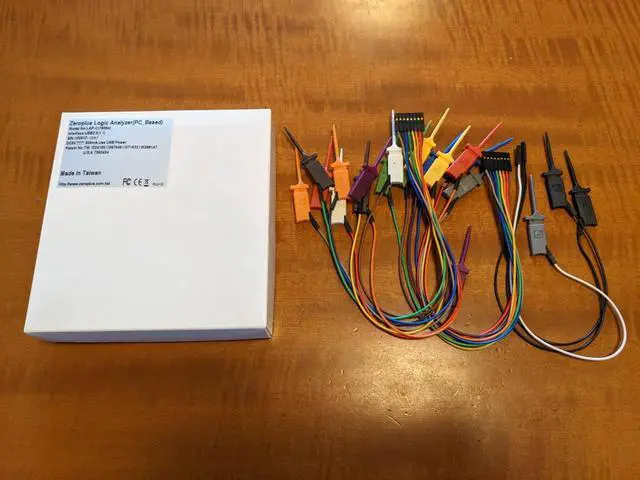

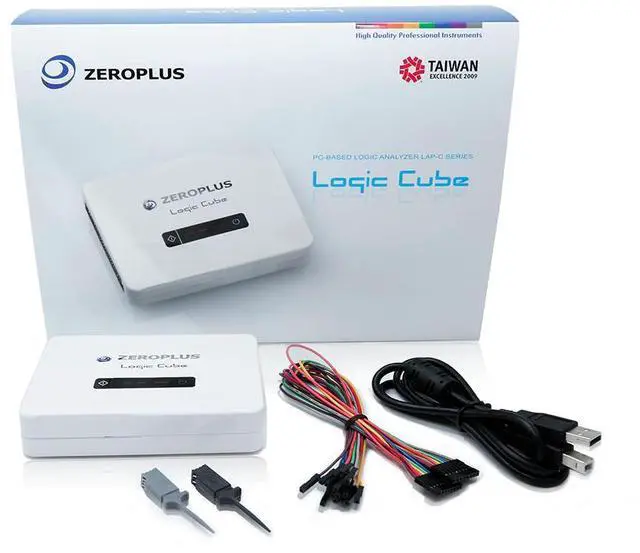

Zeroplus Logic Analyzer LAP-C 16064 with 136+ free protocols
- Zeroplus Logic Analyzer LAP-C 16064 with 136+ free protocols
- Software Features:
- 1. Trigger Condition: Pattern Trigger & Edge Trigger
- 2. Number of Channels: 16 CHs
- 3. Post Trigger Availability: YES
- 4. Trigger Counts: 1 to 65535
- Memory Specifications:
- 1. Memory: 1 Mbit
- 2. Depth (Per Channel): 64 Kbits (Max 16 Mbits for Compression)
- Sample Rate:
- 1. Internal Clock (Timing Mode): 100 Hz to 200 MHz
- 2. External Clock (State Mode): 75 MHz
- Threshold Voltages:
- 1. Bandwidth: 75 MHz
- 2. Working Range: -6 V to +6 V
- 3. Accuracy: ± 0.1 V
- 4. Power Source: USB (DC 5V / 500mA)
- 5. Operating System: Windows
- 6. Phase Errors: < 1.5ns
- 7. Maximum Input Voltage: ±30V
- 8. Impedance: 500K / 10pF
- 9. Safety Certification: FCC / CE / WEEE / RoHS / REACH
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Zeroplus Logic Analyzer LAP-C 16064:
16-Channel Engineering Development Tool
Zeroplus Logic Analyzer LAP-C 16064 is an advanced engineering development tool designed for precise digital signal analysis in consumer electronics applications.

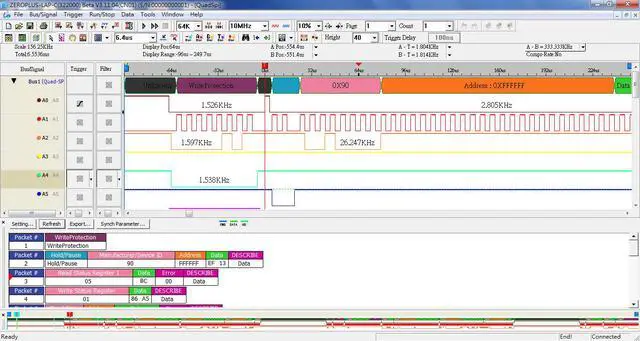

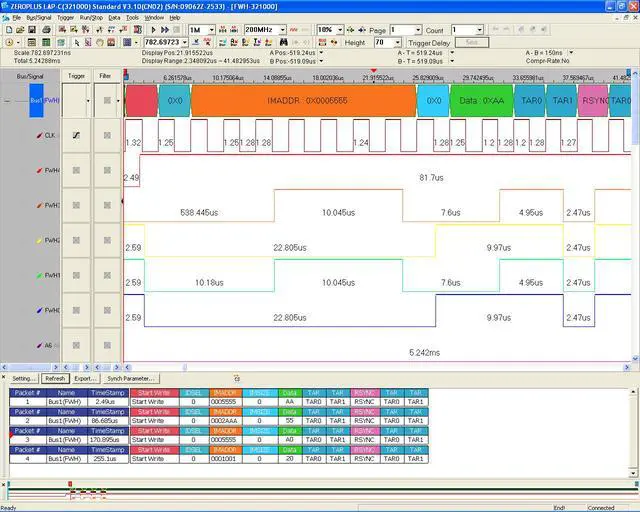

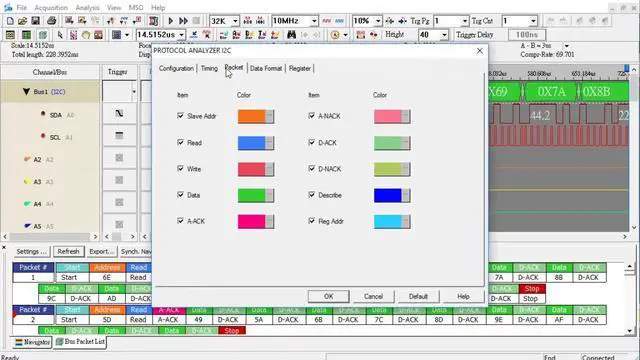

This model supports 16 channels, and offers comprehensive protocol decoding with access to over 136 free protocol decoders, making it ideal for engineers and developers working on complex projects.
Ten Highlighted Features:
1. Pattern and Edge trigger conditions for flexible signal capture
2. Post-trigger support with adjustable trigger count (1 to 65,535)
3. 1 Mbit memory capacity (Expandable up to 16 Mbits with data compression)
4. Internal sampling rate from 100 Hz to 200 MHz
5. External clock up to 75 MHz
6. Wide threshold voltage range (-6 V to +6 V) with ±0.1 V accuracy
7. High input impedance (500 K / 10 pF) & Max input voltage of ±30 V

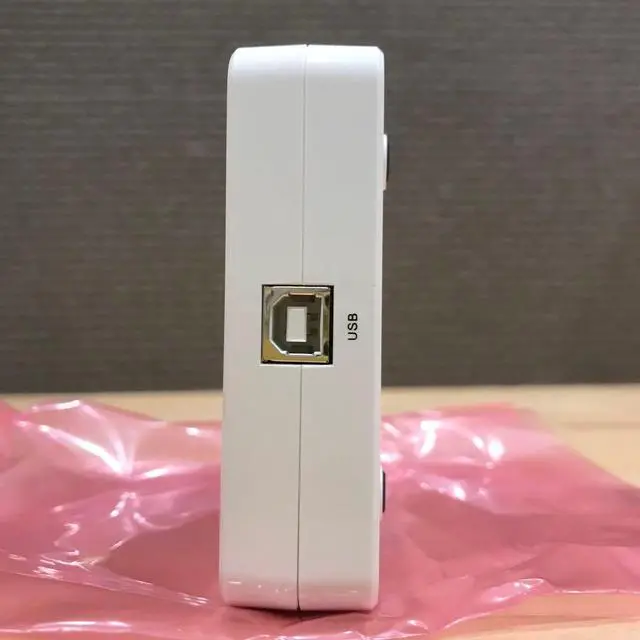

8. USB-powered (DC 5V / 500mA) for convenient operation
9. Certified to FCC, CE, WEEE, RoHS, REACH
10. Supported OS: Windows
This reliable LAP-C 16064 Logic Analyzer from Zeroplus streamlines digital development and debugging, ensuring accuracy and efficiency for professionals in electronic engineering.
