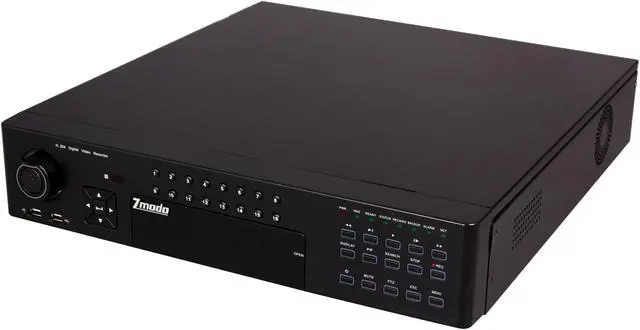

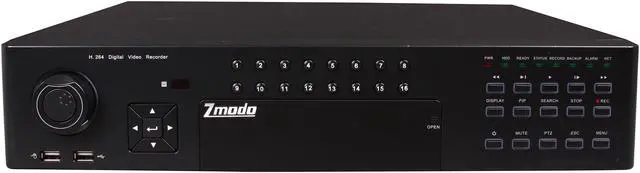

Zmodo DVR-H9216UVDH-1TB 16 x BNC Video Recorder

H.264
Continuous / Time Scheduled / Motion Detection / Alarm Triggered / Remote Networking
16 x BNC
1TB SATA HDD Storage Installed

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Zmodo DVR-H9216UVDH-1TB

Model
Brand	Zmodo
Model	DVR-H9216UVDH-1TB

Details
Supported Protocols	TCP/IP, DDNS,UDP,DHCP,PPPoE
Network Interface	1 x RJ-45

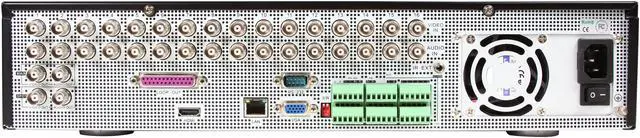

Video Input	16 x BNC
Video Output	2 x BNC, VGA/ Loop Out/ HDMI
Audio Input	16 x BNC
Frame Rate	Display: NTSC: 480 fps @ D1/ PAL: 400 fps @ D1 Recording: NTSC: 480 fps @ CIF/ PAL: 400 fps @ CIF
Compression Format	H.264
Recording Type	Continuous / Time Scheduled / Motion Detection / Alarm Triggered / Remote Networking
Remote	Internet Explorer or Remote Client Software
Storage Installed	1TB SATA HDD
Power Supply	AC100V-240V, 500mA

Features
Features	Signal System: NTSC / PAL Operation System: Linux Based Record Resolution: Selectable: NTSC: D1(704 x 480); HD1(704 x 240); CIF (352 x 240) / PAL: D1(704 x 576); HD1(704 x 288); CIF (352 x 288) Display Mode: 1/4/8/9/16/Full Screen Playback Search: Time & Date, Channel, Event List Network Function: IE Viewer / Live Monitoring / DVR Setting / Mobile & Email Function PTZ Control: RS-485 HDD Interface: SATA, Support up to 8 TB Alarm: 16-ch Sensor Inputs / 4-ch Alarm Output Backup: Flash Disk / Removable HDD / USB/ SATA CD/ DVD-RW/ Network Live View via Smart Phone & 3G Mobile: iPhone Google Android Blackberry OS as of now: V4.7 Running Windows Mobile Pro 5.0 & 6.1 Operating System Running Symbian Operating System: S60 3rd & S60 5th. Plug-n-Play

Dimensions & Weight
Dimensions	17.7" x 19" x 3.8"

Package Contents

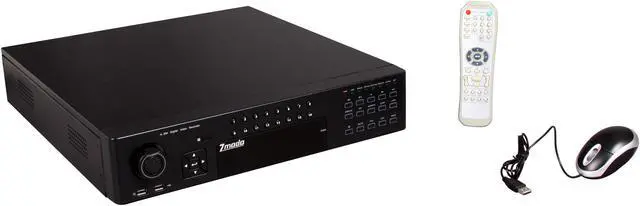

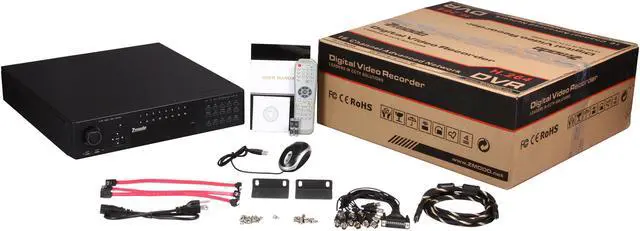

Package Contents	DVR-H9216UVDH 16 CH H.264 Real-time Security DVR 1 x 1TB HD IR Remote Control and Mouse Brackets and Screws Power Cable User's Manual and CD

Additional Information
First Listed on Newegg	March 22, 2012
