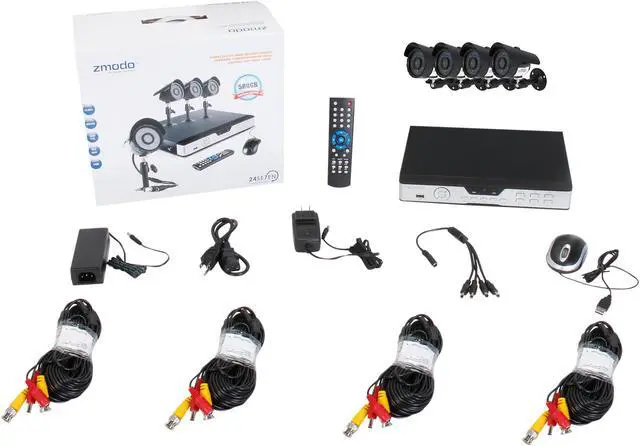

Images from RETAIL item, box contents may vary.

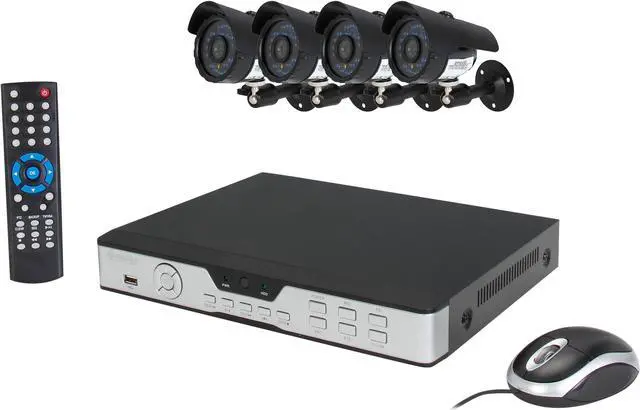

Zmodo KDB8-CARQZ4ZN-5G 8 Channel H.264 DVR Kit (500GB HDD), 4 X 600TVL, 3.6mm Wide Angle Lens, 24 IR LEDs for 65ft Night Vision

OPEN BOX

Please note that this product is non-returnable and non-refundable.

Specs

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Zmodo KDB8-CARQZ4ZN-5G

Recording
Camera inputs	8 Channel

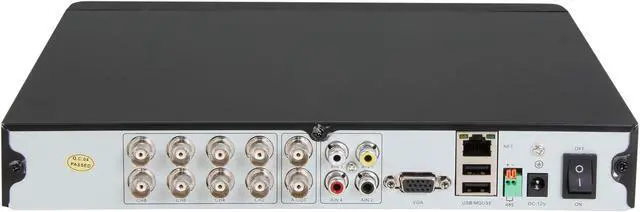

Video Input	8 x BNC
Audio Input	4 x RCA
Resolution Recording	Selectable: NTSC: D1(704 x 480); HD1(704 x 240); CIF (352 x 240) / PAL: D1(704 x 576); HD1(704 x 288); CIF (352 x 288)
Recording Frame Rate	NTSC: 240 fps @ CIF / PAL: 200 fps @ CIF
Recording Mode	Continuous / Time Schedule / Motion Detection
Recording Compression	H.264 Level

Details
Storage Capacity	500GB SATA, Support up to 2TB
Backup Device	USB Backup/USB 2.0

Features
Features	Video System: NTSC / PAL PTZ Control: RS-485 Power Consumption: IR on Max 1200mA
Operating System	Linux Based
Power Supply	12V/3A DC
Remote Control	Yes

Bundle
Bundled Camera Number	4

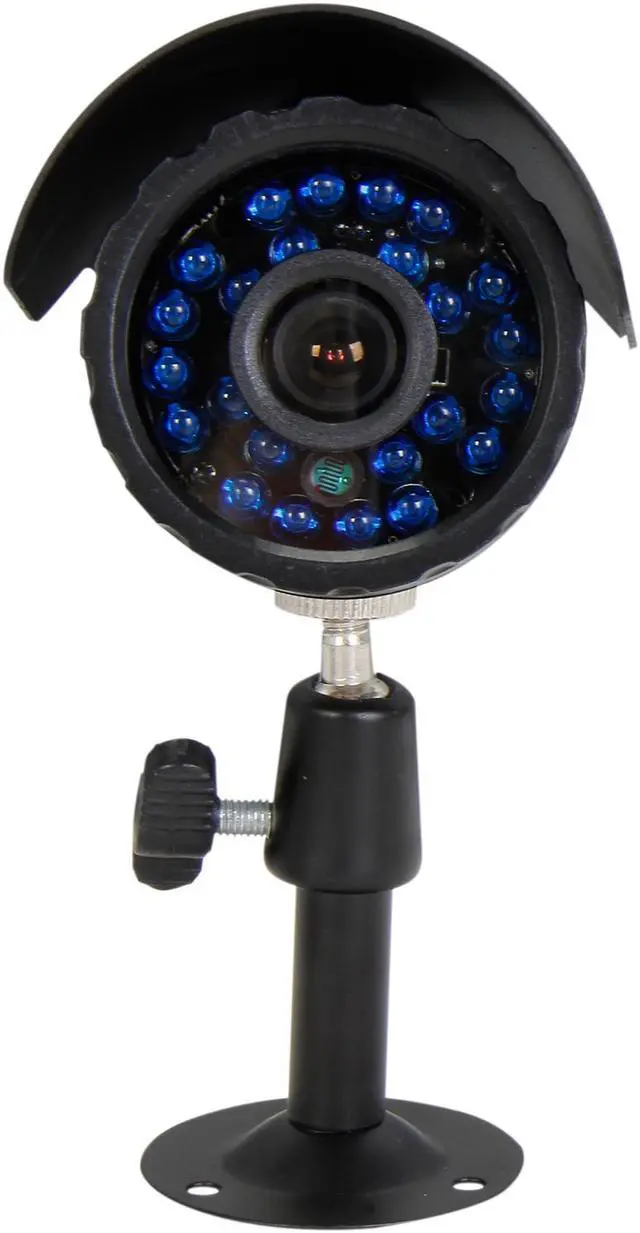

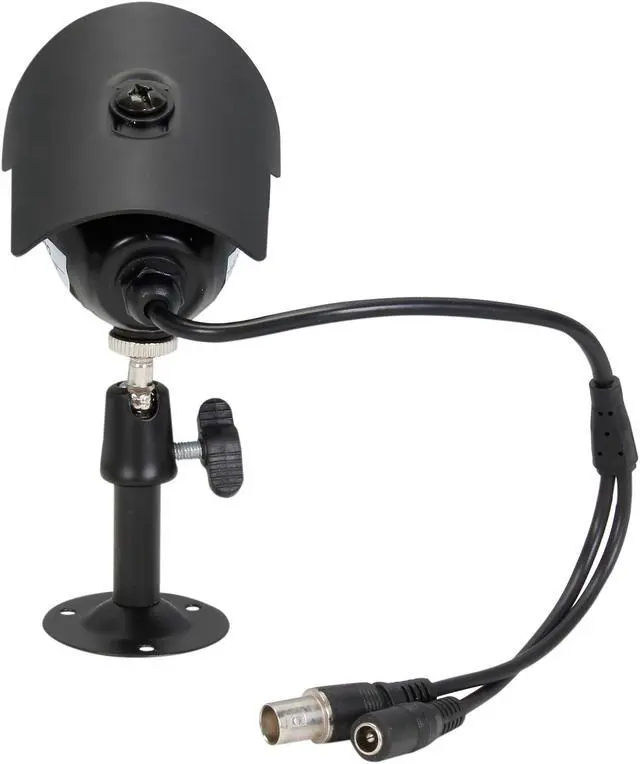

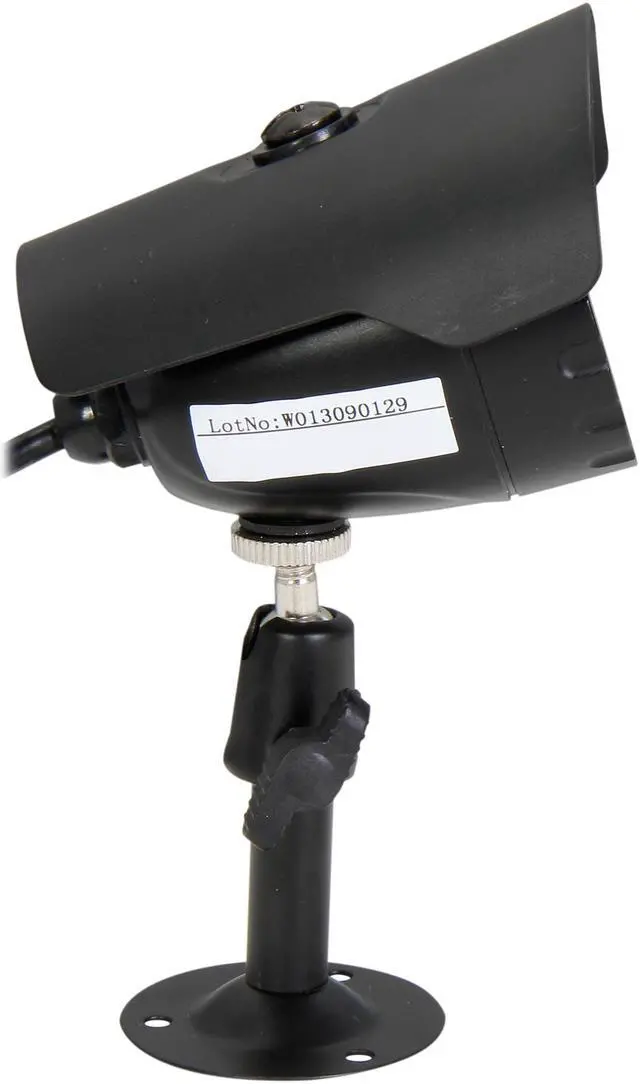

Bundled Camera Spec	Image Sensor: 1/4" Color CMOS TV System: NTSC / PAL Horizontal Resolution: 600 TV-Lines Lens: 3.6mm Number of IR LEDs: 24 LEDs Infrared Illumination (Night Vision): up to 65ft(15~20m) Minimum Illumination: 0.0 Lux S/N Ratio: 48dB Video Output: 1.0Vp-p, 75ohms Weatherproof: Yes Power: 12V DC Power Consumption: IR on Max 150mA Dimensions (W x D x H): 3.3" x 2.5" x 2.6" Gross Weight: 0.33 lbs Material: Metal Shell

Dimensions & Weight
Dimensions	12.8 "(W) x 10.4" (D) x 3.9"(H)

Additional Information
First Listed on Newegg	February 26, 2014
