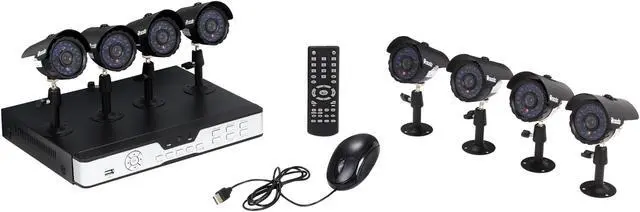

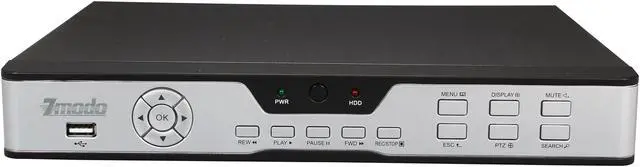

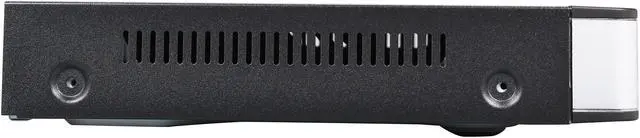

Zmodo KDS8-NARQZ8ZN 8 Channel H.264 Level Surveillance DVR Kit
- 8 x BNC
- H.264 Level
- Up to 2TB SATA HDD
- 8 Channel
- Bundled Camera Number 8
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Zmodo KDS8-NARQZ8ZN
| Brand | Zmodo |
|---|---|
| Model | KDS8-NARQZ8ZN |
| Type | Kit Solution |
| Camera inputs | 8 Channel |
|---|---|

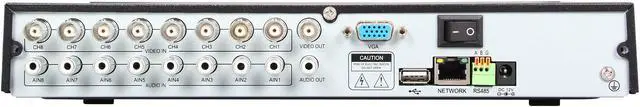

| Video Input | 8 x BNC |
| Audio Input | 4 x RCA |
| Resolution Recording | Selectable: NTSC: D1(704 x 480); HD1(704 x 240); CIF (352 x 240) / PAL: D1(704 x 576); HD1(704 x 288); CIF (352 x 288) |
| Recording Frame Rate | NTSC: 240 fps @ CIF / PAL: 200 fps @ CIF |
| Recording Mode | Continuous / Time Schedule / Motion Detection |
| Recording Compression | H.264 Level |
| Video Output | 1 x BNC, 1 x VGA |
|---|---|
| Audio Output | 1 |
| Resolution Display | NTSC: D1 (704 x 480)/ PAL: D1 (704 x 576) |
| Display Frame Rate | NTSC: 240 fps @ D1 / PAL: 200 fps @ D1 |
| Storage Capacity | Up to 2TB SATA HDD |
|---|---|
| Backup Device | USB 2.0 |
| Network Connection | RJ45, 10M/100M |
|---|---|
| Network Protocol | TCP/IP, PPPoE, DHCP and DDNS |
| Network Remote | LAN or Internet Browsing |
| Features | Video System: NTSC / PAL Network Function: Support Live View with IE & Mobile Phone PTZ Control: RS-485 |
|---|---|
| Operating System | Linux Based |

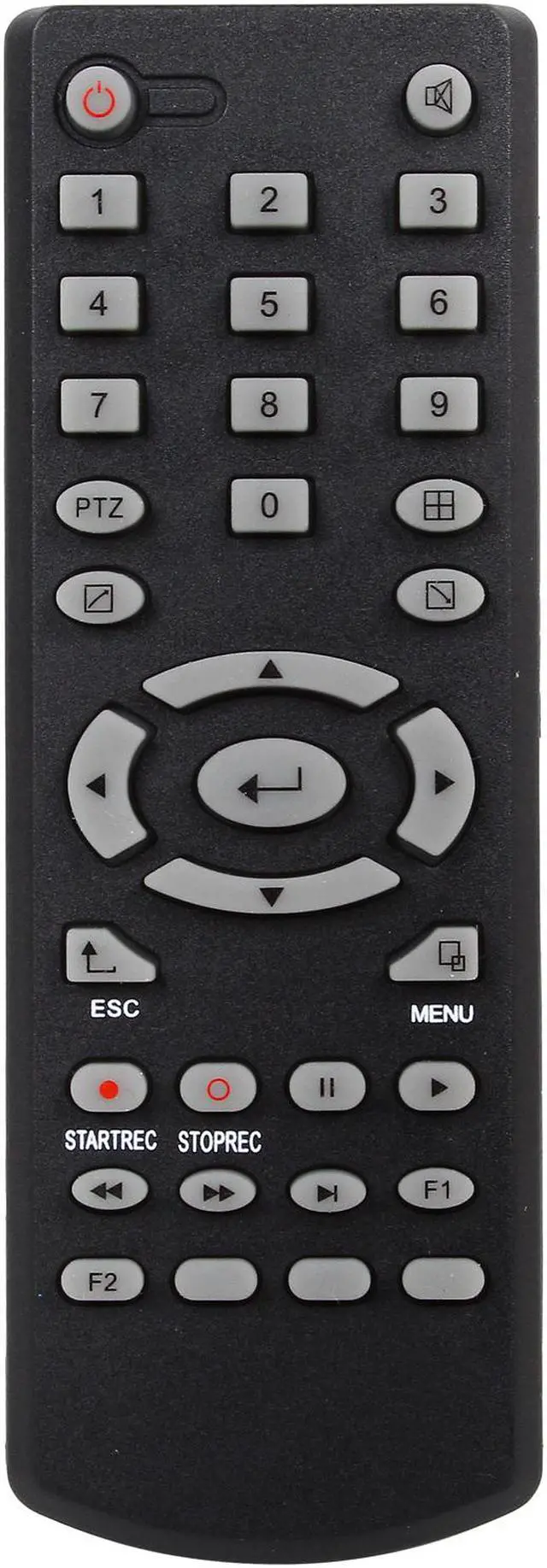

| Remote Control | Yes |
| Bundled Camera Number | 8 |
|---|---|

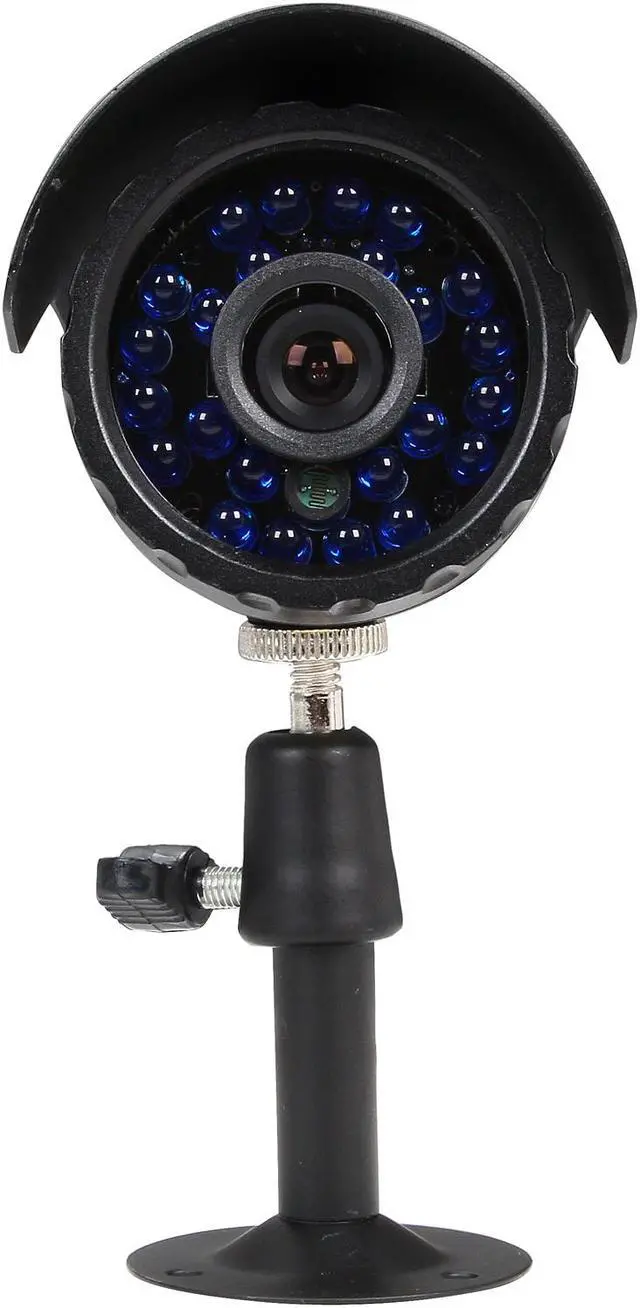

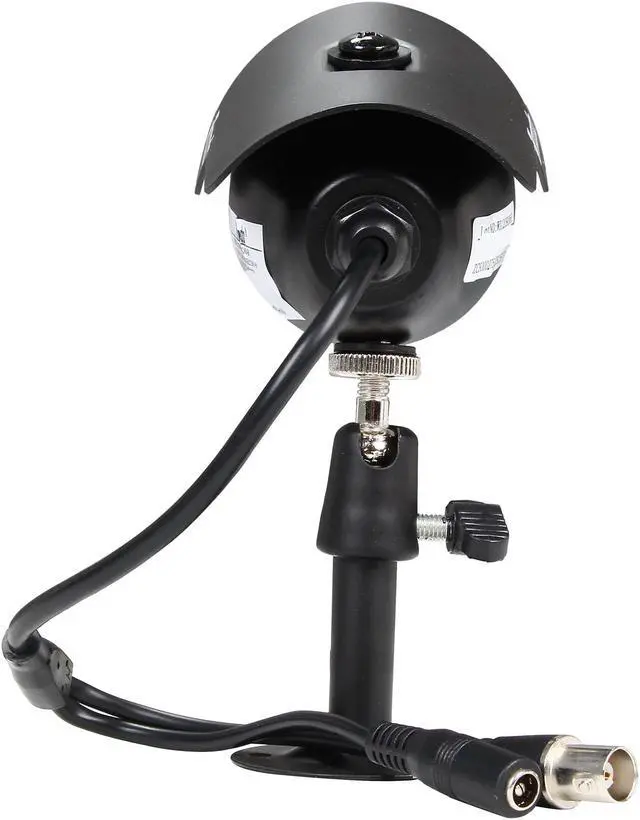

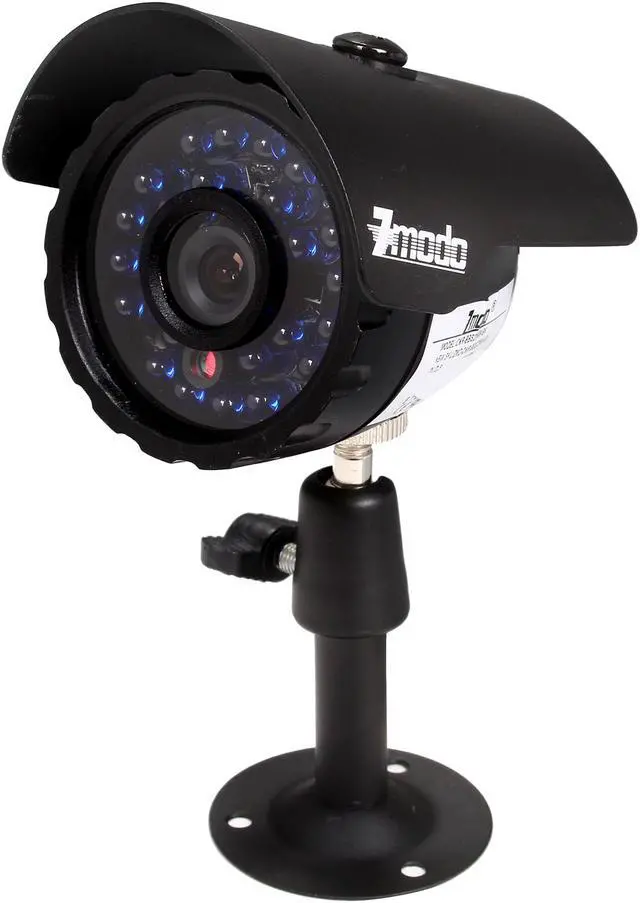

| Bundled Camera Spec | Image Sensor: 1/4" Sony Color CCD TV System: NTSC Effective Pixels: NTSC: 510 (H) x 492 (V) Horizontal Resolution: 420 TV-Lines Lens: 3.6mm Number of IR LEDs: 24 PCS Infrared Illumination (Night Vision): up to 65ft (20m) Minimum Illumination: 0 Lux (IR On) S/N Ratio: >= 48dB Video Output: 1.0Vp-p, 75ohms (BNC) Weatherproof: Yes Power: 12V DC Dimensions (W x D x H): 3.3" x 2.5" x 2.6" Gross Weight: 0.33 lbs. Material: Metal Shell |
| Dimensions | 12.8" x 10.4" x 3.9" |
|---|

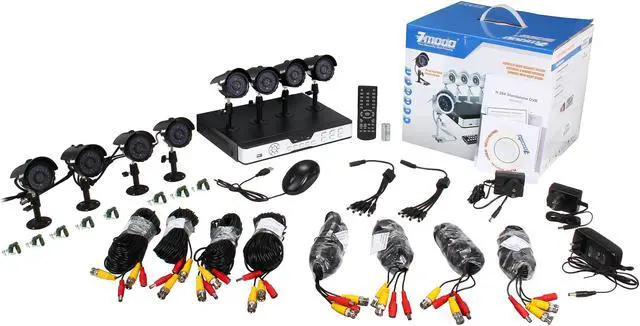

| Package Contents | (1) 8 Channel Security DVR (8) Security Camera (8) 60ft CCTV Power + Video Cables for Security Cameras (2) 12V/1500mA Single Power Supply for Security Cameras (1) 1-4 Splitter Cable for Security Cameras (1) IR Remote Control & Mouse (1) User's Manual |
|---|
| First Listed on Newegg | November 16, 2012 |
|---|
