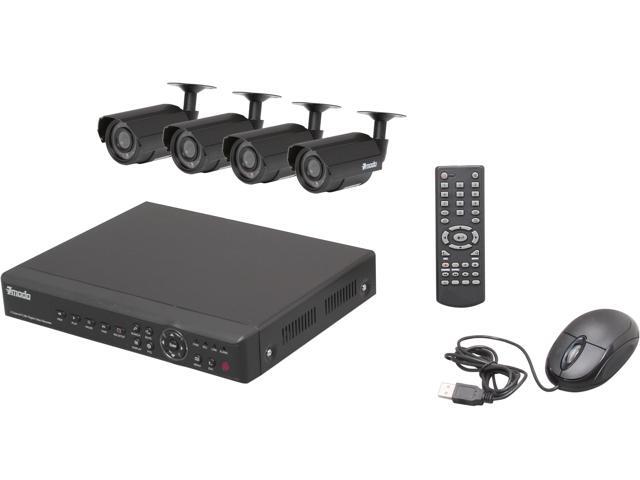

Zmodo PKD-DK40107 4 Ch DVR & 4 CMOS 480 TVL Cam Kit
- 4 Ch H.264 DVR
- 4 CMOS 480TVL Cameras
- App Zviewer
- PTZ Capability
- BNC & VGA Video Output
- 4 Audio Input
- Remote Mobile Access
- 6mm Lens
Specs
Reviews (33)
Learn more about the Zmodo PKD-DK40107
| Brand | Zmodo |
|---|---|
| Model | PKD-DK40107 |
| Type | Kit Solution |
| Camera inputs | 4 Channel |
|---|---|
| Video Input | 4 x BNC |
| Audio Input | 4 x RCA |
| Resolution Recording | Selectable: NTSC: D1(704 x 480); HD1(704 x 240); CIF (352 x 240) / PAL: D1(704 x 576); HD1(704 x 288); CIF (352 x 288) |
| Recording Frame Rate | NTSC: 120 fps @ CIF / PAL: 100 fps @ CIF |
| Recording Mode | Continuous / Time Schedule / Motion Detection |
| Recording Compression | H.264 Level |

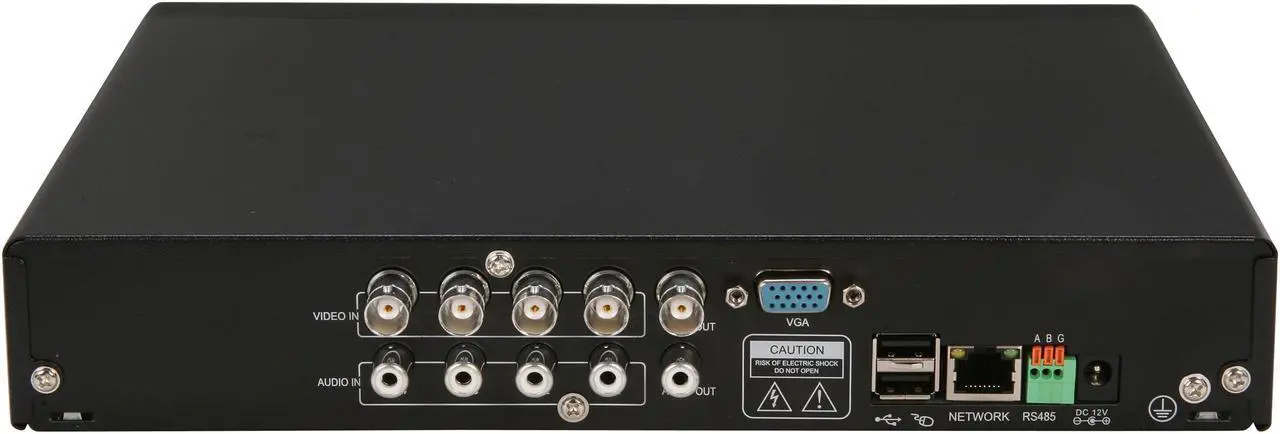

| Video Output | 1 x BNC, 1 x VGA |
|---|---|
| Audio Output | 1 x RCA |
| Resolution Display | NTSC: D1 (704 x 480) / PAL: D1 (704 x 576) |
| Display Frame Rate | NTSC: 120 fps @ D1 / PAL: 100 fps @ D1 |
| Storage Capacity | SATA, Support up to 2TB |
|---|---|
| Backup Device | USB |
| Network Connection | RJ45, 10M/100M |
|---|---|
| Network Protocol | TCP/IP, PPPoE, UPnP DHCP and DDNS |
| Features | Video System: NTSC / PAL Recording Pack Time: 15/30/45/60mins Selectable Remote Access: LAN or Internet Browsing PTZ Control: RS-485 Remote Access: Internet Explorer or Netviewer Software Support Remote View via Smart Phone & 3G Mobile: iPhone Google Android Blackberry OS V4.6 Windows Mobile Pro 5.0 & 6.1 Symbian S60 3rd & S60 5th |
|---|---|
| Operating System | Linux Based |
| Power Supply | DC12V, 2A |
| Remote Control | Yes |
| Bundled Camera Number | 4 |
|---|---|

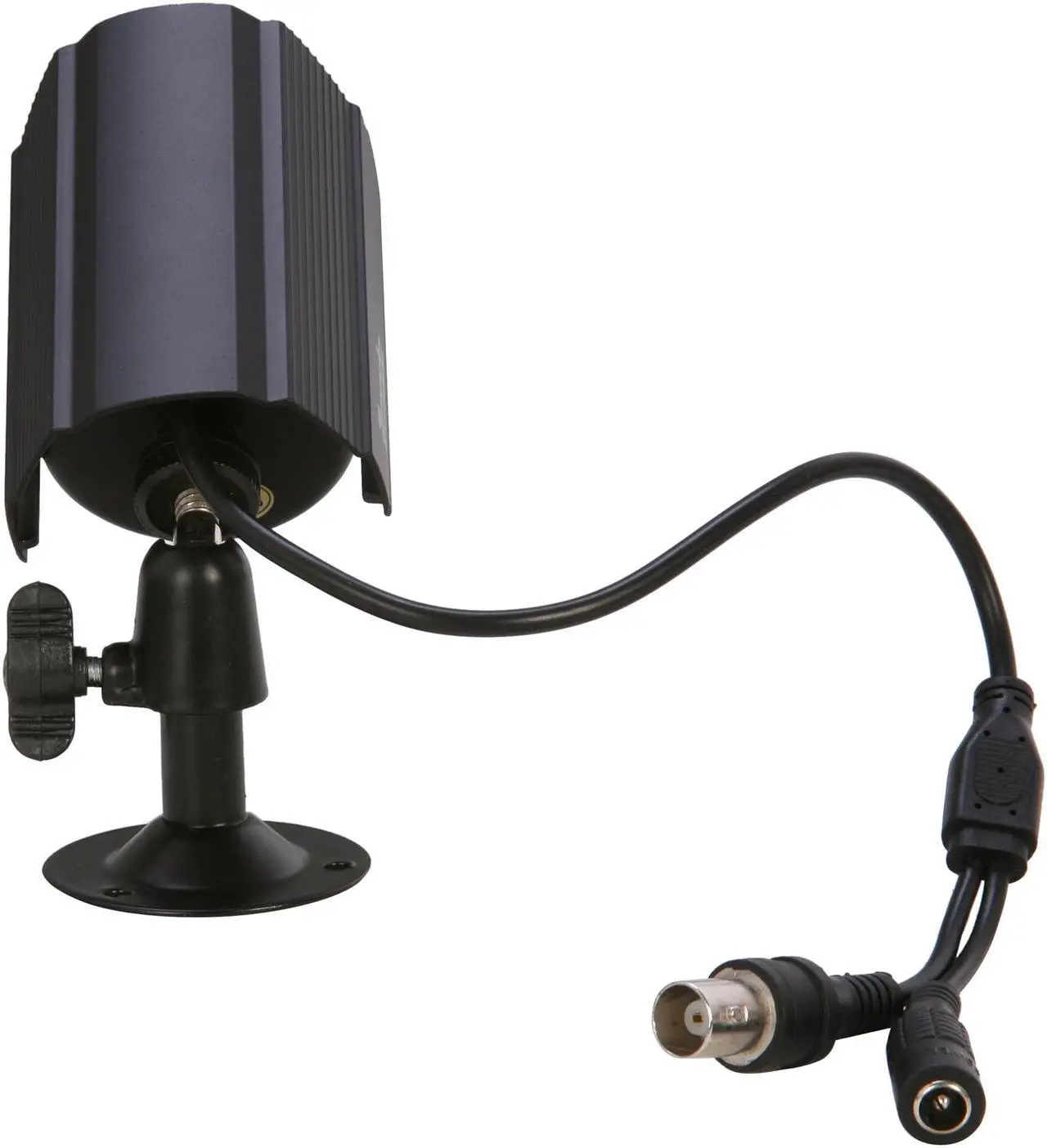

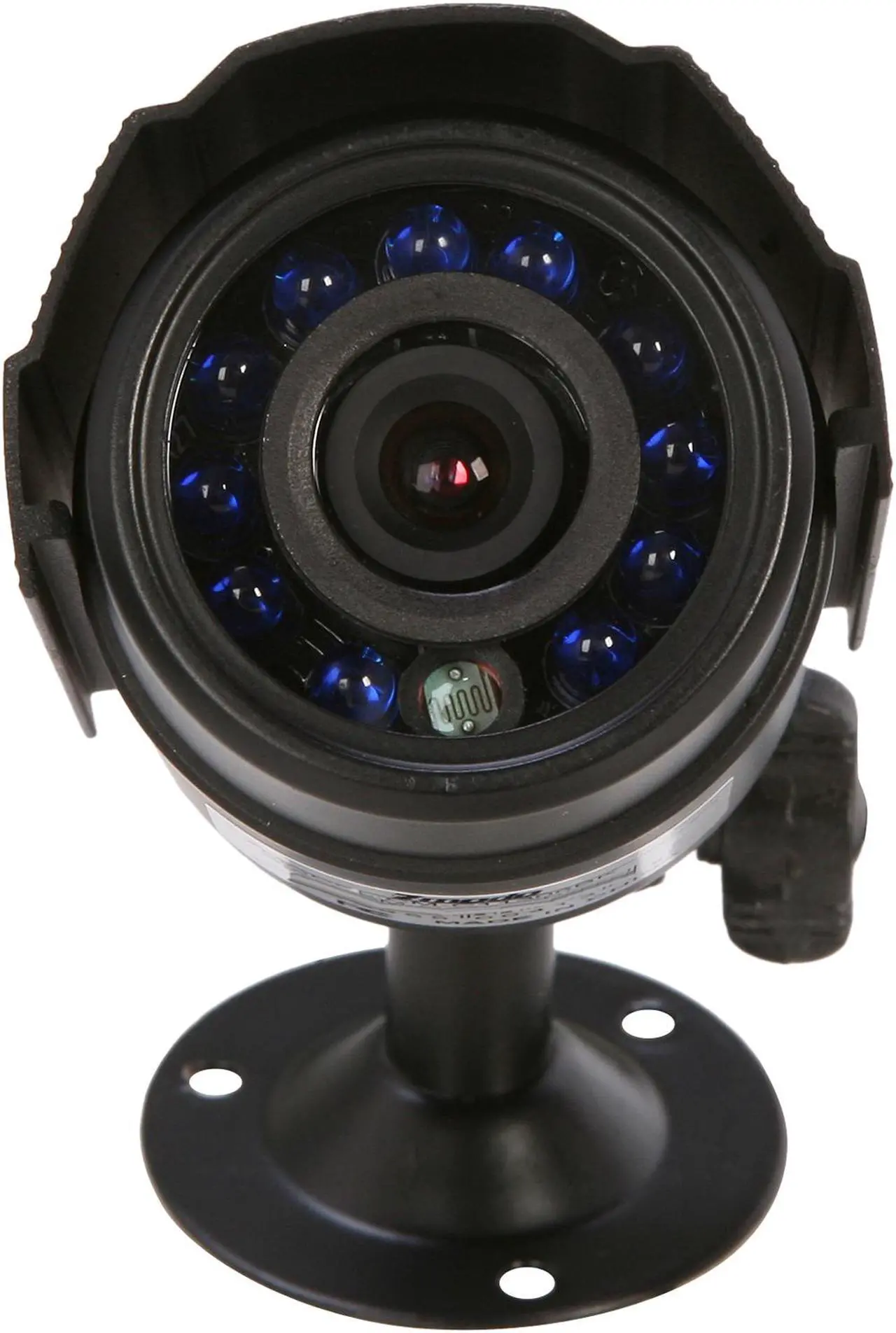

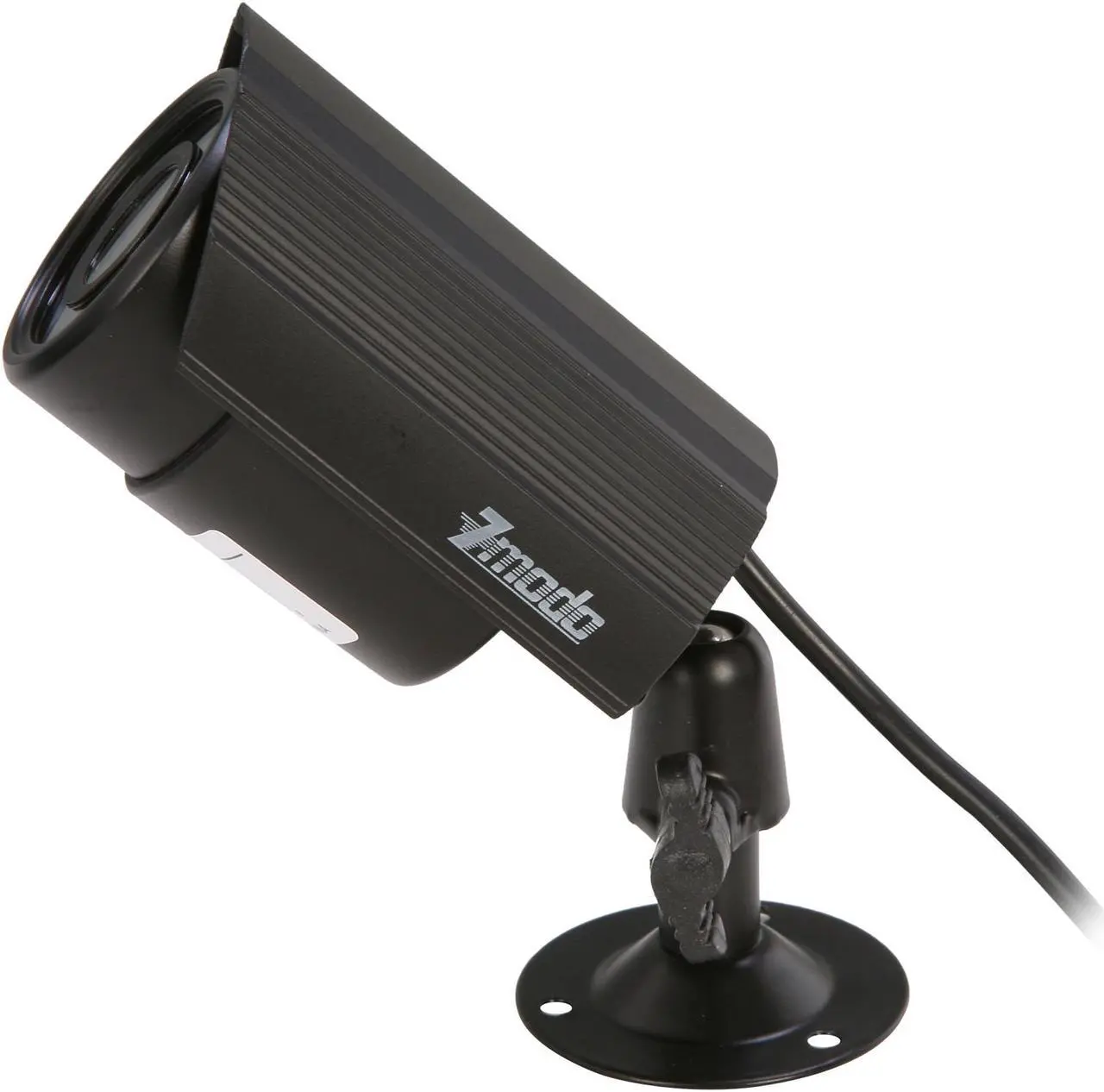

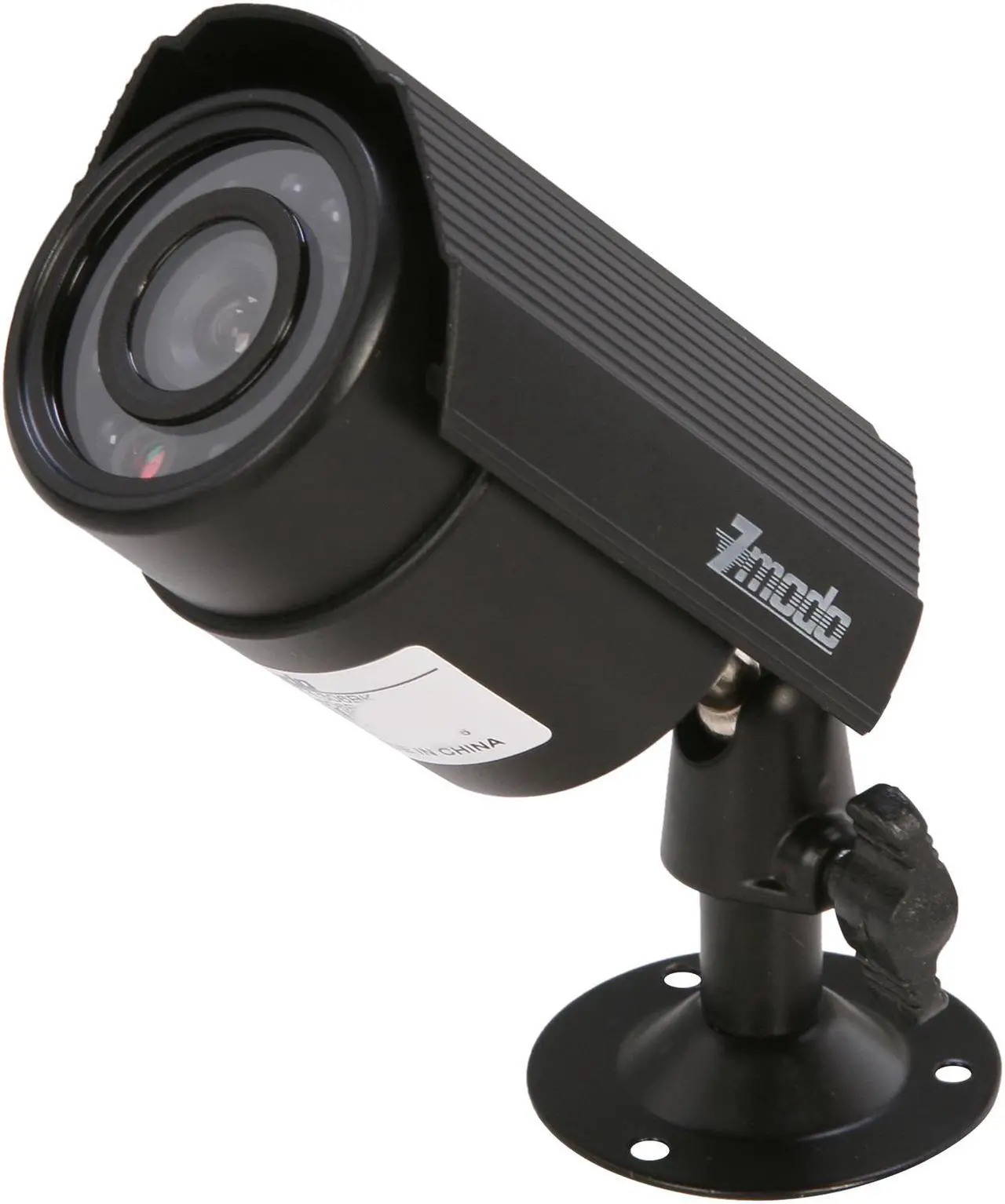

| Bundled Camera Spec | Image Sensor: 1/4" Color CMOS TV System: NTSC Effective Pixels: NTSC: 652 (H) x 582 (V) Horizontal Resolution: 480 TV-Lines Lens: 6mm Number of IR LEDs: 11 LEDs Infrared Illumination (Night Vision): up to 30ft Minimum Illumination: 0.0 Lux S/N Ratio: 48dB Video Output: 1.0Vp-p, 75ohms Weatherproof: Yes Operating Temperature: -10~50 degree Celsius Power: 12V DC Dimensions (W x D x H): 2.9" x 2" x 1.8" Gross Weight: 0.38 lbs. Material: Metal Shell |

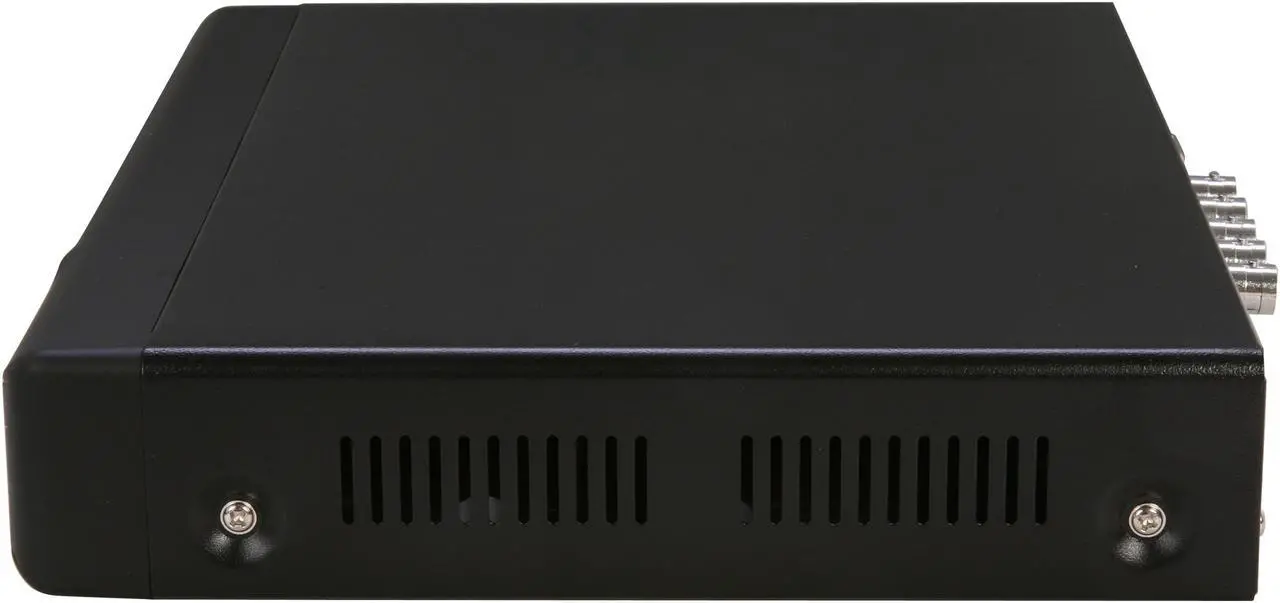

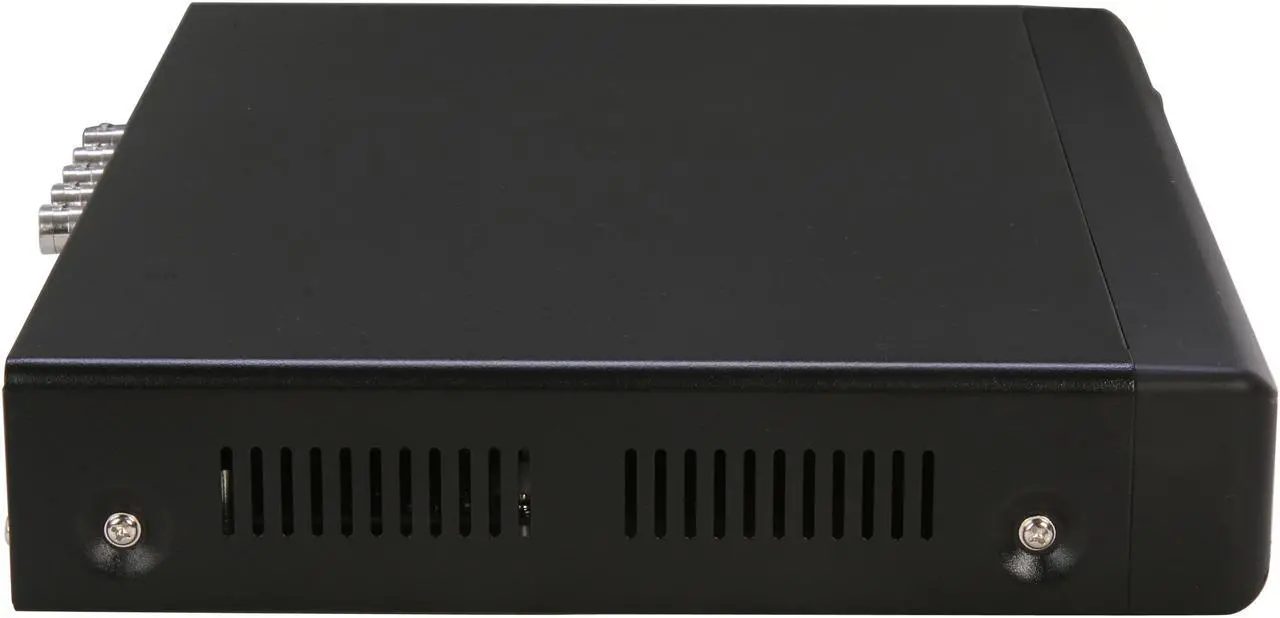

| Dimensions | 300mm (W) x 220mm (D) x 47mm (H) |
|---|

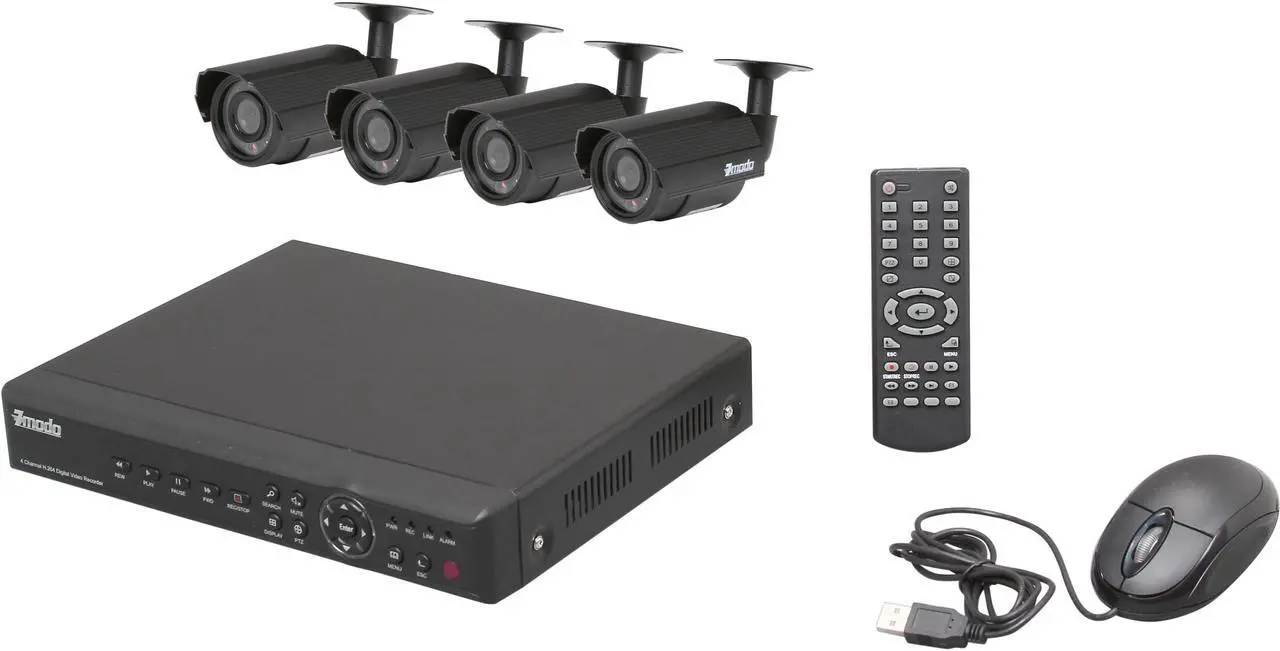

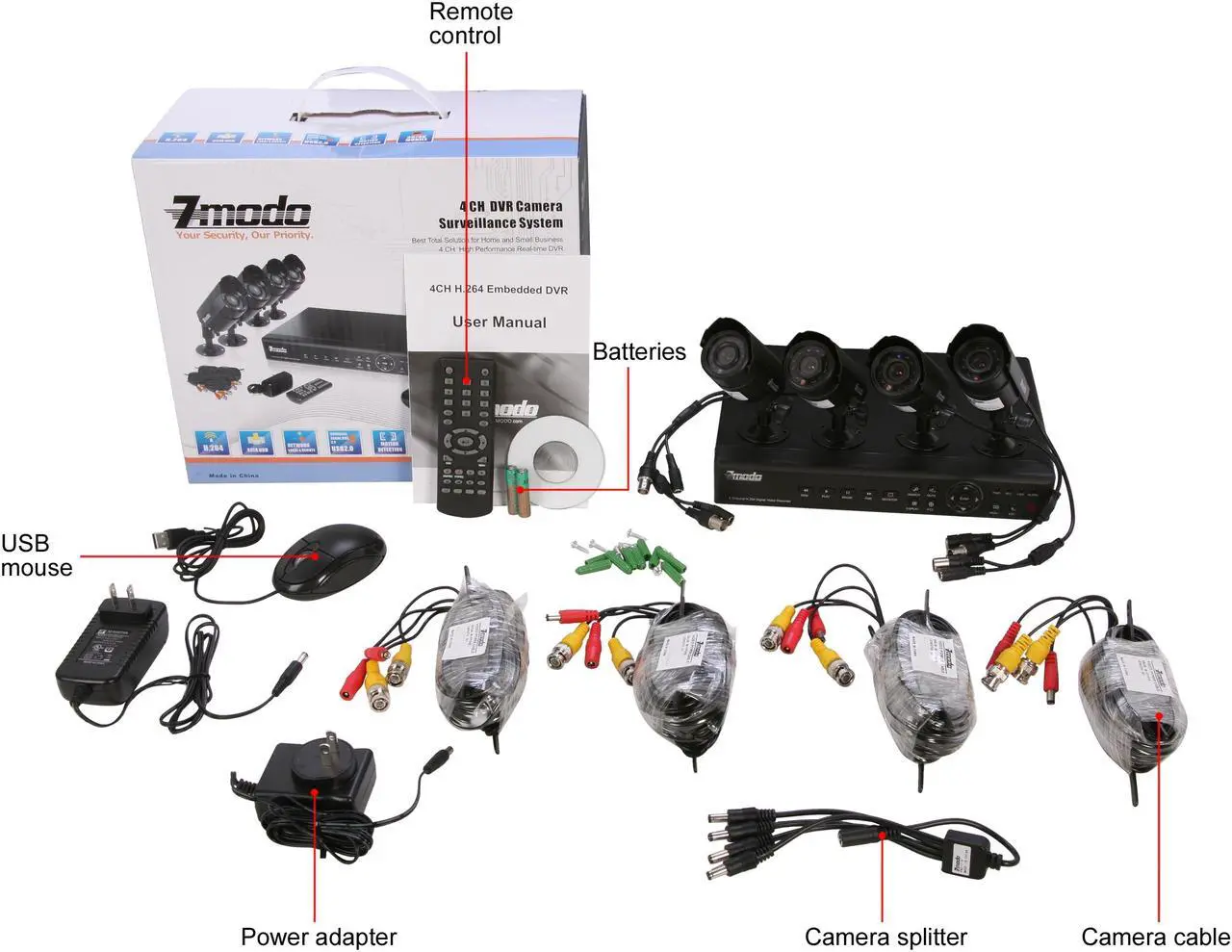

| Package Contents | (1) 4 CH H.264 standalone DVR (4) CMOS Color IR Security Outdoor Cameras (4) 60ft Surveillance Video + Power All-in-one Cable (1) 12V/1500mA 4 Port Power Supply for CCTV Cameras (1) IR Remote Control (1) User's Manual |
|---|
| Date First Available | April 06, 2012 |
|---|
