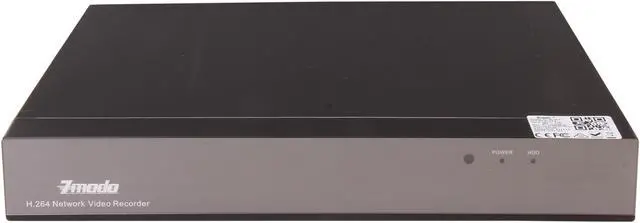

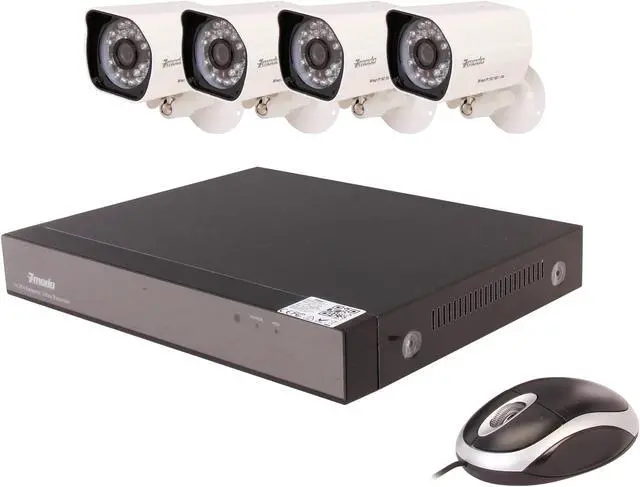

Zmodo ZP-KC1H04-P 4 Channel 4 IP 720P PoE NVR System (no HDD)

Name: Zmodo ZP-KC1H04-P 4 Channel Surveillance DVR Kit
Brand: Zmodo
SKU: N82E16881523055
Rating: 3 (2 reviews)

Specs

Reviews (2)

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Zmodo ZP-KC1H04-P

Model
Brand	Zmodo
Model	ZP-KC1H04-P

Details
Type	Kit Solution
Camera inputs	4 Channel
Resolution Display	Multi Screen Display: 1024x768@60Hz, 1280x1024@60Hz
Display Frame Rate	NTSC: 120fps / PAL: 100 fps
Recording Frame Rate	NTSC: 120fps @ 720P / PAL: 100 fps @ 720P
Recording Mode	Continuous / Time Scheduled / Alarm Triggered/Motion Detection
Recording Compression	H.264 Level
Storage Capacity	1 x SATA HD, Up to 2TB
Backup Device	USB Flash Disk

Network
Network Connection	RJ45, 10M/100M
Network Protocol	TCP/IP, PPPOE, DHCP,DDNS

Features

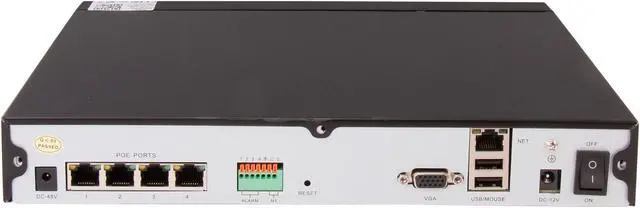

Features	Video System: NTSC / PAL Video Inputs: IP Cameras Monitors: One VGA Monitor Video Resolution: 720P Playback Mode: Fast Forward / Rewind /Slow Play Network Function: remote configuration, video browse, local recording, local and remote playback 3G/4G Smartphone: iPhone 4.3 up, Adroid 2.2 up Mobile Fuction: 4 Channel Viewer / Channel Switch Sensor/Alarm: 4 CH Sensor Inputs / 1 CH Alarm Output Remote Access: LAN or Internet Browsing POE Ports: 4 H.264 Compression to maximize recording time Built-in USB Port for USB Mouse Connection & Back-UP VGA Port for PC Monitor Output VGA and CIF Dual Stream Video Quality Selectable Recording Mode: Continuous Recording/ Motion Detection Recording/ Scheduled Set Email Notification in Zviewer windows CMS software or IE Up to 16 User Simultaneous Online.
Operating System	Linux Based
Power Supply	Electrical Input Voltage: DC12V, 3A POE Input Voltage: DC48V,1A
Remote Control	Yes

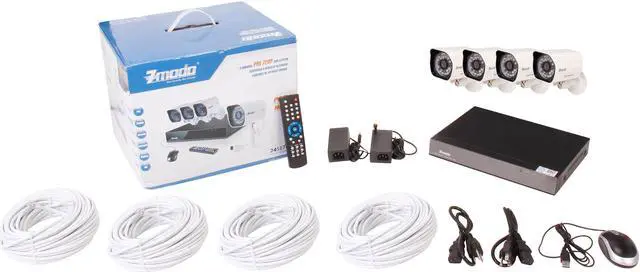

Bundle
Bundled Camera Number	4

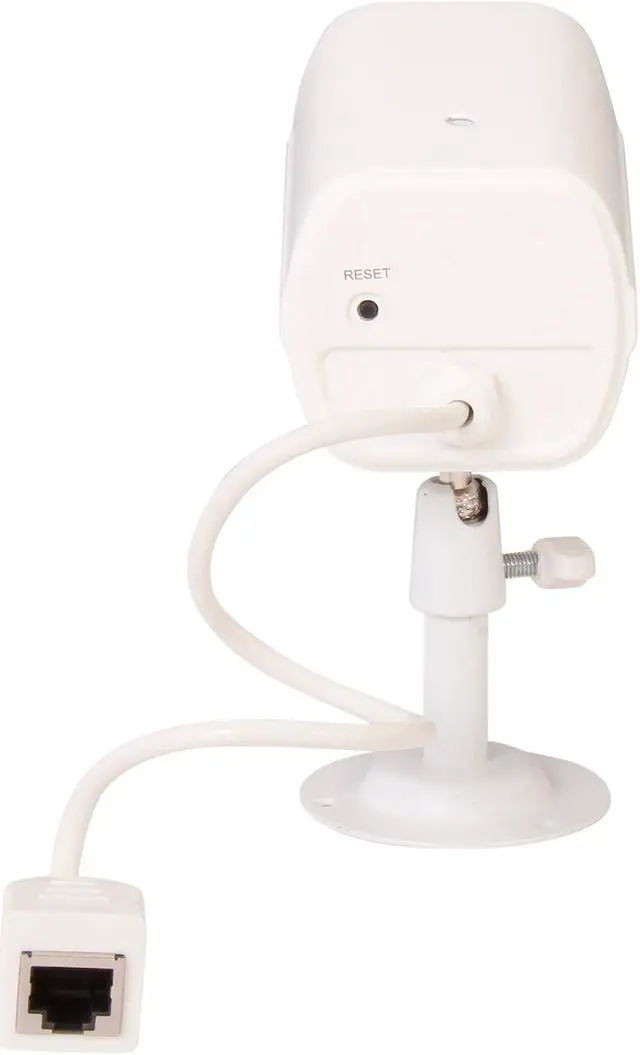

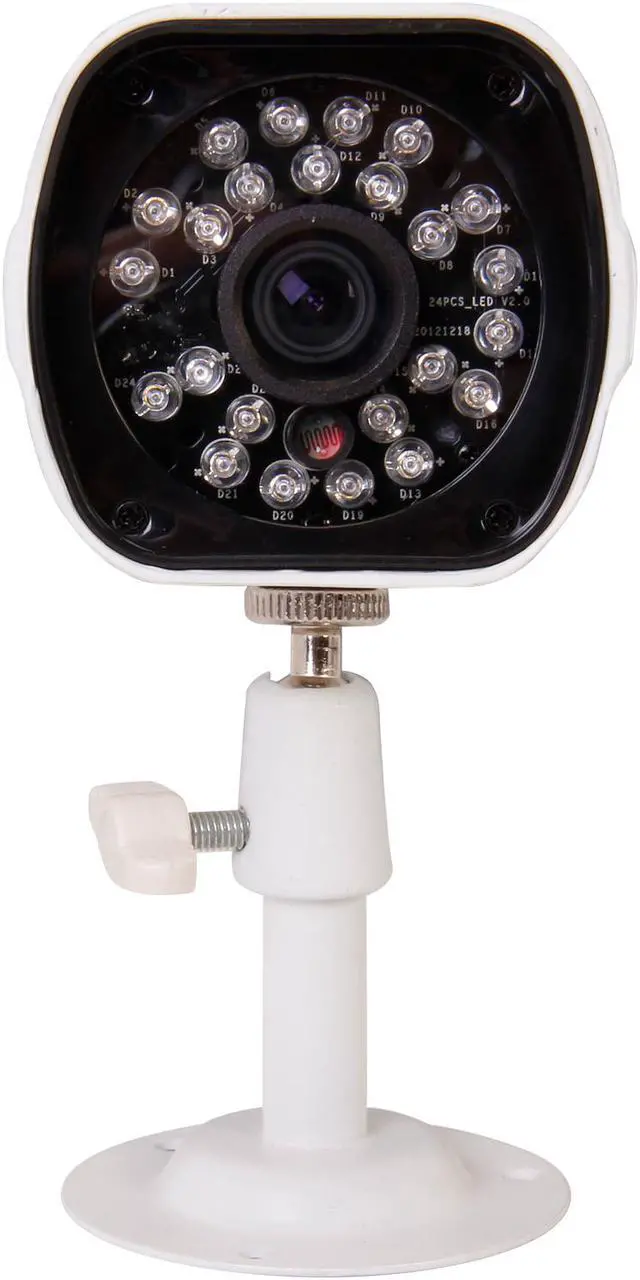

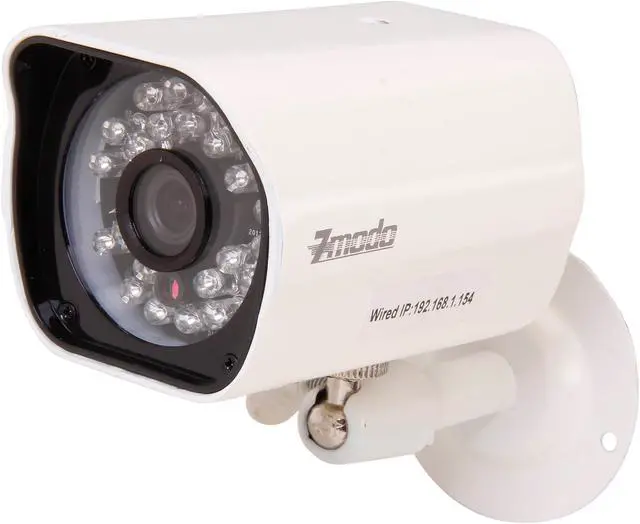

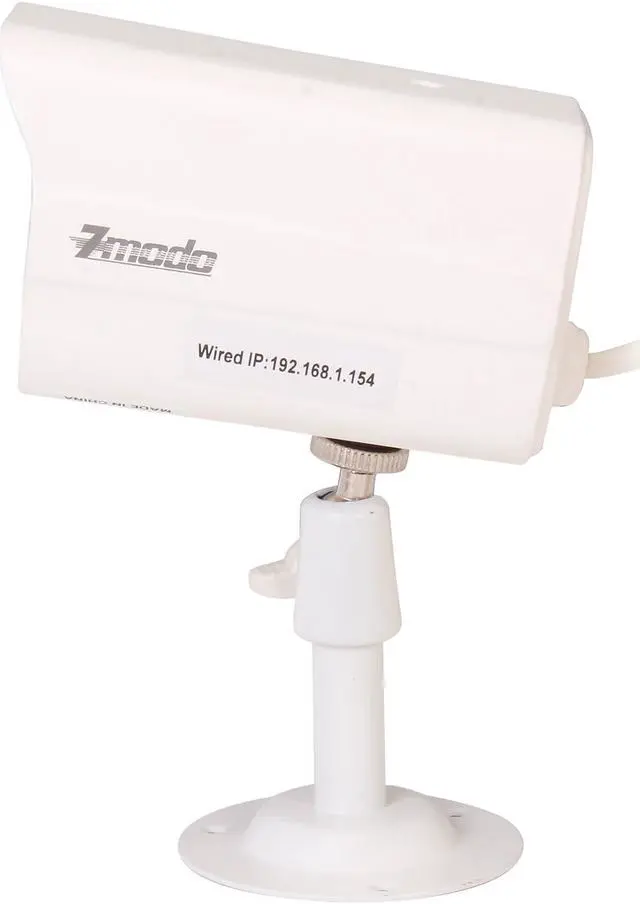

Bundled Camera Spec	720P POE Outdoor IP Network Camera: Image Sensor: 1/3" Color CMOS Sensor Video Compression: H.264 Resolution: 720P(1280720),VGA(640480) Video/Picture Adjustment: Brightness, Contrast, Chroma, Saturation Lens: 3.6mm Mini. Illumination: 0.1Lux(IR LED On) / F 1.2 S/N Ratio: >44DB (AGC Off) White Balance: Auto Backlight Balance: Auto SD Card: Supports Up to 64GB Infrared Light: 24 IR LEDs, Night visibility up to 20M(65ft) Network Interface: RJ45 10/100M self-adaptive Network Protocol: PPPOE, IP/TCP/UDP, DNS/DDNS, SMTP UDPCH/DHCP etc. User Management: Multi-lever User Management, Support Up to 16 User IP Mode: Dynamic IP address, Static IP Address Intelligent Motion Detection: Motion Detection Setting Alarm Action: Support report to alarm / E-mail Weatherproof: Yes Power Supply: POE Supported OS: Microsoft Win98 SE/ME/2000/XP/Vista/win7, Internet Explorer 6.0/7.0/8.0 Supported Mobile Phone OS: Android 2.2 up, iPhone 4.3 up Color: White Material: Aluminum Alloy Dimensions: 4.3"2.6"5.2" Net Weight: 1.14lbs

Dimensions & Weight

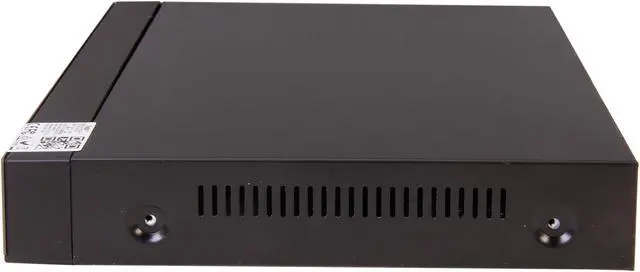

Dimensions	11.4" x 9.1" x 1.7"
Weight	3.06lbs.

Additional Information
Date First Available	July 10, 2013
