Will this work with Charter Cable internet?

It isn't listed on their list. While it would probably work, I wouldn't recommend getting something off their list. If anything -- *anything* - ever goes wrong, they will simply immediately blame the fact that you have an unapproved Modem and call it a day. Newegg won't let me link to you to them directly, but if you goog "compliant modems charter network" it should be the first result.

can this replace my comcast arris gateway TG862G? Is it compatible with wifi and do i need to buy a separate router or is this all i need?

You could use this modem to replace the TG862G but you would need a separate wifi router. I would personally avoid Zoom and use Motorola/Arris.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

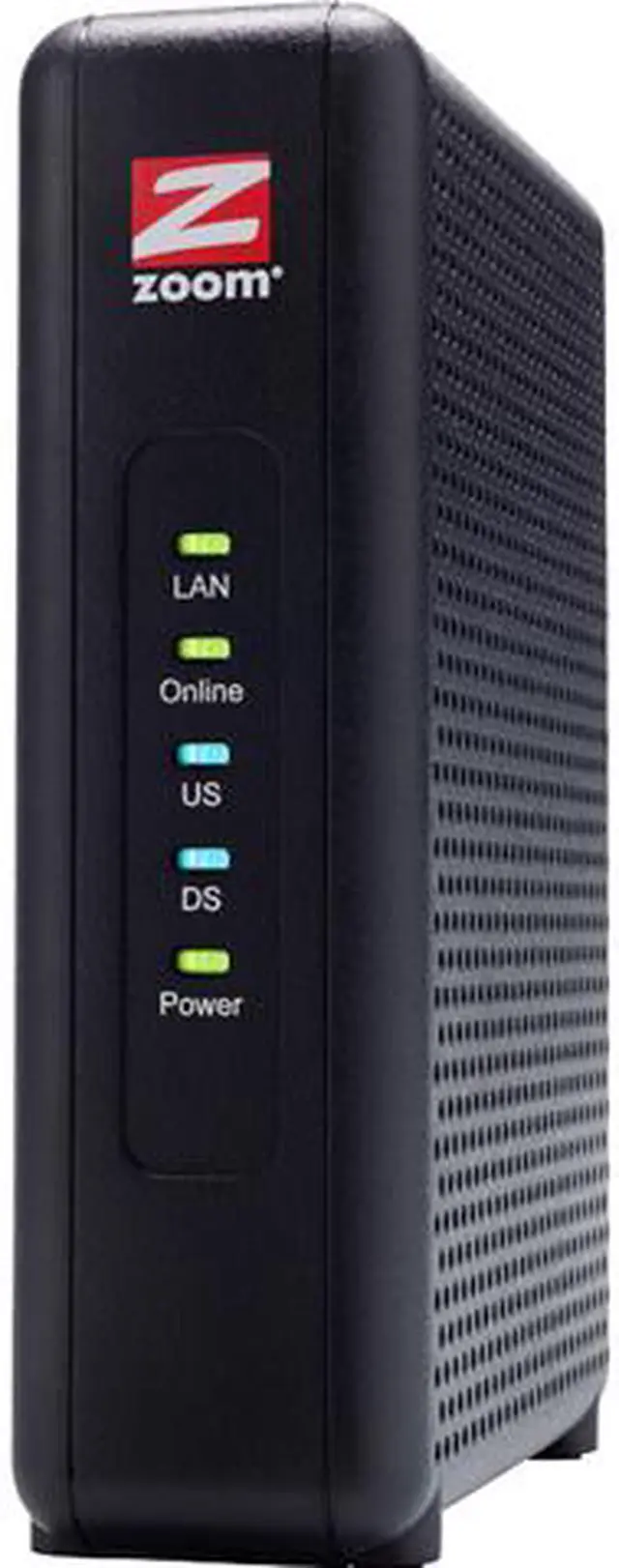

Main image of Zoom 5345-00-00 DOCSIS 3.0 8 x 4 343 Mbps Cable Modem Up to 343 Mbps Downstream, up to 123 Mbps Upstream RJ-45 10/100/1000 Mbps Ethernet, with Auto-MDI/MDIX DOCSIS 3.0

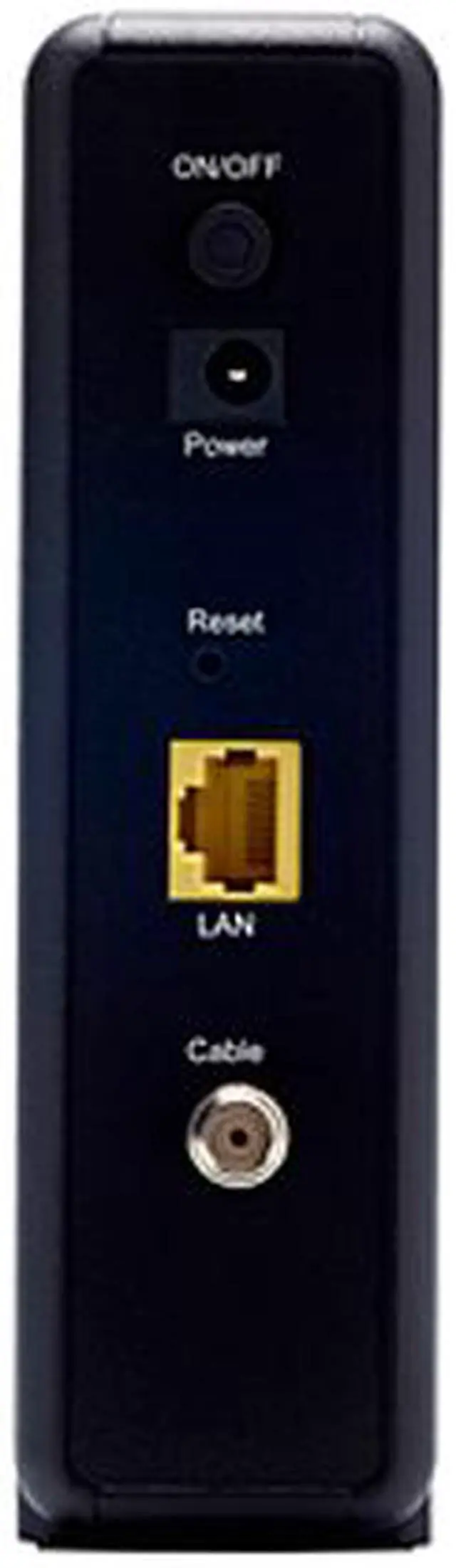

Alt view image 2 of 2 - Zoom 5345-00-00 DOCSIS 3.0 8 x 4 343 Mbps Cable Modem Up to 343 Mbps Downstream, up to 123 Mbps Upstream RJ-45 10/100/1000 Mbps Ethernet, with Auto-MDI/MDIX DOCSIS 3.0

Shop All Zoom Technologies Inc. Products

Zoom 5345-00-00 DOCSIS 3.0 8 x 4 343 Mbps Cable Modem Up to 343 Mbps Downstream, up to 123 Mbps Upstream RJ-45 10/100/1000 Mbps Ethernet, with Auto-MDI/MDIX DOCSIS 3.0

(7) Write a Review

Up to 343 Mbps Downstream, up to 123 Mbps Upstream
RJ-45 10/100/1000 Mbps Ethernet, with Auto-MDI/MDIX
F type female 75 Ohm (standard coaxial connector)
DOCSIS 3.0

Overview

Specs

Reviews (7)

See all Q & A

Zoom 5345 343 Mbps DOCSIS 3.0 8x4 Cable Modem

Provides high-speed Internet. Connects to your computer or router.

Fast Internet!
Faster than DOCSIS 2.0 and 4x4 DOCSIS 3.0
Full-Band Capture Digital Tuning
For even higher speeds
2-year Warranty
CableLabs® certified
Also certified for use with Comcast XFINITY®,
Time Warner Cable®, and more

Features

Save money!

Owning this cable modem eliminates modem rental charges (typically $8 to $10 every month) from Comcast XFINITY, Time Warner Cable, and other service providers.

Fast Internet!

This 8x4 cable modem has eight downstream channels, four more than 4x4 cable modems. 8x4 gives higher average download speeds than 4x4, even for service speeds below this cable modem/router’s top speed of 343 Mbps.

Full-Band Digital Capture Tuning lets your cable service provider deliver faster, more reliable Internet.

Plugs into your computer or router

Provides Internet access for a computer or anything connected to your router.

Certified by Comcast, Time Warner Cable, and more

This product is certified for own-your-modem programs by Comcast, Time Warner Cable, and more.

For other cable services, please check with that service.

Additional features

CableLabs certified

The 5345 is certified by CableLabs to support the latest DOCSIS 3.0 standard plus DOCSIS 2.0 and 1.1 for use with older cable systems. Also certified by Comcast, Time Warner Cable, and more.

Supports IPv6 and IPv4

For powerful, flexible network addressing.

The perfect choice

With its easy installation, high speed, and extensively tested compatibility, the Model 5345 is the perfect choice for almost any cable modem user.

Gigabit Ethernet port

10/100/1000 Mbps for highest speed and compatibility

Uses advanced Broadcom integrated circuit technology

Excellent USA customer support

The Zoom 5345 is supported by Zoom Telephonics, a Boston based company founded in 1977.

Model
Brand	Zoom
Model	5345-00-00

Details
Type	Cable Modem
Interface	RJ-45 10/100/1000 Mbps Ethernet, with Auto-MDI/MDIX
Cable Interface	F type female 75 Ohm (standard coaxial connector)
Standards	DOCSIS 3.0
Chipset	Broadcom BCM3383D
Max Transmission Rate	Up to 343 Mbps Downstream, up to 123 Mbps Upstream

Features
Features	Downstream Data rate: Up to 343 Mbps (8 channels), Up to 43 Mbps (single channel) Frequency: 88 to 1002 MHz (edge to edge) Modulation: 64 or 256 QAM Operating level range: -15 to +15 dBmV Upstream Data rate: Up to 123 Mbps (4 channels), Up to 31 Mbps (single channel) Frequency: 5 to 42 MHz (edge to edge) Modulation: QPSK, 8QAM, 16QAM, 32QAM, 64QAM,128QAM, 256QAM Operating level range: A-TDMA: +8 to +54 dBmV (32QAM, 64QAM) / +8 to +58 dBmV (QPSK); S-CDMA: +8 to +53 dBmV (all modulations) Security: DOCSIS 3.0 Security (BPI+, EAE, SSD) Networking Network protocols: IPv4, IPv6, TCP, UDP, ARP, ICMP, DHCP, FTP, TFTP, SNMP, HTTP Application protocol: SNMP v1 / v2 / v3 DHCP client: Automatically retrieves IP and DNS server address from DHCP server at ISP ToD (RF868): ToD support for local and MSO time synchronization TFTP client: TFTP support for cable modem configuration file download Management: Web-based management interface utility Status indicators: Ethernet link, Connection Status, Upstream link, Downstream link, Power Power adapter: Level V energy-saving, switching power supply with 12 Volt DC, 1 Amp output. NEMA 5-15 (North American style) plug is standard. Other plugs are available Operating temperature: 32 to 104 degree Fahrenheit Approvals: FCC part 15B, Bureau Veritas for IEC 60950-1:2005 (2nd Ed.) safety, CE, CableLabs System requirements: The cable modem must be connected to a cable modem service that uses any of the DOCSIS standards – 3.0, 2.0, 1.1 An available Ethernet port on a Windows, Mac, or Linux computer, or an available WAN Ethernet port on a wired or wireless router Package contents: Cable modem, power cube, Ethernet cable, Quick Start flyer

Additional Information
First Listed on Newegg	August 28, 2015

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 2 years
Limited Warranty period (labor): 2 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy.
Read full return policy for details.

Manufacturer Contact Info

Manufacturer Website
Support Phone: 1-800-631-3116
Support Website
View other products from Zoom Technologies Inc.

Zoom 5345-00-00 DOCSIS 3.0 8 x 4 343 Mbps Cable Modem Up to 343 Mbps Downstream, up to 123 Mbps Upstream RJ-45 10/100/1000 Mbps Ethernet, with Auto-MDI/MDIX DOCSIS 3.0

Zoom 5345 343 Mbps DOCSIS 3.0 8x4 Cable Modem
