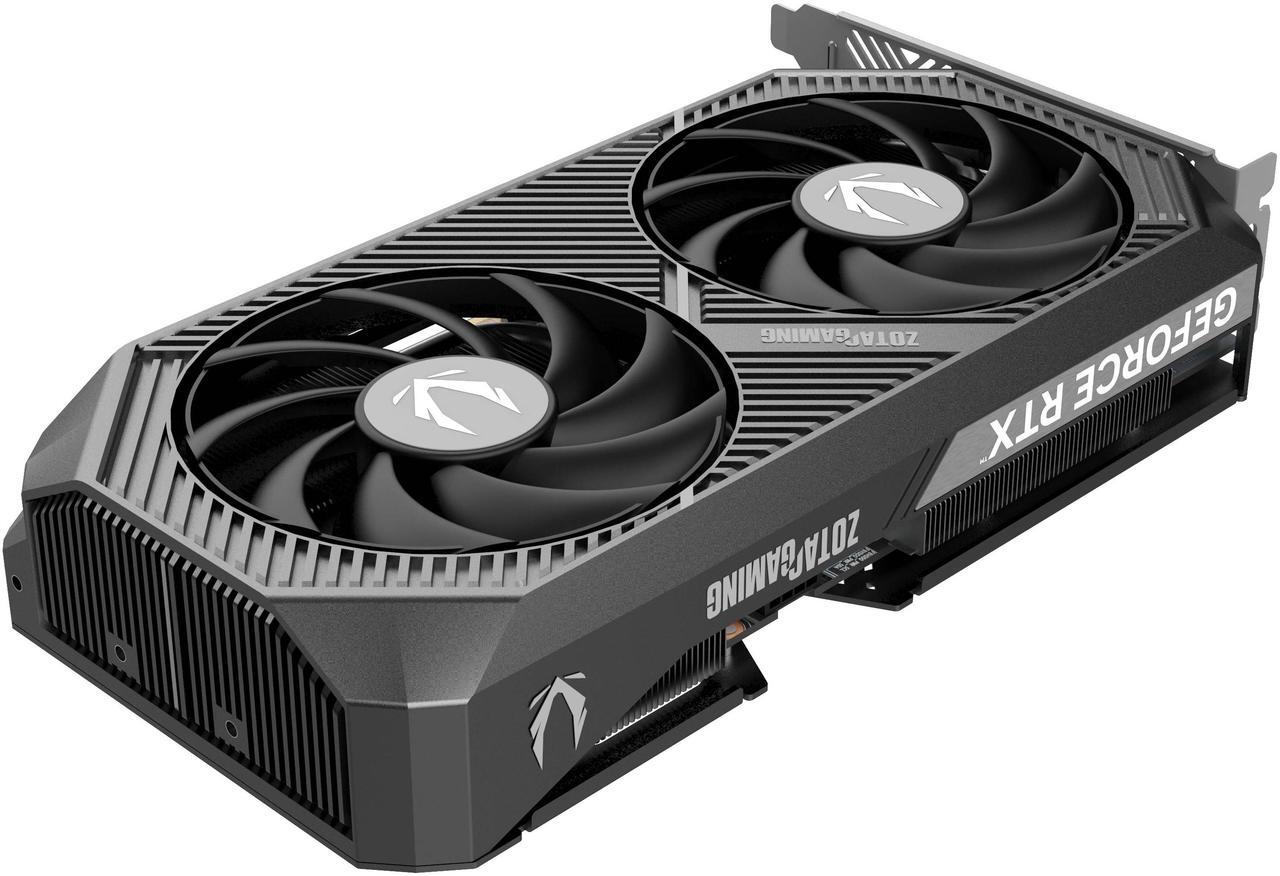

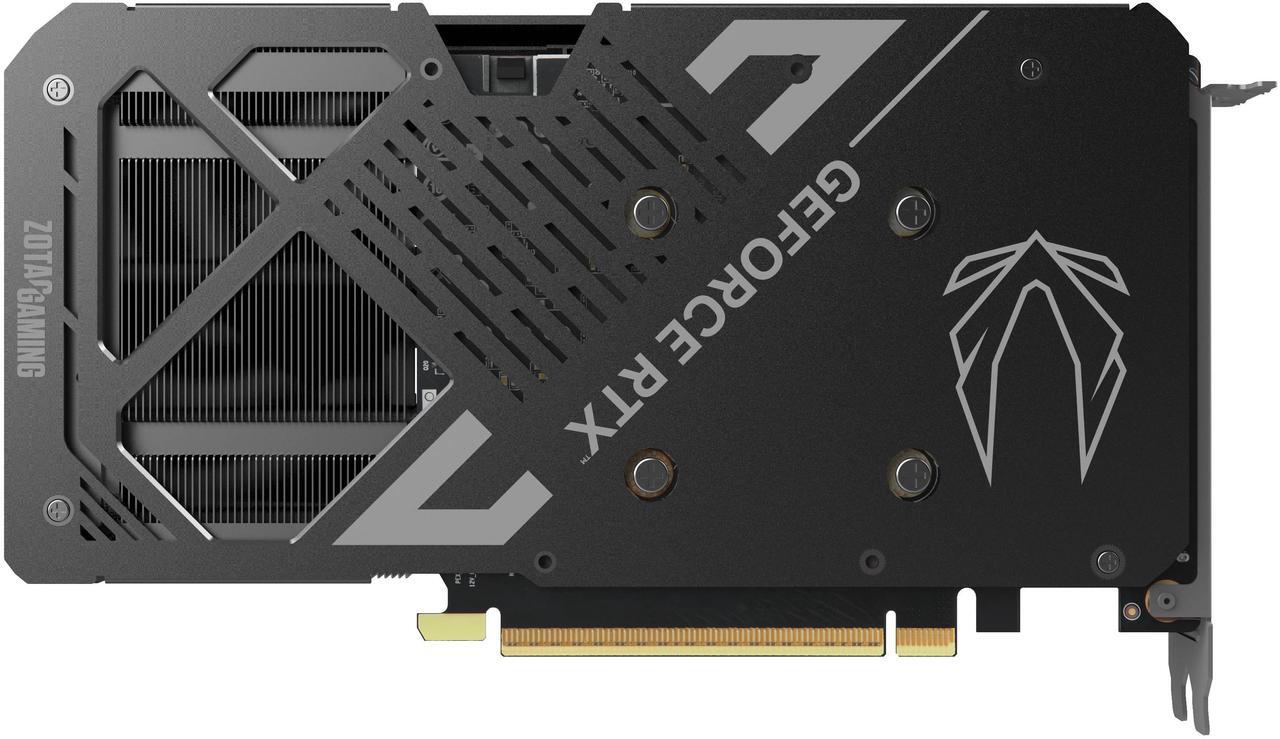

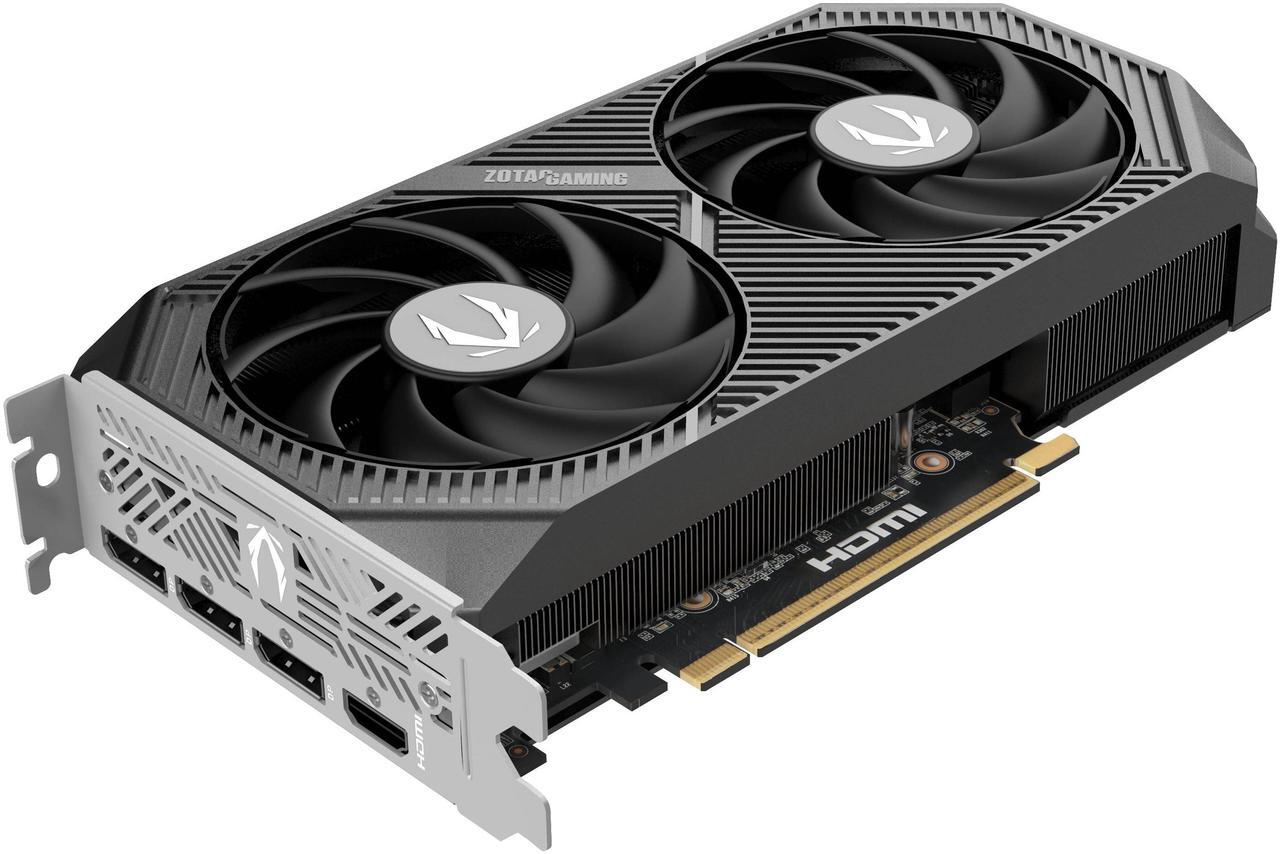

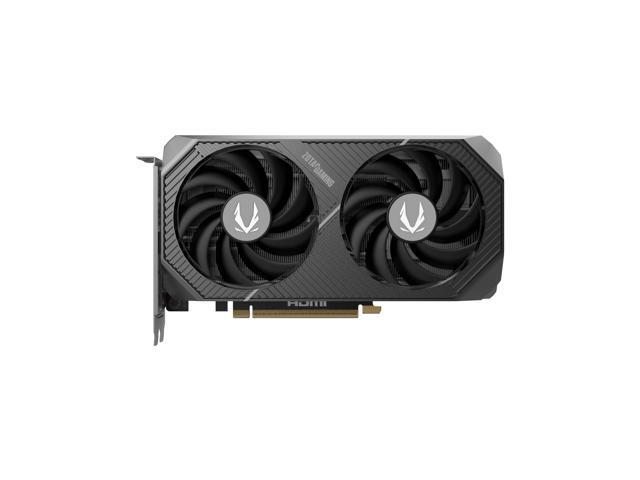

ZOTAC Twin Edge GeForce RTX 5060 Ti 16GB 128-Bit GDDR7 PCI Express 5.0 x8 DLSS 4.0 Graphics Card ZT-B50620E-10M
- 16GB 128-Bit GDDR7
- Boost Clock 2572 MHz
- 1 x HDMI 2.1b 3 x DisplayPort 2.1b
- 4608 Cores CUDA Cores
- PCI Express 5.0 x8
- DLSS 4.0
Combo Up Savings Up To $270+
The more you add, the more you'll save!+
+
Specs
Reviews (6)
Learn more about the ZOTAC ZOTAC GAMING GeForce RTX 5060 Ti 16GB Twin Edge
| Brand | ZOTAC |
|---|---|
| Series | Twin Edge |
| Model | ZOTAC GAMING GeForce RTX 5060 Ti 16GB Twin Edge |
| Part Number | ZT-B50620E-10M |
| Interface | PCI Express 5.0 x8 |
|---|
| Chipset Manufacturer | NVIDIA |
|---|---|
| GPU Series | NVIDIA GeForce RTX 50 Series |
| GPU | GeForce RTX 5060 Ti |
| Architecture | Blackwell |
| Boost Clock | 2572 MHz |
| CUDA Cores | 4608 Cores |
| Effective Memory Clock | 28 Gbps |
|---|---|
| Memory Size | 16GB |
| Memory Interface | 128-Bit |
| Memory Type | GDDR7 |
| DirectX | DirectX 12 Ultimate |
|---|---|
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
|---|---|

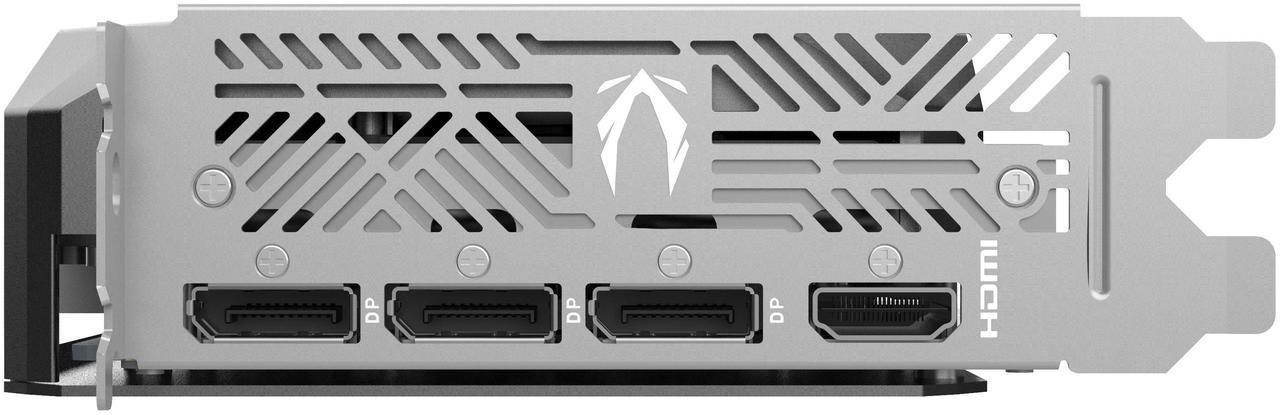

| HDMI | 1 x HDMI 2.1b |
| DisplayPort | 3 x DisplayPort 2.1b |
| CrossFireX Support | No |
|---|---|
| SLI Support | No |
| Virtual Reality Ready | Yes |
| Cooler | Double Fans |
| Operating Systems Supported | Windows 11 / Windows 10 64-bit (v1809 November 2018 or later) |
| Thermal Design Power | 180W |
| Recommended PSU Wattage | 650W |
| Power Connector | 8-Pin |
| HDCP Ready | Yes |
| Features | KEY FEATURES • NVIDIA Blackwell Architecture • 5th Generation Tensor cores • 4th Generation RT cores • NVIDIA DLSS 4 • Game Ready and NVIDIA Studio Drivers • NVIDIA® GeForce Experience™ • NVIDIA Broadcast, NVIDIA G-SYNC® • 16GB GDDR7 graphics memory • IceStorm 2.0 advanced cooling • FREEZE fan stop • Dual 90mm BladeLink Fans • Metal backplate • ZOTAC GAMING FireStorm Utility • Side Retention Mount for secure transport • SFF-Ready compact footprint |
|---|
| Form Factor | ATX |
|---|---|
| Max GPU Length | 221 mm |
| Card Dimensions (L x H) | Product: • Length: 220.5 mm (8.7 in) • Height: 120.25 mm (4.7 in) • Width: 2 slot (41.6 mm) (1.6 in) |
| Slot Width | 2 Slots |
| Package Contents | INSIDE THE BOX • ZOTAC GAMING GeForce RTX 5060 Ti 16GB Twin Edge OC • User Manual |
|---|
| Date First Available | April 15, 2025 |
|---|
