ZOTAC GF6100-B-E AM2+ / AM2 (AM3 CPU compatible) NVIDIA GeForce 6100 Micro ATX AMD Motherboard
- NVIDIA GeForce 6100
- AMD Athlon 64 / AMD Athlon 64 X2 / AMD Sempron Supported processor up to 65W
- DDR2 800
Specs
Reviews (74)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ZOTAC GF6100-B-E
| Brand | ZOTAC |
|---|---|
| Model | GF6100-B-E |
| CPU Socket Type | AM2+ / AM2 (AM3 CPU compatible) |
|---|---|
| CPU Type | AMD Athlon 64 / AMD Athlon 64 X2 / AMD Sempron Supported processor up to 65W |
| FSB | 1000 MHz |
| Chipset | NVIDIA GeForce 6100 |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR2 800 |
| Maximum Memory Supported | 4GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA133 2 Dev. Max |
|---|---|
| SATA RAID | 0/1 |
| Onboard Video Chipset | NVIDIA GeForce 6100 |
|---|
| Audio Channels | 6 Channels |
|---|
| Max LAN Speed | 100Mbps |
|---|
| Back I/O Ports | 1 x D-Sub / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 6.9" |
| Power Pin | 24 Pin |

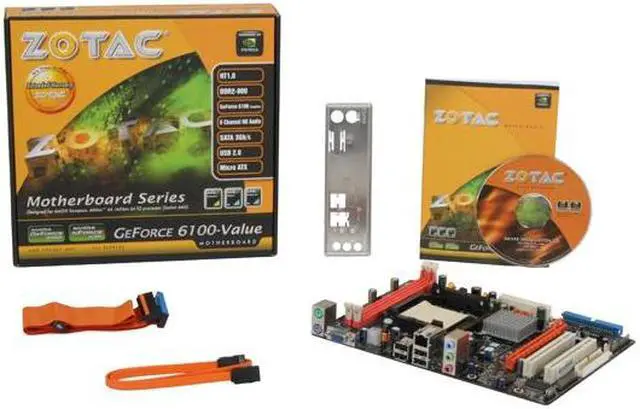

| Package Contents | GF6100-B-E Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable SATA Cable |
|---|
| First Listed on Newegg | December 03, 2008 |
|---|
