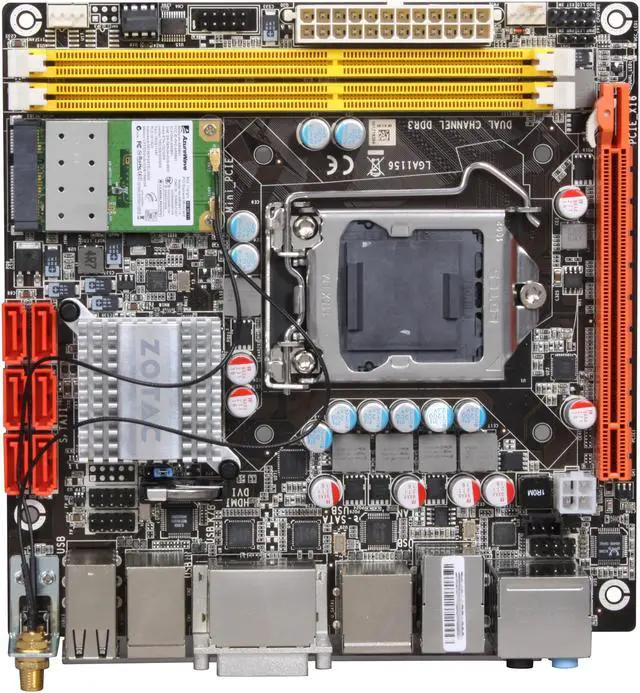

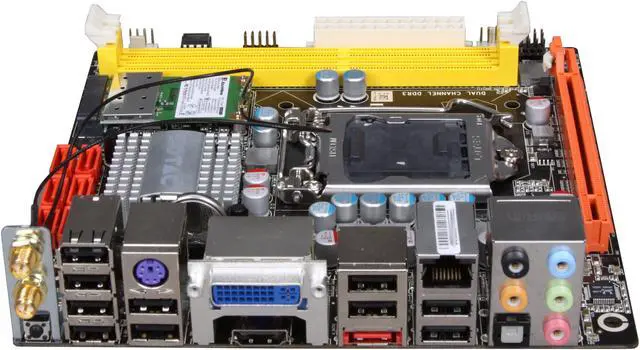

ZOTAC H55ITX-A-E LGA 1156 Intel H55 HDMI Mini ITX Intel Motherboard
- Intel H55
- Core i7 / i5 / i3 / Pentium (LGA1156)
- DDR3 1333/1066
Specs
Reviews (43)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ZOTAC H55ITX-A-E
| Brand | ZOTAC |
|---|---|
| Model | H55ITX-A-E |
| CPU Socket Type | LGA 1156 |
|---|---|
| CPU Type | Core i7 / i5 / i3 / Pentium (LGA1156) |
| Chipset | Intel H55 |
|---|
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR3 1333/1066 |
| Maximum Memory Supported | 8GB |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
|---|---|
| Mini Card Slots | 1 x Mini PCI Express (occupied by WiFi module) |
| Audio Channels | 8 Channels |
|---|
| Max LAN Speed | 1Gbps |
|---|---|
| Wireless LAN | WiFi IEEE 802.11 n |
| PS/2 | 1 |
|---|---|
| Video Ports | DVI |
| HDMI | 1 x HDMI |
| USB 1.1/2.0 | 10 x USB 2.0 |
| eSATA | 1 x eSATA 3Gb/s |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 5 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |
| Power Pin | 24 Pin |
| First Listed on Newegg | February 22, 2010 |
|---|
