ZyXEL ES-105 10/100Mbps SOHO Ethernet Switch 5 x RJ45 1K MAC Address Table 128KB Buffer Memory
- 5 x RJ45
- 1K MAC Address Table
- 128KB Buffer Memory
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ZyXEL ES-105
| Brand | ZyXEL |
|---|---|
| Model | ES-105 |
| Standards | IEEE802.3 10BASE-T Ethernet (twisted-pair copper) IEEE802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) ANSI/IEEE802.3 Auto-negotiation |
|---|

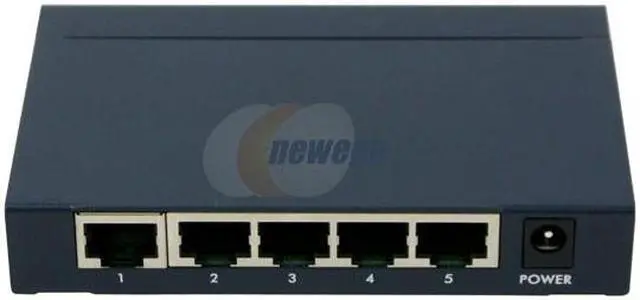

| Primary Ports | 5 x RJ45 |
|---|---|
| Primary Port Speed | 10/100Mbps |
| MAC Address Table | 1K |
|---|---|
| Switching Method | Store and Forward |
| VLAN Support | No |
| Buffer Memory | 128KB |
| Cabling | 10BASE-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 (100 m) 100BASE-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 (100 m) |
|---|---|
| LEDs | Per port: LK/ACT, FD/COL System: power |
| Power | AC input: 120 or 230 VAC, 50 ~ 60Hz DC output: 9VDC, 800mA Power Consumption:4.2W max |
|---|
| Dimensions | 4.3" x 2.8" x 0.8" |
|---|
| Temperature | 0°C to 45°C (32°F to 113°F) |
|---|---|
| Humidity | 10% - 90%, Non-condensing |
| Features | Simple-to-use Auto-MDI/MDI-X Flow Control Allows Fast and Reliable Connections |
|---|
| First Listed on Newegg | June 09, 2004 |
|---|
