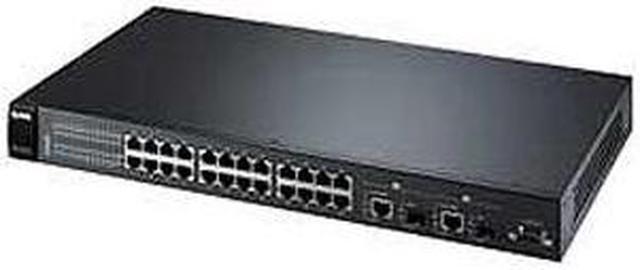

ZyXEL ES2024PWR Managed Layer 2 Fast Ethernet Switch with PoE

Be the first to review this product...

8K MAC Address Table
256KB Buffer Memory

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

ZyXEL ES-2024PWR is an entry-level, managed L2 Fast Ethernet Switch, and specially designed for SMB or Campus to empower multi-tasks in today's dynamic network environment requiring capability over security, QoS and network management. Complete product portfolio with optimized port configuration (26 port), embedded two dual-personality Gigabit Ethernet ports and Power over Ethernet (PoE) can easily find solution and fit in any network very easily.

Model
Brand	ZyXEL
Model	ES2024PWR

Format & Standards
Standards	IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100 Base-Tx Ethernet IEEE 802.3ab 1000 Base-T Ethernet IEEE 802.3z IEEE 802.3x Flow control IEEE 802.1d Spanning tree protocol IEEE 802.1w Rapid Spanning tree protocol IEEE 802.1p Class of service, priority protocols IEEE 802.1Q VLAN tagging IEEE 802.1x Port Authentication IEEE 802.3ad LACP aggregation IEEE 802.3af Power over Ethernet

Ports & Interface
Primary Ports	24 x 10/100M RJ-45 + 2 x SFP or RJ-45 Gigabit Port
Primary Port Speed	10/100Mbps + 1000Mbps

Data Transmission
MAC Address Table	8K
VLAN Support	Yes

Details
Buffer Memory	256KB
Security	MAC filtering per port secures access to each port Specific MAC forwarding per port: only specified MAC addresses can access the network (Port Security) Limited MAC number per port 802.1x port-based security, prevent unauthorized client access to the network IEEE 802.1Q tag-based and port-based VLAN Support GVRP, automatic VLAN member registration 256 static VLAN, up to 4K dynamic VLAN Full range 4K PVID support Port-based VLAN & VLAN Isolation MAC Freeze Intrusion Lock User name/password required for web/telnet/local console administrators Two level security by specific SNMP read/write community SSH v1/v2 SSL/TLS
Power	Input voltage of AC: 100-240VAC, 50/60Hz Max power rating of AC: 200 Watt

Features
Features	Performance: 8.8Gbps non-blocking switching fabric Flexible design for both Gigabit copper and Gigabit fiber connectivity Switching Forwarding Rate 6.6Mpps (1488000pps/1000Base-T/1000Base-X , 148800pps/100Base-TX) Wire-speed performance Traffic Management and QoS: IEEE 802.1p with 4 priority queues per port for different types of traffic. WRR (Weighted Round Robin)/SPQ scheduling algorithm DSCP to 802.1p priority mapping IGMP snooping MVR Congestion control on all ports Rate Limiting: Port-based bandwidth control, 64kbps granularity Port-based egress traffic shaping Broadcast Storm Control Link Aggregation: IEEE 802.3ad LACP link aggregation compliant Support static manually port trunking Up to 3 aggregation groups, per group support up to 8 ports Resilient Network: IEEE802.1w Rapid Spanning Tree Protocol (RSTP) provides rapid convergence of spanning tree independent of spanning-tree timer MIB Information: RFC1213 MIB II RFC1493 Bridge MIB RFC1643 Ethernet MIB RFC1757 RMON group 1,2,3,9 RFC2011 IP MIB RFC2012 TCP MIB RFC2013 UDP MIB RFC2233 ifVHCPacketGroup. RFC2674 VLAN MIB RFC2925 PING-MIB and TRACEROUTE-MIB ZyXEL Private MIB for EMS management Network Management: Supports ZyXEL iStacking, up to 24 switches can be managed by one IP address Web-based management Telnet CLI SNMP v2c RS-232c Local console IP management: static IP or DHCP client RMON four RMON groups 1, 2, 3, 9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis Port mirroring: supports Source/Destination/Both port mirroring

Dimensions & Weight
Dimensions	17.2" x 10.6" x 1.8"
Weight	8.82 lbs.

Environmental
Temperature	0ºC to 45ºC (32ºF to 113ºF)
Humidity	10% - 90%, Non-condensing

Group
Model	ES2024PWR

Additional Information
Date First Available	November 21, 2007

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 2 years
Limited Warranty period (labor): 2 years
Read full details

Return Policies

Return for refund within: 45 days

Return for replacement within: 1 year

This item is covered by Newegg.com's 45/1 Return Policy. Read full return policy for details.
