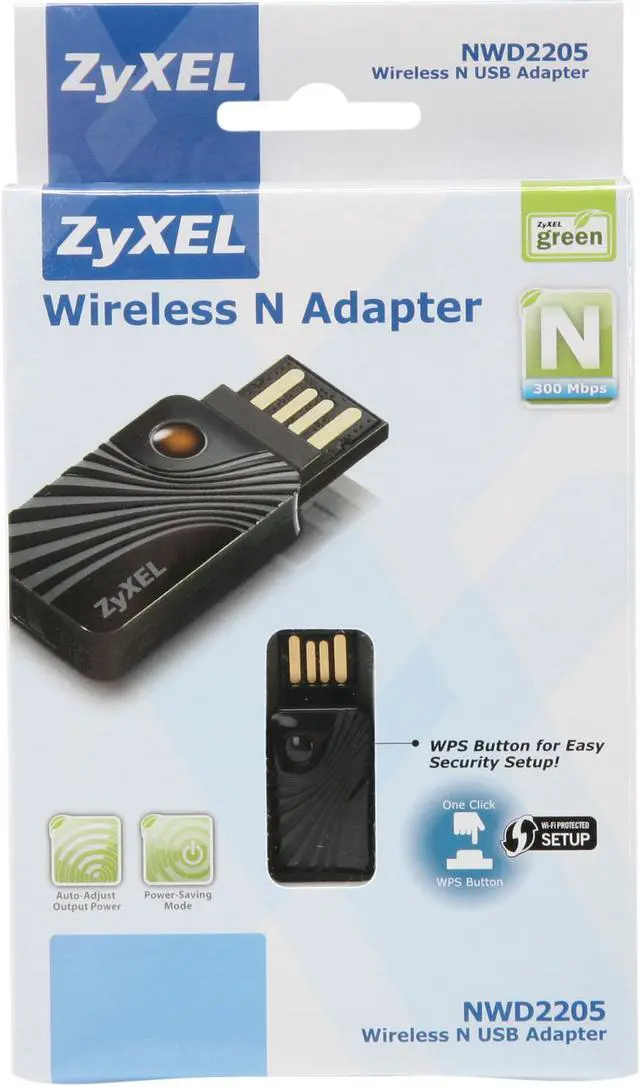

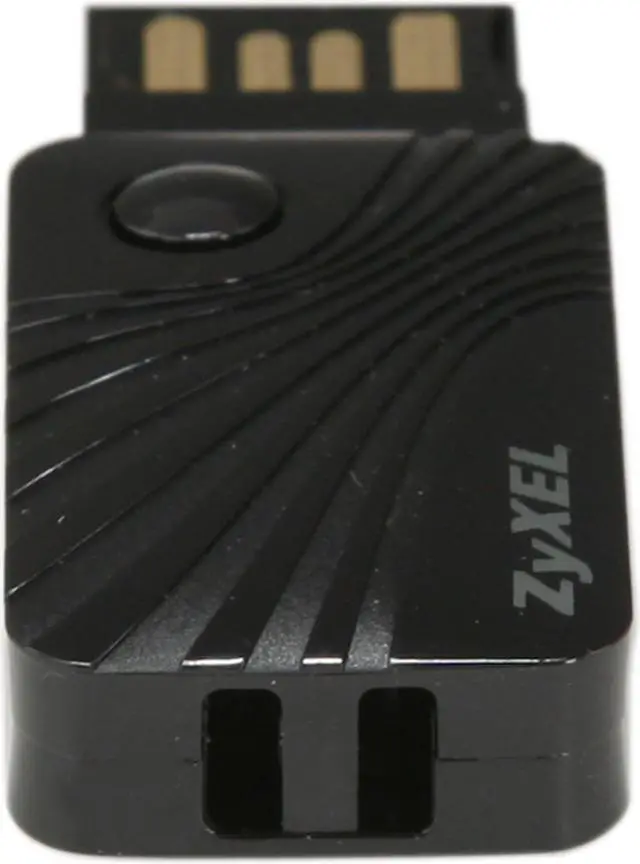

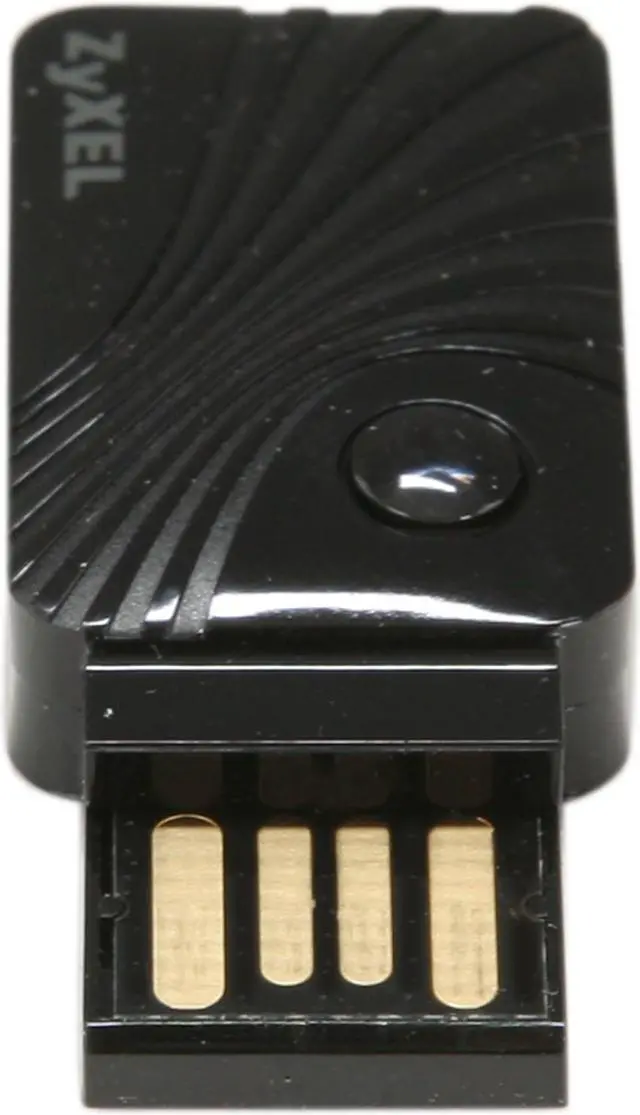

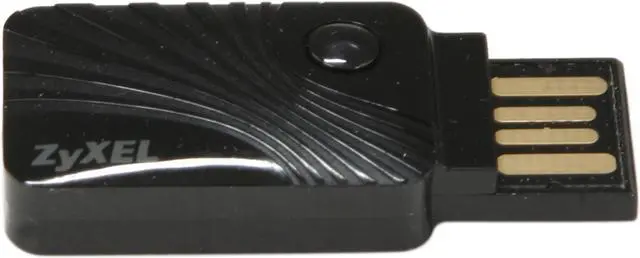

ZyXEL NWD2205 USB 2.0 Wireless Adapter - Black
- Ultra-compact design
- Data transfer rates of up to 300Mbps
- Soft AP feature for sharing wireless Internet access. 2x2 true MIMO for faster speeds and better coverage
Overview
Specs
Reviews (3)
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now
Ultra compact design for optimal portability

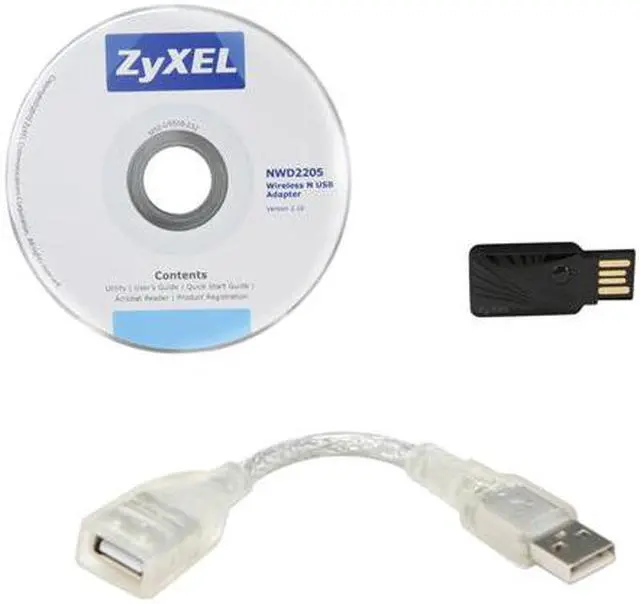

The compact, lightweight design of NWD2205 offers excellent portability. Users can easily plug NWD2205 to a USB connector on desktop or laptop computers to upgrade the network speed instantly. In addition, with bundled USB cable users can easily adjust the direction of NWD2205.
- System Specifications
• Compliant with 802.11n standard
• Backwards compatible with 802.11 b/g
• Wireless data transfer rate
Transmit: 300 Mbps*
Receive: 300 Mbps*
• Wi-Fi Multimedia (WMM) Support
• Wireless Security:
WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1x
WPS hardware button, WPS software feature
• Soft AP mode support
• Wireless green feature
Automatically adjust wireless output power by detecting the distance between NWD2205 and wireless access point
Enter power-saving mode when no traffic
- Hardware Specifications
• Operation voltage: DC 5V
• One WPS button with Link/Act LED
• One USB 1.1/2.0 port
• Power consumption:
Transmit: 315mA
Receive: 250mA
- Physical Specifications
• Item dimensions (WxDxH): 36 x 18 x 6 mm (1.42" x 0.71" x 0.24")
• Item weight: 3 g (0.01 lb.)
• Packing dimensions (WxDxH): 95 x 20 x 135 mm (3.74" x 0.79" x 5.31")
• Packing weight: 81 g (0.18 lb.)
- Environmental Specifications
• Operating environment:
Temperature: 0°C ~ 50°C (32°F ~ 122°F)
Humidity: 20% to 90% (Non-condensing)
• Storage environment:
Temperature: -30°C ~ 70°C (-22°F ~ 158°F)
Humidity: 10% to 90% (Non-condensing)
- Certification
• FCC/CE/IC/NCC
• Wi-Fi, WMM, WPS
• Windows XP/Vista/7
- OS Support
• Microsoft Windows XP/Vista/7/8/8.1 (32-bit/64-bit)
• Mac OS X v10.4/v10.5/v10.6/v10.7/v10.8/v10.9
• Compliant with 802.11n standard
• Backwards compatible with 802.11 b/g
• Wireless data transfer rate
Transmit: 300 Mbps*
Receive: 300 Mbps*
• Wi-Fi Multimedia (WMM) Support
• Wireless Security:
WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1x
WPS hardware button, WPS software feature
• Soft AP mode support
• Wireless green feature
Automatically adjust wireless output power by detecting the distance between NWD2205 and wireless access point
Enter power-saving mode when no traffic
- Hardware Specifications
• Operation voltage: DC 5V
• One WPS button with Link/Act LED
• One USB 1.1/2.0 port
• Power consumption:
Transmit: 315mA
Receive: 250mA
- Physical Specifications
• Item dimensions (WxDxH): 36 x 18 x 6 mm (1.42" x 0.71" x 0.24")
• Item weight: 3 g (0.01 lb.)
• Packing dimensions (WxDxH): 95 x 20 x 135 mm (3.74" x 0.79" x 5.31")
• Packing weight: 81 g (0.18 lb.)
- Environmental Specifications
• Operating environment:
Temperature: 0°C ~ 50°C (32°F ~ 122°F)
Humidity: 20% to 90% (Non-condensing)
• Storage environment:
Temperature: -30°C ~ 70°C (-22°F ~ 158°F)
Humidity: 10% to 90% (Non-condensing)
- Certification
• FCC/CE/IC/NCC
• Wi-Fi, WMM, WPS
• Windows XP/Vista/7
- OS Support
• Microsoft Windows XP/Vista/7/8/8.1 (32-bit/64-bit)
• Mac OS X v10.4/v10.5/v10.6/v10.7/v10.8/v10.9
